Mesa 807A Steam Shower Tub Combo
- Description
- Weights & Dimensions
- Specifications
- Mesa FAQ's
- Warranty

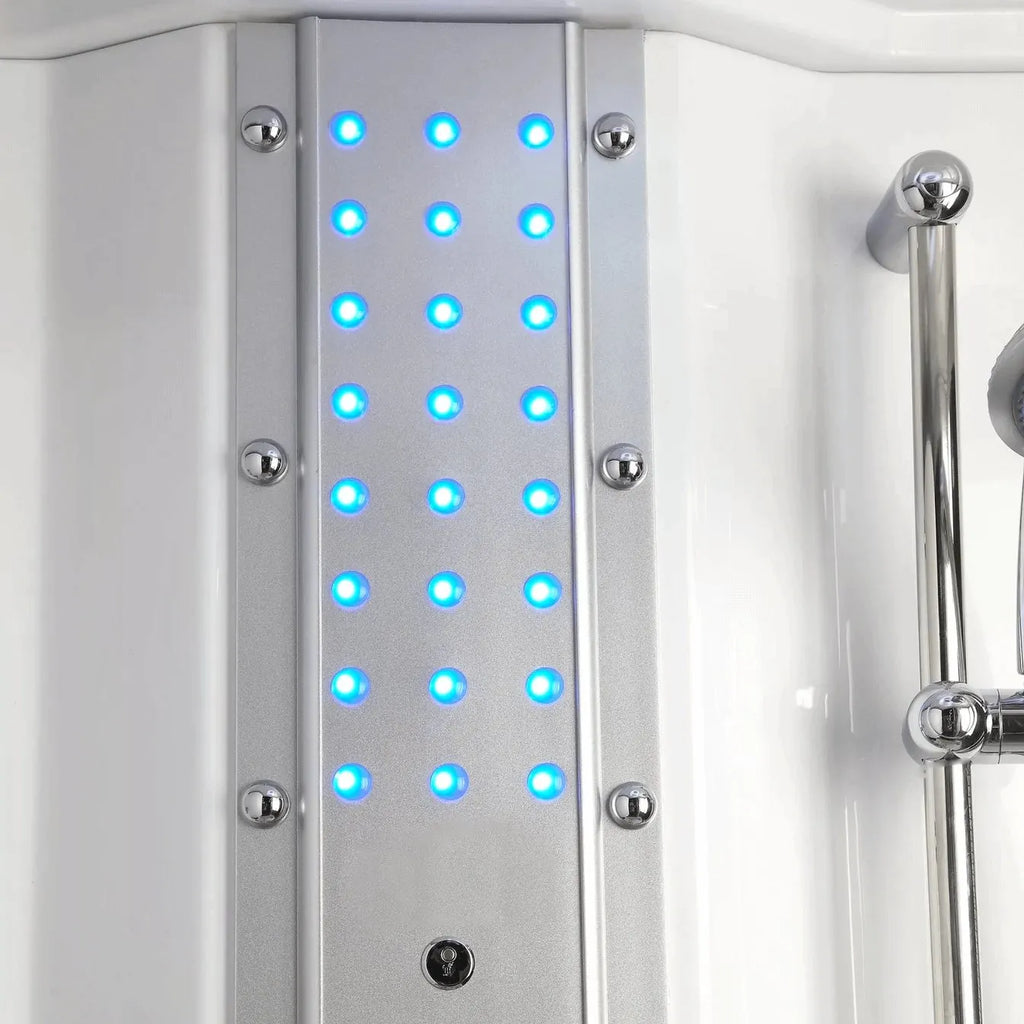

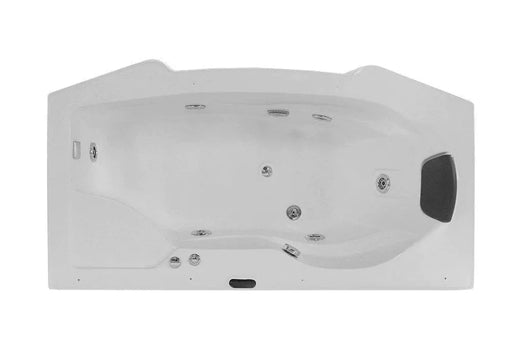

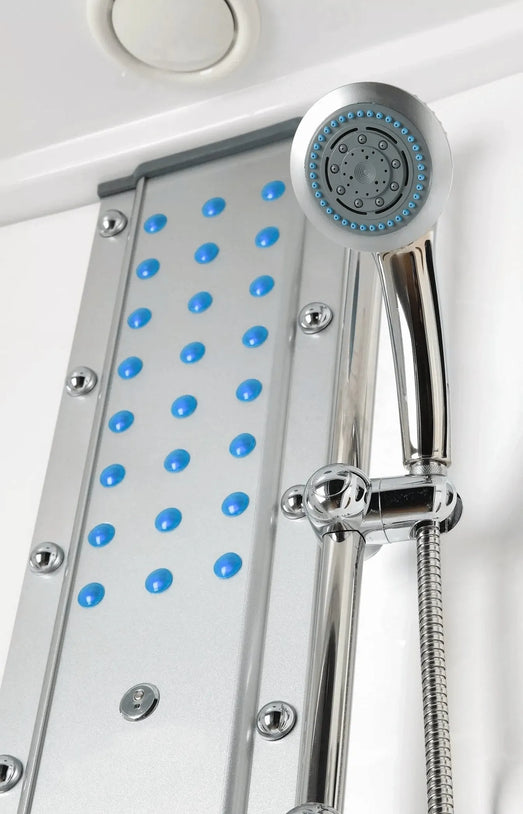

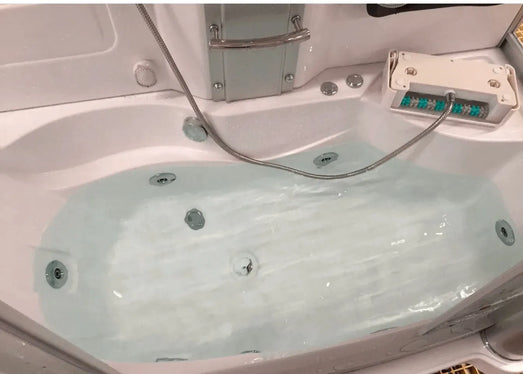

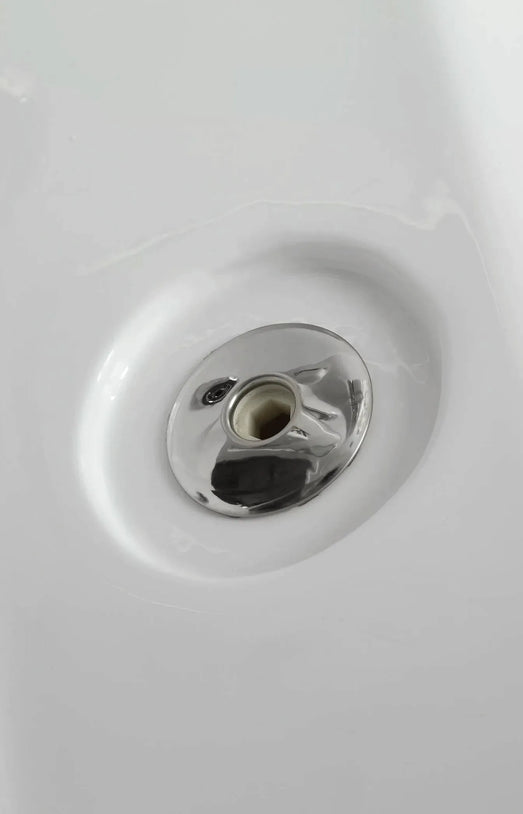

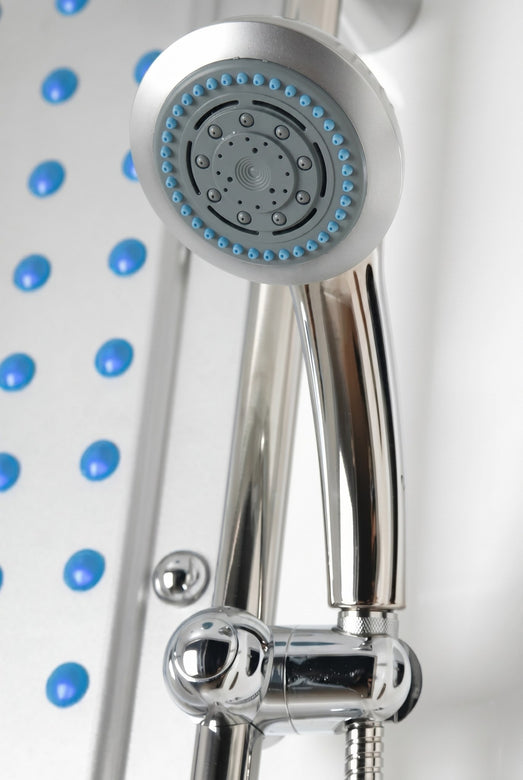

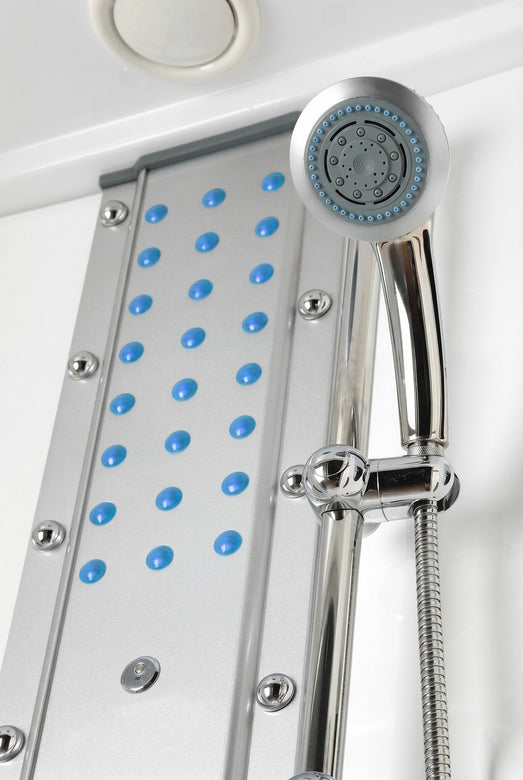

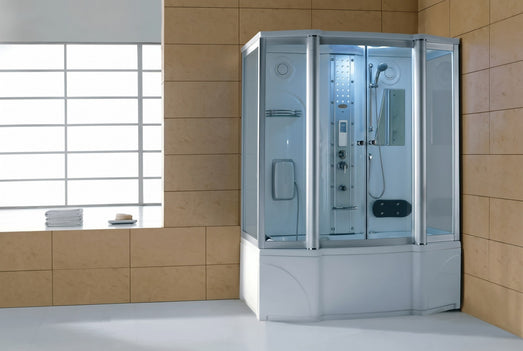

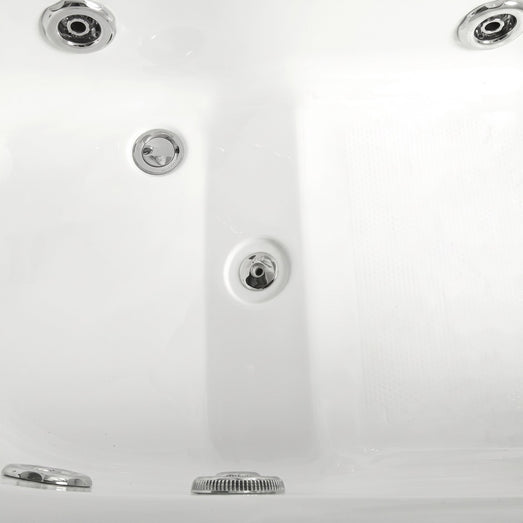

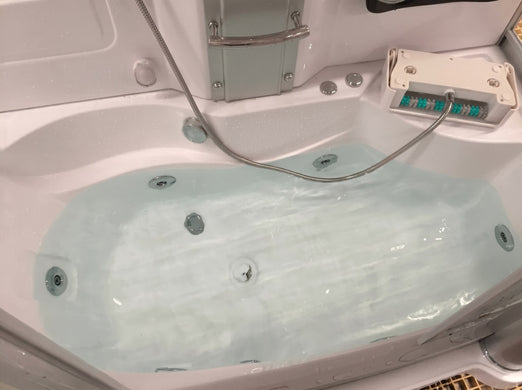

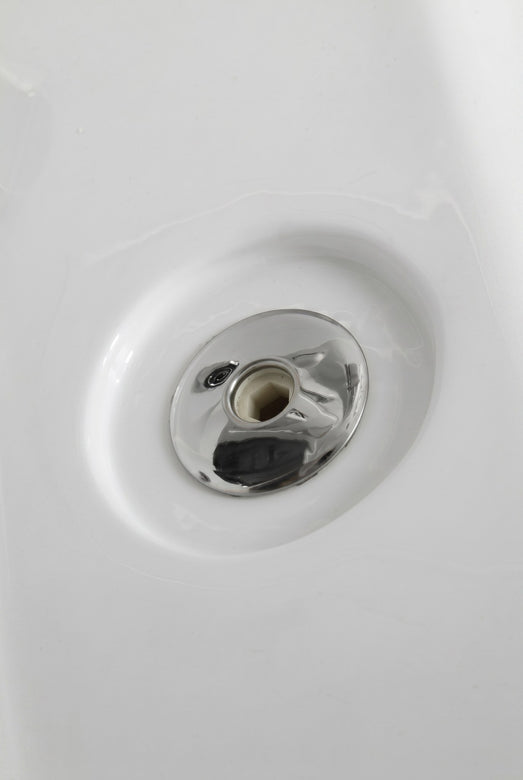

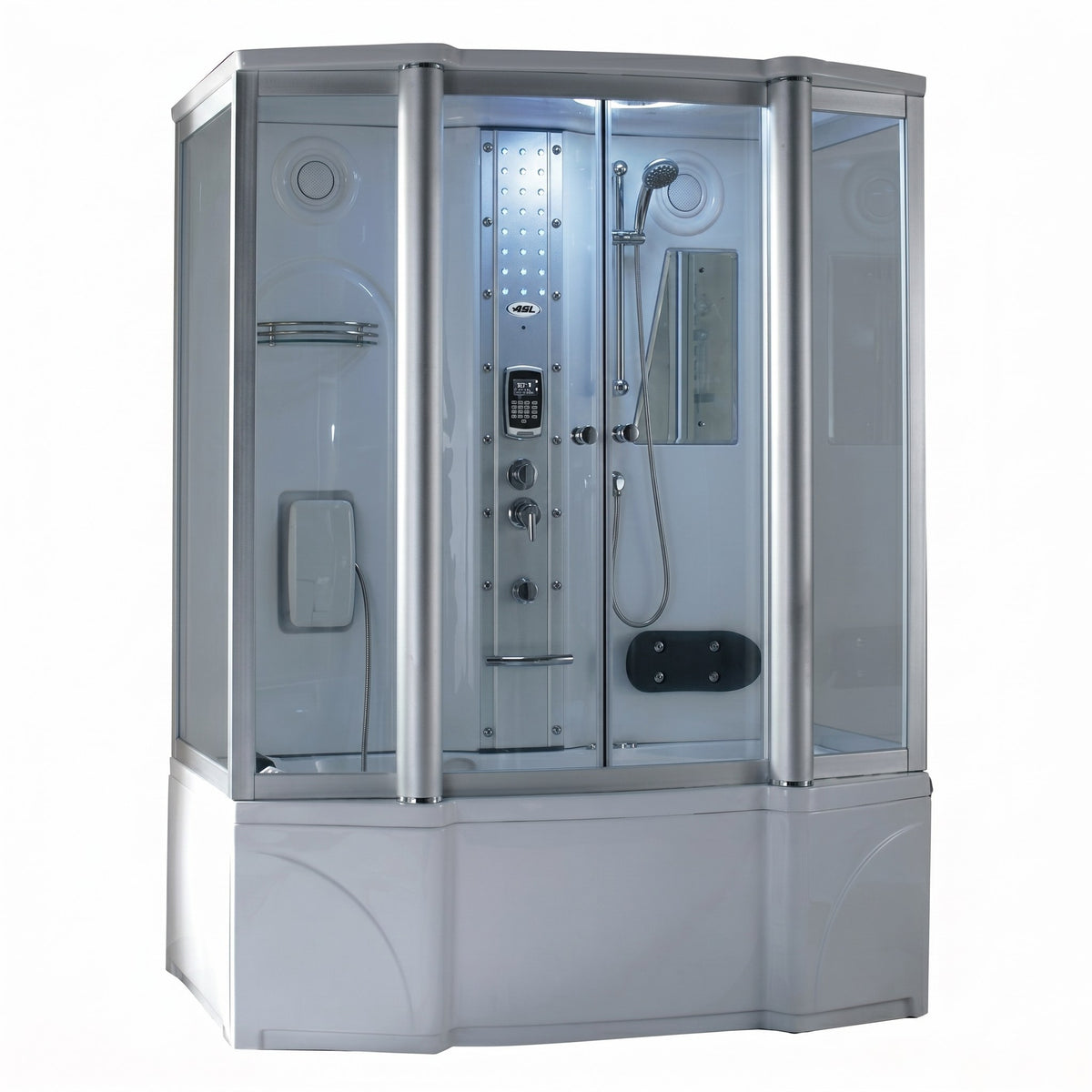

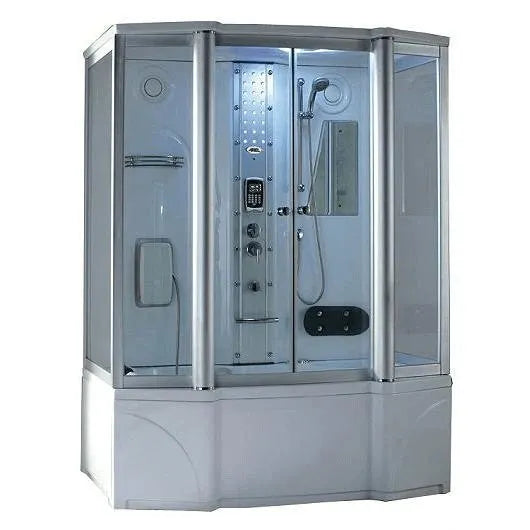

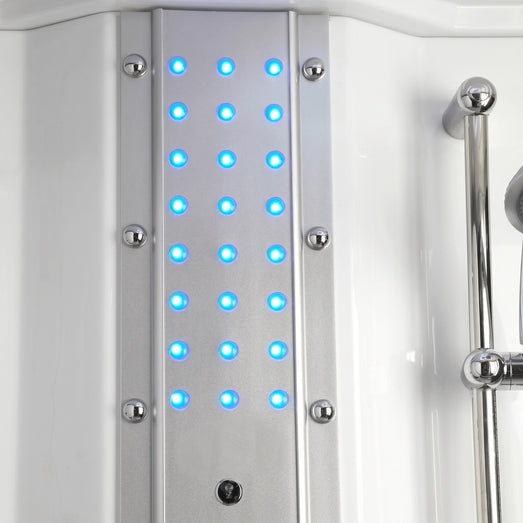

The Mesa 807A steam shower with jetted tub is our longest steam shower combination measuring a full 67" x 35". This fully loaded combination steam shower features a 3KW high output steam engine, and 6 body massage jets and 6 adjustable tub jets giving you a combined steam and massage experience. You and a partner can indulge yourself in a state of complete relaxation and tranquility in the expansive jetted tub.
| Exterior Dimensions | 67" x 35" x 86" (add 2" for ventilation exhaust pipe) |
Additional Documents
Features
| Product Type |
Steam Shower |
|
Steam Generator |
3KW Hight Output Steam Engine |

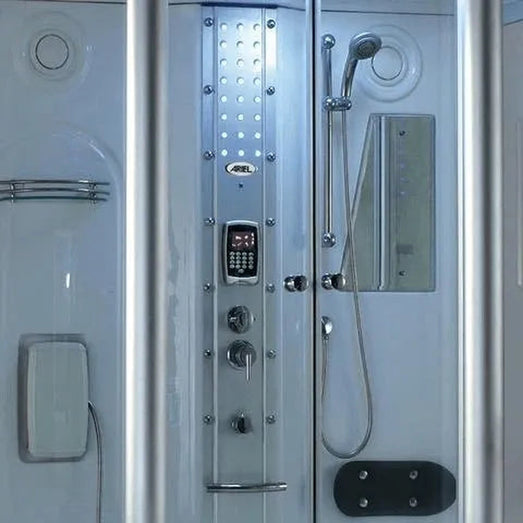

| Control Panel | Computer Control Panel |
| Glass | Tempered Clear/ Blue Glass |
| Drain | Flexible |
| Certification | 220V ETL Certified |
| Other Features |
|
| Additional Steam Shower Features |
|
| Number of Units Included | 1 |
| Supplier Intended and Approved Use | Residential Use |
Assembly
| Adult Assembly Required | Yes |
About the Brand
Mesa makes steam showers, steam shower and tub combinations, and whirlpool and air bathtubs. Topture is an authorized Mesa retailer: Mesa's warranty applies, subject to its terms, and Topture helps with troubleshooting and warranty coordination. Returns follow Topture's Refund Policy.
Highlights
Mesa's Flexible Drain Hose
Mesa Steam Showers, bathtubs, and whirlpools include a flexible drain hose for fast easy installation.
Mesa includes a flexible drain hose to help you get the job done faster and easier, with professional-grade durability and more versatility than the traditional corrugated pipe. Flexible and expandable, it easily bends around any obstacle, holds its shape during installation and with a simple snap, its integrated soil-tight fittings lock securely and stay connected during backfilling.
What does this mean to you?
You can pretty much put your drain anywhere you want. All of our units come with a pre-cut drain and flexible hose. This means you are now able to put your drain or steam shower anywhere you want!!
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
What's a Flexible Drain Hose?
Mesa Steam Showers, bathtubs, and whirlpools include a flexible drain hose for fast easy installation. The flexible drain hose has professional-grade durability and more versatility than the traditional corrugated pipe. Flexible and expandable, it easily bends around any obstacle, holds its shape during installation and with a simple snap, its integrated soil-tight fittings lock securely and stay connected during backfilling.
The units come with a pre-cut drain and flexible hose. This means you are now able to put your drain or steam shower anywhere you want.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What voltage does the unit run on?
UNLESS OTHERWISE SPECIFIED, 110v
What type of Electrical Connection and Breaker will I need?
UNLESS OTHERWISE SPECIFIED, One 30 AMP GFCI Breaker.
What can I use to clean the shower and tub?
Non-Abrasive cleaners will work great on this surface. There are no special ways to treat this type of acrylic surface, so continue to clean the unit just as you would your normal fiberglass or acrylic shower. A good maintenance tip is to spray a non-abrasive cleaner onto the surface and wipe down or wash away weekly.
I would like to place on the second floor, will there be a weight problem?
The unit is about 500 lbs.+ water and your weight, and that is definitely a case by case type question. Jetted tub units will hold water like a bathtub and will have more weight.
Please consult your contractor based on the weights we have provided.
Can I use aromatherapy with these steam showers?
Yes, aromatherapy can easily be used inside the steam emitting cup.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
How many Gallons per Minute do these steam showers use?
1.5 - 2 Gallons Per Minute (GPM)
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?

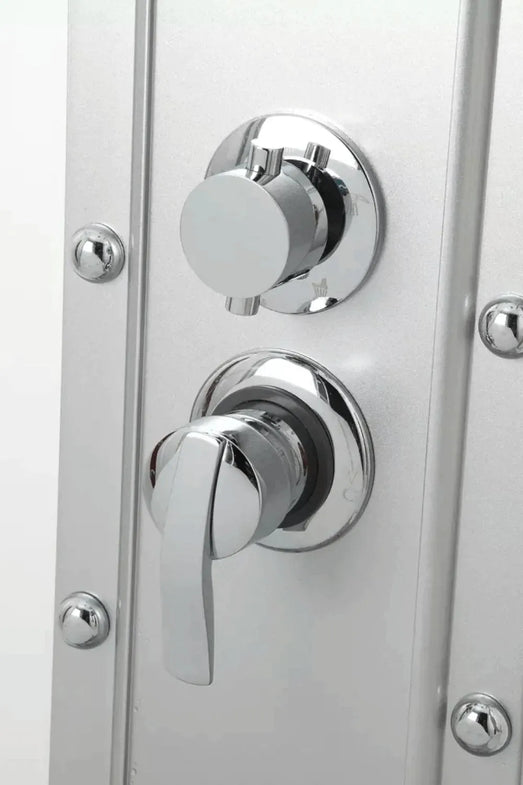

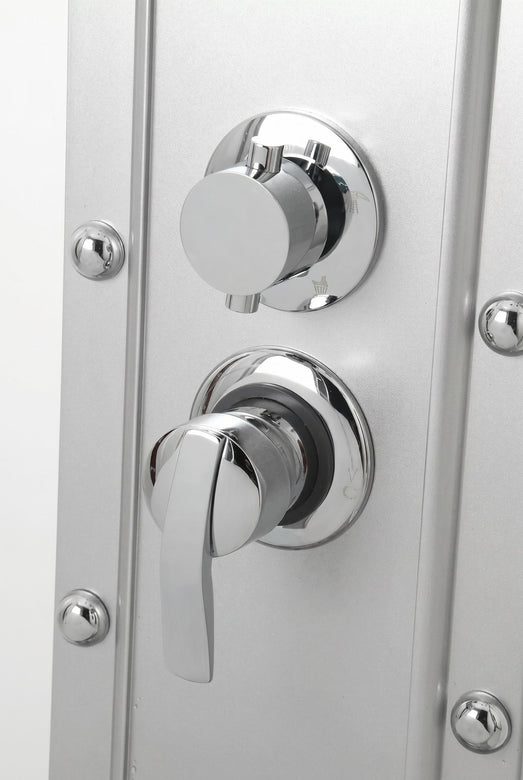

The connection is located behind the shower hot/cold controls which differ per unit. Normally the hot/cold is about 30" from the floor on the back of the unit. Flex hoses are included for easy hookups no matter where your current hot/cold is located.
Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
How is the warranty handled, and what will I have to do to get parts in the future?
If a part is defective, reach out to us and send a photo of the part you need. Please do not discard the defective part, until you get a replacement.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit.
All generators are mounted to the frame or screwed to the back of the unit so that they do not take up a room beyond the dimensions of the shower.
All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free-standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access.
The plumbing and the electrical connections are flexible so that you can easily make this happen.
If at all possible, an access panel is a terrific option in case of any future issues.
WARRANTY TERMS
All steam showers carry a (7) seven year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating or cracking. Structural components include the acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one year guarantee against defects.
All jetted tubs and air tubs carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the tub from peeling, fading, delaminating or cracking. All jetted tub and air tub parts carry a (5) five-year guarantee against defects.
Steam Showers carries most replacement parts in stock and will arrange for a spare part to be delivered to you. Replacement parts can be ordered by contacting our service department at contact@topture.com
Steam Showers recommends that a certified plumber or electrician replace the spare part. Steam Showers does not accept any responsibility or liability for the installation of spare parts.
WARRANTY DETAILS
All whirlpool bathtubs we sell brand-new original manufacturer whirlpool tubs, air tubs, and jetted tubs. Each item we sell comes with the original Manufacturer's Warranty; this information is clearly posted on the product page under Warranty Tab.
It is the customers' responsibility to confirm the product will comply with their state, county, or city codes. If you will be receiving an inspection by a county or city inspector, please ask them what they require.
Steam Showers Installation & Certification
The unit must be installed by a licensed plumber and electrician, or it will void the warranty of the unit from the manufacturer. The purchaser of the steam shower accepts full responsibility and liability for its proper use, operation, and installation. This unit is not to be used for commercial purposes. The purchaser also agrees to hold harmless and indemnify Topture.com from any actions, lawsuits, judgments, or liability claims arising from the use of these products.
Topture.com is not responsible for any liability or losses accruing from plumbing or electrical installation.
It is the customers' responsibility to confirm the product will comply with their state, county, or city codes. If you will be receiving an inspection by a county or city inspector, please ask them what they require.
