Harvia KIP Series Electric Heater, Requires Xenio Control (4.5kW/ 6kW/ 8kW)

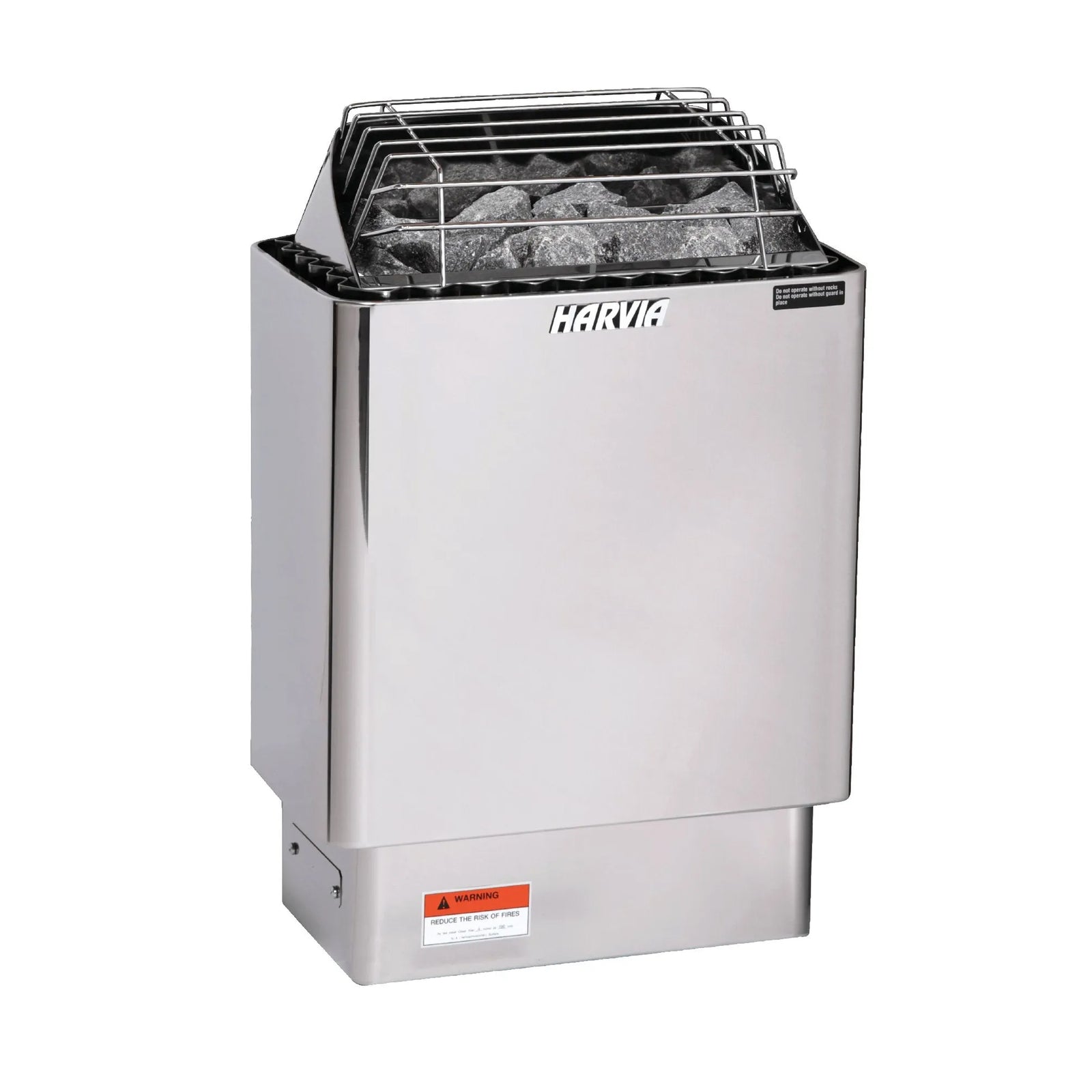

Wall-mounted Harvia KIP electric sauna heater, 4.5–8 kW for 100–425 cu ft rooms; requires a separate Harvia Xenio CX170 control

$954

$1,099

Save $145

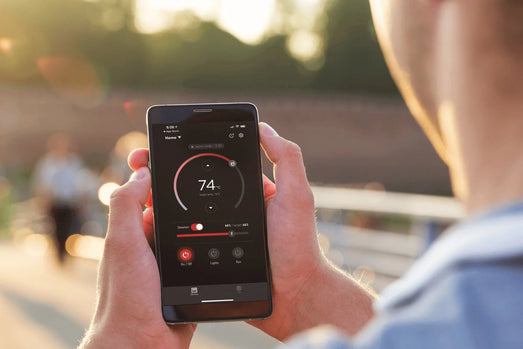

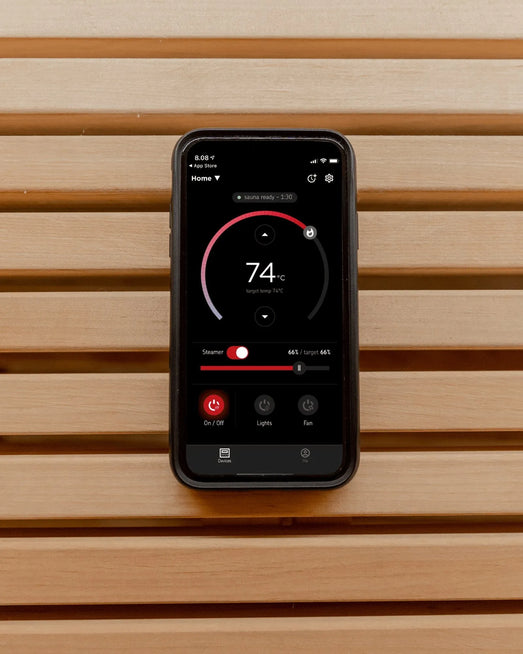

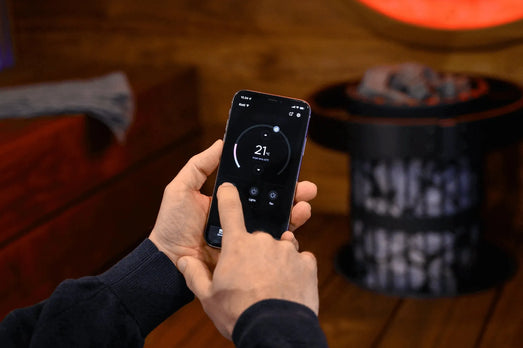

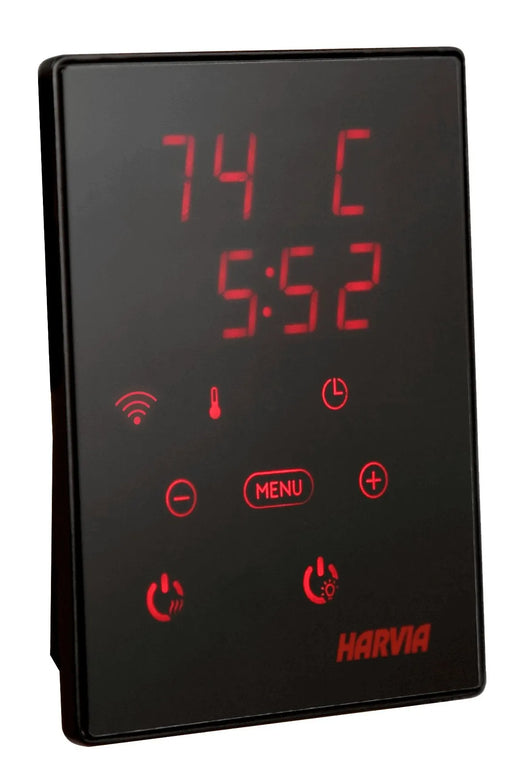

Runs from a Harvia Xenio CX170 control with MyHarvia Wi-Fi (sold separately)
44 lb of 2–4" stones behind a protective stone guard
240 V single-phase or 208 V three-phase models

The Sauna Mastery Protocol Digital Guide

$49 FREE

Full-Value Freight Protection

$299 FREE

Perfect for sauna rooms from 100 - 210 ft³

Select Stones

Required for Operation

Harvia Split-Face Olivine Diabase Sauna Heater Stones 2-4" / 44lbs | AC3000 | 1 Box
$59

Select Sauna Heater Control

Required for Operation · 240V/1PH heater: CX170-U1-15-XW · 208V/3PH heater: CX170-U3-15-XW

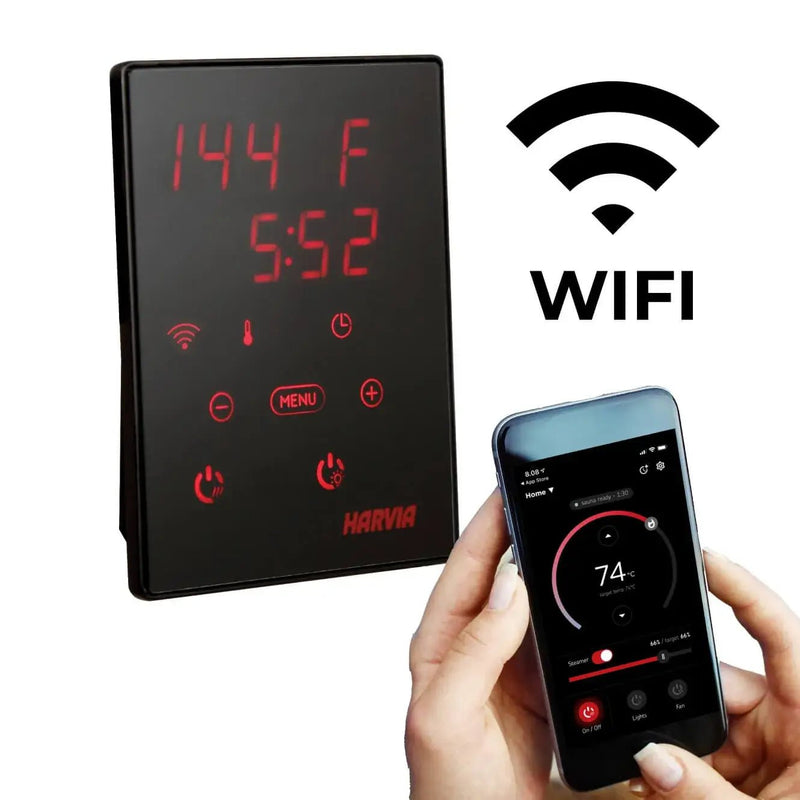

Harvia Xenio CX170 Sauna Control | CX170-U1-15-XW | 240V/1PH
$1,035
Harvia Xenio CX170 Sauna Control | CX170-U3-15-XW | 208V/3PH
$1,035

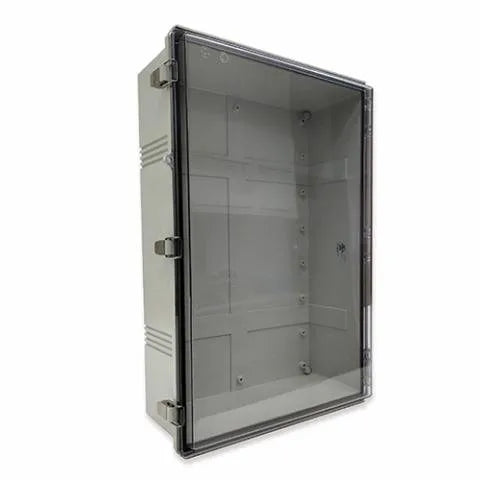

Add Waterproof Electrical Boxes For Outdoor Installation

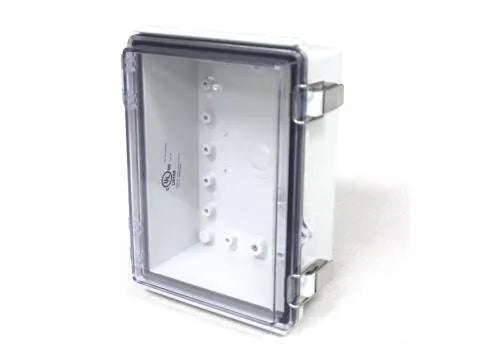

Weatherproof Control Panel Enclosure 7"x5"x3" (Sauna Gear 300)
$208

Select Add-Ons

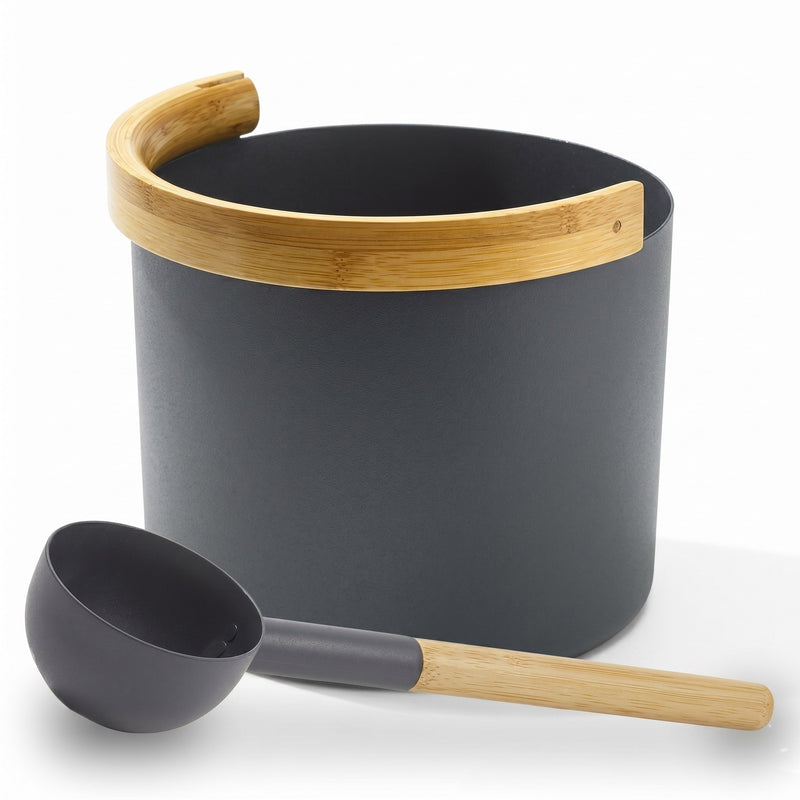

KOLO 1 Gallon Sauna Bucket+Ladle Aluminum & Bamboo | Black
$149

Quantity

Secure checkout
30-day return window*
2-year manufacturer warranty

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

In stock — estimated delivery in 7–12 days

Usually ships by UPS or FedEx; a signature is generally not required.

Description

What is the Harvia KIP electric sauna heater with separate control?

The Harvia KIP with separate control (KIP45W, KIP60W and KIP80W) is a wall-mounted stainless-steel electric sauna heater that has no controls of its own: it runs from a Harvia Xenio CX170 control, sold separately. It comes in 4.5, 6 and 8 kW for sauna rooms of 100 to 425 cu ft, on 240 V single-phase or 208 V three-phase power, and holds 44 lb (20 kg) of 2–4" stones behind a protective stone guard.

Which control does the Harvia KIP need?

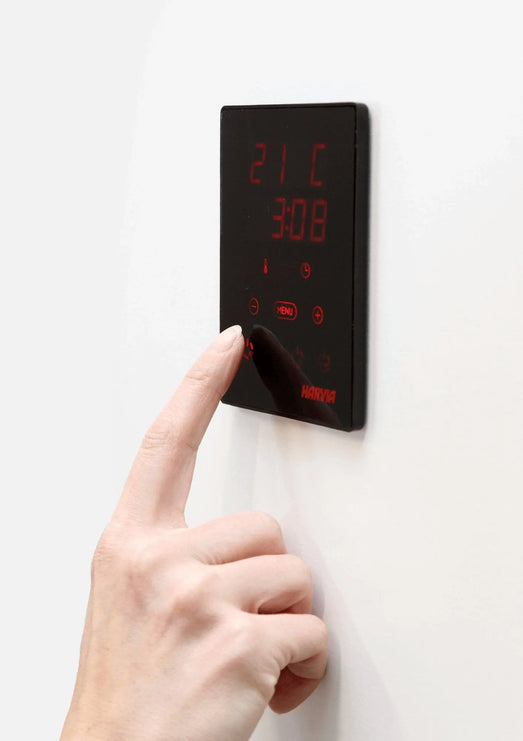

The Harvia KIP with separate control needs a Harvia Xenio CX170 control: the CX170-U1-15-XW for the 240 V single-phase heaters and the CX170-U3-15-XW for the 208 V three-phase heaters. Harvia's KIP manual says the control is purchased separately and brings the power unit and temperature sensor with it. Both Xenio models have Wi-Fi for Harvia's MyHarvia app; the Xenio can be set from 104 to 194°F (40–90°C), runs the heater for up to 1 hour per start and can delay a start by up to 12 hours. An older plain CX170-U1 is limited to 7 kW on one supply circuit, too little for the 8 kW KIP; the CX170-U1-15-XW Topture sells handles up to 10.5 kW that way. Topture offers the KIP only with the Xenio CX170; Harvia's Fenix controls are not offered for it.

Harvia KIP key features

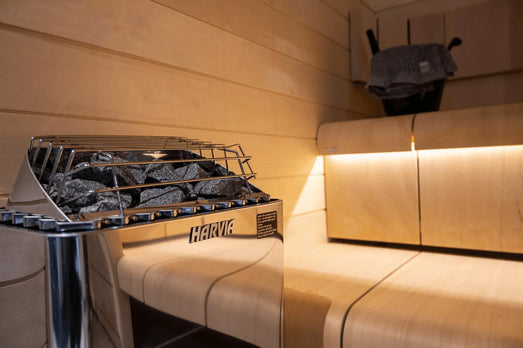

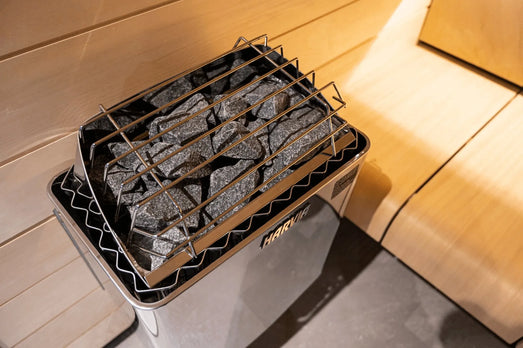

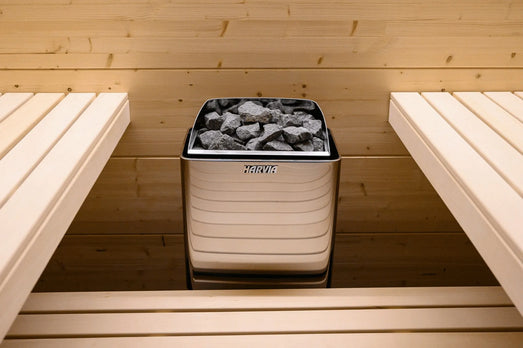

Wall-mounted on two lag screws, with a protective stone guard
Stainless-steel casing with dual-wall construction (Harvia)
44 lb (20 kg) of 2–4" split-face stones: one box of Harvia AC3000
4.5, 6 or 8 kW, on 240 V single-phase or 208 V three-phase power
Runs from a Harvia Xenio CX170 control with Wi-Fi, sold separately
c-UL-us listed; complies with UL 875

The same heater comes with built-in dials as the Harvia KIP with built-in controls, as a graphite-black KIP for 240 V, and in packages with the Xenio control and stones included, such as the Harvia KIP 8 kW package. The Harvia KIP collection has every KIP heater and package.

Specifications

Which Harvia KIP size fits my sauna?

Choose the Harvia KIP by the volume of your sauna room. Harvia's manual adds 1.2 m³ for every square meter of uninsulated brick, glass block, glass, concrete or tile wall, about 3.9 cu ft per sq ft, and a glass door counts: its example is a 10 m³ room with a glass door, which needs the output of a 12 m³ room. Multiply the volume of a solid-log sauna by 1.5.

Harvia KIP with separate control, by output (Harvia KIP manual Y05-1593 B, §5.3; net weights from Harvia's product data)
	4.5 kW	6 kW	8 kW
Harvia model	KIP45W	KIP60W	KIP80W
Sauna room volume	100–210 cu ft (2.8–6 m³)	170–300 cu ft (4.8–8.5 m³)	250–425 cu ft (7.1–12 m³)
Sauna floor area	16–30 sq ft	28–40 sq ft	40–65 sq ft
Current, 240 V single-phase	18.8 A	25.0 A	33.3 A
Cable, 240 V (supply + control conductor)	10/2 + 14/2 AWG	10/2 + 14/2 AWG	8/2 + 14/2 AWG
Current, 208 V three-phase	12.5 A	16.7 A	22.2 A
Cable, 208 V (supply + control conductor)	14/3 + 14/2 AWG	12/3 + 14/2 AWG	10/3 + 14/2 AWG
Net weight, 240 V / 208 V model	29 lb / 29 lb	29.7 lb / 29.8 lb	30.0 lb / 30.4 lb
Part number, 240 V	JH45WU1UL	JH60WU1UL	JH80WU1IUL
Part number, 208 V three-phase	JH45WU3UL	JH60WU3UL	JH80WU3IUL

Harvia KIP dimensions, stones and ratings

Harvia KIP with separate control, every output
Dimensions	17" W × 11" D × 25" H (Harvia installation drawing)
Stones	44 lb (20 kg) of 2–4" (5–10 cm) split-face stones: one box of Harvia AC3000
Power supply	240 V single-phase (KIP-xx-W1) or 208 V three-phase (KIP-xx-W3), 50/60 Hz
Control	Harvia Xenio CX170-U1-15-XW (240 V) or CX170-U3-15-XW (208 V three-phase), sold separately; required
Temperature setting	Set on the Xenio control, 104–194°F (40–90°C)
Heat-up time	30–60 minutes, which Harvia counts inside the control's 1-hour heating time
Mounting	Wall-mounted; not in a wall recess
Materials	Stainless-steel casing, dual-wall construction (Harvia)
Certification	c-UL-us listed; complies with UL 875
Warranty	2-year manufacturer warranty; Harvia adds a third year when the heater is registered on harvia.com within 30 days of purchase; stones are not covered

Installation

How is the Harvia KIP installed?

The Harvia KIP mounts on the sauna wall on two supplied lag screws, with its bottom 7–12" (178–305 mm) above the floor. Harvia does not allow it in a wall recess, and a sauna room takes only one electric heater. The Xenio control's power unit goes on a wall outside the sauna room, and its temperature sensor on the wall above the heater. Harvia's KIP manual says only a qualified electrician may do the electrical work. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code. Harvia's installation manual, under Documents, gives the exact screw, sensor and wiring positions.

Harvia KIP safety distances

Keep at least these distances between the Harvia KIP and walls, benches and anything that can burn.

Harvia KIP minimum distances by output (Harvia KIP manual Y05-1593 B, §5.3 and §6.4)
	4.5 kW	6 kW	8 kW
Heater side to side wall	3" (75 mm)	4" (100 mm)	5" (125 mm)
Heater to upper bench (horizontal)	3" (75 mm)	4" (100 mm)	5" (125 mm)

Harvia KIP, every output (Harvia KIP manual Y05-1593 B, §5.1 and §6.4)
Non-metallic guard rail, front and sides	Required, at least 2" (50 mm) from the heater: the caution label on the heater says one shall be installed
Lower bench beside the heater	At least 2" (50 mm) from the heater front, if the bench top is at least 1" (25 mm) below the top of the heater
Wall to front of the lower bench	At least 13" (329 mm)
Top of the heater to the ceiling	At least 43.3" (1,100 mm)
Bottom of the heater to the floor	7–12" (178–305 mm)
Sauna room height	At least 75" (USA) or 78" (Canada); ceiling no higher than 90"

Does the sauna room need ventilation?

Yes. Harvia's KIP manual calls for six air changes an hour, through a supply-air vent and a mandatory exhaust vent near the floor; the manual gives their positions and sizes.

What's Included

What's in the box with the Harvia KIP?

Harvia KIP electric sauna heater (4.5, 6 or 8 kW; 240 V single-phase or 208 V three-phase, by the option you choose)
Mounting screws
Two signs for the sauna: "Reduce the risk of fire" and "Reduce the risk of overheating"
Installation and user manual

What you need separately

A Harvia Xenio CX170 control (required): the CX170-U1-15-XW for 240 V or the CX170-U3-15-XW for 208 V three-phase. It includes the control panel, power unit, data cable and temperature sensor
One 44 lb box of Harvia AC3000 2–4" split-face stones
The circuit and wiring, installed by a licensed electrician
A non-metallic guard rail around the heater, at least 2" from it

To buy the heater, the Xenio control and the stones in one order, see the KIP packages in the Harvia KIP collection.

Documents

Harvia KIP with Separate Control Installation and User Manual (US)

Bathing Brands Harvia Stone Requirements Chart

Bathing Brands Harvia Element Requirements Chart

Warranty

Harvia Warranty

Read the full LIMITED WARRANTY TERMS AND CONDITIONS

Step 1

Size it right

Every heater page lists the exact room size it's rated for, so you can match it to your sauna before you order.

Step 2

Get it installed

We provide the install spec sheet your electrician needs and our team is available if questions come up.

Step 3

Real löyly

With the heater, stones, and room properly matched, water on the rocks delivers the steam wave and rolling heat of a true Finnish session.

WHAT COMES WITH EVERY TOPTURE ORDER

Free Bonuses Included With Your Topture Order

Claim $348 in Free Bonuses Today

BONUS 1

The Sauna Mastery Protocol

The session times, temperatures, and weekly rhythm that turn a sauna into a habit you keep. Covers heat-up protocols and what to expect across your first 30 sessions. Sent to your inbox after purchase.

$49INCLUDED

BONUS 2

Full-Value Freight Protection

Large orders ship fully insured. If freight arrives damaged, Topture helps coordinate the claim and replacement process with the carrier and manufacturer. Proper inspection and damage documentation at delivery are required. Most in-stock orders ship within 2–7 business days.

$299INCLUDED

Retail Price: $1,099

Today's price: $954

Choose your options now

We thought about buying a sauna for years and finally did. We absolutely love it, especially in the winter. It’s incredibly easy to assemble with two people the whole family uses it.

Verified buyer

Ordered this sauna fall 2024 and we love it. No better feeling during a Minnesota winter. Lastly, I have to mention the customer service for this purchase has been like no other. Any questions or requests I had were addressed immediately by Topture. I got more than I expected from them and have already recommended them to several people looking for saunas. SO if you're thinking about it, JUST DO IT already..

Verified buyer

Thanks for the great service - greatly appreciated.

Verified buyer

Choosing the right sauna

Compare models from multiple sauna manufacturers based on your space, climate, capacity, preferences, and budget.

Will they help you compare alternatives, or only answer questions about the product you've already selected?

Heater & electrical fit

Get help matching the heater to the sauna volume, glass area, controls, and electrical requirements.Try our heater calculator

Ask who will check that the heater and controls are right for your installation before you order.

Authorized products

Products are sourced through authorized channels and include the applicable manufacturer warranty.View independent listings

Verify that the retailer is authorized for the brand and that your manufacturer warranty will be valid.

Freight delivery

We help coordinate heavy-freight delivery and provide guidance on receiving and inspecting your shipment.

Ask how the order ships, how it will be unloaded, and what happens if freight arrives damaged.

Installation information

We help provide the manuals, specifications, clearances, and electrical information your installer may need.

Find out what documentation and project support will be available after checkout.

After the sale

Questions after delivery? We help with troubleshooting, documentation, warranty coordination, and manufacturer support.Read customer reviews

Ask who you will actually contact if something doesn't work after the order arrives.

462 Customer Reviews

Product and store reviews from Topture customers, collected by Judge.me.

Lifetime Expert Support

Same team before and after the sale, from sizing to warranty support.

Authorized Harvia Retailer

Sold by Topture, with the applicable manufacturer warranty.

Full-Value Freight Protection

Freight damage? We help coordinate the claim and replacement process.

STILL UNSURE?

Frequently Asked Questions

What comes with the Harvia KIP heater, and what else does it need to run?

The Harvia KIP with separate control ships as the heater with its mounting screws, two warning signs for the sauna and Harvia's installation manual. It does not run on its own: Harvia's KIP manual says the control unit is purchased separately and brings the power unit and temperature sensor with it. The heater also needs 44 lb of 2–4 in split-face stones, a circuit installed by a licensed electrician and a non-metallic guard rail. Topture sells the Harvia Xenio CX170 control and AC3000 stones separately, and sells KIP packages with both included.

Which control does the Harvia KIP heater need?

The Harvia KIP with separate control needs a Harvia Xenio CX170: the CX170-U1-15-XW for the 240 V single-phase heaters and the CX170-U3-15-XW for the 208 V three-phase ones. Both have Wi-Fi for Harvia's MyHarvia app; the Xenio can be set from 104 to 194°F (40–90°C), runs the heater for up to 1 hour per start and can delay a start by up to 12 hours. An older plain CX170-U1 is limited to 7 kW on one supply circuit, too little for the 8 kW KIP. Topture offers the KIP only with the Xenio CX170, not with Harvia's Fenix controls.

What size Harvia KIP does my sauna need?

Choose the Harvia KIP by the volume of the sauna room. Harvia's KIP manual gives 100–210 cu ft for the 4.5 kW, 170–300 cu ft for the 6 kW and 250–425 cu ft for the 8 kW. Add about 3.9 cu ft for every square foot of uninsulated brick, glass, concrete or tile wall, counting a glass door (Harvia: 1.2 m³ per m²), and multiply a solid-log sauna's volume by 1.5. The room must be at least 75 in tall in the US (78 in in Canada) and no more than 90 in.

What electrical supply does the Harvia KIP need?

The Harvia KIP runs on 240 V single-phase or 208 V three-phase power, by the model you choose. Harvia's KIP manual lists 18.8 amps for the 4.5 kW, 25.0 amps for the 6 kW and 33.3 amps for the 8 kW at 240 V, and 12.5, 16.7 and 22.2 amps at 208 V three-phase. The heater is wired through the Xenio control's power unit, and Harvia's manual says only a qualified electrician may do the electrical work. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code.

How is the Harvia KIP installed?

The Harvia KIP mounts on the sauna wall on two supplied lag screws, with its bottom 7–12 in above the floor; Harvia does not allow it in a wall recess, and only one electric heater may go in a sauna room. Keep 3, 4 or 5 in, by output, to the side wall and the upper bench and 43.3 in to the ceiling, and install the non-metallic guard rail Harvia requires, at least 2 in from the heater. The Xenio's power unit goes outside the sauna room and its temperature sensor above the heater; Harvia's manual gives the exact positions.

How long does the Harvia KIP take to heat up?

The Harvia KIP takes 30–60 minutes to heat the sauna, according to Harvia's KIP manual, and that time counts inside the Xenio control's 1-hour heating time, so restart the heating from the panel when you go in if you need longer. Harvia's troubleshooting says slow heating calls for checking that the elements glow, that the heater is powerful enough for the room, and that the ventilation is right. Uninsulated brick, glass or tile walls raise the output a room needs. Before the first sauna, run the heater for 5 minutes with the door open to burn off the coating on the elements.

How do you load and maintain the stones in a Harvia KIP?

The Harvia KIP takes 44 lb (20 kg) of 2–4 in split-face stones, which one box of Harvia AC3000 covers; Harvia names peridotite, olivine diabase, olivine or vulcanite. Put them in by hand so that no heating element shows between or below the stones, because bare elements are a fire hazard. Check the stones at least once a year, remove debris and broken stones, and replace them all every two years, or sooner with heavy use. Throw only clean water onto the stones.

What problems do Harvia KIP owners run into, and how are they avoided?

Most problems Harvia's manual covers for the Harvia KIP start with the control settings, the installation or the stones. A heater that will not heat needs the breaker, the Xenio's time and temperature and the overheat protector checked; the protector resets with a button in the heater's electric box once the heater is cool and the breaker is off. Stones that cool quickly under water mean the elements should be checked for glowing and the ventilation for flow. Quickly darkening panels mean short safety distances or elements showing through the stones. First-use odor is normal, and occasional bangs are stones cracking.

Who makes the Harvia KIP, and what is it made of?

The Harvia KIP is made by Harvia, the Finnish sauna manufacturer. The separate-control KIP has a stainless-steel casing with a protective stone guard and dual-wall construction; a graphite-black version is also sold for 240 V. The KIP is c-UL-us listed and complies with UL 875. On Harvia's installation drawing it measures 17 in wide, 11 in deep and 25 in high, and Harvia gives net weights of 29 to 30.4 lb by model.

What warranty does the Harvia KIP have?

Harvia's manufacturer warranty covers the Harvia KIP for 2 years, and Harvia adds a third year when the heater is registered on harvia.com within 30 days of purchase. The Xenio control has its own 2-year manufacturer warranty, with no registration year. Sauna stones are not covered, and Harvia's terms require the heater to be installed by a qualified electrician, with proof of the installation. Harvia US Inc. is the warrantor in North America; Topture is an authorized Harvia retailer and assists with troubleshooting and warranty coordination.

How does the Harvia KIP with separate control compare with the KIP with built-in controls?

The Harvia KIP with separate control is run from a Harvia Xenio CX170 wall panel with Wi-Fi, while the KIP with built-in controls has a thermostat dial and a timer dial on the heater and no Wi-Fi. Both come in 4.5, 6 and 8 kW for rooms of 100–425 cu ft and take 44 lb of stones. The built-in timer runs for an hour and can delay the start by up to 8 hours; the Xenio sets a temperature from 104 to 194°F, can delay a start by up to 12 hours and connects to the MyHarvia app. Only the separate-control KIP comes in 208 V three-phase at Topture, and it needs its control bought with it.

Where can you buy the Harvia KIP from an authorized dealer?

Topture is an authorized Harvia retailer and sells the Harvia KIP with separate control in 4.5, 6 and 8 kW, on 240 V or 208 V three-phase, with the Xenio CX170 control and AC3000 stones as options, or as KIP packages that combine the heater, the control and the stones. Topture adds Lifetime Expert Support, help with troubleshooting and warranty coordination, free shipping on orders over $200 within the continental US, financing through Shop Pay Installments at checkout, and a 30-day return window.

What does a Harvia KIP cost in total, delivered?

The delivered cost of a Harvia KIP from Topture is the heater price plus the parts it needs to run: a Harvia Xenio CX170 control and one 44 lb box of AC3000 stones. Topture has free shipping on orders over $200 within the continental US, so a KIP order ships free there. The KIP packages combine heater, control and stones at exactly the sum of the three parts. Budget separately for a licensed electrician and a non-metallic guard rail. Compare delivered totals, because some listings price the heater without its control. Financing is available through Shop Pay Installments at checkout.

General Topture Questions

Where are you located, and where do you ship from?

Topture is an online retailer serving customers in the contiguous United States. The company is Topture LLC, a Wyoming limited liability company, and its registered business address is 30 N Gould St, Ste N, Sheridan, WY 82801.

Orders ship from manufacturer and distributor warehouses in the U.S. and Canada, and some products ship directly from the manufacturer in Europe. Each product page shows its estimated delivery time.

How much is shipping?

Orders over $200 ship free within the continental United States. Orders under $200 carry a small shipping fee.

Two exceptions: SaunaLife and ThermaSol products carry a freight charge at any order value, and sauna stones ordered without a heater ship at $60 per box because of their weight.

Every charge is shown at checkout before you pay.

Do you provide financing?

Absolutely! To view your financing offer, simply select Shop Pay Installments as your payment method at Step 3 of checkout.

You'll need to enter a debit card to receive your offer, but don’t worry—you can still back out before completing the purchase.

How long will it take for my items to arrive?

If your order is in stock, most orders ship within 2–7 business days of purchase. Transit time then depends on the distance from the warehouse and, for freight, on booking a delivery appointment.

For custom, pre-order or made-to-order items, the estimated delivery time frame is listed on the product page. Delivery dates are estimates, so please don't book installation labor until your order has arrived and been inspected.

What happens after I place my order?

As soon as you place your order, you'll receive a confirmation email with your order details—be sure to keep it for your records. Once your order ships, you'll receive another email with tracking information.

For freight deliveries, the carrier will call or text you to schedule an appointment once the shipment reaches their local terminal. Someone needs to be there to inspect the shipment and sign for it. Smaller parcels arrive by UPS or FedEx without an appointment.

Is there a warranty?

Yes. Products purchased through Topture include the applicable manufacturer’s warranty, subject to the manufacturer’s terms. You’ll find the warranty details for each product under the "Warranty" tab on its product page, and we help with troubleshooting and warranty coordination if an issue comes up.

Do you have a showroom?

We don’t have a showroom — we sell online. Our team is available by phone, email and chat to help you compare models, sizes and heaters, and we can send dimensions, installation manuals and electrical requirements before you buy.

Where do you deliver to?

We deliver throughout the 48 contiguous states, with curbside freight delivery for large items. Free shipping and standard rates apply there only. Alaska, Hawaii, Puerto Rico, other U.S. islands and Canada are quoted separately, depending on the brand and model. We can't ship freight or oversized items to P.O. boxes.

Do you ship internationally?

International Shipping

For many products, yes, including to Canada, by custom quote. Email contact@topture.com with the product and your address before you order; availability and cost depend on the brand and model. Any duties, taxes and customs fees are your responsibility.

Shipping to Hawaii, Alaska, and Puerto Rico

Free shipping applies to the continental United States only. Shipping to Alaska, Hawaii, Puerto Rico and other U.S. islands is quoted separately and depends on the brand and model. Email contact@topture.com for a quote before you order.

Your electric sauna heater, done the right way.

Runs from a Harvia Xenio CX170 control with MyHarvia Wi-Fi (sold separately)
44 lb of 2–4" stones behind a protective stone guard
240 V single-phase or 208 V three-phase models

The Sauna Mastery Protocol Digital Guide

$49 FREE

Full-Value Freight Protection

$299 FREE

Secure checkout
30-day return window*
2-year manufacturer warranty

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

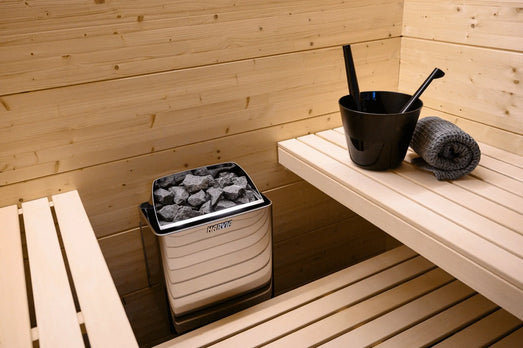

Harvia KIP Series Electric Heater, Requires Xenio Control (4.5kW/ 6kW/ 8kW)
