Sauna waterproof electrical boxes and what each control maker says about outdoor mounting
Whether a sauna electrical box is needed outdoors depends on the control and on the part that is mounted there: the maker's manual says what an outdoor spot calls for, part by part. Three makers put it this way:
-
HUUM UKU: choose a box for the control panel if it will sit outdoors, which HUUM's UKU manual recommends. Housing for the main module is your choice: HUUM says weatherproof housing can be added if desired.
-
Harvia Fenix or Xenio: plan a cover if the control unit will sit outdoors. Harvia's manual for its Fenix and Xenio controls says the control unit, meaning the power unit and the control panel, is not suitable for outdoor use without a cover.
-
Saunum Air IQ: choose an enclosure for the control panel if it will sit outdoors: Saunum's Air IQ manual says the panel has to be inside a protective enclosure there.
Sauna waterproof electrical boxes compared by size and what goes inside
Each SaunaLife SaunaGear box here is UV-stabilized polycarbonate with a continuous gasket and a hinged door, and Topture lists each with stainless steel latches and with an internal mounting panel and enclosure mounting feet included.
-

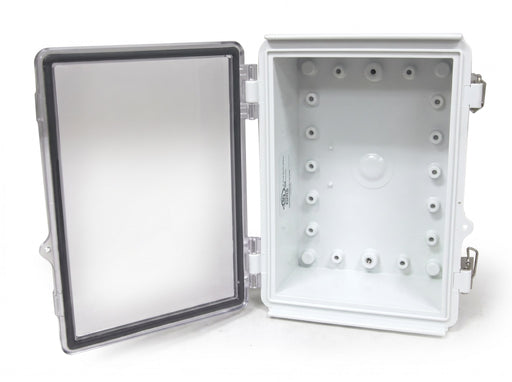

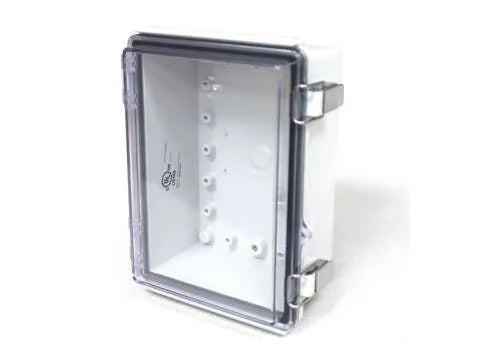

Choose the SaunaGear 300 if the part is the control panel of a HUUM UKU Local or UKU Wi-Fi, or of a Saunum Air or Air L package: Topture's listings for these offer the 300, SaunaLife's control enclosure with a clear door, as an optional add-on. Topture's UKU Wi-Fi Glass and UKU Wi-Fi Mirror listings do not offer it; they offer the Model 302 only. For a panel from another control, check its size against the 300's inside dimensions, which Topture lists as 7.16 × 5.19 × 3.23 inches.
-

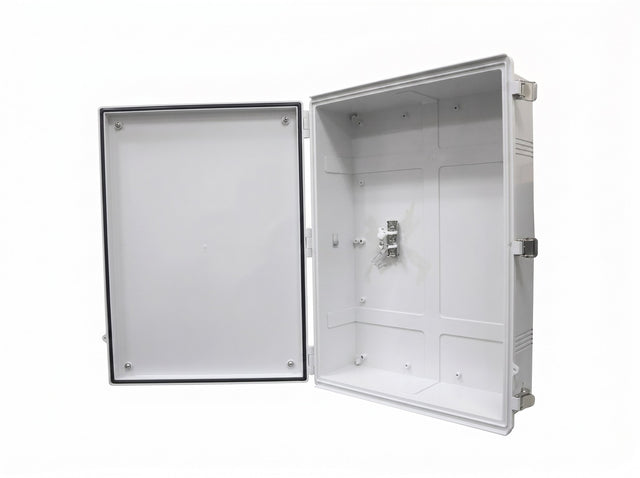

Choose the SaunaGear 301 or the 302 XL if the part is electrical equipment: these two are SaunaLife's electrical enclosures. Take the 302 XL if the equipment needs more room, as it is the larger of the two. Of these two, Topture offers the 302 XL with a HUUM UKU: its UKU Local, UKU Wi-Fi, UKU Wi-Fi Glass and UKU Wi-Fi Mirror listings offer it as an optional add-on, and no UKU listing offers the 301. The pairing is Topture's offer: HUUM names no enclosure.
-
Confirm the fit before you order if the part is a power unit or a main module: Topture lists the 301 and the 302 XL by their outside dimensions, so check the part's size, and the space its own manual asks for, against the room inside the box.
Mounting a sauna waterproof electrical box: placement and wiring
Where a control part is mounted comes from its maker's manual, and a sauna waterproof electrical box goes in that same place:
-
HUUM UKU plastic control panel: outside the sauna room; HUUM's UKU manual says it must be installed there.
-
HUUM UKU main module: outside the sauna room, per HUUM's UKU manual.
-
Harvia Fenix or Xenio power unit: on a wall outside the sauna room, in a dry place with an ambient temperature above 32°F (0°C), per Harvia's manual.
-
Saunum Air IQ: the control panel on a wall outside the sauna room, in a place protected from water splashes, and the power unit in a dry spot no warmer than 113°F (45°C), per Saunum's manual.
Pick the mounting spot before you pick a sauna waterproof electrical box, and check that spot against the limits the maker gives for the part. For the wiring as a whole, read Topture's guide to sauna electrical requirements. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code.
Topture is an authorized SaunaLife dealer, listed in SaunaLife's dealer directory, and shipping for these sauna waterproof electrical boxes is shown at checkout. Products purchased through Topture include the applicable manufacturer's warranty, subject to the manufacturer's terms; Topture assists with troubleshooting and warranty coordination. Topture's Lifetime Expert Support is reachable by phone at (833) 419-1774, by live chat or by email at contact@topture.com. How an order with Topture works is covered in the buying section of the sauna heaters page.
Sauna waterproof electrical boxes next steps: choose the control, check HUUM's panels or ask about fit
Three routes lead on from these sauna waterproof electrical boxes, by what you still have to settle:
-
No control yet: settle the control before the box, beginning with the sauna heater controls.
-
Mounting a HUUM control: compare the UKU panels on the HUUM sauna controller page before you pick a box.
-
Unsure whether a part fits: ask Topture's Lifetime Expert Support, with the control's maker and model and the place it will be mounted.
