Sunray Burlington Outdoor Infrared Sauna 200D3 · 2-Person
A 2-person outdoor far-infrared sauna in Canadian hemlock with a sealed weatherproof finish, a metal composite roof and six infrared heaters.
- Six far-infrared heaters up to 140°F; SunRay's manual allows about 8–15 minutes to warm up.
- Built for outdoor placement: sealed Canadian hemlock under a metal composite roof.
- Runs on a dedicated 120 V outlet with its own 20 A circuit.
- Description
- What's Included?
- Specifications
- Assembly & Installation
- Shipping
- Documents
- SunRay Warranty
- FAQs

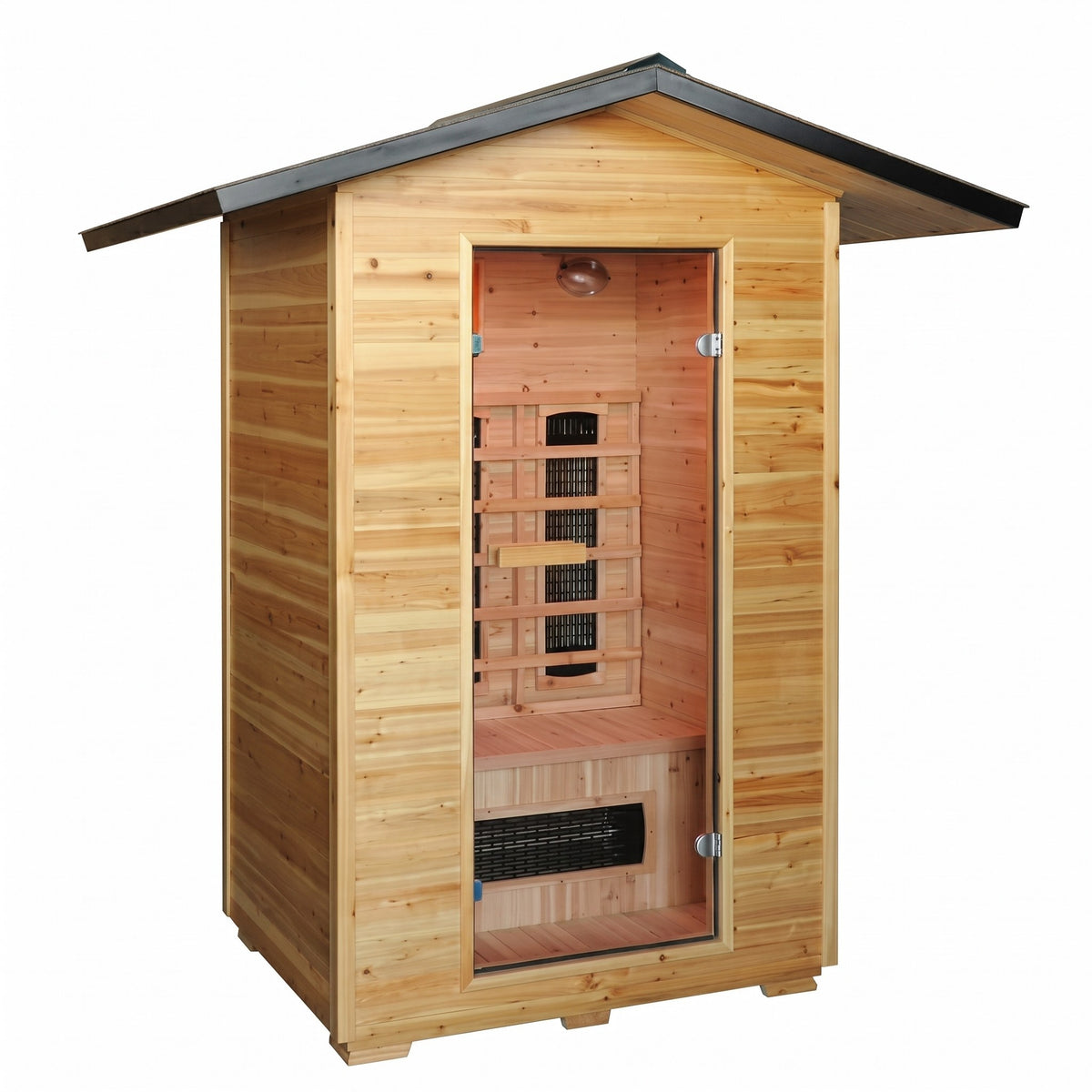

The SunRay Burlington (model 200D3) is a 2-person outdoor far-infrared sauna built from Canadian hemlock, with a sealed weatherproof finish, a metal composite roof and a glass door. It measures 47" W × 45" D × 87" H as a cabin, with a 67" W × 59" D roof footprint, and 43" W × 41" D × 68" H inside. SunRay lists its six far-infrared heaters at 1,900 W, reaching 140°F on a dedicated 120 V outlet with its own 20 A circuit. Its listed shipping weight is 301 lbs, and it ships by LTL freight as a kit for on-site assembly.
The Burlington is the 2-person model in SunRay's D3 outdoor infrared series, whose three sizes share one install manual. The 3-person SunRay Grandby is 69" × 47" with seven heaters and runs on the same dedicated 120 V, 20 A outlet; the 4-person SunRay Cayenne is 79" × 52" with ten heaters and needs a 240 V, 30 A circuit. For other sizes and brands, see our outdoor infrared saunas.
How the SunRay Burlington heats
Heat comes from far-infrared heater panels rather than a stove with rocks, and SunRay rates the cabin to 140°F.

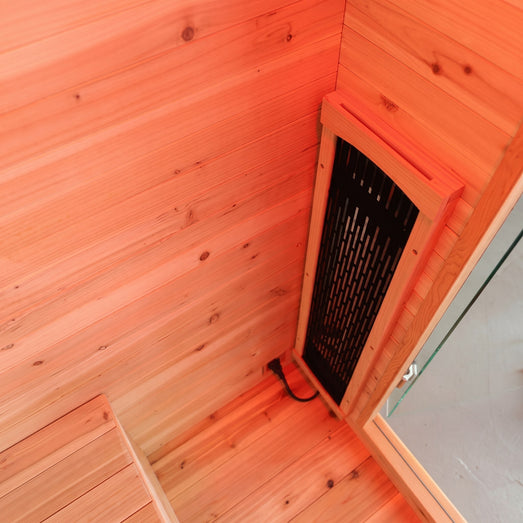

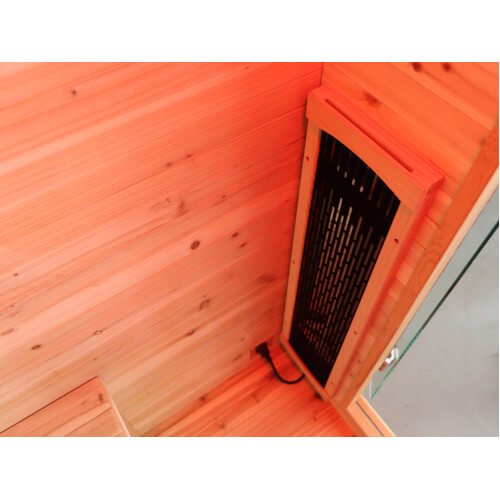

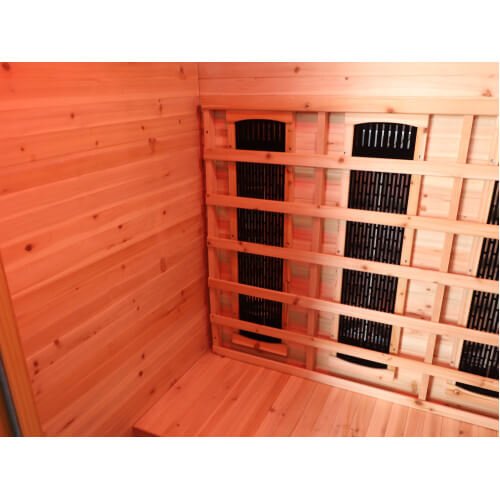

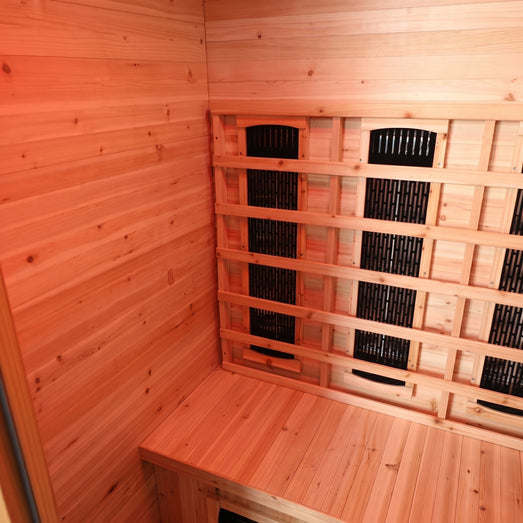

- Far-infrared heaters: six, 1,900 W in total as SunRay lists them; the specification table in SunRay's D3 manual gives 1,800 W for this model. SunRay does not name the element type.
- Heat: up to 140°F. SunRay's D3 manual gives a normal setting of 120–140°F and allows about 8–15 minutes to warm up.

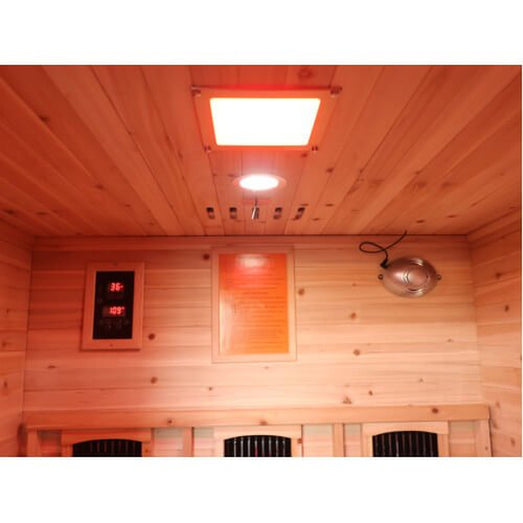

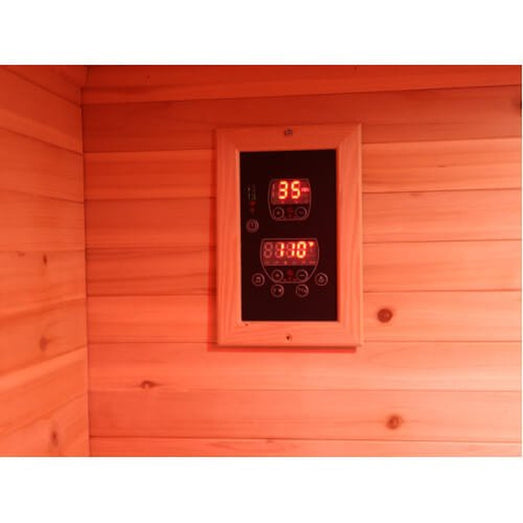

- Controls: a digital control panel with power, a session timer, the thermostat (switchable between °F and °C), the color light, the lights and music. At the set temperature, the heaters switch on and off to hold it.
- Roof vent: can be opened for fresh air during a session.
- Lighting: recessed interior lighting, plus the reading light and the seven-color color therapy light that the D3 manual lists.
- Audio: a Bluetooth sound system; the manual also describes playing music from a USB drive.

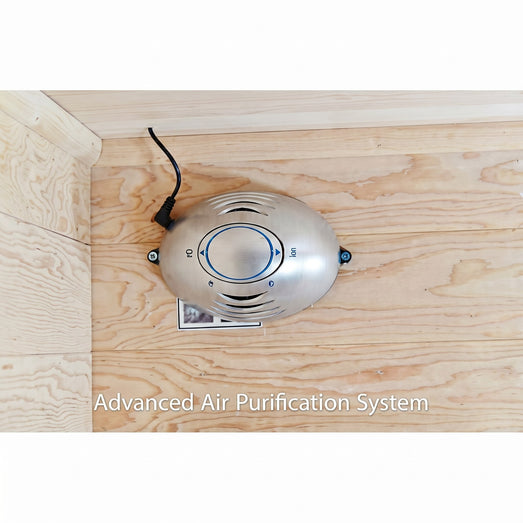

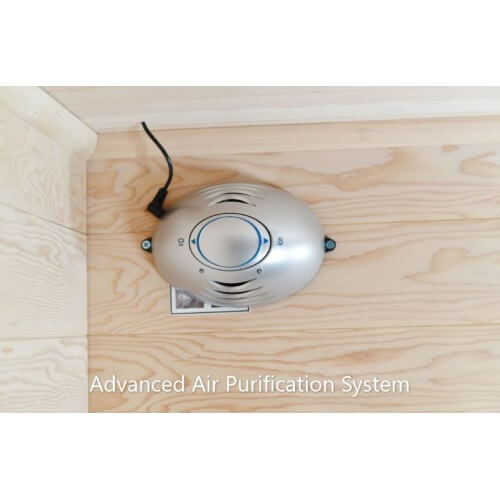

- Oxygen ionizer: SunRay lists an oxygen ionization system for purifying the air.

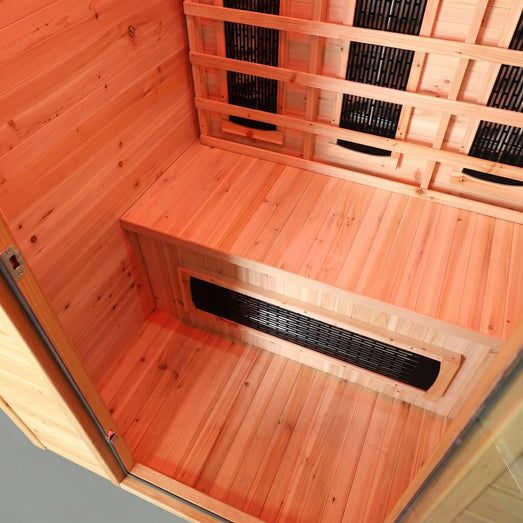

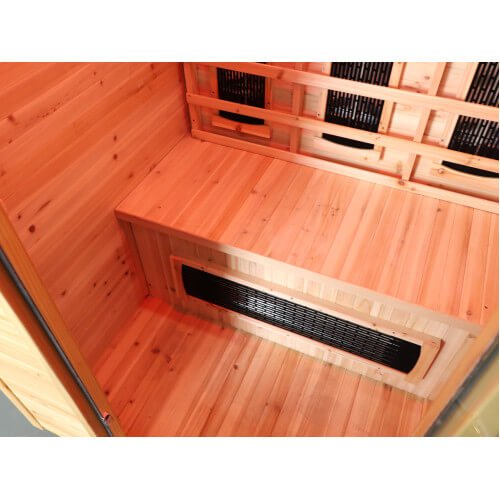

- Seating: a bench along the rear wall for two, with a backrest and cup holders.
- Cabin: Canadian hemlock with a sealed weatherproof finish, under a metal composite roof.
What comes with the SunRay Burlington?
The SunRay Burlington ships as a complete outdoor infrared sauna kit: the floor panel and the Canadian hemlock walls with their sealed weatherproof finish, the glass door, the interior ceiling and metal composite roof, six far-infrared heaters, the digital control panel, the lighting, the Bluetooth sound system, the oxygen ionizer, the bench and SunRay's D3 series install manual. The foundation is not included, and neither is a dedicated outlet if the site needs one.
Included in the kit
Cabin and roof
- Floor panel
- Canadian hemlock wall panels with a sealed weatherproof finish
- Front wall with a glass door
- Interior ceiling and metal composite roof
Heat and controls
- Six far-infrared heaters
- Digital control panel
- Roof vent
Interior
- Rear bench for two, with backrest and cup holders
- Recessed interior lighting, a reading light and a color therapy light
- Bluetooth sound system
- Oxygen ionizer
Documentation
- SunRay's D3 series install manual
Not included — arranged separately
- A dedicated 120 V outlet on its own 20 A circuit, installed by a licensed electrician if the site does not have one
- The foundation: a level wooden deck, concrete pad or pavers, with a waterproof barrier where the ground is damp
- Exterior sealant for the yearly resealing SunRay's manual recommends
| Model | SunRay Burlington, model 200D3 |
|---|---|
| Brand | SunRay Saunas |
| Sauna type | Far-infrared |
| Placement | Outdoor |
| Capacity | 2 people |
| Exterior dimensions (cabin) | 47" W × 45" D × 87" H |
| Roof footprint | 67" W × 59" D |
| Interior dimensions | 43" W × 41" D × 68" H |
| Interior volume | About 69 cu ft (calculated from the interior dimensions) |
| Bench | Rear bench for two, with backrest and cup holders |
| Door | Glass door |
| Wood | Canadian hemlock; sealed weatherproof finish outside |
| Roof | Metal composite |
| Infrared heaters | Six far-infrared heaters (element type not published by SunRay) |
| Wattage | 1,900 W (SunRay's product page; the D3 assembly manual lists 1,800 W) |
| Maximum temperature | 140°F; SunRay's manual gives a normal setting of 120–140°F |
| Heat-up time | About 8–15 minutes (SunRay's manual) |
| Controls | Digital control panel: power, timer, thermostat (°F or °C), color light, lights, music |
| Lighting | Recessed interior lighting; reading light; color therapy light in seven colors |
| Audio | Bluetooth sound system; music from a USB drive (SunRay's manual) |
| Air | Oxygen ionizer; roof vent that opens for fresh air |
| Electrical | 120 V (SunRay lists 110–120 V), 20 A dedicated circuit and outlet; SunRay does not state the plug type |
| Certification | ETL/CSA certified, as listed by SunRay |
| Weight | 301 lbs (SunRay's listed shipping weight) |
| Warranty | 10-year structural; 1-year parts and electronics (SunRay warranty certificate); residential use only |
What electrical connection does the SunRay Burlington need?
A dedicated 120 V outlet on its own 20 A circuit; SunRay lists the supply as 110–120 V. SunRay lists the Burlington's heaters at 1,900 W, and its D3 manual says no other appliance may be plugged into the sauna's outlet, so the circuit cannot be shared. Where the site has no dedicated 20 A outlet, a licensed electrician runs a new circuit and installs one. If your electrical panel has no room for another breaker, your electrician may need to upgrade it first.
SunRay does not state which plug the Burlington uses, so contact us before an outlet is installed and we will confirm the connection with you. Inside the cabin everything connects by plug: during assembly the power plugs are joined at the bench, and the lines for the color light, the reading light and the oxygen ionizer are fed through the ceiling to their pairs in the roof. The only site wiring is the outlet and its circuit.
Where can the SunRay Burlington be installed?

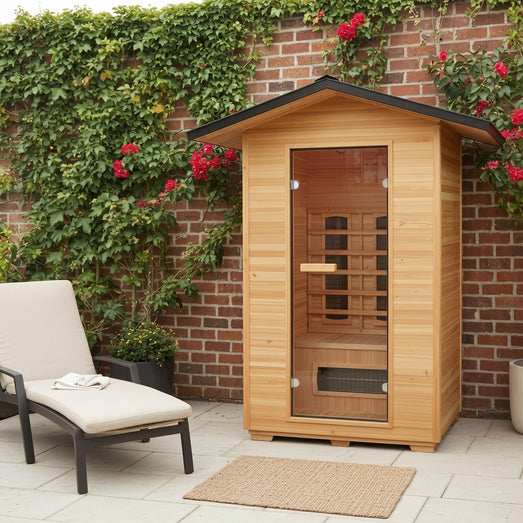

Outdoors, on a level surface. SunRay built the Burlington as an outdoor sauna, with a sealed weatherproof finish and a metal composite roof. SunRay's D3 manual names a wooden deck, a concrete pad or pavers, and calls for a waterproof barrier between the sauna floor and the surface wherever the site is damp or the floor sits on pavers or anything else in contact with the ground. The site needs room for the 67" × 59" roof footprint, not just the 47" × 45" cabin.
Looking after it outdoors
SunRay's D3 manual explains that the cabin's weather sealant wears as it is exposed to the elements, and recommends resealing the exterior every year or as needed. SunRay's warranty certificate makes annual resealing a condition of cover for outdoor saunas sold without a weather cover. The Burlington does not include one.
How is the SunRay Burlington assembled?
From flat-packed panels, following SunRay's D3 series install manual, which says assembly needs at least 2 adults. The manual's sequence: set the floor on a level surface, run waterproof sealant along the bottom of each wall, fit the back wall, then latch the side walls and the front wall in place. Next comes the vertical bench panel, whose power plugs are connected before the bench top is screwed on, then the backrest and the door handle. The interior ceiling follows, with the accessory lines fed out to the roof, and the metal roof is screwed on with sealant between its two panels and along the roof cover's inside edges. Sealant around the door frame and along the base finishes the build.
SunRay estimates about two hours for the build. SunRay's FAQ names a Phillips screwdriver or a drill with a Phillips bit as the only tool; the manual's sealant steps also call for a caulking gun, and SunRay does not say whether the sealant is supplied. A new outlet, where one is needed, is work for a licensed electrician.
How is the SunRay Burlington delivered?
The SunRay Burlington ships by LTL freight, with its panels boxed and strapped to a wooden pallet, and SunRay lists its shipping weight at 301 lbs. Delivery is curbside with a lift gate, which lowers the shipment to the driveway; moving it from there to the base is up to you, so plan the route before the truck arrives.
| Freight type | LTL truck; boxed panels on a wooden pallet |
|---|---|
| Delivery point | Curbside, lowered to the driveway by lift gate |
| Shipping weight | 301 lbs (SunRay) |
| Shipping cost | Free within the contiguous US |
| Appointment | Required; someone must be present to inspect and sign |
The carrier will reach out to book the delivery appointment once the shipment reaches their local terminal.
Inspect the shipment before you sign. SunRay's warranty excludes freight damage caused by the carrier, so note any visible damage on the delivery receipt, photograph it, and contact us before you start assembly. SunRay's delivery policy asks for internal damage found after unpacking to be reported within 3 business days of delivery.
SunRay's D3 series install manual covers the Burlington, Grandby and Cayenne: each model's roof dimensions and wattage, the site and outlet requirements, the build sequence and the controller, so you can review it before delivery.
SunRay D3 series install manual (metal roof), covering the Burlington (PDF)
This warranty covers all SunRay branded saunas purchased directly from SunRay Saunas or any of its authorized affiliates. This warranty is non-transferable.
Structural Warranty — 7 Years
SunRay warrants the sauna structure against manufacturer defects in materials and workmanship for 7 years from the date of purchase.
What's covered:
- Wooden sauna panels, flooring, ceiling, and glass
- Replacement parts necessary for repair
- If a structural defect cannot be remedied by a replacement part, SunRay may send a full replacement sauna at its sole discretion
Note: Surface cracks in the wood and minor blemishes are normal characteristics of natural wood and are not considered defects.
Parts & Electronics Warranty — 1 Year
All sauna parts, including the heater and electrical components, are guaranteed against defects in materials and workmanship for 1 year from the date of purchase.
- Covers replacement parts only
- Labor costs for replacing a part are not covered
Warranty Terms
-
Applies to the original customer at the original delivery address only
-
Customers must have written consent from SunRay before proceeding with any warranty repair to be reimbursed
-
SunRay has sole responsibility for determining the cause and nature of any warranty claim
-
If a replacement sauna is provided, the customer is responsible for assembly/installation costs of the new unit
What Is NOT Covered
This warranty is voided if the sauna has been subjected to:
- Alteration, neglect, misuse, or abuse
- Freight damage caused by the carrier
- Accidents or acts of God
- Installation, operation, or maintenance not in accordance with the owner's manual
- Commercial use — saunas used in a commercial setting are excluded from all warranty coverage
Disclaimers
- SunRay shall not be liable for any incidental or consequential damages, including loss of use or cost of removal
- Liability under this warranty shall not exceed the original purchase price
- Warranty coverage begins on the original date of purchase and does not extend beyond the stated periods for any reason
Filing a Claim
To file a warranty claim, contact the SunRay Claims Department:
Phone: 800.976.5530
