Harvia Cilindro Half output and room size
Harvia sizes the Cilindro Half to the sauna room's volume: choose the output whose printed minimum–maximum room range covers your room. Harvia's sizing rule adds about 3.9 cubic feet for each square foot of uninsulated surface such as glass, glass block, brick, concrete or tile, counts a glass door, and multiplies a solid-log sauna's volume by 1.5. Harvia's smallest room for every Cilindro Half output sold here is 141 cubic feet.
The four Harvia Cilindro Half listings in this collection, one row per listing. Output and room size are Harvia's figures; amps are Harvia's for a 240 V single-phase supply connected as one group; the stones column gives the stone load each output needs. Prices are each listing's lowest current price across its models and options; freight is to the contiguous United States.
| Listing |
Sold as |
Output |
Room size (Harvia) |
Amps, one group (Harvia) |
Control |
Wi-Fi |
Stones needed |
From |
Freight |

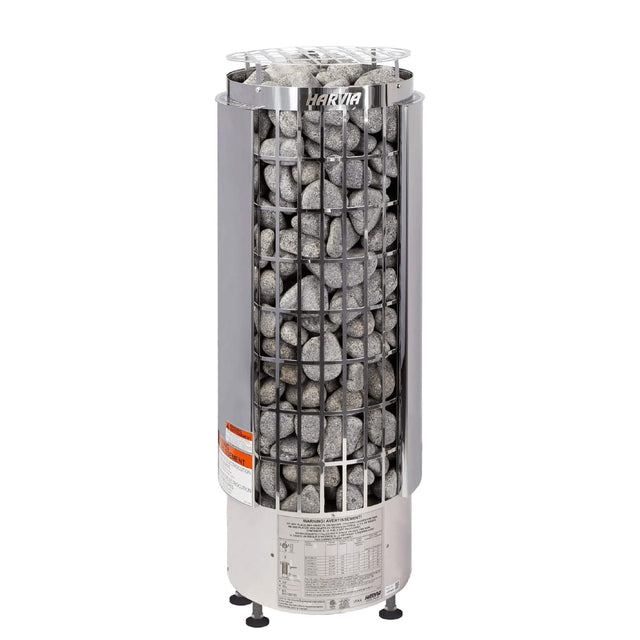

| Harvia Cilindro Half Series Electric Sauna Heater (6kW/ 8kW/ 9kW/ 10.5kW) |
Heater alone |
6, 8, 9 or 10.5 kW |
141–294 / 141–431 / 141–494 / 141–636 cu ft |
25 A / 33.4 A / 37.5 A / 43.75 A |
Separate Harvia control |
With a Xenio Wi-Fi (-XW) or Fenix control |
200 lb (6, 8, 9 kW); 264 lb (10.5 kW) |
$1,181 |
Included |

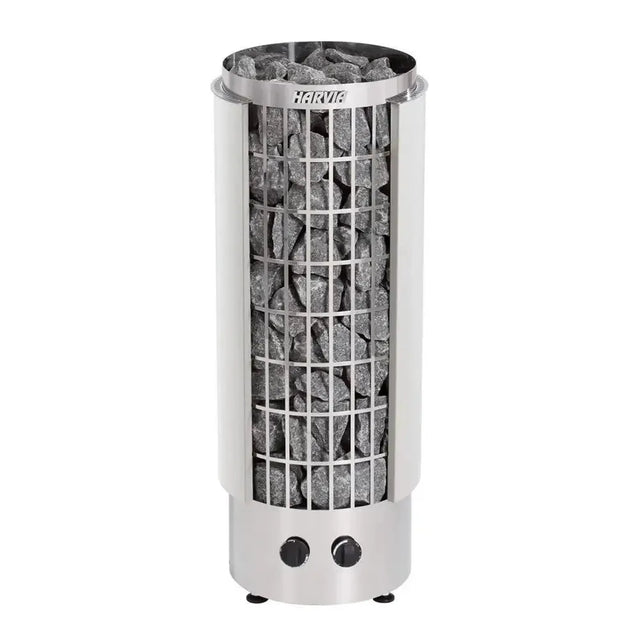

| Harvia Cilindro Half Series Electric Sauna Heater w/ Built-in Controls (6kW/ 8kW/ 9kW) |
Heater alone |
6, 8 or 9 kW |
141–294 / 141–431 / 141–494 cu ft |
25 A / 33.4 A / 37.5 A |
Built-in thermostat and timer |
No |
200 lb |
$1,427 |
Included |
| Harvia Cilindro 9kW Electric Heater Package w/ Digital Controller and Wifi and Stones |
Heater, Xenio control and stones |
9 kW |
141–494 cu ft |
37.5 A |
Xenio CX45-U1-U3-XW, included |
Yes |
200 lb |
$2,905 |
Included |
| Harvia Cilindro 10.5kW Electric Heater Package w/ Digital Controller and Wifi and Stones |
Heater, Xenio control and stones |
10.5 kW |
141–636 cu ft |
43.75 A |
Xenio CX45-U1-U3-XW, included |
Yes |
264 lb |
$3,025 |
Included |
-
Rooms of 141 to 294 cubic feet: start with the 6 kW model, which Harvia sizes for 141–294 cubic feet; the ranges of the 8, 9 and 10.5 kW models take in these rooms as well.
-
Above 294 and up to 431 cubic feet: start with the 8 kW model, sized for 141–431 cubic feet and sold here with built-in controls or for a separate control; the 9 and 10.5 kW ranges reach these rooms too.
-
Above 431 and up to 494 cubic feet: choose the 9 kW model, sized for 141–494 cubic feet and sold here with built-in controls, for a separate control or as the 9 kW package; the 10.5 kW range also covers these rooms.
-
Above 494 and up to 636 cubic feet: choose the 10.5 kW model, sized for 141–636 cubic feet, which comes here only for a separate control: as the heater alone or as the 10.5 kW package.
-
Below 141 or above 636 cubic feet: rule out the Cilindro Half heaters here; together, Harvia's room ranges for the outputs sold here cover 141 to 636 cubic feet.
Harvia Cilindro Half supply and controls
Harvia's Cilindro Half manuals list every heater in this collection for a 240 V single-phase supply. Harvia gives each output's amps for a one-group connection and lower amps per group for a two-group connection: the 10.5 kW, for example, draws 43.75 amps on one group or up to 29.2 amps per group on two. The Cilindro Half is ETL Listed and conforms to UL 875. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code.
The Harvia Cilindro Half comes in two control versions. Harvia equips the built-in version with a thermostat and a 60-minute on-time timer on the heater and documents no Wi-Fi control for it, while the other version is controlled from a separate Harvia control unit. Harvia's manuals give the built-in version a heat-up of about half an hour, and the separate-control version about an hour in a properly insulated, correctly sized sauna.
-
Timer and thermostat on the heater, no Wi-Fi: choose the Cilindro Half with built-in controls, sold here in 6, 8 or 9 kW.
-
Following the sauna in the MyHarvia app: choose the separate-control version with a Wi-Fi control; both packages include one. Harvia's Xenio -XW controls work with the MyHarvia app for temperature and humidity control, lighting and ventilation and the sauna's status on your phone; with a Fenix, the app shows the heater's status, the cabin temperature and the remaining heating time. The features depend on the devices connected.
-
Matching a Xenio to the separate-control heater sold alone: choose by output and connection. Harvia's Cilindro Half manual names the Xenio CX30-U1-U3 or CX45-U1-U3 for the 6 kW; for the 8, 9 and 10.5 kW it names the CX45-U1-U3 on a one-group connection, and either size on a two-group connection.
Harvia Cilindro Half alone or as a package
The Harvia Cilindro Half sold alone ships without sauna stones, in both control versions. Its 6, 8 and 9 kW models need 200 lb (91 kg) of stones, and the 10.5 kW needs 264 lb (120 kg).
-
A 9 or 10.5 kW Cilindro Half sold with its Xenio and stones: choose the package of that output. Each combines the Cilindro Half heater of its output, built for a separate control, with Harvia's Xenio CX45-U1-U3-XW control with Wi-Fi and boxes of Harvia stones.
-
A 6 or 8 kW heater, built-in controls, or a control you pick yourself: choose a heater sold alone. Both heaters' product pages offer Harvia stones as an add-on, and the separate-control heater's page also offers the Xenio CX30 or CX45 with Wi-Fi and the Fenix FX30 or FX45; the Xenio range sits on Harvia Xenio controls. Sauna stones ordered with a heater ship free within the contiguous United States.
Harvia Cilindro Half installation and add-ons
Harvia's Cilindro Half manuals stand the heater on adjustable legs, fix it to the sauna's structures with a wall-mounting device and two fixing kits, and have the electrical contractor secure it to the floor with at least two screws or bolts.
-
Railing or flange for a 6, 8 or 9 kW Cilindro Half: add the HPC3 safety railing, or the HPCU3L with LED lighting, which both heaters' product pages offer for these outputs; the separate-control heater's page also offers the HPC2 embedding flange and the HPCU2L with LED lighting for them.
-
Railing or flange for the 10.5 kW Cilindro Half: add the HPC4 safety railing, the HPCU4L with LED lighting or the HPCU7L embedding flange with LED lighting, each offered for the 10.5 kW on the separate-control heater's product page.
Buying Harvia Cilindro heaters from Topture
Topture is an authorized Harvia retailer. Harvia's warranty terms give its sauna heaters and control units a 2-year manufacturer warranty for family (residential) use; a Cilindro Half registered on Harvia's site within 30 days of purchase gets 1 extra year, 3 in total, and the extra year does not apply to control units such as the Xenio in the Cilindro packages. Topture assists with troubleshooting and warranty coordination.
All four Cilindro listings here ship free within the contiguous United States. Weighing the Cilindro Half's built-in version against the separate-control one, or a package against the heater with add-ons you pick? Topture's Lifetime Expert Support talks it over with you over the phone at (833) 419-1774, in a live chat or by email to contact@topture.com.
Next steps for Harvia Cilindro heaters: other Harvia lines, wood-burning stoves or sizing help
Harvia Cilindro buyers with a question still open have three next moves:
-
Setting the Cilindro Half against Harvia's other electric lines: compare them on Harvia electric sauna heaters.
-
Wanting a wood-burning Cilindro instead: this collection holds Harvia's electric Cilindro Half only, so turn to Harvia wood-burning sauna stoves.
-
Output or Xenio size still undecided: give Topture's Lifetime Expert Support your sauna's measurements and its glass, brick or tile surfaces, and ask which Cilindro Half output Harvia's room ranges point to and which Xenio Harvia's manual names for that output and connection.
