Kohler C2 Outdoor Sauna Kit - Douglas Fir | 3, 5 or · 6-Person
A 3-, 5-, or 6-person outdoor sauna kit with Douglas Fir cladding over a Scandinavian spruce interior and a freestanding FERO heater with sauna stones included.
In stock
Estimated delivery
14–22 days after you order
In stock
Estimated delivery
14–22 days after you order
In stock
Estimated delivery
14–22 days after you order
- 9 kW FERO Heater and Sauna Stones Included
- Douglas Fir Cladding, Spruce Interior
- 5-Year Manufacturer Warranty (Residential Use)
- Description
- What's Included?
- Specifications
- Dimensions & Weights
- Documents

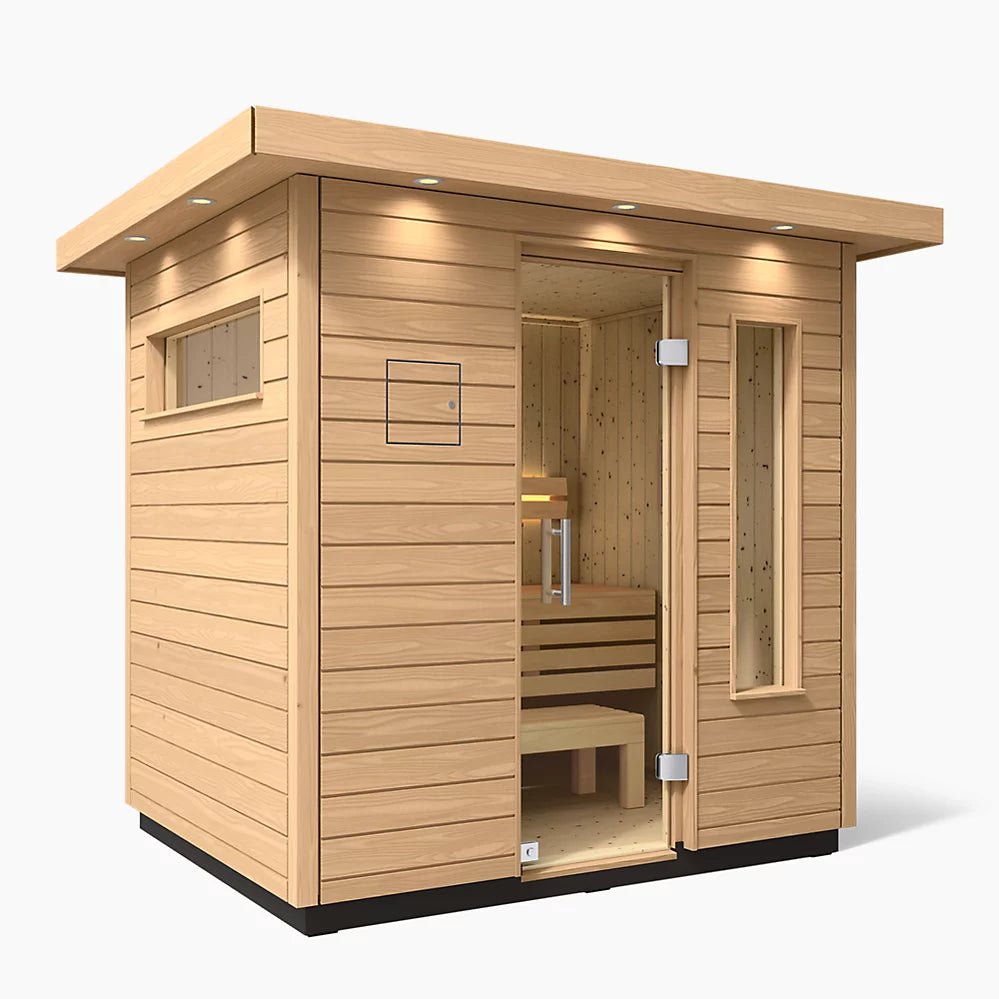

The Kohler C2 Outdoor Sauna Kit in Douglas Fir is an outdoor traditional sauna sold as a kit in three sizes, for up to 3, 5 or 6 people, with a Scandinavian spruce interior and Douglas fir exterior cladding. Every size includes Kohler's freestanding 9 kW FERO electric heater with sauna stones and an obeche wood railing, a digital control panel mounted outside on the front wall, solid obeche benches with a backrest, headrest and stool, 2700K warm white indirect lighting and exterior lights in the roof soffits. The roof extends past the walls as eaves and is covered with a waterproof EPDM membrane. The kit is assembled on site and stands on compacted gravel with concrete pavers or on a concrete pad.
Kohler C2 Douglas Fir sizes: for up to 3, 5 or 6 people
The Kohler C2 Douglas Fir comes in three sizes, which Kohler's spec sheets name the Three-person (K-39167-1FNC), Five-person (K-39188-1FNC) and Six-person (K-39189-1FNC) Outdoor Sauna and its installation instructions call the small, medium and large sauna. Every size has the same 9 kW FERO heater, and Kohler's spec sheets give the solid obeche bench a depth of 22-7/8 in (580 mm). Kohler's installation instructions fit one bench in the three-person cabin, a lower and an upper bench in the five-person cabin, and a lower, an upper and a side bench in the six-person cabin. The Weathered Grey Spruce finish of the C2 and Kohler's indoor kit, the C1, are in Topture's Kohler collection.
FERO heater and controls included with the Kohler C2 Douglas Fir
The Kohler C2 Douglas Fir ships with its heater, so there is no heater package to choose. Kohler's spec sheets list a freestanding FERO electric heater rated 9 kW in every size, with an obeche wood railing, and its installation instructions place it in the corner to the left of the door. Sauna stones come with the sauna; Kohler says not all of them need to be used, to load the largest stones first and the smallest on top, and to stack them no more than 2 in (50 mm) above the basket. A digital control panel mounted outside on the front wall sets the temperature, the session time and the backrest lighting, and its cover locks. Kohler describes the heater control as dual thermostatic. Kohler gives a maximum temperature of 176°F (80°C). A wall-mounted thermometer and a beech 20-minute hourglass sand timer hang inside the cabin.
Where the Kohler C2 Douglas Fir can be installed
The Kohler C2 Douglas Fir is an outdoor sauna: Kohler's Readiness Guide says it must be installed as a freestanding structure in an outdoor location. Kohler's installation instructions ask for a level site in a well-ventilated outdoor area with clearance on all sides and above for maintenance, and its Readiness Guide asks for drainage that keeps water from pooling around the base. On compacted gravel, the sauna rests on eight concrete pavers (not included) at least 7 × 7 in and 1-1/2 in thick, and the supplied ground nails secure it; on a concrete pad it is secured with concrete anchors (not included). Kohler asks for a check with local utility providers before the ground nails go in, and for a qualified structural engineer or local authority to verify the site's load-bearing capacity, including snow and wind loads. No plumbing is required.
Assembly, delivery and Kohler's installation service for the Kohler C2 Douglas Fir
Topture ships the Kohler C2 Douglas Fir free within the contiguous United States as curbside freight by appointment, and an adult signs for it; most orders arrive with a liftgate that lowers the shipment to the ground. Kohler's Readiness Guide says the sauna comes on one or two large pallets and is best unpacked in a dry, level staging area; the parts can then be carried to the installation site. Kohler's installation instructions require at least two people, and Kohler recommends hiring a professional installer. Topture does not install saunas; the "Add Professional Installation" option on this page adds Kohler's own installation service, in which Kohler's crew assembles and tests the sauna on site. Kohler's Readiness Guide says that service does not include site electrical work, site ventilation or finishing.
Kohler C2 Douglas Fir features
- Douglas fir exterior cladding, which Kohler describes as offering "an organic, timeless elegance"
- Scandinavian spruce interior
- Solid obeche bench, 22-7/8 in (580 mm) deep on Kohler's spec sheets, with matching backrest, headrest and stool
- Freestanding 9 kW FERO electric heater with an obeche wood railing and sauna stones
- 2700K warm white indirect backrest lighting
- Exterior lights in the roof soffits around the sauna
- Digital control panel mounted outside on the front wall, for temperature, time and backrest lighting, with a locking cover
- Dual thermostatic control
- Aerotherm ventilation system for air exchange inside the cabin
- 2-1/8 in (54 mm) mineral wool insulation between the walls
- Triple-insulated roof with two layers of mineral wool and an air gap, under a waterproof EPDM membrane
- Roof eaves that extend past the walls; Kohler says they protect the exterior from weather and give shade
- 5/16 in (8 mm) tempered glass entry door with a rubber door seal and a lock
- Double pane insulated windows
- 10-5/8 in (270 mm) beech wood inside door handle and a stainless steel outside handle
- Tongue-and-groove wall, floor and roof connections
- Wall-mounted thermometer and beech 20-minute hourglass sand timer inside the cabin
Included with every Kohler C2 Douglas Fir kit
- Sauna cabin: base frame, floor, wall sections, roof sections and trim, with chipboard corner panels and the Douglas fir corner and wall cladding panels
- 5/16 in (8 mm) tempered glass entry door with a beech wood inside handle and a stainless steel outside handle
- Double pane insulated windows
- Solid obeche benches by size (one in the three-person, two in the five-person, three in the six-person cabin), with backrest, headrest and stool
- Freestanding 9 kW FERO electric sauna heater with an obeche wood railing
- Sauna stones for the heater
- Digital control panel with a locking cover, mounted outside on the front wall
- 2700K indirect backrest lighting and exterior lights in the roof soffits
- Wall-mounted thermometer and beech 20-minute hourglass sand timer
- Waterproof EPDM roofing membrane, glued on during assembly with the roller Kohler provides
- Weatherproof plug box with a NEMA SS2-50P plug, ground nails and the installation hardware
- Kohler's installation instructions
Not included with the Kohler C2 Douglas Fir
- The base: compacted gravel with eight concrete pavers at least 7 × 7 in and 1-1/2 in thick, or a concrete pad with concrete anchors
- The NEMA 14-50R receptacle and electrical supply at the site, the power extension cord to the sauna, and the electrician's work
- Assembly, unless Kohler's installation service is added to the order
- A bucket and ladle, which Topture offers as an add-on with the C2
- Moving the pallets from the curb to the site
Kohler C2 Douglas Fir specifications for every size
| Type | Outdoor traditional sauna kit, freestanding, assembled on site |
|---|---|
| Sizes | For up to 3, 5 or 6 people (Kohler's Three-, Five- and Six-person Outdoor Sauna) |
| Finish | Douglas fir exterior cladding over a Scandinavian spruce interior |
| Construction | Douglas fir, Scandinavian spruce, obeche and beech wood; tempered glass; matte aluminum door hinges; stainless steel exterior handle; waterproof EPDM roof membrane |
| Benches, backrest, headrest and stool | Solid obeche; Kohler's spec sheets give the bench a depth of 22-7/8" (580 mm); one bench (three-person), a lower and an upper bench (five-person), a lower, an upper and a side bench (six-person); included. Kohler's installation instructions rate the benches at 440 lb per 3 ft (200 kg per 1 m) |
| Insulation | 2-1/8" (54 mm) mineral wool between the walls; triple-insulated roof with two layers of mineral wool and an air gap |
| Roof | Extended eaves; waterproof EPDM membrane, glued on during assembly |
| Entry door and windows | 5/16" (8 mm) tempered glass door with a rubber seal and a lock; 10-5/8" (270 mm) beech wood inside handle; stainless steel outside handle; double pane insulated windows |
| Heater | Freestanding FERO electric heater with obeche wood railing, 9 kW in every size; included; placed in the corner to the left of the door |
| Sauna stones | Included; largest stones at the bottom, no more than 2" (50 mm) above the basket, per Kohler's installation instructions |
| Controls | Digital control panel outside on the front wall (temperature, time, backrest lighting) with a locking cover; dual thermostatic control |
| Maximum temperature | 176°F (80°C), Kohler's maximum for current U.S. C2 units |
| Lighting | 2700K warm white indirect backrest lighting; exterior lights in the roof soffits |
| Ventilation | Aerotherm ventilation system; exhaust vent on the rear wall, to be kept unobstructed |
| Installation method | Freestanding, outdoors only |
| Base | Level site: compacted gravel with eight concrete pavers (not included; at least 7" × 7" and 1-1/2" thick) and the supplied ground nails, or a concrete pad with concrete anchors (not included) |
| Electrical service (Kohler's spec sheets) | 220–240 V, 50/60 Hz, one dedicated circuit |
| Sauna Room Amps | 50A, the required electrical service on Kohler's spec sheets (220–240 V) |
| Outlet Specification | NEMA SS2-50P, the outlet specification on Kohler's spec sheets: the plug in the sauna's weatherproof plug box |
| Receptacle at the site | NEMA 14-50R, per Kohler's Readiness Guide; not included |
| Power cord | Not included; Kohler's Readiness Guide asks for a lockable extension cord with a NEMA 14-50P plug and a NEMA SS2-50R connector, sourced from a certified electrician |
| Electrical component rating | 240 V, 50 A, 50/60 Hz |
| Plumbing | None required |
| Codes and standards | UL 875; CSA C22.2 No. 164 |
| Shipping | Free within the contiguous United States; curbside freight delivery by appointment; most orders arrive with a liftgate |
| Warranty | 5-year manufacturer warranty on the sauna, including the supplied heater, its heating elements and the controller (residential use; a commercial installation voids all coverage; installation in an improper space or not to Kohler's specifications is excluded); sauna accessories 1 year; heater stones not covered |
Electrical service for the Kohler C2 Douglas Fir
Kohler's spec sheets list the required electrical service for the Kohler C2 Douglas Fir as 220–240 V, 50 A, 50/60 Hz, on one dedicated circuit, the same in all three sizes. Kohler assembles the sauna with a weatherproof plug box holding a NEMA SS2-50P plug, and its Readiness Guide asks for a NEMA 14-50R receptacle at the site, close to the sauna, joined to the plug box by a lockable extension cord that a certified electrician sources. No power cord comes with the sauna. Kohler's Readiness Guide puts the receptacle close to the sauna's final position, since the sauna should not be moved once it is installed, and says the receptacle must be in place and working before installation begins and the electrical work completed by a certified electrician. Your licensed electrician sizes the breaker and wire from the manual that ships with the sauna and your local code.
California notice for the Kohler C2 Douglas Fir
Notice to California Customers
- WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
101" × 86" × 91" (Up to 3 People)
| Kohler model | K-39167-1FNC (Topture SKU 39167-1FNC-DFS) |
|---|---|
| Capacity | Up to 3 people |
| Benches | One solid obeche bench with backrest, headrest and stool |
| Exterior (W×D×H) | 100.9" × 85.3" × 90.4", measured across the roof eaves (Kohler's spec sheet: 100-15/16" × 85-1/4" × 90-7/16") |
| Cabin body below the eaves (W×D) | 84-3/16" × 68-7/16" (2138 × 1738 mm), per Kohler's drawing: the part that stands on the pavers or pad |
| Interior (W×D×H) | 74.8" × 59.1" × 78.9" |
| Weight | 2304.2 lbs (1045.2 kg) |
| Shipping Weight | 2679.1 lbs (1215.2 kg) |
| Minimum loading per post (4 posts) | 400.9 lb/ft² (181.8 kg/m²), per Kohler's spec sheet |
109" × 101" × 91" (Up to 5 People)
| Kohler model | K-39188-1FNC (Topture SKU 39188-1FNC-DFS) |
|---|---|
| Capacity | Up to 5 people |
| Benches | A lower and an upper solid obeche bench, with backrest, headrest and stool |
| Exterior (W×D×H) | 108.8" × 100.9" × 90.4", measured across the roof eaves (Kohler's spec sheet: 108-13/16" × 100-15/16" × 90-7/16") |
| Cabin body below the eaves (W×D) | 92-1/16" × 84-3/16" (2338 × 2138 mm), per Kohler's drawing: the part that stands on the pavers or pad |
| Interior (W×D×H) | 82.7" × 74.8" × 78.9" |
| Weight | 2619.5 lbs (1188.2 kg) |
| Shipping Weight | 3369.2 lbs (1528.3 kg) |
| Minimum loading per post (4 posts) | 572 lb/ft² (259.4 kg/m²), per Kohler's spec sheet |
117" × 109" × 91" (Up to 6 People)
| Kohler model | K-39189-1FNC (Topture SKU 39189-1FNC-DFS) |
|---|---|
| Capacity | Up to 6 people |
| Benches | A lower, an upper and a side solid obeche bench, with backrests on the rear and side walls, a headrest and a stool |
| Exterior (W×D×H) | 116.7" × 108.9" × 90.4", measured across the roof eaves (Kohler's spec sheet: 116-11/16" × 108-15/16" × 90-7/16") |
| Cabin body below the eaves (W×D) | 99-15/16" × 92-1/4" (2538 × 2343 mm), per Kohler's drawing: the part that stands on the pavers or pad |
| Interior (W×D×H) | 90.6" × 82.7" × 78.9" |
| Weight | 2756.2 lbs (1250.2 kg) |
| Shipping Weight | 3506.0 lbs (1590.3 kg) |
| Minimum loading per post (4 posts) | 765.5 lb/ft² (347.2 kg/m²), per Kohler's spec sheet |
Kohler C2 Douglas Fir installation instructions
- Kohler C2 Douglas Fir three-person installation instructions (PDF, Kohler document 1654807-2, model 39167-1FNC-DFS)
- Kohler C2 Douglas Fir five-person installation instructions (PDF, Kohler document 1654808-2, model 39188-1FNC-DFS)
- Kohler C2 Douglas Fir six-person installation instructions (PDF, Kohler document 1654809-2, model 39189-1FNC-DFS)
Kohler C2 Douglas Fir spec sheets
- Kohler C2 Douglas Fir three-person spec sheet (K-39167-1FNC, PDF)
- Kohler C2 Douglas Fir five-person spec sheet (K-39188-1FNC, PDF)
- Kohler C2 Douglas Fir six-person spec sheet (K-39189-1FNC, PDF)
Kohler C2 Readiness Guide and warranty
- Kohler C2 Outdoor Sauna Readiness Guide (PDF): the site, delivery, electrical and ventilation checklist to complete before installation
- KOHLER Sauna Limited Warranty (PDF)
