Finnmark FD-4 Trinity Hybrid Infrared & Steam Sauna & Red Light · 2-Person
2-person combination sauna with six Spectrum Plus™ infrared heaters, a Harvia Vega 1.9 kW heater with stones and a red light panel in a red cedar cabin.
- Infrared to 170°F, Harvia traditional heat up to 194°F, and a red light panel in one cabin.
- Infrared plugs into a dedicated 120 V, 15 A outlet; the Harvia heater is wired by an electrician.
- 10-year cabin warranty and a lifetime warranty on the Spectrum Plus™ heaters.
What Customers Say About This Product
“As someone who has tried multiple saunas over the years, the Finnmark FD-4 Trinity Infrared & Steam Sauna Combo is by far the best I’ve…”
- Description
- Features
- What's Included
- Specifications
- Installation & Electrical
- Shipping
- Documents
- Why Finnmark?
- EMF Report
- Warranty
- Shipping & Returns

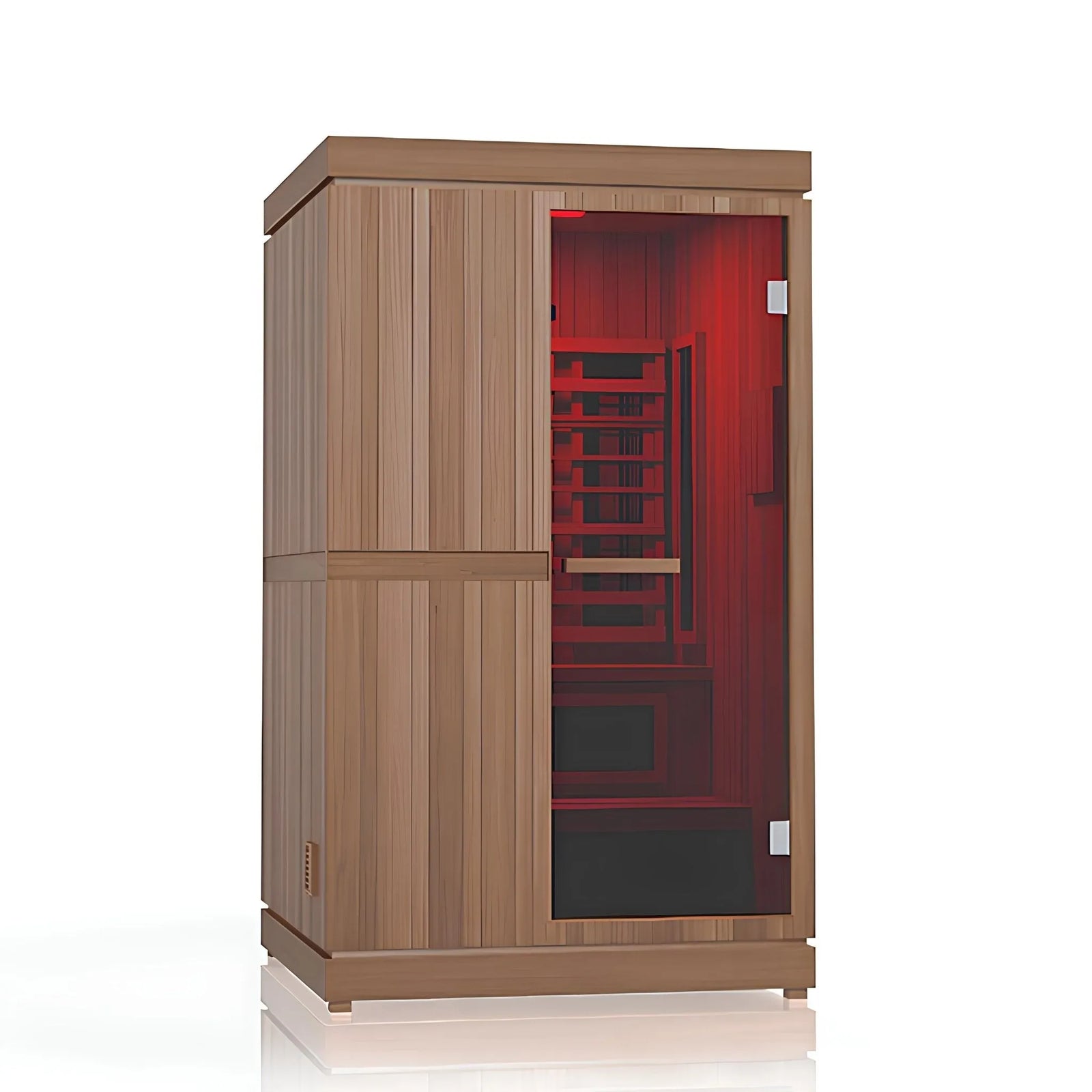

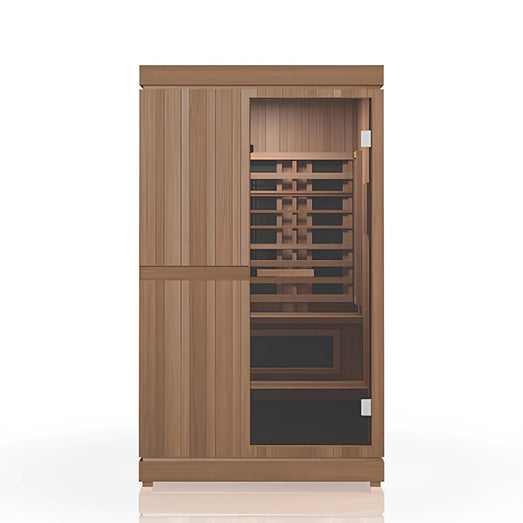

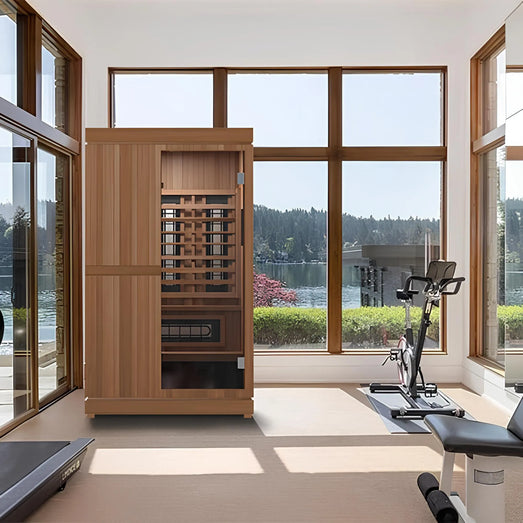

The Finnmark FD-4 Trinity is a 2-person indoor sauna that combines three ways to bathe in one cedar cabin: infrared heat from six Spectrum Plus™ heaters, traditional sauna heat from a Harvia Vega Compact 1.9 kW heater with stones, which gives steam when water is thrown on them, and a Spectrum Red Light™ LED panel in the ceiling. It measures 48.8" W × 48.8" D × 83.1" H outside and 44.5" W × 45.1" D × 75.2" H inside, with two benches at different heights.
The infrared side runs on 120 V from a dedicated 15 A outlet and reaches 170°F; the Harvia heater is wired separately by a licensed electrician and takes the room up to 194°F, the figure Finnmark gives for traditional mode. Finnmark makes the Trinity in two sizes: this 2-person FD-4 and the larger FD-5 Trinity XL.

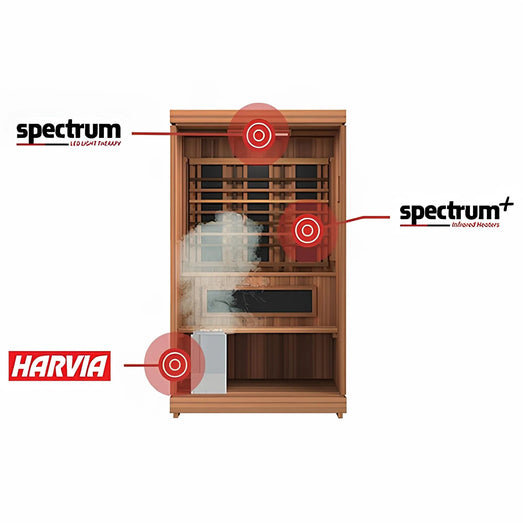

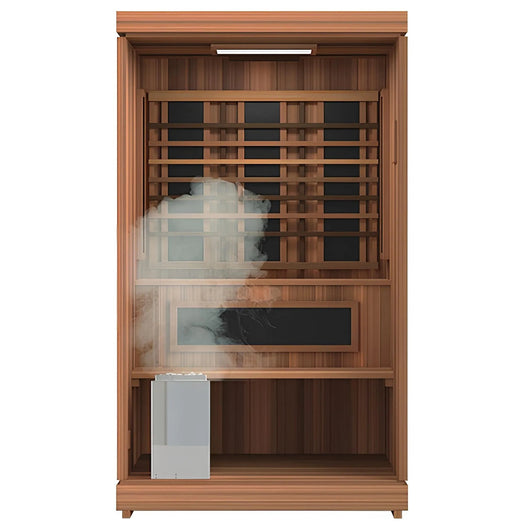

Three ways to use the Finnmark FD-4 Trinity

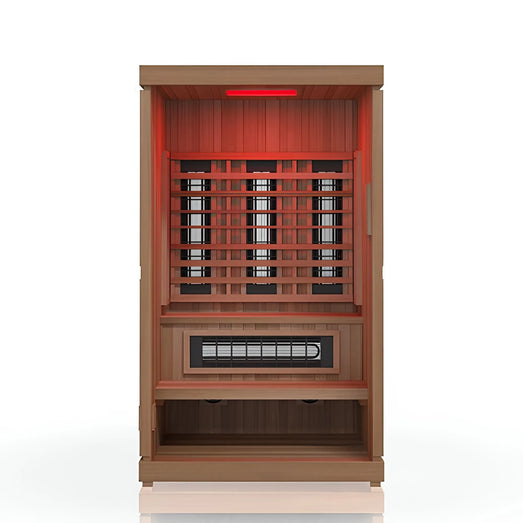

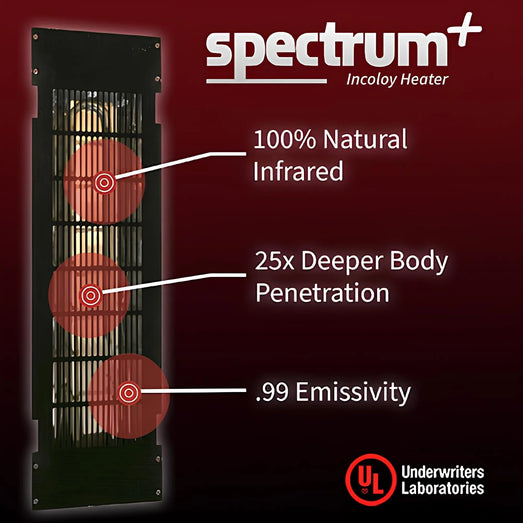

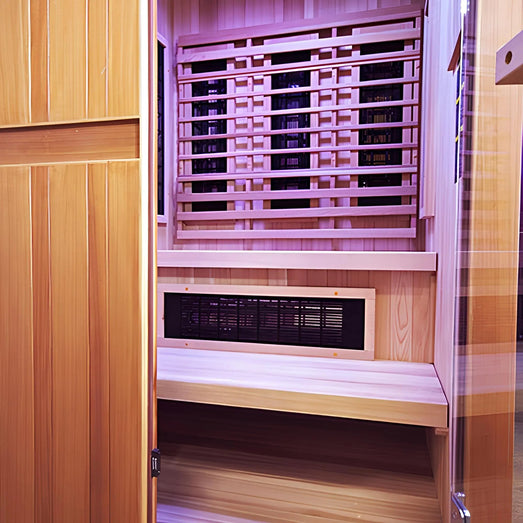

- Infrared: six Spectrum Plus™ heaters with Incoloy-sheathed elements, three on the back wall, one under the upper bench and one on each side wall, rated at 1,750 W on 120 V. Finnmark's manual allows about 15–20 minutes to warm to a comfortable temperature and 55–60 minutes to reach the 170°F maximum, and notes that the maximum may not be reached in every setting. Finnmark warrants these heaters for life.

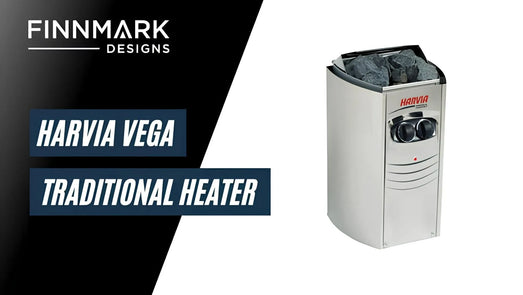

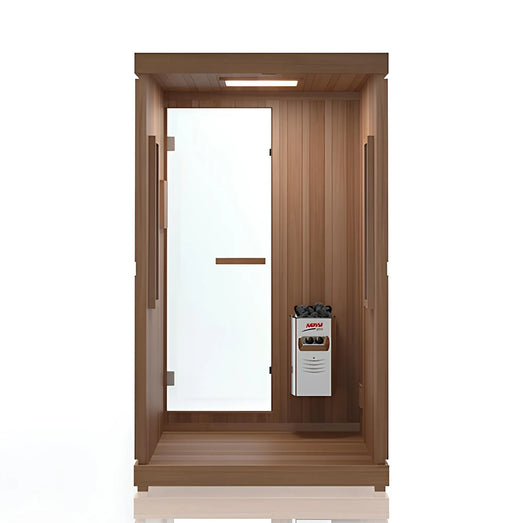

- Traditional: a Harvia Vega Compact 1.9 kW heater on the front interior wall, filled with sauna stones and controlled by the timer and thermostat on the heater itself. Throwing water on the hot stones adds steam, and Finnmark gives up to 194°F in traditional mode.

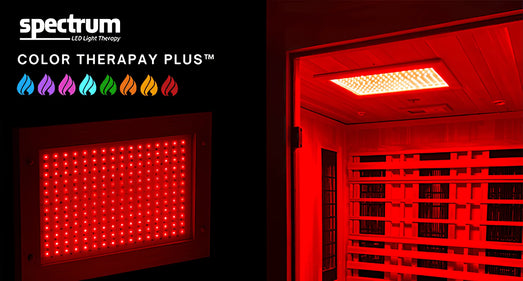

- Red light: a Spectrum Red Light™ LED panel in the ceiling, which Finnmark specifies at 650 nm, with other colors selected on the control panel.
Does the Finnmark FD-4 Trinity have red light therapy?

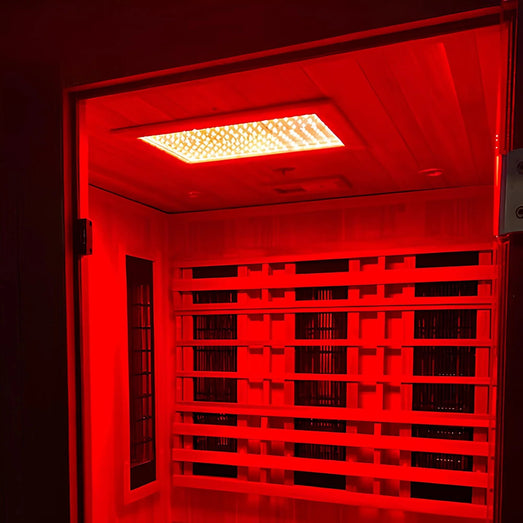

Yes. The FD-4 has a Spectrum Red Light™ LED panel built into the ceiling, which Finnmark specifies at 650 nm, and Finnmark's manual says red light therapy is used by selecting the "red" button on the control panel. The panel also switches to white, orange, blue, yellow, purple, green, cyan or magenta, or scrolls through the colors.
Controls, sound and ventilation

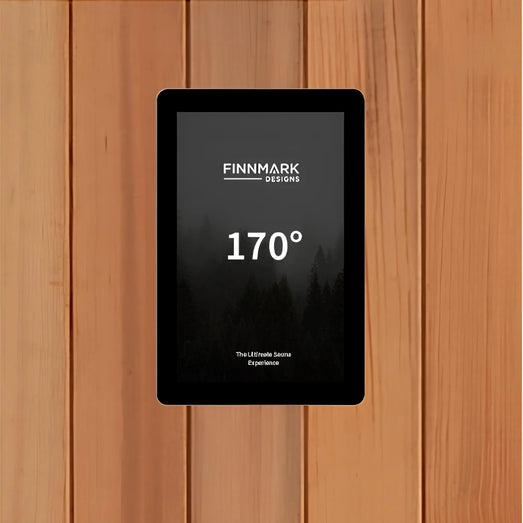

- Controller 2.0: an LCD touchscreen control panel that sets the infrared temperature and session time and runs the lights, fan and audio. The Harvia heater is set on the heater itself.
- Wi-Fi app: the FD-4 connects to the Smart Life app, which switches the sauna on, sets the target temperature and session time, and schedules sessions in advance.
- Bluetooth audio: a pair of 6" speakers plays from a paired device.
- Ventilation: a ceiling fan switched from the control panel, and a ceiling vent that can be opened at any time for fresh air.
Materials and construction

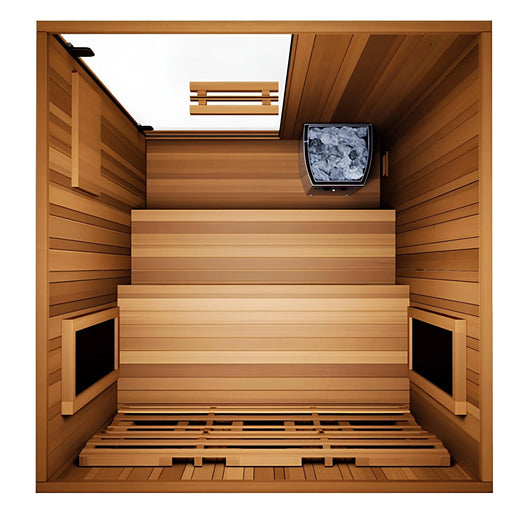

- Interior: clear A-grade Canadian Western Red Cedar.
- Exterior: Thermo-Aspen, which Finnmark sells as Thermal Plus™ and treats with heat and steam rather than chemicals. Finnmark says the treatment makes the wood less prone to warping, cracking and cupping.
- Walls: tongue-and-groove panels with insulated walls.

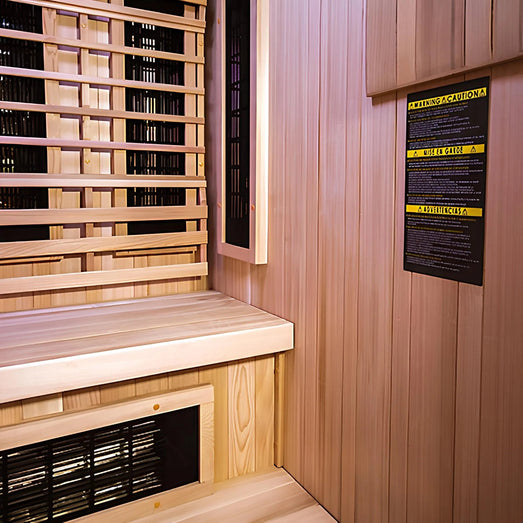

- Benches: two benches at different heights, the upper one 44.5" wide and 18.9" deep, the lower one 44.5" wide and 15.7" deep.
- Door: tempered glass, 0.31" thick.
Cedar is a natural material, and Finnmark's manual notes that variations in color and grain, knots and fine cracks are part of the wood's character, not defects.
What comes with the Finnmark FD-4 Trinity?
The Finnmark FD-4 ships as a complete kit: the six wall, floor and ceiling panels with the infrared heaters and the red light panel built in, two benches, the tempered glass door in its front panel, the touchscreen control panel, speakers and power supply, the Harvia heater in its own box with a box of sauna stones, and the hardware and manual to assemble it. What it needs on site is a dedicated 120 V, 15 A outlet for the infrared side and a separate circuit for the Harvia heater, which a licensed electrician wires.
Included in the kit
- Front panel with the tempered glass door
- Back, left and right wall panels with the infrared heaters built in
- Roof panel with the Spectrum Red Light™ LED panel, and the floor panel
- Two benches, the bench support with the under-bench heater, and the backrest
- Five adjustable feet for leveling
- Controller 2.0 touchscreen control panel with Wi-Fi and Bluetooth, and a pair of 6" speakers
- Power supply unit and a power cord of about 9 feet with a NEMA 5-15 plug
- Harvia Vega Compact 1.9 kW heater, with its mounting plate and reflector
- One box of Harvia AC3000 sauna stones
- Door handle and the assembly screws
- Installation and operation manual
Not included — arranged or ordered separately
- The Harvia heater's circuit and connection, made by a licensed electrician.
- A dedicated 15 A, 120 V circuit with a NEMA 5-15 outlet for the infrared side, if there is not one where the sauna will stand.

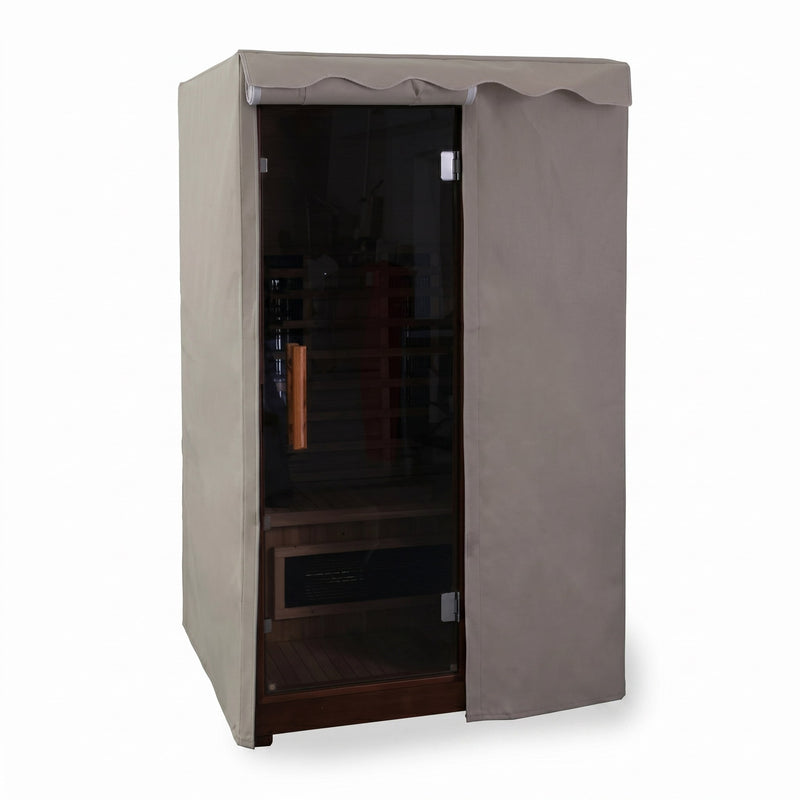

- The Finnmark FD4 outdoor cover, which Finnmark requires if the sauna is placed outdoors.

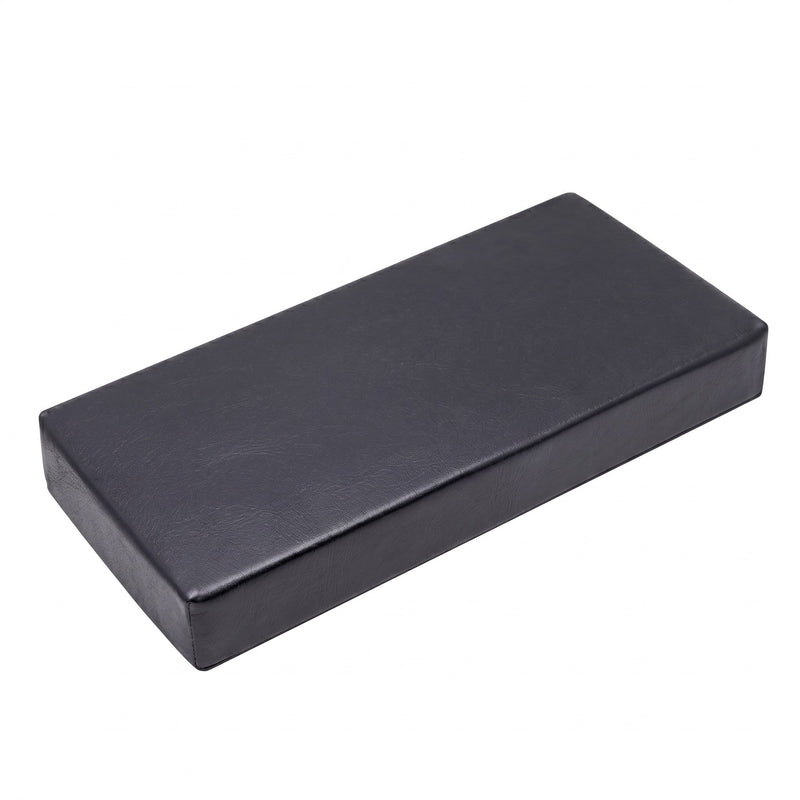

- A Finnmark FD-4 seat cushion in marine-grade vinyl.
- The Finnmark ergonomic cedar backrest, a movable curved backrest.
- Tools: a screwdriver and a level, which Finnmark lists, and a drill for mounting the Harvia heater's back plate.
The cover, the cushion and the ergonomic backrest can be added to the order on this page.
| Model | FD-4 Trinity, part FD-KN004 |
|---|---|
| Brand | Finnmark Designs |
| Sauna type | Combination sauna: infrared, traditional (Harvia heater) and red light; indoor |
| Capacity | 2 people |

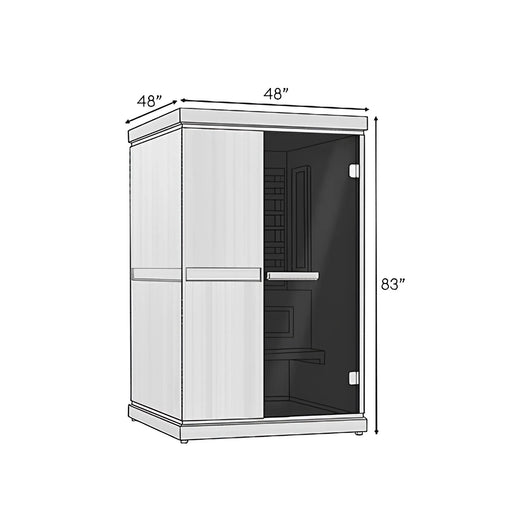

| Exterior dimensions | 48.8" W × 48.8" D × 83.1" H |
| Interior dimensions | 44.5" W × 45.1" D × 75.2" H |
| Interior volume | About 87 cu ft (calculated from the interior dimensions) |
| Benches | Upper 44.5" W × 18.9" D; lower 44.5" W × 15.7" D |
| Door opening | 23.63" W × 68.88" H |
| Door swing | 23.9" in front of the sauna |
| Glass | Tempered, 0.31" thick |
| Interior wood | Clear A-grade Canadian Western Red Cedar |
| Exterior wood | Thermo-Aspen (Finnmark Thermal Plus™) |
| Infrared heaters | 6 Spectrum Plus™ Incoloy heaters (3 back wall, 1 under the upper bench, 1 per side wall) |
| Infrared electrical | 120 V, 15 A, single phase, 1,750 W; NEMA 5-15P plug on a cord of about 9 ft; dedicated 15 A circuit with a NEMA 5-15 outlet |
| Traditional heater | Harvia Vega Compact 1.9 kW (HCBU1912241) on the front interior wall; timer and thermostat on the heater |
| Harvia heater electrical | 15.9 A at 120 V (8 A if wired for 240 V); hard-wired by a licensed electrician; Finnmark specifies a dedicated 20 A circuit |
| Sauna stones | One box of Harvia AC3000 stones; the heater takes up to 28.5 lb of 2–4" stones (Harvia) |
| Red light | Spectrum Red Light™ LED panel in the ceiling, 650 nm per Finnmark, with color settings |
| Controls | Controller 2.0 touchscreen with Wi-Fi app control; the Harvia heater has its own controls |
| Audio | Bluetooth, pair of 6" speakers |
| Maximum temperature | 170°F on infrared; up to 194°F in traditional mode (Finnmark) |
| Infrared heat-up time | 55–60 minutes to 170°F (Finnmark manual) |
| Certification | ETL listed by Intertek to UL 875; cETL listed to CSA C22.2 No. 164 |
| Placement | Indoors; outdoors only under the Finnmark cover and an awning or overhang |
| Product weight | 437 lb |
| Warranty | Finnmark's warranty sheet: 10 years on the cabin (indoor residential), lifetime on the Spectrum Plus™ heaters; the Harvia heater has Harvia's own warranty |
What electrical work does the Finnmark FD-4 Trinity need?
The Finnmark FD-4 needs two circuits. The infrared heaters, lights, controls and audio plug into a dedicated 15 A, 120 V circuit with a standard NEMA 5-15 outlet, and Finnmark's manual asks that no other devices share it. The power supply sits at the top front of the cabin and the cord is about 9 feet long, so the outlet has to be within that reach; the manual rules out extension cords.
The Harvia Vega Compact heater is wired separately. Harvia's manual requires it to be permanently connected by a licensed electrician, in seal-tight conduit, with no plugs or receptacles inside the sauna room, and says its power feed must not go through a GFI. It draws 15.9 A at 120 V, or 8 A if wired for 240 V, on minimum #14 AWG copper wire rated 194°F (90°C), and Finnmark specifies a dedicated 20 A circuit for it. Finnmark's manual asks you to give the Harvia installation manual to the electrician; it is linked under Documents.
For the infrared outlet, Finnmark's manual says all wiring should be performed by a licensed electrician following local codes, the National Electrical Code (NFPA 70) in the US and the Canadian Electrical Code in Canada, calls for a grounded three-wire outlet, and strongly recommends a GFCI device in any location that could get wet. That recommendation is for the sauna's outlet; the Harvia heater's own feed must not use a GFI.
Where can the Finnmark FD-4 Trinity be installed?

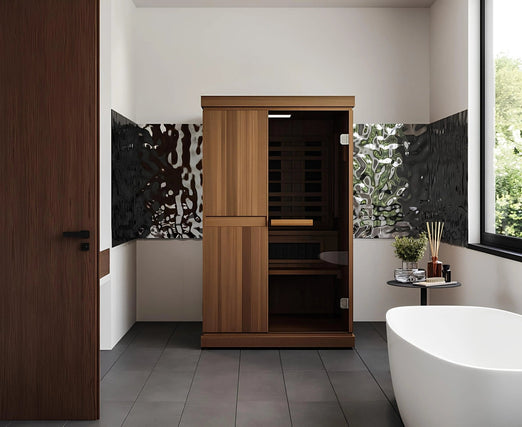

The FD-4 is a freestanding indoor sauna. Finnmark's manual says it must not be built into any structure and needs a solid surface in a dry area, with at least 3" of clearance above it and on every side so the power cord stays accessible. The manual suggests a basement, attic, garage, playroom, spare bedroom or new extension. Allow 23.9" in front of the sauna for the door to swing open, and a ceiling at least 86.1" high: the 83.1" cabin plus the 3" clearance.
Using the FD-4 outdoors
The FD-4 is designed for indoor use, and Finnmark allows it outdoors only on its conditions. It must be covered with the Finnmark FD4 outdoor cover; placing it outside without a cover voids the warranty. It must also stand under an awning or overhang so rain does not fall directly on the roof, on sturdy, dry, level ground rather than grass, gravel or dirt, and never on a surface that gets wet from rain or snow. Finnmark notes that the cover protects against limited weather exposure but not extreme conditions, that its snap buttons should stay clipped and its zippers closed when the sauna is not in use, and that warm-up times vary with the outdoor temperature. Outdoors, Finnmark's warranty on the cabin is 5 years instead of 10.
How is the Finnmark FD-4 Trinity assembled?
The FD-4 arrives as prefabricated panels that screw together. The floor panel goes down first on its feet, leveled in the sauna's final position, followed by the back and side panels, the bench and its heater, the front panel and the roof panel, which takes two people to lift. The power-supply cables are then connected, the Harvia heater's back plate is mounted on the wall and the heater hung on it, the door handle fitted and the power cord plugged in; the electrician then connects the Harvia heater. Finnmark lists a screwdriver and a level as tools, but mounting the Harvia back plate also takes a drill. Finnmark's manual requires at least two able people and states that professional installation is required.
Before the first session, Finnmark recommends wiping the interior with a damp cloth and running the empty sauna at maximum temperature for an hour, a few times, to burn off factory dust.
How is the Finnmark FD-4 Trinity delivered?
The Finnmark FD-4 ships free to the contiguous US by LTL freight, as a crate on a wooden pallet. Delivery is by appointment and curbside: the driver lowers the shipment to ground level and is not responsible for moving it further, so plan how two people will carry the panels from the curb to the room where the sauna will stand. The carrier will reach out to book the delivery appointment.
| Freight type | LTL truck, crated on a wooden pallet |
|---|---|
| Delivery | Curbside, by appointment, lowered to ground level |
| Crate size | 80" L × 36" W × 52" H |
| Shipping weight | 485 lb |
Inspect the crate before you sign. Photograph any damage to the packaging, note it on the delivery receipt, and contact us before assembling the sauna.
Finnmark's installation and operation manual for the FD-4, Harvia's manual for the heater and Finnmark's warranty sheet are available before you order, so you and your electrician can check the dimensions, both circuits and the assembly steps in advance.
Finnmark FD-4 Trinity installation and operation manual, REV.08-2026 (PDF)
Harvia Vega Compact installation and operation manual (PDF)
Harvia sauna stone requirements (PDF)
Finnmark Designs warranty sheet, updated December 12, 2022 (PDF)
Why Finnmark?
Finnmark Designs builds infrared saunas with Spectrum Plus™ heaters, in a cedar interior with a Thermo-Aspen exterior. The FD-1, FD-2 and FD-3 are full-spectrum models; the Trinity FD-4 and FD-5 add a Harvia traditional heater and a red light panel.
- Up to 170°F on infrared. Finnmark's manuals give a 170°F infrared maximum for every model, reached in about 55–60 minutes. The Trinity models reach up to 194°F in traditional mode, with their Harvia heater.
- Spectrum Plus™ heaters. Incoloy-sheathed Spectrum Plus™ elements heat every model. The FD-1, FD-2 and FD-3 add Spectrum Carbon panels and Spectrum LED ceiling lights with a red setting.
- Ultra-Low EMF Radiation (All 4 Types). You're using a sauna for your health, so it should be a clean experience. Finnmark saunas feature low-emitting heaters and upgraded, shielded electrical components to minimize all four types of radiation (EMF, ELF, EMI, and RF) for the lowest possible exposure.
- Cedar inside, Thermo-Aspen outside. Clear A-grade Canadian Western Red Cedar lines the interior. The exterior is Thermo-Aspen, which Finnmark treats with heat and steam rather than chemicals and sells as Thermal Plus™.
- Warranty. Finnmark's warranty sheet covers the cabin and its controls and power supply for 10 years in indoor residential use (5 years outdoors), the Spectrum Plus™ heaters for life, and the carbon heaters and LED lighting for 10 years.
- ETL listed. The FD-1, FD-2, FD-3 and FD-4 are ETL listed by Intertek to UL 875.
The Finnmark range
| Model | Seats | Exterior (W × D × H) | Power |
|---|---|---|---|
| FD-1 | 1 | 37" × 37.8" × 78.3" | 120 V on a dedicated 15 A outlet |
| FD-2 | 2 | 48" × 43.5" × 78.3" | 120 V on a dedicated 15 A outlet |
| FD-3 | 3–4 | 70.9" × 45.3" × 78.3" | 240 V on a dedicated 15 A circuit, NEMA 6-15 |
| FD-4 Trinity | 2 | 48.8" × 48.8" × 83.1" | Infrared on 120 V / 15 A, plus a Harvia heater on its own circuit, wired by an electrician |
| FD-5 Trinity XL | 3–4 | 74.8" × 63.8" × 83.1" | Infrared on 240 V / 15 A, plus a hard-wired Harvia heater, wired by an electrician |
