Harvia M3 16.5kW Wood Burning Sauna Stove | WKM3
Harvia M3 16.5 kW wood-burning sauna stove for 212–459 cu ft rooms, in black-painted steel with a chrome front plate and a top or rear chimney connection
- Wood-fired: no electrical hookup needed
- Up to 66 lb of 4–6" stones on top of the stove
- Top or rear 4.5" chimney connection
What Customers Say About This Product
“Quick Heat We chose the M3 for its compact size and solid reputation. It’s perfect for saunas in the 200-450 cu ft range, providing fast…”
“Excellent Value and Ambiance The M3 delivers incredible value for a true wood-fired experience. The included removable ash pan makes cleaning easy, and the overall…”
- Description
- Specifications
- Installation
- What's Included
- Documents
- Warranty
What is the Harvia M3 wood-burning sauna stove?

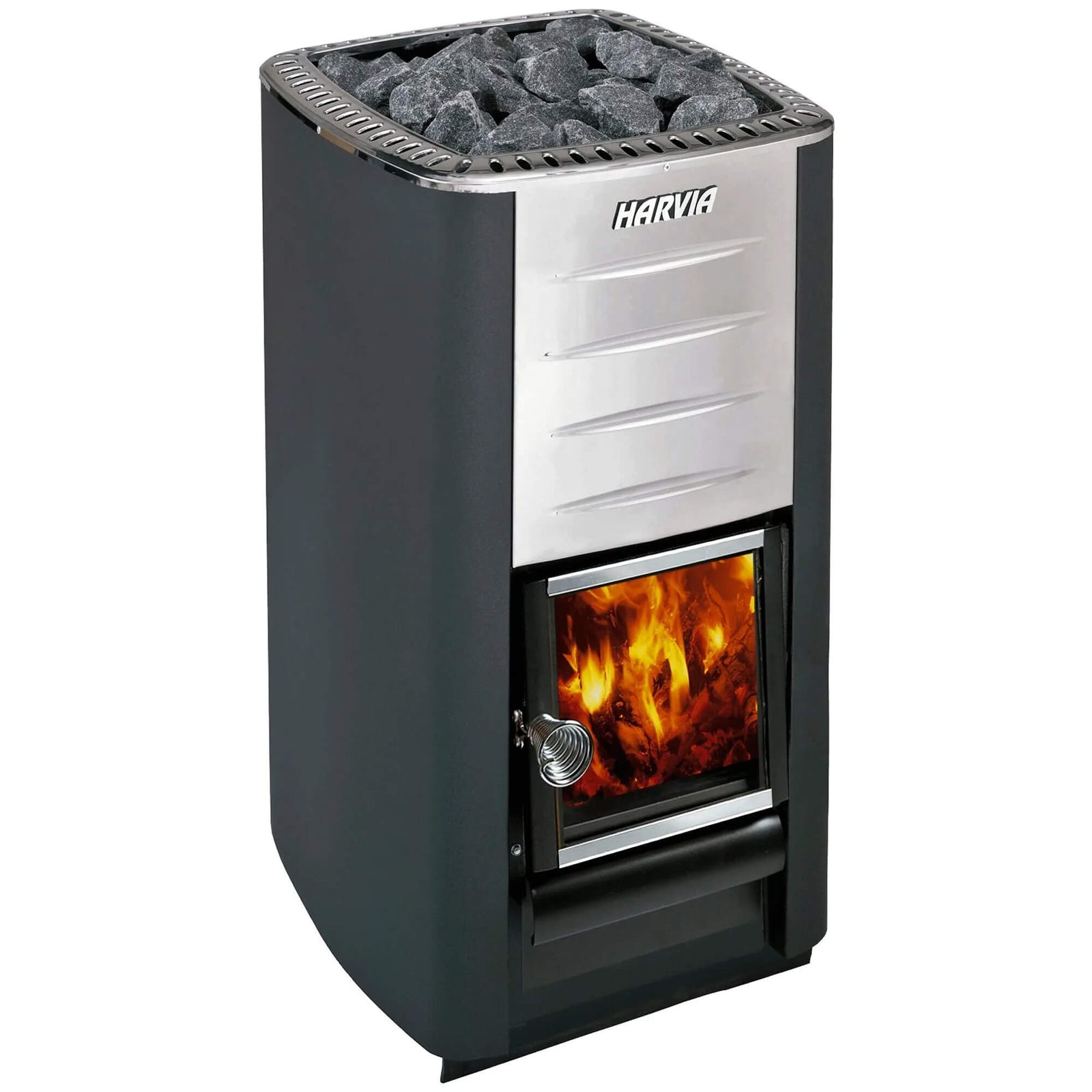

The Harvia M3 (WKM3) is a 16.5 kW wood-burning sauna stove for sauna rooms of 212 to 459 cu ft. It stands on the floor, has a black-painted steel body with a chrome front plate, a glass door and an ash box, holds up to 66 lb (30 kg) of 4–6" stones, and connects to the chimney at the top or the rear through a 4.5" (115 mm) opening. It burns firewood and needs no electrical connection.
Topture also sells the M3 in three kits with Harvia's WHP1500 chimney and stones included, one of them in black with a chimney extension. The Harvia M3 SL is the version with a fire chamber that passes through the wall, and the Harvia wood-burning stove collection has every Harvia wood-burning stove Topture sells.
Harvia M3 key features
- 16.5 kW for sauna rooms of 212–459 cu ft (6–13 m³)
- Up to 66 lb (30 kg) of 4–6" stones
- Top or rear chimney connection, 4.5" (115 mm)
- Black-painted steel body with a chrome front plate, glass door and ash box
- Takes firewood up to 13.8" (350 mm) long
- CE marked (EN 15821)
- 2-year manufacturer warranty
Does the Harvia M3 fit my sauna?
The Harvia M3 heats sauna rooms of 212 to 459 cu ft (6–13 m³). Harvia's manual adds 1.2 m³ for every square meter of uninsulated brick, glass block, glass, concrete or tile wall, about 3.9 cu ft per sq ft, and a glass door counts: its example is a 10 m³ room with a glass door, which needs the output of a 12 m³ room. Multiply the volume of a solid-log sauna by 1.5. The M3 needs at least 47.2" (1,200 mm) between the top of the stove and the ceiling.
Harvia M3 specifications
| Output | 16.5 kW |
|---|---|
| Sauna room volume | 212–459 cu ft (6–13 m³) |
| Dimensions | 15.4" W × 16.9" D × 28.1" H (390 × 430 × 715 mm) |
| Legs | Fixed; the M3 has no adjustable legs |
| Net weight | 99.2 lb (45 kg) |
| Stones | Up to 66 lb (30 kg) of 4–6" (10–15 cm) stones; two 44 lb boxes of Harvia AC3020 cover it |
| Chimney connection | Top or rear, 4.5" (115 mm); chimney class T600 with a flue at least 4.3" (110 mm) across |
| Firewood | Up to 13.8" (350 mm) long, 3.1–5.9" (8–15 cm) across |
| Materials | Black-painted steel body (heat-resistant paint) with a chrome front plate; glass door |
| Electrical connection | None; wood-fired |
| Certification | CE marked (EN 15821) |
| Harvia part number | WKM3 (GTIN 6417659009423) |
| Packed for shipping | Stove only: 101.6 lb (46.1 kg), carton 19.7" W × 30.1" H × 16.3" D |
| Warranty | 2-year manufacturer warranty; stones are not covered |
How is the Harvia M3 installed?
The Harvia M3 stands on a floor strong enough to carry it, inside the safety distances below, and connects to a T600 chimney. Harvia's manual says all local regulations apply, that the stove is not suitable for a shared flue, and that the local fire authorities can give detailed fire-safety requirements.
Does the Harvia M3 need floor protection?
It depends on the floor under the Harvia M3. A bare concrete floor at least 2.4" (60 mm) thick needs no protection. A tile floor needs Harvia protective bedding, because the adhesives and waterproofing under tile do not resist the stove's heat. A floor made of combustible material needs the bedding too, plus non-combustible protection in front of the stove door. Harvia's manual names the WL100 or WL110 bedding for the M3. The Harvia WL100 protective bedding (Protective Bedding SM) is sold separately; it does not come with the stove.
Harvia M3 safety distances
Keep at least these distances between the Harvia M3 and anything that can burn.
| Top of the stove to the ceiling | 47.2" (1,200 mm) |
|---|---|
| Sides to combustible material | 9.8" (250 mm) |
| Rear to combustible material | 11.8" (300 mm) |
| Front to combustible material | 11.8" (300 mm) |
| To a masonry wall | 2.0" (50 mm) if air can circulate in front and at one side; 3.9" (100 mm) in a recess |
| Sides | 2.0" (50 mm) |
|---|---|
| Rear | 2.0" (50 mm) |
| Front | 11.8" (300 mm) |
| Sheath to wall | 1.2" (30 mm) |
The shorter distances apply only with the sheath fitted; without it, use the first table.
Connecting the Harvia M3 to a chimney
The Harvia M3 connects at the top or the rear through a 4.5" (115 mm) opening, to a chimney of temperature class T600 with a flue at least 4.3" (110 mm) across; it cannot share a flue with another fireplace. The Harvia WHP1500 chimney kit (sold separately) fits the top opening, and its page gives the roof and clearance requirements. For North American 6" chimney pipe, the Harvia WZ115155 pipe adapter (sold separately) adapts the opening.
Does the Harvia M3 need a first firing?
Yes, outdoors. Harvia's manual says to fire the M3 once outside before its first sauna, until the paint on the stove stops smoking, and to load the stones only after it has cooled.
What's in the box with the Harvia M3?
- Harvia M3 wood-burning sauna stove with its glass door and ash box
- Installation and user manual
What you need separately
- Two 44 lb boxes (88 lb) of Harvia AC3020 4–6" stones
- A chimney: the Harvia WHP1500 chimney kit in stainless steel or black, or a T600 masonry flue
- On a tile or combustible floor: the Harvia WL100 protective bedding (Protective Bedding SM), plus non-combustible protection in front of the door on a combustible floor
- Optional: the Harvia WL450 protective sheath, which cuts the side and rear distances to 2"
- Optional: the Harvia WP220ST water heater, which Harvia lists for the M3
- Optional: the Harvia WZ115155 pipe adapter, for North American 6" chimney pipe
The three M3 kits include the chimney and stones: the M3 kit with chimney and stones (stainless WHP1500 and two boxes of AC3020), the M3 kit with chimney, sheath, floor protection and stones (adds the WL450 sheath and WL100 bedding), and the black M3 kit with chimney extension (black WHP1500M chimney with a WHP1000M extension, the sheath, the bedding and the stones).
