HUUM HIVE Mini 6kW Electric Sauna Heater Package
HUUM HIVE Mini 6 kW heater, UKU control and 10 boxes of stones in one package, for 177–318 cu ft sauna rooms
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
- Heater, UKU control and stones matched in one order
- 330 lb (150 kg) stone capacity around a stainless-steel air tunnel
- Wi-Fi options add HUUM app control
- Description
- What's Included
- Specifications
- Installation
- Documents
- Warranty

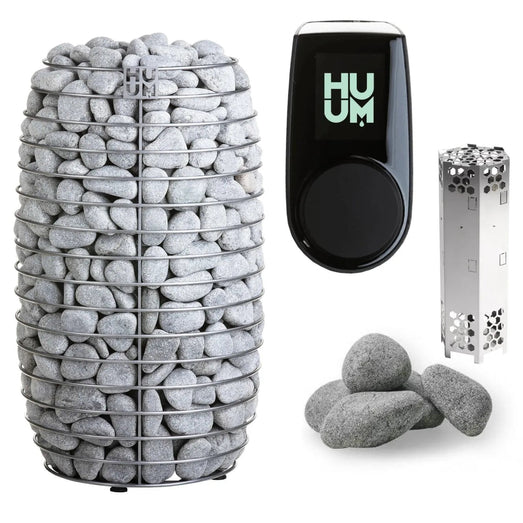

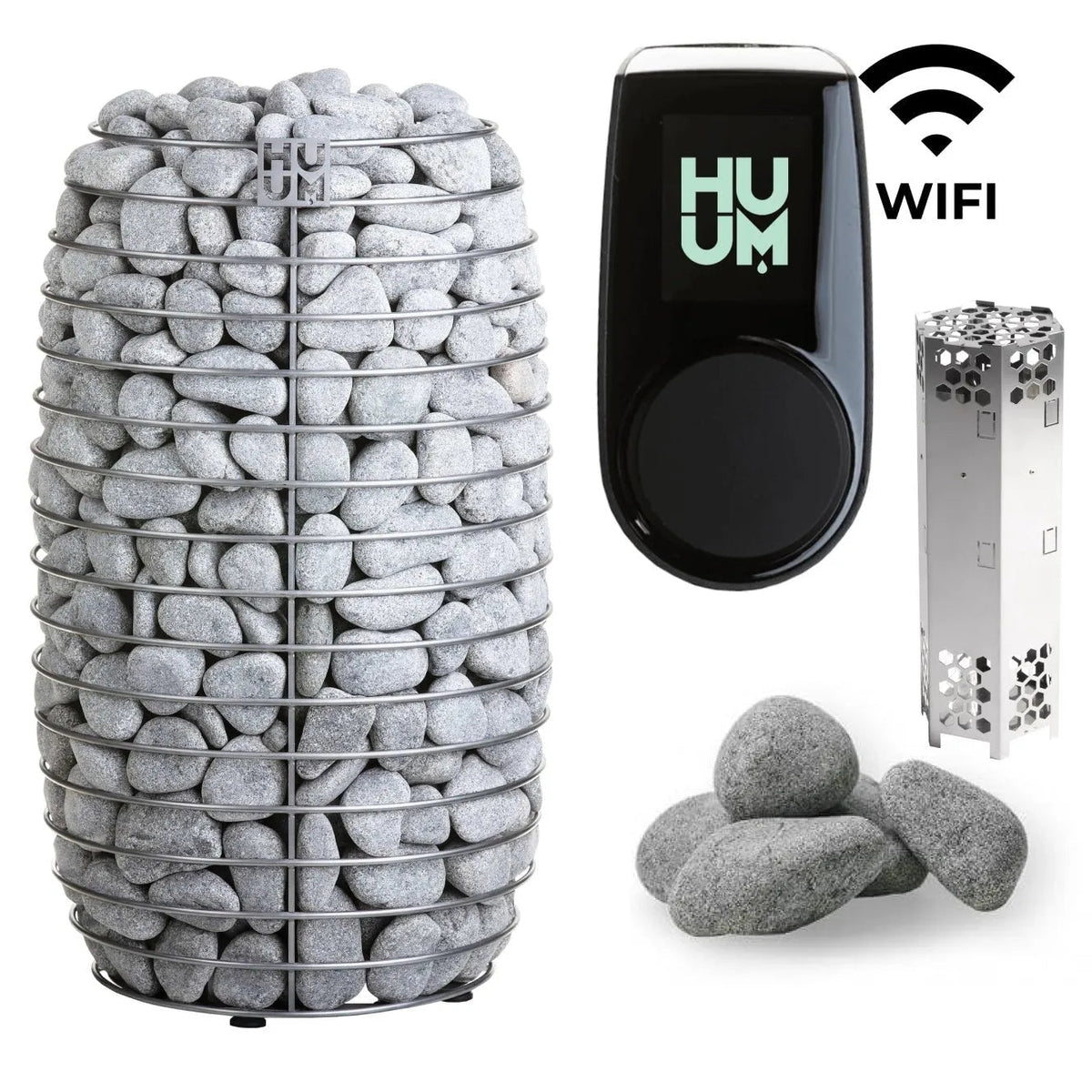

What is the HUUM HIVE Mini 6 kW electric heater package?
The HUUM HIVE Mini 6 kW package combines three parts: the HUUM HIVE Mini 6 floor-standing electric sauna heater, a HUUM UKU control (UKU Local, or UKU Wi-Fi with a black, glass or mirror panel) and 10 boxes × 33 lb of HUUM Stones 24. It is sized for sauna rooms of 177–318 cu ft at 240 V (142–248 cu ft at 208 V). The package price is the sum of the three parts; ordering them together means the stone quantity and the control are already matched to the heater.
The HIVE Mini holds 330 lb (150 kg) of stones laid around and between its heating elements, and every current HIVE Mini ships with HUUM's stainless-steel air tunnel. HUUM's manual says the air tunnel moves air through the heater to shorten the time the sauna takes to heat, keeps the heating elements from overheating and supports them. The full stone load is still required.
Which UKU control should I choose?
All four options run the HUUM HIVE Mini 6 kW and set temperature, heating time and a start timer from the wall panel. The Wi-Fi options add the HUUM app, so you can start the sauna on your way home. The black CLASSIC panel must be mounted outside the sauna room. The glass and mirror panels are recessed into the wall, or mounted on the HUUM UKU Surface Frame where the wall can't take a recess, and HUUM allows them inside the sauna room if they sit away from the heater, with the top edge no higher than 40" above the floor and at least 20" from any exhaust vent (on the other side of the door if the vent is in the door wall).
| Panel | App control | Where the panel can go | |
|---|---|---|---|
| UKU Local Black | black CLASSIC panel (plastic) | Wall panel only; no app | Outside the sauna room (outdoors, HUUM recommends a weatherproof box) |
| UKU Wi-Fi Black | black CLASSIC panel (plastic) | HUUM app over 2.4 GHz Wi-Fi | Outside the sauna room (outdoors, HUUM recommends a weatherproof box) |
| UKU Wi-Fi Glass | black glass panel | HUUM app over 2.4 GHz Wi-Fi | Inside the sauna room (away from the heater, top edge no higher than 40" above the floor, at least 20" from an exhaust vent) or outside it; recessed, or on the UKU Surface Frame |
| UKU Wi-Fi Mirror | mirror-finish glass panel | HUUM app over 2.4 GHz Wi-Fi | Inside the sauna room (away from the heater, top edge no higher than 40" above the floor, at least 20" from an exhaust vent) or outside it; recessed, or on the UKU Surface Frame |
What's included in the HUUM HIVE Mini 6 kW package?
HUUM HIVE Mini 6 kW heater
- HUUM HIVE Mini electric sauna heater, 6 kW
- Four adjustable legs
- Stainless-steel air tunnel
- Installation and operation manual
HUUM UKU control
- UKU control panel (black plastic, black glass or mirror glass, by the option you choose)
- UKU main module (Wi-Fi models connect to the HUUM app)
- Temperature (safety) sensor, mounted above the heater
- Door sensor with magnet
- Cables for the control panel and sensors
- Installation and user manual
The Wi-Fi Black and Wi-Fi Mirror controls ship as HUUM's UKU 4.2, whose kit also includes a bench sensor that reads temperature and humidity at bench height; HUUM recommends installing it, and with it fitted the highest temperature setting is 194°F (90°C). The Local Black and Wi-Fi Glass controls still ship as UKU 4.1, with the one temperature sensor, until the remaining 4.1 stock runs out.
HUUM Stones 24
- 10 boxes × 33 lb of rounded 2–4" (5–10 cm) HUUM Stones 24, the quantity in HUUM's HIVE Mini stone table
What you still need
- A heat-resistant power cable, connected by a licensed electrician
- Optional: HUUM Rail HM safety rail, HUUM Flange HM embedding flange or HUUM Reflect HM reflector
HUUM HIVE Mini 6 kW heater specifications
| HUUM model | HIVE Mini 6 |
|---|---|
| Sauna room volume | 177–318 cu ft (5–9 m³) at 240 V; 142–248 cu ft (4–7 m³) at 208 V; add 3.3 cu ft per sq ft of uninsulated brick, tile or glass wall |
| Power supply at 240 V | 6 kW, single phase; 25 A; one supply circuit |
| Power supply at 208 V | 4.5 kW, single phase; 21.63 A |
| Circuit breaker / minimum wire | 240 V: 30 A / 10 AWG; 208 V: 30 A / 10 AWG |
| Dimensions | 29.53" H × 18.11" diameter (750 × 460 mm) |
| Heater weight | 35.2 lb (16 kg) |
| Stones | Included: 10 boxes × 33 lb of HUUM Stones 24 (2–4"); the heater's capacity is 330 lb (150 kg) |
| Heat-up time | About one hour (HUUM) |
| Made in | Estonia |
| HUUM part number | H1002012 |
| Power cable and wiring | Not included: a heat-resistant power cable and a licensed electrician's work |
| Optional accessories | Not included: Rail HM, Flange HM and Reflect HM |
| Warranty | Heater: 3 years private use, 1 year commercial use (HUUM); heating elements, stones and sensors are excluded. UKU: 3 years private use, 1 year commercial use (HUUM); sensors are excluded |
All three HIVE Mini sizes, as heaters and as packages, are in the HUUM HIVE Mini collection.
HUUM UKU control specifications
| Heater power | Runs the HUUM HIVE Mini 6 kW on its own; no extension box needed (a UKU alone runs heaters up to 11 kW) |
|---|---|
| Temperature setting | From 104°F (40°C) up to 230°F (110°C) with the included safety sensor; UKU 4.2 kits also include a bench sensor, and with it fitted the maximum setting is 194°F (90°C) |
| Heating time | 3 or 6 hours for a home sauna (12 hours semi-public, 18 hours public) |
| App control | UKU Wi-Fi options: the HUUM app, over 2.4 GHz Wi-Fi only (802.11 b/g/n). UKU Local: wall panel only, no app |
| Door sensor | Must be installed (HUUM requires it); included in the package |
| Outdoor installation (optional, not included) | The main module goes outside the sauna room. Outdoors, HUUM recommends a box to shield the black panel from the weather, and weatherproof housing can be added for the main module; SaunaLife's Sauna Gear 300 (panel) and 302 (main module) enclosures are offered as add-ons |
| Other safety features | Overheating protection in the included temperature sensor, child lock; the Wi-Fi options also ask for a safety confirmation at the panel before the sauna can be started remotely |
| Sauna light or fan (optional, not included) | The UKU can switch one you add: up to 100 W incandescent lamp or fan, or 50 W LED, at 120 V |
| Steamer (optional, not included) | The UKU can run one you add: 1,250 W at 120 V or 2,500 W at 240 V; steam switches off above 194°F (90°C) |
How is the HUUM HIVE Mini 6 kW package installed?
The HIVE Mini stands on the sauna floor on its four adjustable legs, levelled so that all four carry the weight; it can also sit partly inside the bench, with at least 13.8" (350 mm) above the bench and the HUUM Flange HM covering the cut edges. HUUM recommends ceramic tile with dark grout under and around the heater, because stone chips and stone dust wash onto the floor and can stain light grout. The UKU main module goes outside the sauna room (for the Wi-Fi options, where your 2.4 GHz Wi-Fi reaches it), and the door sensor included with the UKU must be installed.
HUUM's manual says the electrical connection of the HIVE Mini 6 kW must be made by a licensed electrician. It wires to one supply circuit (terminals V and U), with a heat-resistant power cable meeting UL 62 (US) or CSA 49 (Canada), never PVC-insulated cable, and crimped wire ends; the cable enters through the heater's bottom cover. Your electrician sizes the breaker and wire from the manual that ships with the heater and your local code.
The UKU 4.2 manual puts the UKU safety sensor on the ceiling, directly above the heater and centered over its stones, no more than 50 ft of cable from the UKU main module, because every HIVE Mini size has a minimum safety distance of more than 1 9/16" (40 mm).
HUUM HIVE Mini 6 kW safety distances
Keep at least these distances from the HUUM HIVE Mini 6 kW to walls, benches and anything that can burn. The letters match the drawing.
| A | 2.36" (60 mm) |
|---|---|
| B | 22.83" (580 mm) |
- A: minimum distance from the HUUM HIVE Mini 6 kW to the walls and to the bench, on every side
- B: minimum width from wall to wall across the heater (its diameter plus A on each side)
- At least 47 1/4" (1,200 mm) from the top of the heater to the ceiling
- The distances apply only when the heating elements are fully covered by stones
HUUM requires a sauna room at least 77" (1,950 mm) tall, recommends 79–91" (2,000–2,300 mm), and puts the top bench 44–51" (1,100–1,300 mm) below the ceiling.
HUUM's manual asks for about six air changes an hour: a supply-air pipe 2–4" (50–100 mm) across, an exhaust pipe twice its diameter and a drying vent under the ceiling. Sauna doors should open outward.
Stacking and caring for the stones
HUUM recommends that a specialist lays the stones in the HUUM HIVE Mini 6 kW. Wash them, then lay them one by one by hand, larger stones at the bottom and sides and smaller ones between the heating elements, so that no element shows through; a too sparsely filled heater is a fire hazard, and elements left visible void the safety distances. Use natural sauna stones 2–4" (5–10 cm) across, such as olivine diabase, and avoid decorative stones, which break easily and can block air holes. Check the stones once a year and replace broken pieces.
Ladle about 2 3/4 oz (80 ml) of clean, warm water at a time onto fully heated stones, never onto metal surfaces, and never while someone is right beside the heater.
HUUM warranty periods
HUUM's limited warranty (Limited Warranty Terms and Conditions, US, v2) covers new HUUM products bought from HUUM or its authorized dealers, such as Topture, against defects in materials and workmanship. The period starts on the date the end user buys the product.
| HUUM product | Private use | Commercial use |
|---|---|---|
| Electric sauna heaters | 3 years | 1 year |
| Wood-burning sauna stoves | 3 years | 1 year |
| Control units (UKU) | 3 years | 1 year |
| Spare parts | 1 year | 1 year |
HUUM counts as commercial use a business using the product commercially, a private owner using it commercially, or a private owner using it for more than 1,500 hours in 12 months.
What the warranty does not cover
- Heating elements of electric heaters
- HUUM accessories, such as rails, reflectors, flanges, protective bedding and chimney parts
- Door glass and ash grate of wood-burning stoves
- Sauna stones
- All controller sensors
- Damage from a heater that is the wrong size for the room, from unsuitable stones, or from installation, use or maintenance that does not follow HUUM's manuals
What keeps the warranty in effect
- Inspect the product when it arrives and report any visible damage within 7 days, with photos, before installing it.
- Install it following HUUM's manual and local building, electrical and fire codes. An electric product must be connected by a licensed electrician, with proof of the installation.
- Report a defect within 30 days of finding it. For products bought from Topture, report it to Topture, which passes the claim to HUUM and helps with troubleshooting.
