SunRay Westlake Indoor Traditional Sauna HL300LX · 3-Person
A 3-person indoor traditional sauna in cedar with a slate-colored cultured stone back wall, Bluetooth audio and an included 6 kW Harvia electric heater.
- 6 kW Harvia electric heater with lava stones included; SunRay rates the Westlake to 180°F.
- Built-in Bluetooth sound system, color-changing LED overhead lighting and a lit backrest.
- 10-year structural warranty from SunRay, with 1 year on parts and electronics.
- Description
- What's Included?
- Specifications
- Assembly & Installation
- Shipping
- Documents
- SunRay Warranty
- FAQs
The SunRay Westlake (model 300LX) is a 3-person indoor traditional sauna built from cedar, with a slate-colored cultured stone back wall, a tempered glass door and a 6 kW Harvia electric heater with lava stones included. It has a built-in Bluetooth sound system, color-changing LED overhead lighting and a lit backrest. It measures 71" W × 42" D × 75" H outside and 67" W × 39" D × 69" H inside. It is a wet/dry sauna: water ladled onto the heater stones raises the humidity, and SunRay supplies a wooden bucket and ladle for that. SunRay lists the Westlake at 801 lbs, and it ships by LTL freight as a kit for assembly indoors.
The Westlake is the 3-person model in SunRay's LX line of indoor saunas, which pair cedar with a cultured stone wall. The 2-person SunRay Rockledge is 59" × 42" with a 4.5 kW heater. The 3-person SunRay Southport is 69" × 47" in Canadian hemlock, with a 4.5 kW heater. For other sizes and brands, see our indoor traditional saunas.
How the SunRay Westlake is built
SunRay builds the Westlake for indoor use, with the heater, the sound system, the lighting and the accessories part of the kit.
- Cedar cabin with a stone wall: cedar panels, with a slate-colored cultured stone back wall.

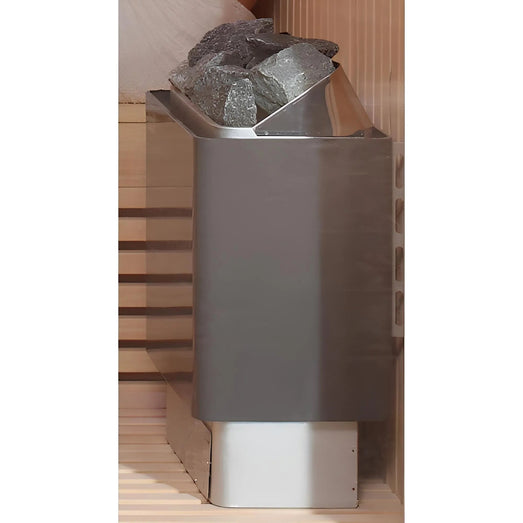

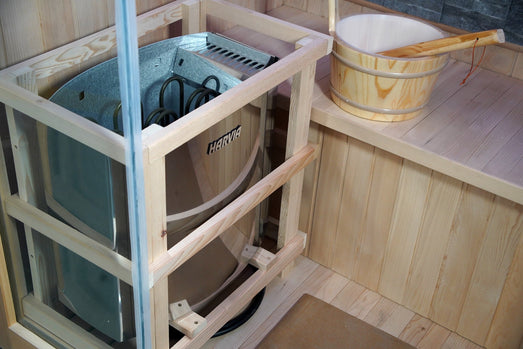

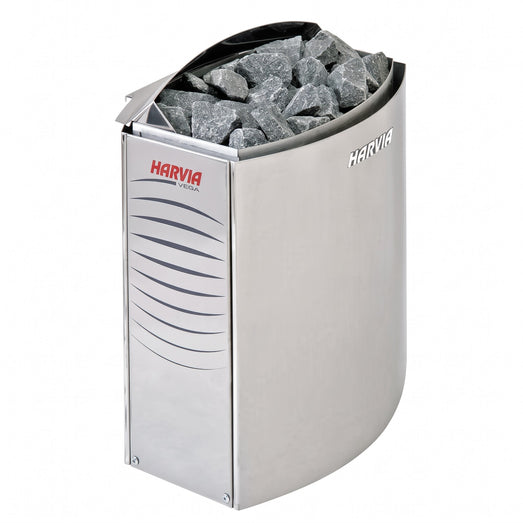

- 6 kW Harvia electric heater: supplied with lava stones and digital controls, and set in a wooden frame. SunRay does not name the Harvia model or describe the controls' functions.
- Heat: SunRay rates the Westlake to 180°F.

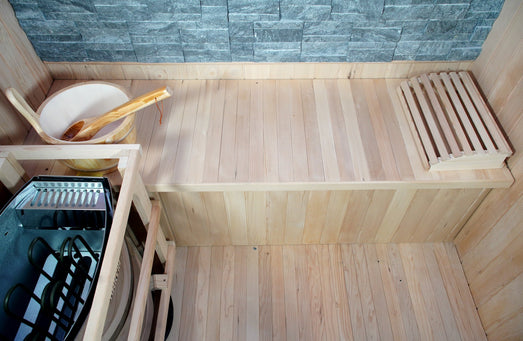

- Bench: a bench with a lit backrest.

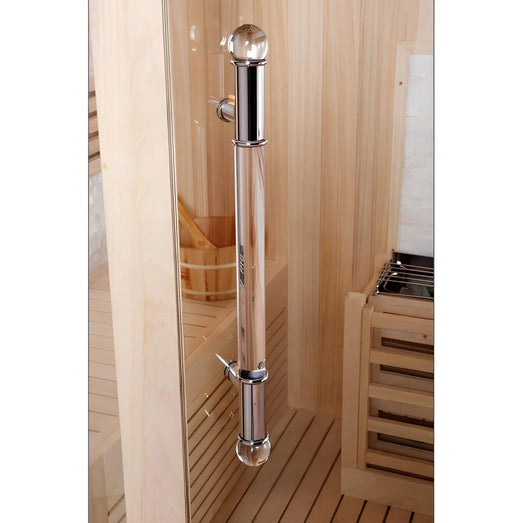

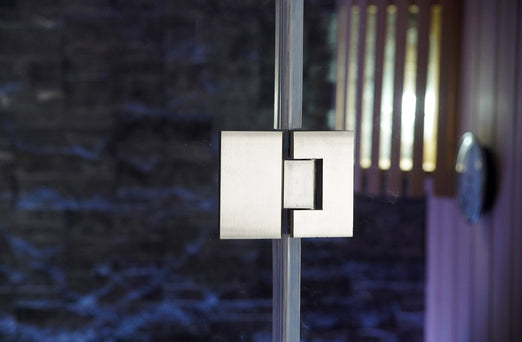

- Glass front: a tempered glass door with a stainless steel handle.
- Audio: a built-in Bluetooth sound system.

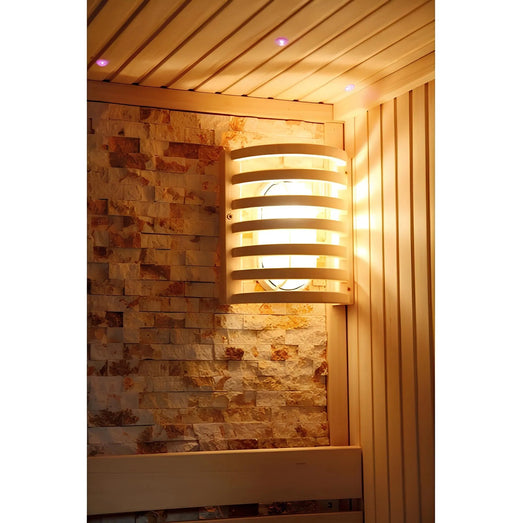

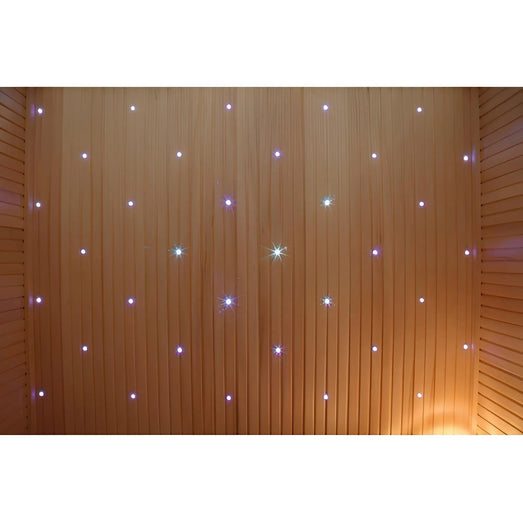

- Lighting: color-changing LED overhead lighting, plus the lit backrest.
- Ventilation: a ventilation system, as SunRay lists it.

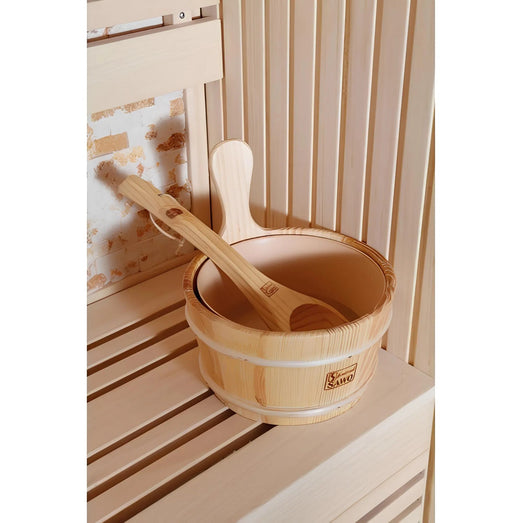

- Accessories: a thermo-hygrometer, a sand timer, and a wooden bucket and ladle.
What comes with the SunRay Westlake?
The SunRay Westlake ships as a complete indoor sauna kit with its heater: the cedar cabin panels with the cultured stone wall, the glass door, the bench and backrest, the 6 kW Harvia heater with lava stones and its digital control, the wooden heater frame, the Bluetooth sound system, the lighting and the accessories. The 240 V circuit and its connection are not included.
Included in the kit
Cabin
- Cedar cabin panels, with slate-colored cultured stone on the back wall
- Tempered glass door with a stainless steel handle
- Bench with backrest
Heat and interior
- 6 kW Harvia electric heater with lava stones, with digital control
- Wooden frame for the heater
- Built-in Bluetooth sound system
- Color-changing LED overhead lighting
- Lit backrest
- Ventilation system
Accessories
- Thermo-hygrometer
- Sand timer
- Wooden bucket and ladle
Not included — arranged separately
- A dedicated 240 V, 30 A circuit and its connection, by a licensed electrician
Does the SunRay Westlake include a heater?
Yes. The SunRay Westlake comes with a 6 kW Harvia electric heater with lava stones and digital controls, so there is no heater to choose separately. SunRay does not name the Harvia model. The heater draws 6,000 W on a dedicated 240 V, 30 A circuit, which a licensed electrician installs.
| Model | SunRay Westlake, model 300LX |
|---|---|
| Brand | SunRay Saunas |
| Sauna type | Traditional, wet/dry |
| Placement | Indoor only |
| Capacity | 3 people |
| Exterior dimensions | 71" W × 42" D × 75" H |
| Interior dimensions | 67" W × 39" D × 69" H |
| Interior volume | About 104 cu ft (calculated from the interior dimensions) |
| Bench | Bench with a lit backrest |
| Door and glass | Tempered glass door with a stainless steel handle |
| Wood and stone | Cedar; slate-colored cultured stone back wall |
| Heater | 6 kW Harvia electric heater with lava stones, included (model not named by SunRay); wooden heater frame |
| Wattage | 6,000 W |
| Maximum temperature | 180°F (SunRay) |
| Controls | Digital controls for the heater (SunRay does not describe their functions) |
| Lighting | Color-changing LED overhead lighting; lit backrest |
| Audio | Built-in Bluetooth sound system |
| Ventilation | Ventilation system (SunRay) |
| Electrical | 240 V (SunRay lists 220–240 V), 30 A dedicated circuit; SunRay does not state whether it ships with a plug or is hard-wired |
| Weight | 801 lbs (SunRay's listed shipping weight) |
| Warranty | 10-year structural; 1-year parts and electronics (SunRay warranty certificate); residential use only |
Can you assemble the SunRay Westlake yourself?
The cabin, yes; the 240 V connection, no. SunRay says two people can assemble the Westlake, the generic assembly instructions SunRay publishes under its name allow about 2–3 hours, and SunRay names a Phillips screwdriver or a drill with a Phillips bit as the only tool. The electrical connection is work for a licensed electrician.
SunRay has not published an assembly manual written for the Westlake (see Documents), so contact us before delivery if you want to go through the build with us.
Before the sauna arrives
- Choose the room. The Westlake is for indoor use only; see "Where can the SunRay Westlake be installed?" below.
- Have a licensed electrician run a dedicated 240 V, 30 A circuit to that spot and confirm how the sauna will be connected.
- Plan how the boxed panels will get from the curb to the room. See Shipping below.
Tools you supply
A Phillips screwdriver or a drill with a Phillips bit, and a second pair of hands.
What electrical service does the SunRay Westlake need?
A dedicated 240 V circuit rated for 30 A, the same kind of circuit an electric clothes dryer uses; SunRay lists it as 220–240 V. The heater draws 6,000 W, and nothing else can share the circuit. If your electrical panel has no room for another 240 V breaker, your electrician may need to upgrade it before delivery.
SunRay does not say whether the Westlake ships with a plug or is meant to be hard-wired, so the connection is for a licensed electrician to make and confirm. Have the circuit in place before delivery day, and contact us before you order if you want us to confirm the requirements with you.
Where can the SunRay Westlake be installed?
Indoors only. SunRay sells the Westlake as an indoor sauna, and SunRay's warranty certificate states that indoor saunas are for indoor use only. SunRay publishes no floor or ceiling-height requirements for the Westlake.
The room needs space for the 71" × 42" cabin and its 75" height, and the dedicated 240 V circuit close by. SunRay publishes no wall or ceiling clearances, so if the space is tight, contact us with the room's dimensions before you order.
How is the SunRay Westlake delivered?
The SunRay Westlake ships by LTL freight, with its panels boxed and strapped to a wooden pallet, and SunRay lists its shipping weight at 801 lbs. Delivery is curbside with a lift gate, which lowers the shipment to the driveway; moving the boxes from there to the room where the sauna will stand is up to you, so plan the route before the truck arrives. SunRay says its boxes fit through any doorway 24" or wider.
| Freight type | LTL truck; boxed panels on a wooden pallet |
|---|---|
| Delivery point | Curbside, lowered to the driveway by lift gate |
| Shipping weight | 801 lbs (SunRay) |
| Shipping cost | Free within the contiguous US |
| Appointment | Required; someone must be present to inspect and sign |
The carrier will reach out to book the delivery appointment once the shipment reaches their local terminal.
Inspect the shipment before you sign. SunRay's warranty excludes freight damage caused by the carrier, so note any visible damage on the delivery receipt, photograph it, and contact us before you start assembly. SunRay's delivery policy asks for internal damage found after unpacking to be reported within 3 business days of delivery.
SunRay has not published an assembly manual written for the Westlake. The document SunRay lists under the Westlake's name is a generic factory template whose technical page does not describe this sauna's heater or size, so we do not link it here. If you want to review the assembly or electrical details before delivery, contact us.
This warranty covers all SunRay branded saunas purchased directly from SunRay Saunas or any of its authorized affiliates. This warranty is non-transferable.
Structural Warranty — 7 Years
SunRay warrants the sauna structure against manufacturer defects in materials and workmanship for 7 years from the date of purchase.
What's covered:
- Wooden sauna panels, flooring, ceiling, and glass
- Replacement parts necessary for repair
- If a structural defect cannot be remedied by a replacement part, SunRay may send a full replacement sauna at its sole discretion
Note: Surface cracks in the wood and minor blemishes are normal characteristics of natural wood and are not considered defects.
Parts & Electronics Warranty — 1 Year
All sauna parts, including the heater and electrical components, are guaranteed against defects in materials and workmanship for 1 year from the date of purchase.
- Covers replacement parts only
- Labor costs for replacing a part are not covered
Warranty Terms
-
Applies to the original customer at the original delivery address only
-
Customers must have written consent from SunRay before proceeding with any warranty repair to be reimbursed
-
SunRay has sole responsibility for determining the cause and nature of any warranty claim
-
If a replacement sauna is provided, the customer is responsible for assembly/installation costs of the new unit
What Is NOT Covered
This warranty is voided if the sauna has been subjected to:
- Alteration, neglect, misuse, or abuse
- Freight damage caused by the carrier
- Accidents or acts of God
- Installation, operation, or maintenance not in accordance with the owner's manual
- Commercial use — saunas used in a commercial setting are excluded from all warranty coverage
Disclaimers
- SunRay shall not be liable for any incidental or consequential damages, including loss of use or cost of removal
- Liability under this warranty shall not exceed the original purchase price
- Warranty coverage begins on the original date of purchase and does not extend beyond the stated periods for any reason
Filing a Claim
To file a warranty claim, contact the SunRay Claims Department:
Phone: 800.976.5530
Electrical Requirements
Indoor traditional saunas require a dedicated 240V circuit in order to accommodate the high heat output of the heater. Please reference the product specification sheet to determine the specific requirements for your sauna.
Ventilation Requirements
Indoor traditional saunas are equipped with an air vent in the ceiling. This air vent is designed to help circulate heat throughout the sauna during the heat-up phase and to allow moisture to leave the sauna if you are adding humidity and using it as a steam sauna. The sauna cabin air vent also allows you to lower the sauna temperature without opening the door if the temperature inside the sauna becomes too hot.
Maximum Temperature
SunRay indoor traditional saunas have a maximum operating temperature of 170 degrees Fahrenheit. The normal operating range is 160-170 degrees Fahrenheit.
Traditional Sauna Shipping
All traditional saunas are shipped via truck freight with curbside and lift-gate delivery service unless otherwise specified. SunRay traditional saunas and steam saunas are shipped on a wooden pallet with removable bracing to protect the sauna boxes. Please contact us if you have special requirements for delivery. The trucking company will call you to schedule a delivery appointment.
Sauna Warranty
SunRay home saunas carry a 7-year structural warranty and 1-year parts warranty. All SunRay sauna parts, including electronic parts and the electric heater, are guaranteed for 1 year against defects.
Electrical Connection
Indoor traditional saunas for the home come with a power cord attached to the heater. The power cord does not have a plug. It is designed to be hard-wired into a junction box or you can put a plug on the end of the power cord. Please note that the power requirements differ by sauna model. Consult your traditional sauna user manual for the specific power requirements.
Assembly and Installation
An indoor traditional sauna is easily assembled by two adults. The typical assembly time is 1 hour. No special tools are required for the sauna to be assembled.
Cleaning Your Home Sauna
Your home sauna should be cleaned a minimum of every 3-4 months or more frequently depending on usage. To clean the interior of your home sauna, use a mixture of baking soda and water (3 teaspoons baking soda to 1 gallon of warm water). Using a clean towel, wipe down the interior of the sauna, focusing on where sweat accumulates. Let the area dry with the sauna door open. Use a standard ammonia-based glass cleaner to clean the sauna doors and windows.
Traditional Sauna Origin
SunRay traditional sauna cabins are constructed from Hemlock or Cedar wood imported from Canada. SunRay's manufacturing facility is in China and its distribution facility is in the United States. Warranty claims are handled by SunRay Saunas, based in Richmond, VA, and Topture helps you coordinate them.
Sauna Specification Sheets
Each SunRay sauna has a specification sheet with all the details of the kit, including the power requirements. Contact us if you would like a copy.
Placing an Indoor Sauna Outdoors
SunRay indoor traditional saunas are not rated for outdoor use. They have an open top that is not protected from the elements. If you place the indoor sauna outdoors, it must be covered and protected from the elements. Indoor saunas that are placed outdoors will not be covered under SunRay's sauna warranty.
Sauna Heating Time
The average heating time for traditional home saunas ranges between 30-45 minutes depending on the room temperature, size of the sauna, and the heater type.
Ceiling Clearance
You need at least 3-4 inches between the top of the home sauna and the ceiling. This allows the electrical components on the top of the sauna to receive the appropriate amount of airflow.
Sauna Stones
SunRay indoor traditional saunas come with heater stones that sit on top of the heater elements. The heater stones are used to help radiate heat throughout the sauna and can be used to create humidity inside the sauna. DO NOT pour excess water on the heater stones as it will cause damage to the heater. To create humidity in the sauna, simply drizzle a small amount of water over the stones once they are hot.
Sauna Heater Placement
All indoor traditional saunas are equipped with either a wall mounting bracket or cradle for the heater to sit in. DO NOT place the sauna heater directly on the floor as it could become a fire hazard. The sauna must be elevated off the floor to create airflow through the heating elements.
Sauna Lighting
All indoor traditional saunas come with ambient dome lighting. Saunas with dome lighting can be connected to the heater so that the light turns off when the heater turns off. Alternatively, you can wire the lighting separately on its own switch. Consult your sauna heating wiring guide for instructions on how to wire your sauna light into the heater.
