SunRay Rockledge Indoor Traditional Sauna HL200LX · 2-Person
A 2-person indoor traditional sauna in cedar with a slate-colored cultured stone wall, Bluetooth audio and an included 4.5 kW Harvia electric heater.
- 4.5 kW Harvia electric heater with stones and a digital control included.
- Built-in Bluetooth sound system and color-changing LED ceiling lights.
- 10-year structural warranty from SunRay, with 1 year on parts and electronics.
- Description
- What's Included?
- Specifications
- Assembly & Installation
- Shipping
- Documents
- SunRay Warranty
- FAQs

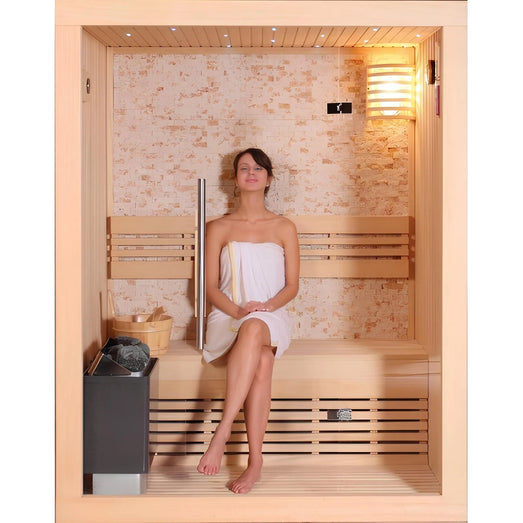

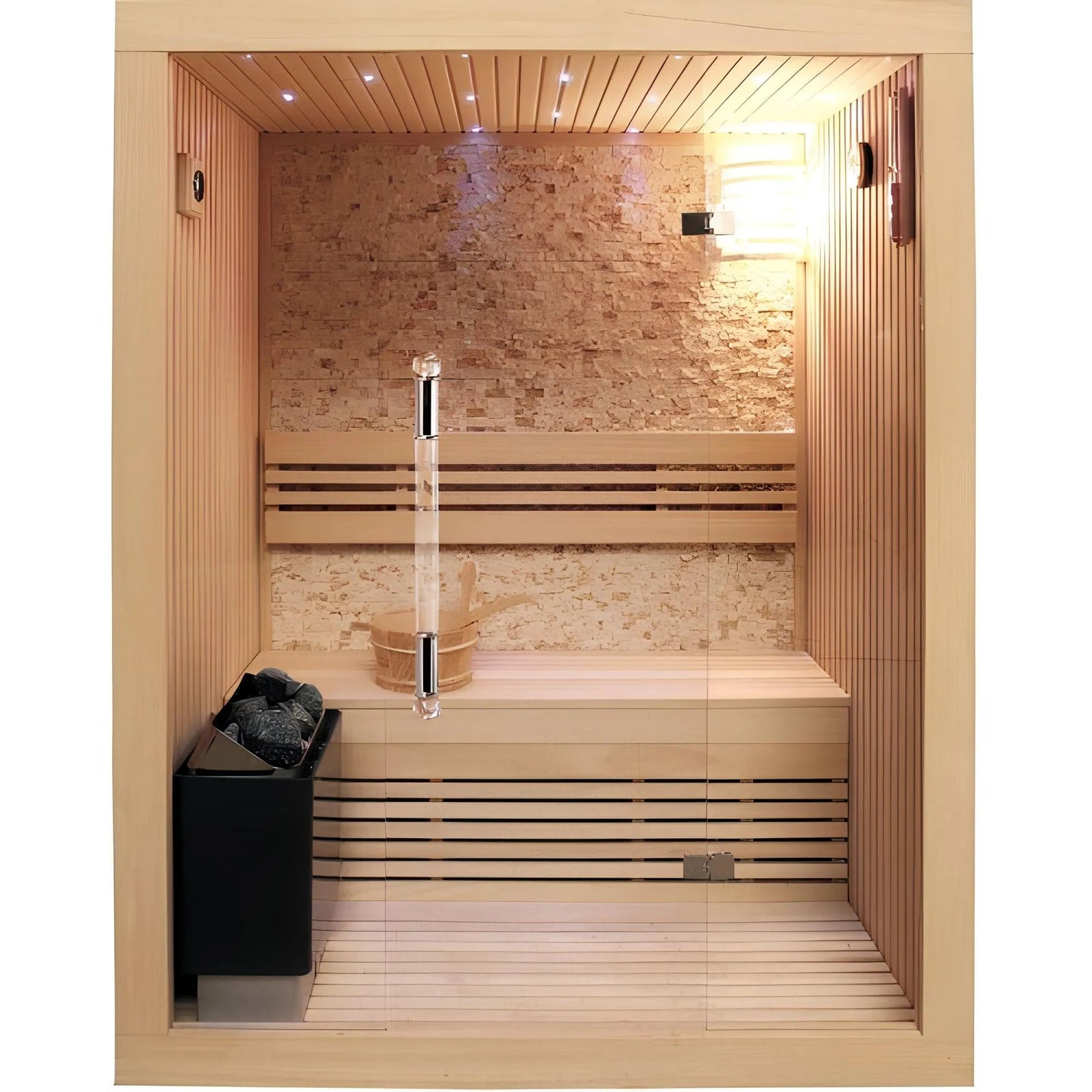

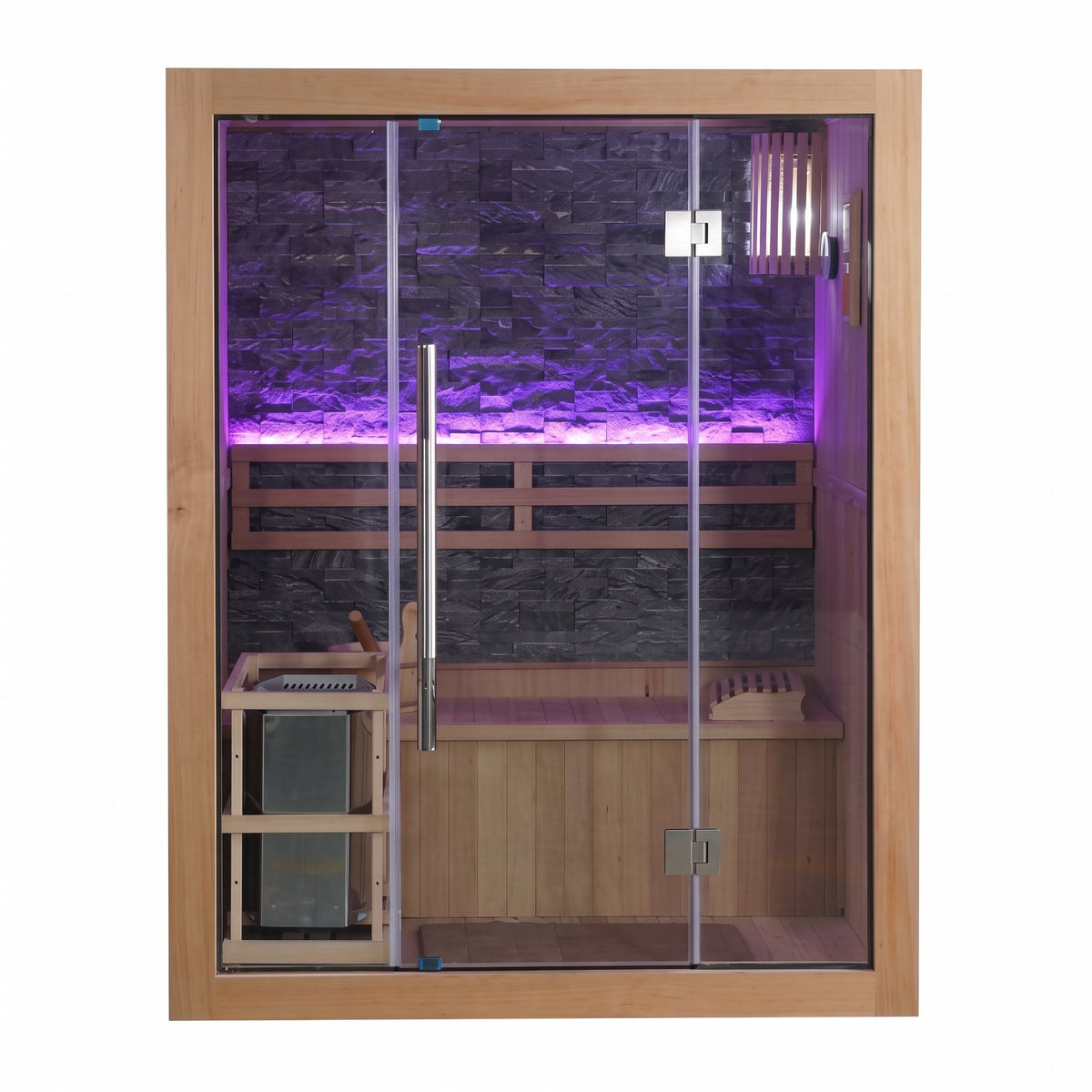

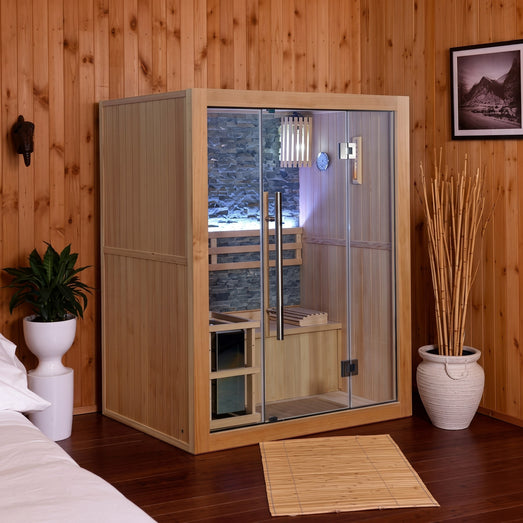

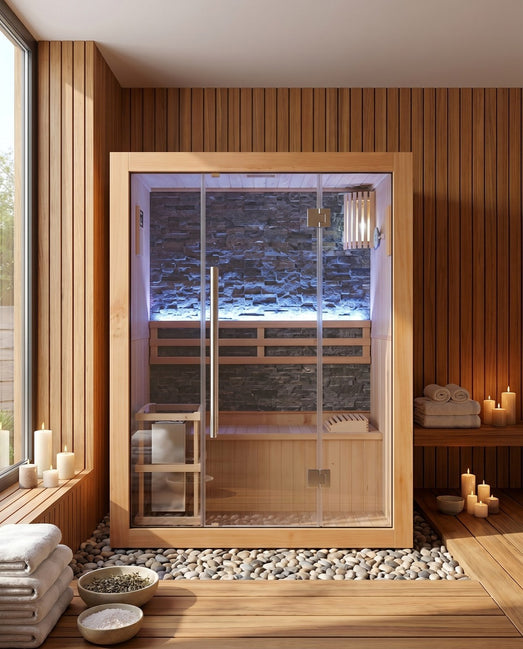

The SunRay Rockledge (model 200LX) is a 2-person indoor traditional sauna built from cedar, with slate-colored cultured stone on the back wall, a tempered glass door and a 4.5 kW Harvia electric heater with stones included. It has a built-in Bluetooth sound system and color-changing LED ceiling lights. It measures 59" W × 42" D × 75" H outside and 54" W × 38" D × 69" H inside. It is a wet/dry sauna: water ladled onto the heater stones raises the humidity, and SunRay supplies a wooden bucket and ladle for that. SunRay lists the Rockledge at 601 lbs, and it ships by LTL freight as a kit for assembly indoors.
The Rockledge is the 2-person model in SunRay's LX line of indoor saunas, which pair cedar with a cultured stone wall. The 3-person SunRay Westlake is 71" × 42" with a 6 kW heater. The 2-person SunRay Baldwin has the Rockledge's 59" × 42" × 75" size in Canadian hemlock, with a 3.5 kW heater. For other sizes and brands, see our indoor traditional saunas.
How the SunRay Rockledge is built
SunRay builds the Rockledge for indoor use, with the heater, the sound system, the lighting and the accessories part of the kit.

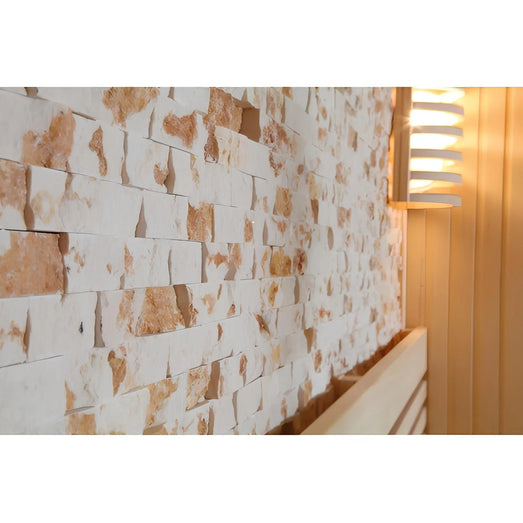

- Cedar cabin with a stone wall: cedar panels, with slate-colored cultured stone on the back wall.

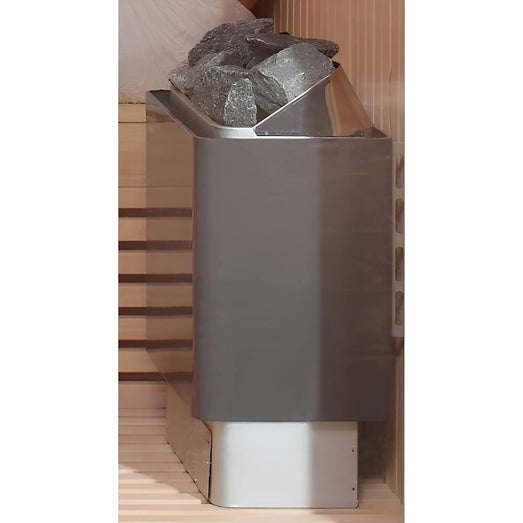

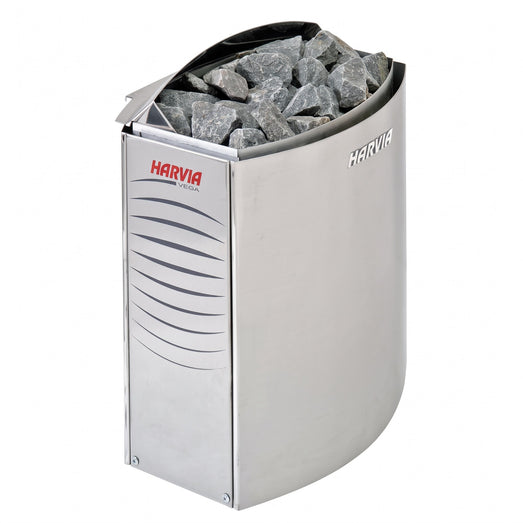

- 4.5 kW Harvia electric heater: supplied with stones and a digital control, and set in a wooden frame. SunRay does not name the Harvia model or describe the control's functions.
- Heat: SunRay does not publish a temperature range or a maximum temperature for the Rockledge.

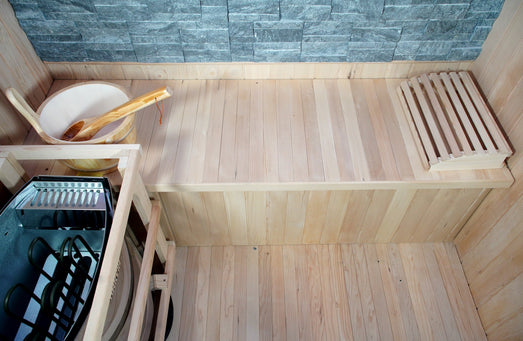

- Bench: a bench with a backrest whose position can be adjusted, according to SunRay's manual.

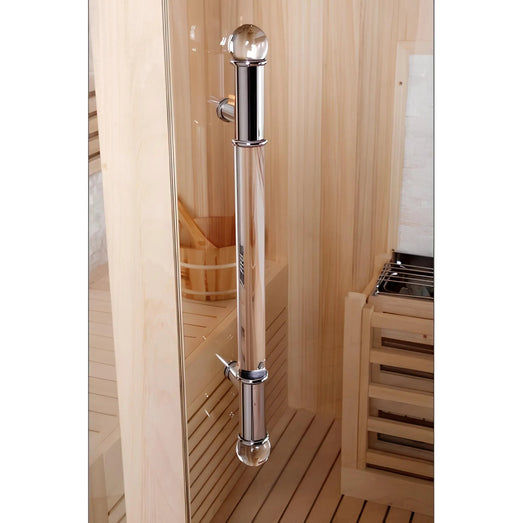

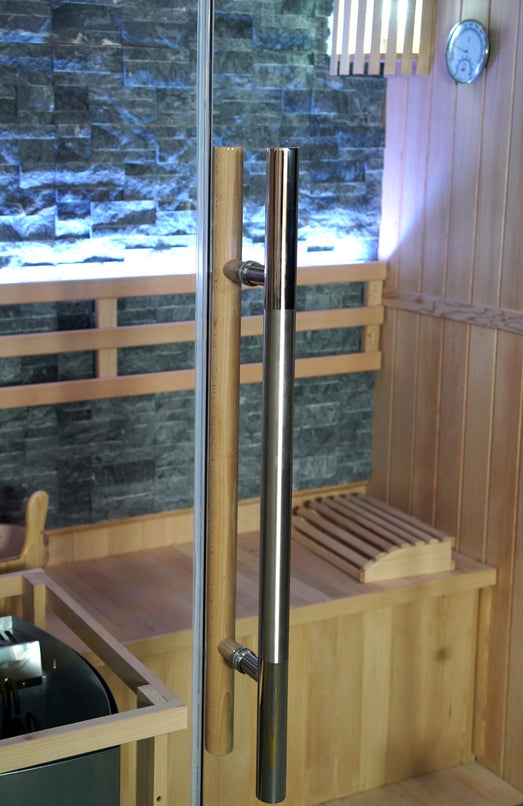

- Glass front: a tempered glass door with a stainless steel handle.
- Audio: a built-in Bluetooth sound system; SunRay's manual mounts two speakers behind the backrest.

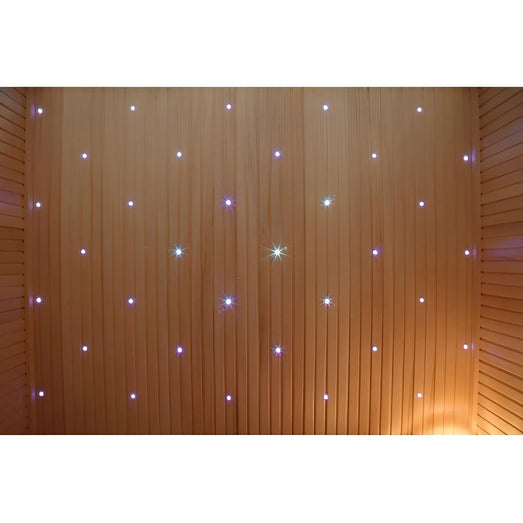

- Lighting: color-changing LED ceiling lights.
- Ventilation: a ventilation system, as SunRay lists it.

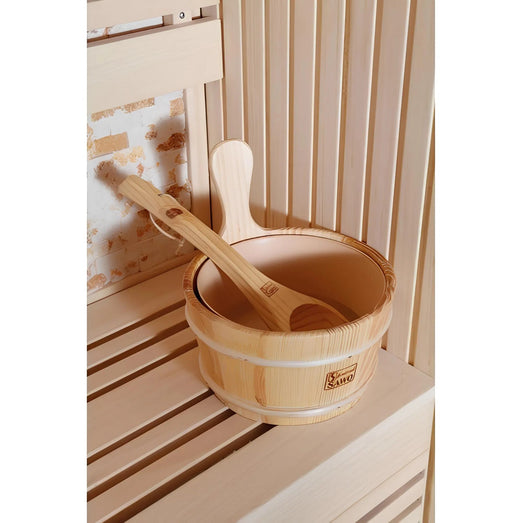

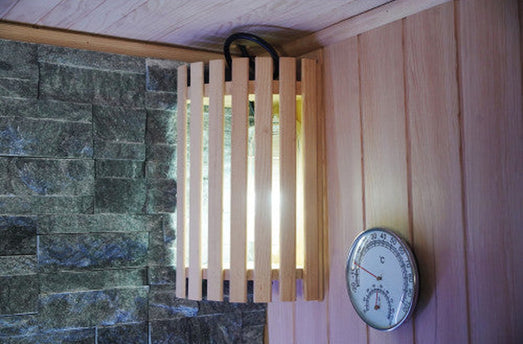

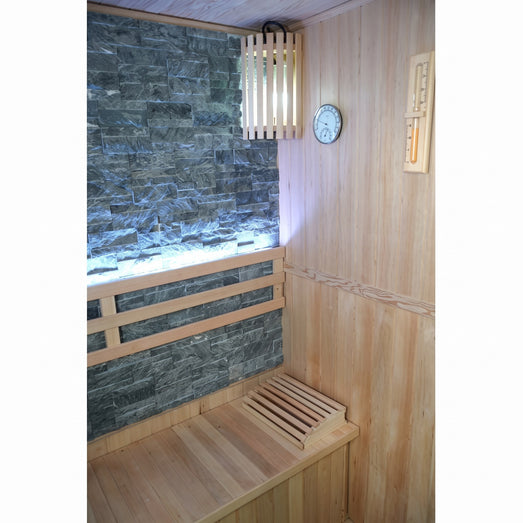

- Accessories: a thermo-hygrometer, a sand timer, and a wooden bucket and ladle.
What comes with the SunRay Rockledge?
The SunRay Rockledge ships as a complete indoor sauna kit with its heater: the cedar cabin panels with the cultured stone wall, the glass door, the bench and backrest, the 4.5 kW Harvia heater with stones and its digital control, the wooden heater frame, the Bluetooth sound system, the lighting and the accessories. The 240 V circuit and its connection are not included.
Included in the kit
Cabin
- Cedar cabin panels, with slate-colored cultured stone on the back wall
- Tempered glass door with a stainless steel handle
- Bench with backrest
Heat and interior
- 4.5 kW Harvia electric heater with stones, with digital control
- Wooden frame for the heater
- Built-in Bluetooth sound system
- Color-changing LED ceiling lights
- Ventilation system
Accessories
- Thermo-hygrometer

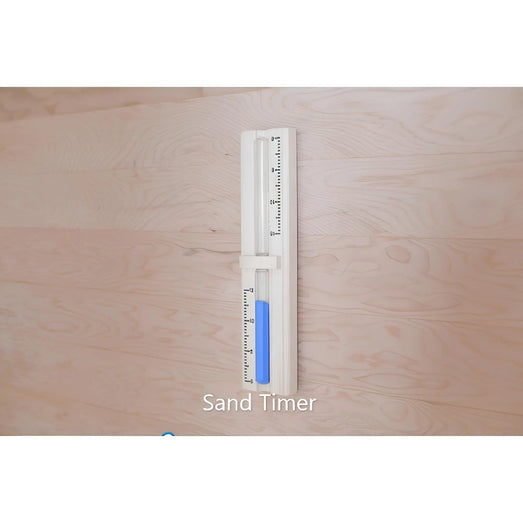

- Sand timer
- Wooden bucket and ladle
Not included — arranged separately
- A dedicated 240 V, 30 A circuit and its connection, by a licensed electrician
Does the SunRay Rockledge include a heater?
Yes. The SunRay Rockledge comes with a 4.5 kW Harvia electric heater with stones and a digital control, so there is no heater to choose separately. SunRay does not name the Harvia model. The heater draws 4,500 W on a dedicated 240 V, 30 A circuit, which a licensed electrician installs.
| Model | SunRay Rockledge, model 200LX |
|---|---|
| Brand | SunRay Saunas |
| Sauna type | Traditional, wet/dry |
| Placement | Indoor only |
| Capacity | 2 people |
| Exterior dimensions | 59" W × 42" D × 75" H |
| Interior dimensions | 54" W × 38" D × 69" H |
| Interior volume | About 82 cu ft (calculated from the interior dimensions) |
| Bench | Bench with an adjustable backrest |
| Door and glass | Tempered glass door with a stainless steel handle |
| Wood and stone | Cedar; slate-colored cultured stone back wall |
| Heater | 4.5 kW Harvia electric heater with stones, included (model not named by SunRay); wooden heater frame |
| Wattage | 4,500 W |
| Maximum temperature | Not published by SunRay |
| Controls | Digital control for the heater (SunRay does not describe its functions) |
| Lighting | Color-changing LED ceiling lights |
| Audio | Built-in Bluetooth sound system; two speakers behind the backrest |
| Ventilation | Ventilation system (SunRay) |
| Electrical | 240 V (SunRay lists 220–240 V), 30 A dedicated circuit; SunRay does not state whether it ships with a plug or is hard-wired |
| Weight | 601 lbs (SunRay's listed shipping weight) |
| Warranty | 10-year structural; 1-year parts and electronics (SunRay warranty certificate); residential use only |
Can you assemble the SunRay Rockledge yourself?
The cabin, yes, with enough hands; the 240 V connection, no. SunRay's Rockledge manual calls for four people and allows about 2–3 hours, and SunRay names a Phillips screwdriver or a drill with a Phillips bit as the only tool. The electrical connection is work for a licensed electrician.
The manual starts with the three back panels, stood up and screwed together where the sauna will stay, because the assembled sauna is heavy and difficult to move afterwards. Then come the glass door, screwed to the back panels, the top panel, with the LED and light wires pulled out through its holes, and the foot plates on the bottom frame. The bench frame and backrest follow, with the two speakers mounted behind the backrest, and the backrest's position can be adjusted.
Before the sauna arrives
- Choose the room. The Rockledge is for indoor use only; see "Where can the SunRay Rockledge be installed?" below.
- Have a licensed electrician run a dedicated 240 V, 30 A circuit to that spot and confirm how the sauna will be connected.
- Line up four people for the build, and plan how the boxed panels will get from the curb to the room. See Shipping below.
Tools you supply
A Phillips screwdriver or a drill with a Phillips bit. The manual's fasteners are 4 × 40 mm and 4 × 35 mm screws.
What electrical service does the SunRay Rockledge need?
A dedicated 240 V circuit rated for 30 A, the same kind of circuit an electric clothes dryer uses; SunRay lists it as 220–240 V. The heater draws 4,500 W, and nothing else can share the circuit. If your electrical panel has no room for another 240 V breaker, your electrician may need to upgrade it before delivery.
SunRay does not say whether the Rockledge ships with a plug or is meant to be hard-wired, so the connection is for a licensed electrician to make and confirm. SunRay's Rockledge manual also calls for a reliable ground connection and leakage (ground-fault) protection. Have the circuit in place before delivery day, and contact us before you order if you want us to confirm the requirements with you.

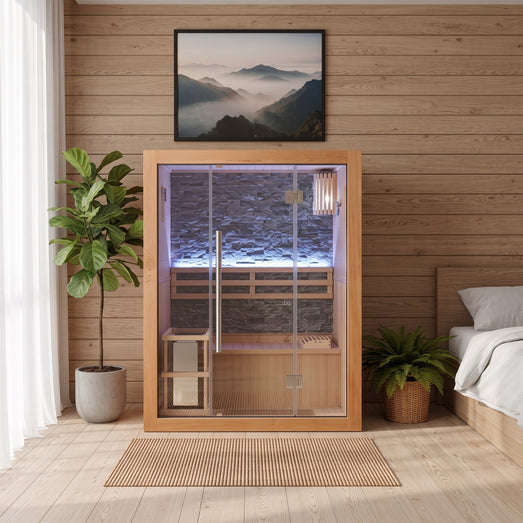

Where can the SunRay Rockledge be installed?
Indoors only. SunRay sells the Rockledge as an indoor sauna, and SunRay's warranty certificate states that indoor saunas are for indoor use only. SunRay's Rockledge manual says to build the sauna where it will stay, because it is heavy and difficult to move once assembled, and it gives no floor or ceiling-height requirements.
The room needs space for the 59" × 42" cabin and its 75" height, and the dedicated 240 V circuit close by. SunRay publishes no wall or ceiling clearances, so if the space is tight, contact us with the room's dimensions before you order.
Looking after it
SunRay's Rockledge manual says not to bring corrosive liquids into the sauna. SunRay's warranty treats surface cracks and minor blemishes in the wood as normal rather than defects.
How is the SunRay Rockledge delivered?
The SunRay Rockledge ships by LTL freight, with its panels boxed and strapped to a wooden pallet, and SunRay lists its shipping weight at 601 lbs. Delivery is curbside with a lift gate, which lowers the shipment to the driveway; moving the boxes from there to the room where the sauna will stand is up to you, so plan the route before the truck arrives. SunRay says its boxes fit through any doorway 24" or wider.
| Freight type | LTL truck; boxed panels on a wooden pallet |
|---|---|
| Delivery point | Curbside, lowered to the driveway by lift gate |
| Shipping weight | 601 lbs (SunRay) |
| Shipping cost | Free within the contiguous US |
| Appointment | Required; someone must be present to inspect and sign |
The carrier will reach out to book the delivery appointment once the shipment reaches their local terminal.
Inspect the shipment before you sign. SunRay's warranty excludes freight damage caused by the carrier, so note any visible damage on the delivery receipt, photograph it, and contact us before you start assembly. SunRay's delivery policy asks for internal damage found after unpacking to be reported within 3 business days of delivery.
SunRay's Rockledge manual covers the assembly steps; the heater's specifications are in the heater's own manual. The manual is a generic factory document: its technical-parameters page does not describe the Rockledge's heater or size, so use the specifications above for those.
This warranty covers all SunRay branded saunas purchased directly from SunRay Saunas or any of its authorized affiliates. This warranty is non-transferable.
Structural Warranty — 7 Years
SunRay warrants the sauna structure against manufacturer defects in materials and workmanship for 7 years from the date of purchase.
What's covered:
- Wooden sauna panels, flooring, ceiling, and glass
- Replacement parts necessary for repair
- If a structural defect cannot be remedied by a replacement part, SunRay may send a full replacement sauna at its sole discretion
Note: Surface cracks in the wood and minor blemishes are normal characteristics of natural wood and are not considered defects.
Parts & Electronics Warranty — 1 Year
All sauna parts, including the heater and electrical components, are guaranteed against defects in materials and workmanship for 1 year from the date of purchase.
- Covers replacement parts only
- Labor costs for replacing a part are not covered
Warranty Terms
-
Applies to the original customer at the original delivery address only
-
Customers must have written consent from SunRay before proceeding with any warranty repair to be reimbursed
-
SunRay has sole responsibility for determining the cause and nature of any warranty claim
-
If a replacement sauna is provided, the customer is responsible for assembly/installation costs of the new unit
What Is NOT Covered
This warranty is voided if the sauna has been subjected to:
- Alteration, neglect, misuse, or abuse
- Freight damage caused by the carrier
- Accidents or acts of God
- Installation, operation, or maintenance not in accordance with the owner's manual
- Commercial use — saunas used in a commercial setting are excluded from all warranty coverage
Disclaimers
- SunRay shall not be liable for any incidental or consequential damages, including loss of use or cost of removal
- Liability under this warranty shall not exceed the original purchase price
- Warranty coverage begins on the original date of purchase and does not extend beyond the stated periods for any reason
Filing a Claim
To file a warranty claim, contact the SunRay Claims Department:
Phone: 800.976.5530
Electrical Requirements
Indoor traditional saunas require a dedicated 240V circuit in order to accommodate the high heat output of the heater. Please reference the product specification sheet to determine the specific requirements for your sauna.
Ventilation Requirements
Indoor traditional saunas are equipped with an air vent in the ceiling. This air vent is designed to help circulate heat throughout the sauna during the heat-up phase and to allow moisture to leave the sauna if you are adding humidity and using it as a steam sauna. The sauna cabin air vent also allows you to lower the sauna temperature without opening the door if the temperature inside the sauna becomes too hot.
Maximum Temperature
SunRay indoor traditional saunas have a maximum operating temperature of 170 degrees Fahrenheit. The normal operating range is 160-170 degrees Fahrenheit.
Traditional Sauna Shipping
All traditional saunas are shipped via truck freight with curbside and lift-gate delivery service unless otherwise specified. SunRay traditional saunas and steam saunas are shipped on a wooden pallet with removable bracing to protect the sauna boxes. Please contact us if you have special requirements for delivery. The trucking company will call you to schedule a delivery appointment.
Sauna Warranty
SunRay home saunas carry a 7-year structural warranty and 1-year parts warranty. All SunRay sauna parts, including electronic parts and the electric heater, are guaranteed for 1 year against defects.
Electrical Connection
Indoor traditional saunas for the home come with a power cord attached to the heater. The power cord does not have a plug. It is designed to be hard-wired into a junction box or you can put a plug on the end of the power cord. Please note that the power requirements differ by sauna model. Consult your traditional sauna user manual for the specific power requirements.
Assembly and Installation
An indoor traditional sauna is easily assembled by two adults. The typical assembly time is 1 hour. No special tools are required for the sauna to be assembled.
Cleaning Your Home Sauna
Your home sauna should be cleaned a minimum of every 3-4 months or more frequently depending on usage. To clean the interior of your home sauna, use a mixture of baking soda and water (3 teaspoons baking soda to 1 gallon of warm water). Using a clean towel, wipe down the interior of the sauna, focusing on where sweat accumulates. Let the area dry with the sauna door open. Use a standard ammonia-based glass cleaner to clean the sauna doors and windows.
Traditional Sauna Origin
SunRay traditional sauna cabins are constructed from Hemlock or Cedar wood imported from Canada. SunRay's manufacturing facility is in China and its distribution facility is in the United States. Warranty claims are handled by SunRay Saunas, based in Richmond, VA, and Topture helps you coordinate them.
Sauna Specification Sheets
Each SunRay sauna has a specification sheet with all the details of the kit, including the power requirements. Contact us if you would like a copy.
Placing an Indoor Sauna Outdoors
SunRay indoor traditional saunas are not rated for outdoor use. They have an open top that is not protected from the elements. If you place the indoor sauna outdoors, it must be covered and protected from the elements. Indoor saunas that are placed outdoors will not be covered under SunRay's sauna warranty.
Sauna Heating Time
The average heating time for traditional home saunas ranges between 30-45 minutes depending on the room temperature, size of the sauna, and the heater type.
Ceiling Clearance
You need at least 3-4 inches between the top of the home sauna and the ceiling. This allows the electrical components on the top of the sauna to receive the appropriate amount of airflow.
Sauna Stones
SunRay indoor traditional saunas come with heater stones that sit on top of the heater elements. The heater stones are used to help radiate heat throughout the sauna and can be used to create humidity inside the sauna. DO NOT pour excess water on the heater stones as it will cause damage to the heater. To create humidity in the sauna, simply drizzle a small amount of water over the stones once they are hot.
Sauna Heater Placement
All indoor traditional saunas are equipped with either a wall mounting bracket or cradle for the heater to sit in. DO NOT place the sauna heater directly on the floor as it could become a fire hazard. The sauna must be elevated off the floor to create airflow through the heating elements.

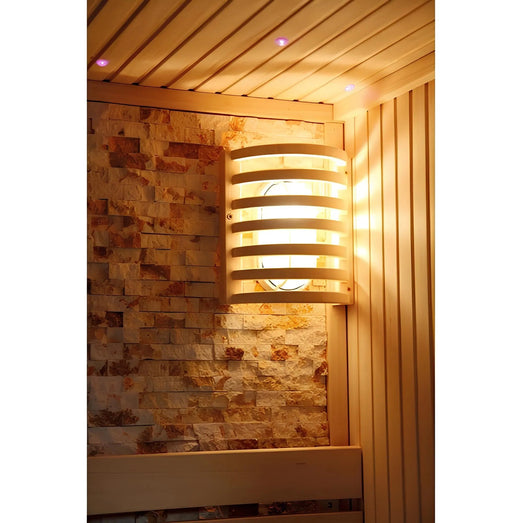

Sauna Lighting
All indoor traditional saunas come with ambient dome lighting. Saunas with dome lighting can be connected to the heater so that the light turns off when the heater turns off. Alternatively, you can wire the lighting separately on its own switch. Consult your sauna heating wiring guide for instructions on how to wire your sauna light into the heater.
