Sunray Grandby Outdoor Infrared Sauna 300D3 · 3-Person
A 3-person outdoor far-infrared sauna in Canadian hemlock with seven infrared heaters, a glass door between two windows and a metal composite roof.
- Seven far-infrared heaters, 2,100 W in total, heating to 140°F.
- Canadian hemlock cabin with a sealed weatherproof finish under a metal composite roof.
- SunRay warranty: 10 years on the structure and 1 year on parts and electronics.
- Description
- What's Included?
- Specifications
- Assembly & Installation
- Shipping
- Documents
- SunRay Warranty
- FAQs

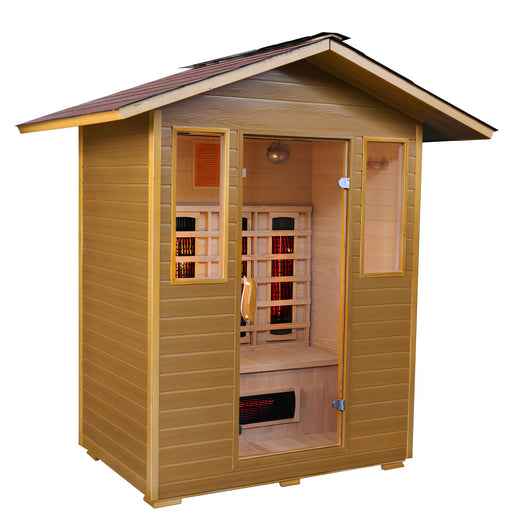

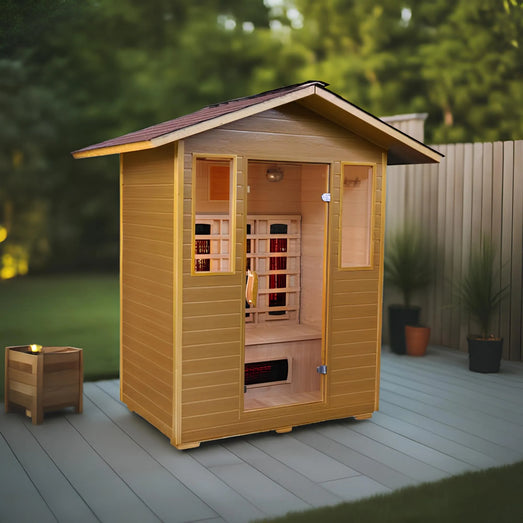

The SunRay Grandby (model 300D3) is a 3-person outdoor far-infrared sauna built from Canadian hemlock, with a sealed weatherproof cabin, a metal composite roof, and a glass door set between two front windows. The cabin is 69" W × 47" D × 87" H, the roof overhangs it to a 79" W × 61" D footprint, and the interior measures 55" W × 43" D × 68" H. Seven far-infrared heaters draw 2,100 W and bring it to 140°F on a dedicated 120 V outlet with its own 20 A circuit. SunRay lists the Grandby at 425 lbs, and it arrives by LTL freight as a kit to assemble on site.
The Grandby is the 3-person model in SunRay's D3 outdoor infrared series. The 2-person SunRay Burlington is the smaller version at 47" × 45", with six heaters on the same 120 V, 20 A outlet, and the 4-person SunRay Cayenne is the larger one at 79" × 52", with ten heaters on a 240 V, 30 A circuit. For other sizes and brands, see our outdoor infrared saunas.
How the SunRay Grandby heats
Seven far-infrared heater panels warm the Grandby directly, with no stove or rocks, and SunRay rates it to 140°F.

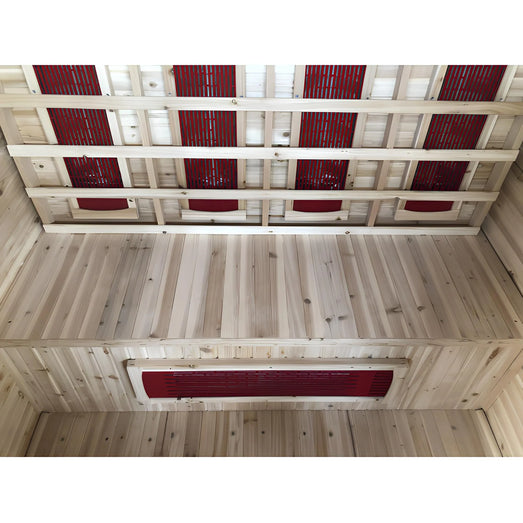

- Far-infrared heaters: seven, drawing 2,100 W together. SunRay does not say what the heater elements are made of.
- Temperature: a 140°F maximum. The D3 manual puts the normal setting at 120–140°F and allows roughly 8–15 minutes of warm-up.

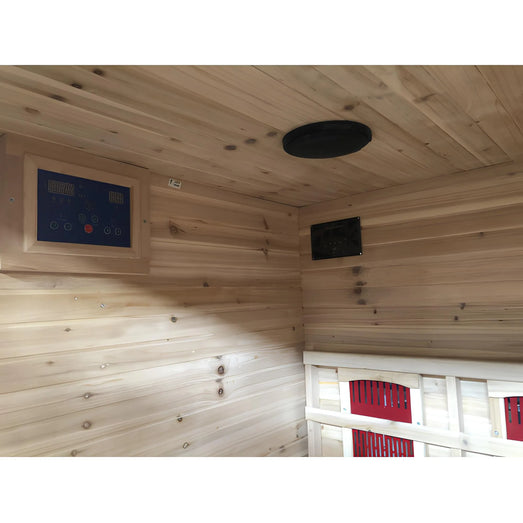

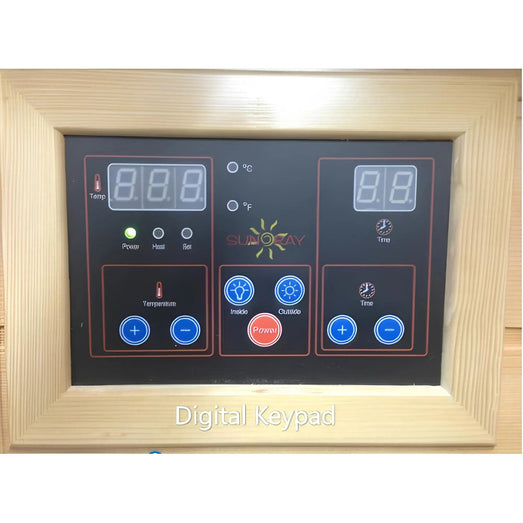

- LED control panel: buttons for power, the session timer, the thermostat (reads in °F or °C), the color light, the lights and music. Once the cabin reaches the set temperature, the heaters cycle to hold it.

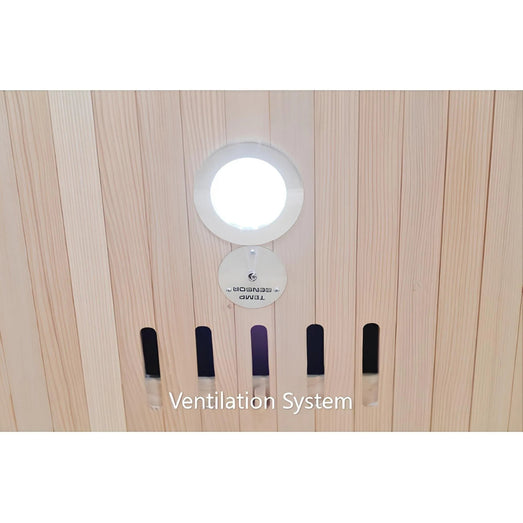

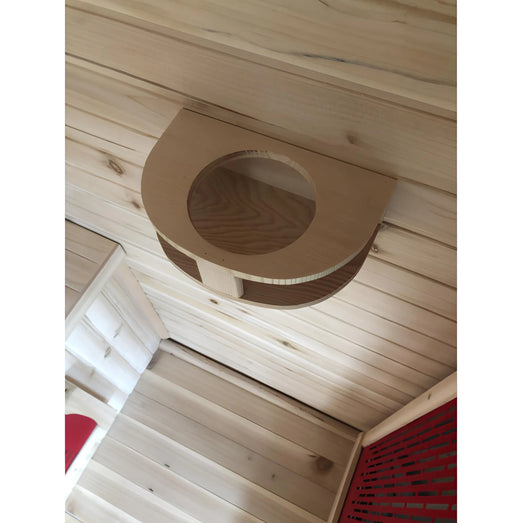

- Roof vent: opens to bring in fresh air.
- Lighting: recessed interior lights, with a reading light and a color therapy light in seven colors listed in the D3 manual.

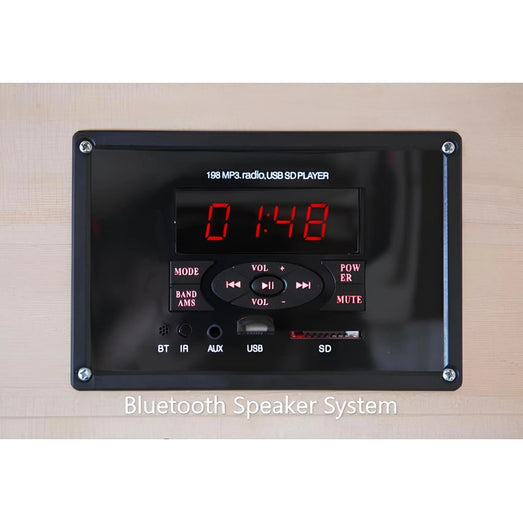

- Sound: a Bluetooth sound system, and music from a USB drive according to the manual.

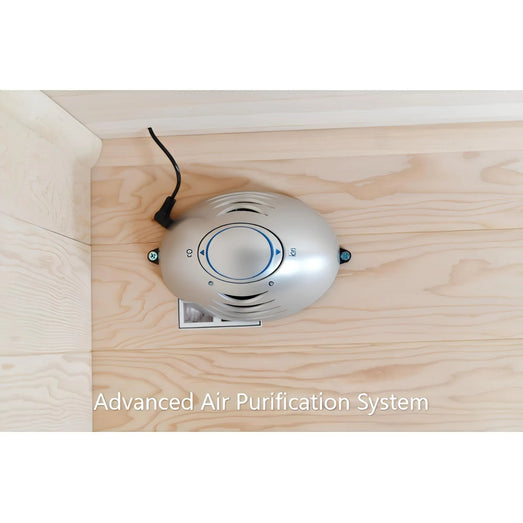

- Oxygen ionizer: listed by SunRay as an oxygen ionization system for purifying the air.

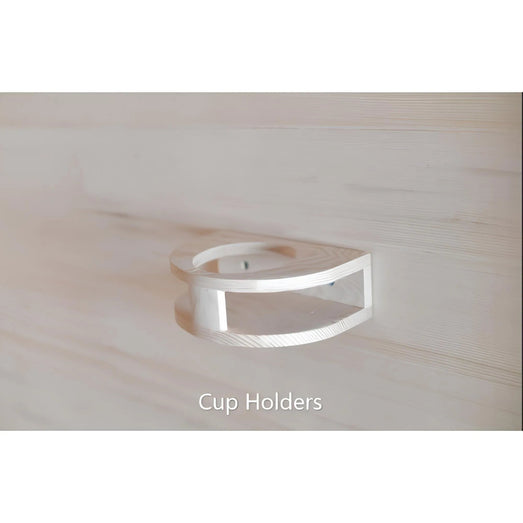

- Seating: a bench for three, with a backrest and cup holders.

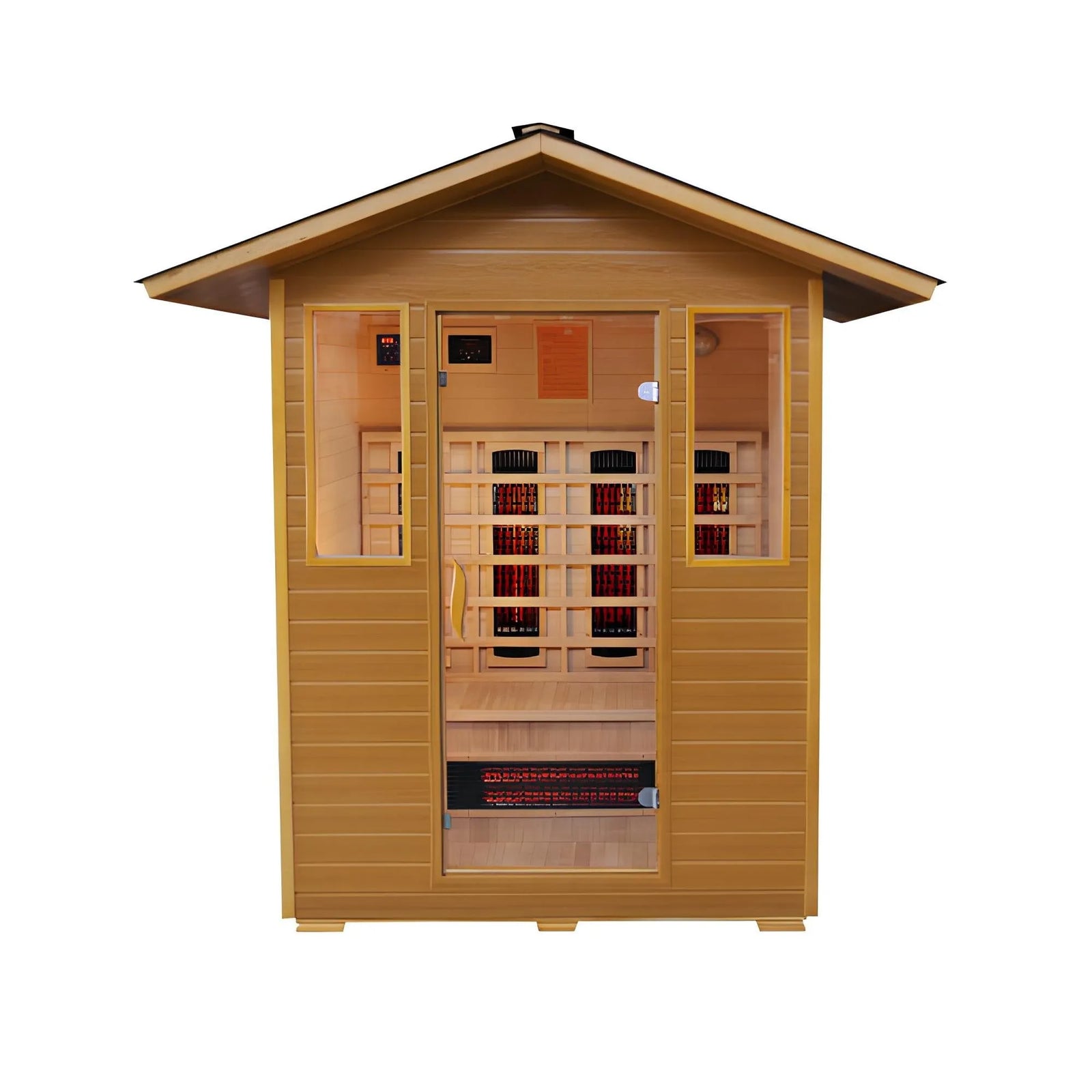

- Cabin: sealed, weatherproof Canadian hemlock under a metal composite roof, with two front windows beside the glass door.
What comes with the SunRay Grandby?
The SunRay Grandby arrives as a full outdoor infrared sauna kit: the floor panel, hemlock walls with a sealed weatherproof finish, a front wall with a glass door and two windows, the interior ceiling and metal composite roof, seven far-infrared heaters, the LED control panel, the lights, the Bluetooth sound system, the oxygen ionizer, the bench and SunRay's D3 series install manual. The foundation, and the dedicated outlet and circuit if the site lacks them, are not part of the kit.
Included in the kit
Cabin and roof
- Floor panel
- Canadian hemlock wall panels, sealed and weatherproofed
- Front wall with a glass door and two windows
- Interior ceiling, with a two-panel metal composite roof above it
Heat and controls
- Seven far-infrared heaters, 2,100 W in total
- LED control panel
- Roof vent
Interior
- Bench for three, with backrest and cup holders
- Recessed lighting, reading light and color therapy light
- Bluetooth sound system
- Oxygen ionizer
Documentation
- SunRay's D3 series install manual
Not included — arranged separately
- A dedicated 120 V, 20 A outlet and circuit, run by a licensed electrician where none exists
- A level base: a wooden deck, concrete pad or pavers, plus a waterproof barrier on damp ground
- Sealant for the annual exterior resealing
| Model | SunRay Grandby, model 300D3 |
|---|---|
| Brand | SunRay Saunas |
| Sauna type | Far-infrared |
| Placement | Outdoor |
| Capacity | 3 people |
| Exterior dimensions (cabin) | 69" W × 47" D × 87" H |
| Roof footprint | 79" W × 61" D |
| Interior dimensions | 55" W × 43" D × 68" H |
| Interior volume | About 93 cu ft (calculated from the interior dimensions) |
| Bench | For three, with backrest and cup holders |
| Door and windows | Glass door with a window on each side |
| Wood | Canadian hemlock; sealed weatherproof cabin |
| Roof | Metal composite |
| Infrared heaters | Seven far-infrared heaters (element type not published by SunRay) |
| Wattage | 2,100 W |
| Maximum temperature | 140°F; normal setting 120–140°F per SunRay's manual |
| Heat-up time | Roughly 8–15 minutes (SunRay's manual) |
| Controls | LED control panel: power, session timer, thermostat in °F or °C, color light, lights and music |
| Lighting | Recessed interior lights, a reading light and a seven-color color therapy light |
| Audio | Bluetooth sound system; USB drive playback per SunRay's manual |
| Air | Oxygen ionizer; roof vent |
| Electrical | 120 V (SunRay lists 110–120 V) dedicated outlet on its own 20 A circuit; plug type not stated by SunRay |
| Certification | ETL/CSA certified, as listed by SunRay |
| Weight | 425 lbs (SunRay's listed shipping weight) |
| Warranty | 10-year structural; 1-year parts and electronics (SunRay warranty certificate); residential use only |
What electrical connection does the SunRay Grandby need?
Its own dedicated 120 V outlet on a 20 A circuit that nothing else shares; SunRay lists the supply as 110–120 V. The seven heaters draw 2,100 W, and SunRay's D3 manual says no other appliance may be plugged into the sauna's outlet. If there is no dedicated 20 A outlet where the Grandby will stand, a licensed electrician runs a new circuit and fits one, and if your electrical panel has no room for another breaker, your electrician may need to upgrade it first.
SunRay does not state which plug the Grandby uses, so contact us before the outlet goes in and we will confirm the connection with you. The cabin's own wiring connects by plug during assembly: the power plugs join at the bench panel, and the lines for the color light, reading light and oxygen ionizer are fed through the ceiling to their partners in the roof. That leaves the outlet and its circuit as the only electrical work on site.
Where can the SunRay Grandby be installed?
Outdoors, on level ground prepared as a base. SunRay designed the Grandby for outdoor use, with a sealed weatherproof cabin and a metal composite roof. Its D3 manual lists a wooden deck, a concrete pad or pavers as suitable bases, and asks for a waterproof barrier under the floor on damp sites or wherever the floor sits on pavers or other ground-contact surfaces. Plan for the 79" × 61" roof footprint rather than the 69" × 47" cabin alone.
Looking after it outdoors
The weather sealant on the Grandby's cabin wears with exposure, so SunRay's D3 manual recommends resealing the exterior every year or as needed. SunRay's warranty certificate also requires annual resealing for outdoor saunas sold without a weather cover, and the Grandby does not come with one.
How is the SunRay Grandby assembled?
The Grandby is built from flat-packed panels by at least 2 adults, following SunRay's D3 series install manual. The floor goes down first on a level base, with waterproof sealant under each wall, then the back wall, the side walls and the front wall, which fasten together with latches. The vertical bench panel comes next, with its power plugs connected before the bench top is screwed on, followed by the backrest and door handle. After the interior ceiling is in and the accessory lines are fed out, the metal roof is screwed on with sealant between its two panels, the roof cover is sealed along its inside edges, and a final bead of sealant goes around the door frame and along the base.
SunRay estimates about two hours. Its FAQ names a Phillips screwdriver or a drill with a Phillips bit as the only tool, but the sealant steps also call for a caulking gun, and SunRay does not say whether the sealant comes with the kit. If a new outlet is needed, a licensed electrician installs it.
How is the SunRay Grandby delivered?
The SunRay Grandby ships by LTL freight, with its panels boxed and strapped to a wooden pallet, and SunRay lists its shipping weight at 425 lbs. Delivery is curbside with a lift gate, which lowers the shipment to the driveway; moving it from there to the base is up to you, so plan the route before the truck arrives.
| Freight type | LTL truck; boxed panels on a wooden pallet |
|---|---|
| Delivery point | Curbside, lowered to the driveway by lift gate |
| Shipping weight | 425 lbs (SunRay) |
| Shipping cost | Free within the contiguous US |
| Appointment | Required; someone must be present to inspect and sign |
The carrier will reach out to book the delivery appointment once the shipment reaches their local terminal.
Inspect the shipment before you sign. SunRay's warranty excludes freight damage caused by the carrier, so note any visible damage on the delivery receipt, photograph it, and contact us before you start assembly. SunRay's delivery policy asks for internal damage found after unpacking to be reported within 3 business days of delivery.
One SunRay manual, the D3 series install manual, documents the Grandby alongside the Burlington and Cayenne. It gives each model's roof dimensions and wattage, the base and outlet requirements, the build steps and the controller functions, so you can read it before the sauna arrives.
SunRay D3 series install manual (metal roof), covering the Grandby (PDF)
This warranty covers all SunRay branded saunas purchased directly from SunRay Saunas or any of its authorized affiliates. This warranty is non-transferable.
Structural Warranty — 7 Years
SunRay warrants the sauna structure against manufacturer defects in materials and workmanship for 7 years from the date of purchase.
What's covered:
- Wooden sauna panels, flooring, ceiling, and glass
- Replacement parts necessary for repair
- If a structural defect cannot be remedied by a replacement part, SunRay may send a full replacement sauna at its sole discretion
Note: Surface cracks in the wood and minor blemishes are normal characteristics of natural wood and are not considered defects.
Parts & Electronics Warranty — 1 Year
All sauna parts, including the heater and electrical components, are guaranteed against defects in materials and workmanship for 1 year from the date of purchase.
- Covers replacement parts only
- Labor costs for replacing a part are not covered
Warranty Terms
-
Applies to the original customer at the original delivery address only
-
Customers must have written consent from SunRay before proceeding with any warranty repair to be reimbursed
-
SunRay has sole responsibility for determining the cause and nature of any warranty claim
-
If a replacement sauna is provided, the customer is responsible for assembly/installation costs of the new unit
What Is NOT Covered
This warranty is voided if the sauna has been subjected to:
- Alteration, neglect, misuse, or abuse
- Freight damage caused by the carrier
- Accidents or acts of God
- Installation, operation, or maintenance not in accordance with the owner's manual
- Commercial use — saunas used in a commercial setting are excluded from all warranty coverage
Disclaimers
- SunRay shall not be liable for any incidental or consequential damages, including loss of use or cost of removal
- Liability under this warranty shall not exceed the original purchase price
- Warranty coverage begins on the original date of purchase and does not extend beyond the stated periods for any reason
Filing a Claim
To file a warranty claim, contact the SunRay Claims Department:
Phone: 800.976.5530
