Sunray Cayenne Infrared Outdoor Sauna 400D3 · 4-Person
A 4-person outdoor far-infrared sauna in Canadian hemlock with ten infrared heaters, a metal composite roof and a dedicated 240 V, 30 A supply.
In stock
Estimated delivery
14–22 days after you order
Stock checked Oct 9, 2026
- Ten far-infrared heaters, 2,400 W in total; SunRay's manual allows about 8–15 minutes to warm up.
- Seats 4 in a 65" × 48" interior with a 68" ceiling.
- Runs on a dedicated 240 V, 30 A circuit, installed by a licensed electrician.
- Description
- What's Included?
- Specifications
- Assembly & Installation
- Shipping
- Documents
- SunRay Warranty
- FAQs

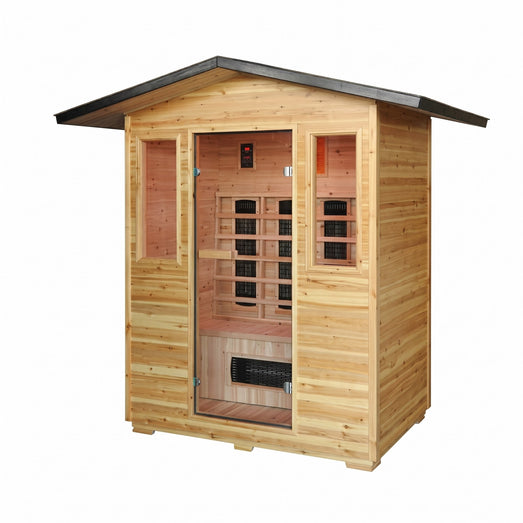

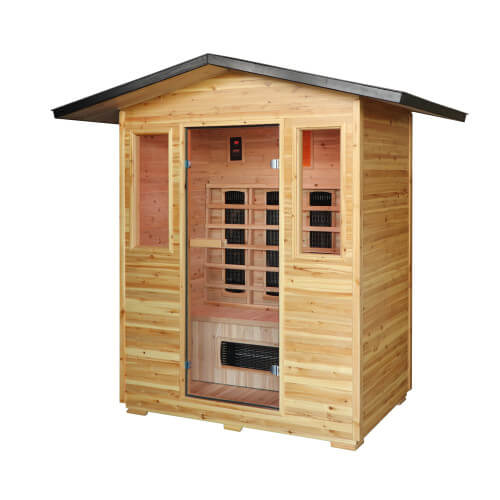

The SunRay Cayenne (model 400D3) is a 4-person outdoor far-infrared sauna built from Canadian hemlock, with a sealed weatherproof cabin, a metal composite roof and a glass door flanked by two front windows. Its cabin measures 79" W × 52" D × 87" H under an 89" W × 67" D roof footprint, with 65" W × 48" D × 68" H inside. Ten far-infrared heaters draw 2,400 W and reach 140°F on a dedicated 240 V, 30 A circuit. SunRay lists the Cayenne at 552 lbs, and it is delivered by LTL freight as a kit for assembly on site.
The Cayenne is the 4-person model in SunRay's D3 outdoor infrared series and the only one of the three that runs on 240 V. The 2-person SunRay Burlington (47" × 45", six heaters) and the 3-person SunRay Grandby (69" × 47", seven heaters) are the smaller versions, both on a dedicated 120 V, 20 A outlet. For other sizes and brands, see our outdoor infrared saunas.
How the SunRay Cayenne heats
The Cayenne is heated by far-infrared panels, not a stove, and SunRay gives it a 140°F maximum.

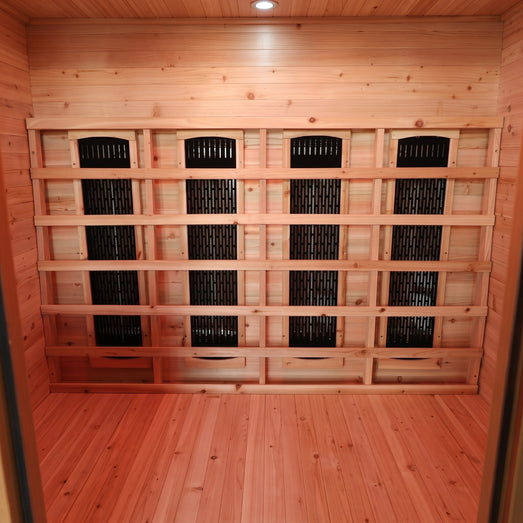

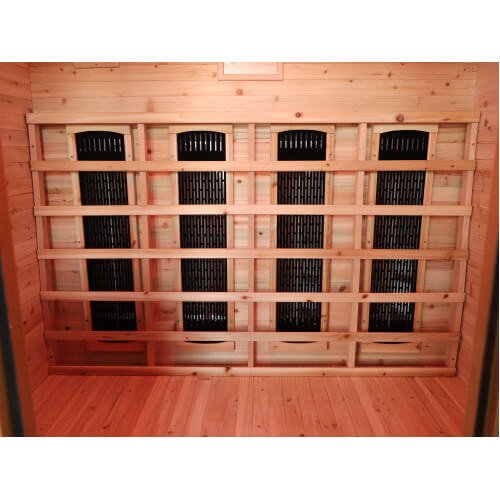

- Ten far-infrared heaters: a combined 2,400 W. SunRay describes them as carbon far-infrared heaters.
- Heat: up to 140°F. The D3 manual SunRay supplies gives a normal setting of 120–140°F and about 8–15 minutes to warm up.

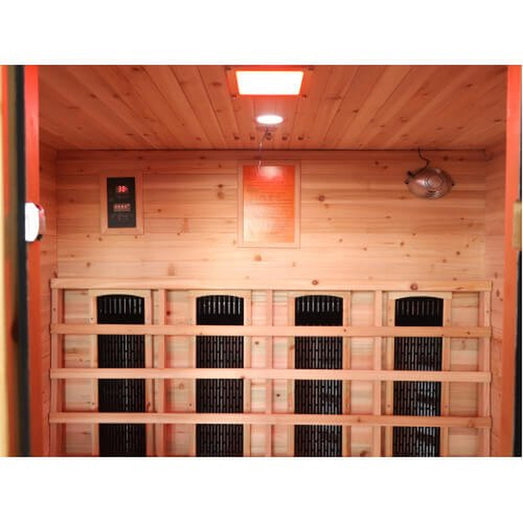

- Control panel: power, a session timer, the thermostat (°F or °C display), the color light, the lights and music, as SunRay's D3 manual describes it. When the cabin hits the set temperature, the heaters turn off and on to keep it there.
- Roof vent: open it when you want fresh air.
- Lighting: recessed interior lighting; the D3 manual adds a reading light and a color therapy light with seven colors.
- Audio: a Bluetooth speaker system, which the manual says can also play music from a USB drive.

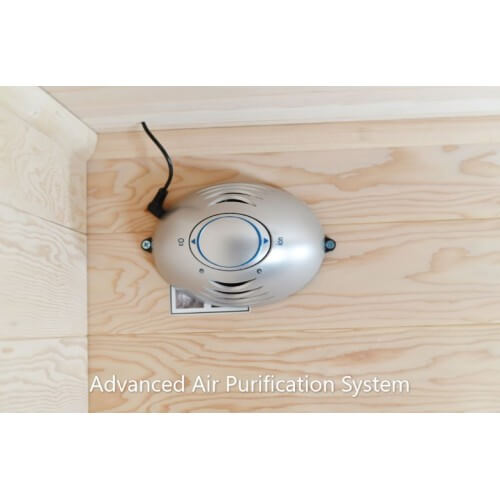

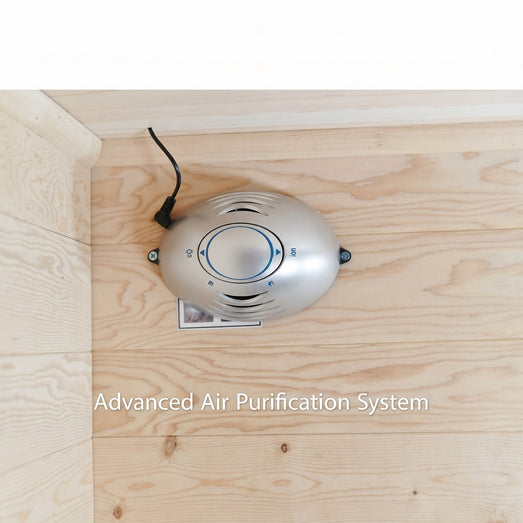

- Oxygen ionizer: SunRay describes it as an oxygen ionization system for purifying the air.

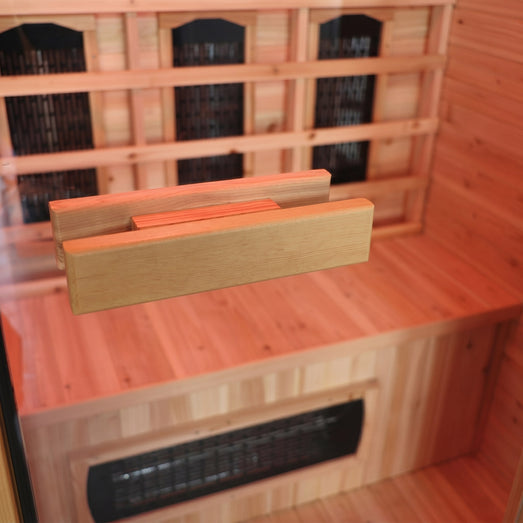

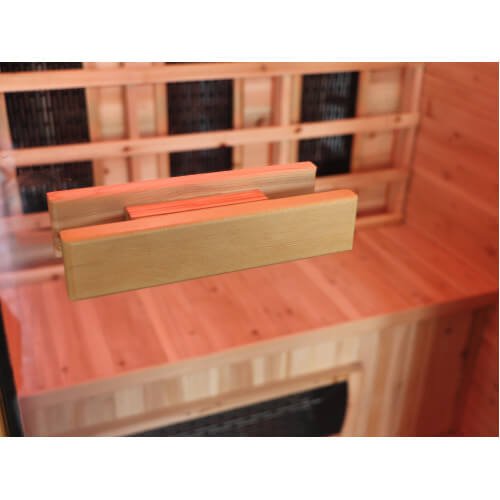

- Seating: room for four on one bench, which has a backrest and cup holders.

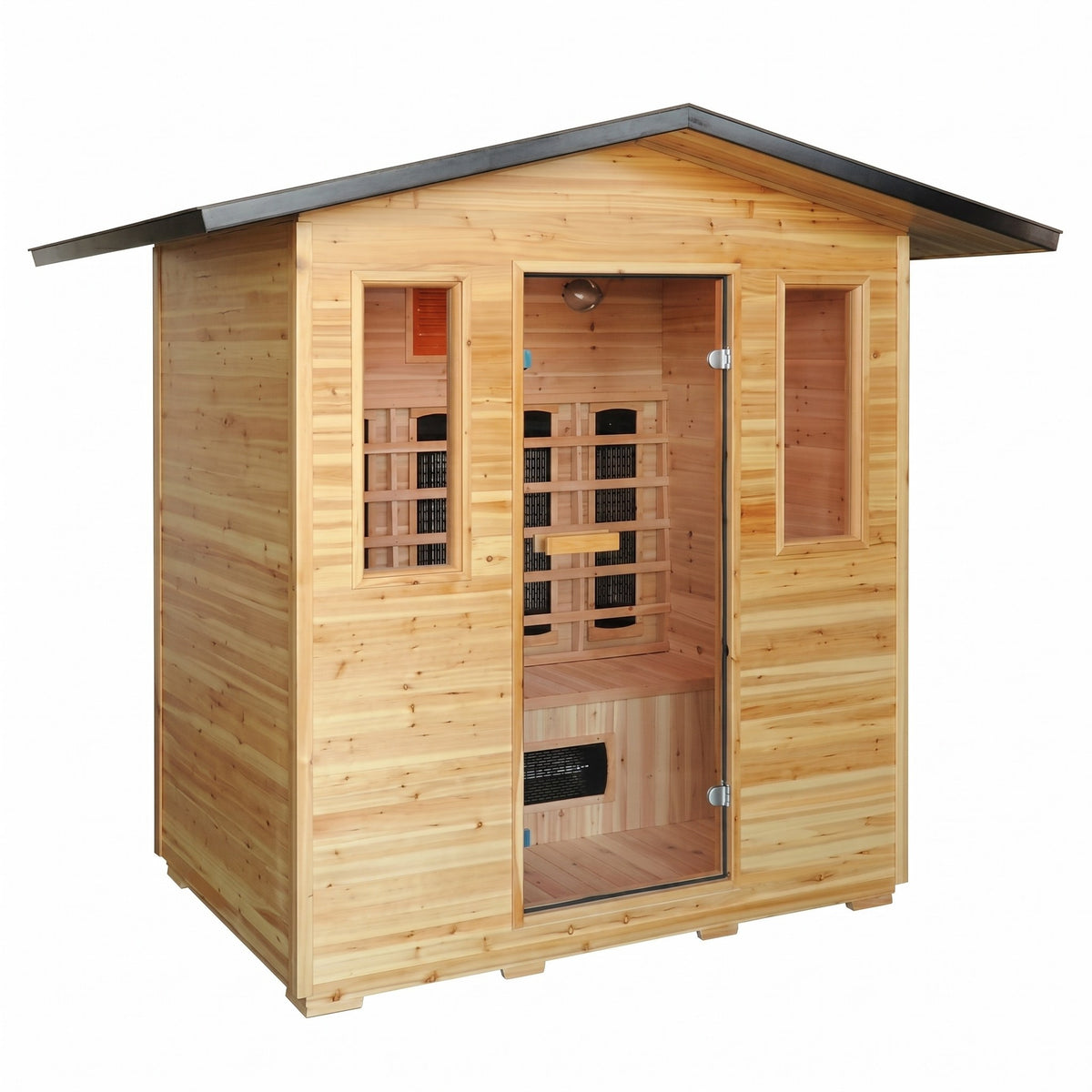

- Cabin: Canadian hemlock sealed with a weatherproof finish, a metal composite roof, and a glass door with a window on each side.
What comes with the SunRay Cayenne?
The SunRay Cayenne is supplied as a complete outdoor infrared sauna kit: the floor panel and sealed Canadian hemlock walls, a front wall with a glass door and two windows, the interior ceiling and metal composite roof, ten far-infrared heaters, the control panel, the lighting, the Bluetooth speaker system, the oxygen ionizer, the bench and SunRay's D3 series install manual. The 240 V circuit, its connection and the foundation are not included.
Included in the kit
Cabin and roof
- Floor panel
- Wall panels in Canadian hemlock, sealed with a weatherproof finish
- Front wall with a glass door between two windows
- Interior ceiling panel, plus the metal composite roof and roof cover
Heat and controls
- Ten far-infrared heaters, 2,400 W in total
- Control panel
- Roof vent
Interior
- Bench for four, with backrest and cup holders
- Recessed interior lighting, reading light and color therapy light
- Bluetooth speaker system
- Oxygen ionizer
Documentation
- SunRay's D3 series install manual
Not included — arranged separately
- A licensed electrician to run a dedicated 240 V, 30 A circuit and fit its outlet
- The foundation: a level wooden deck, concrete pad or pavers, with a waterproof barrier on damp or ground-contact sites
- Exterior sealant for the resealing SunRay's manual recommends each year
| Model | SunRay Cayenne, model 400D3 |
|---|---|
| Brand | SunRay Saunas |
| Sauna type | Far-infrared |
| Placement | Outdoor |
| Capacity | 4 people |
| Exterior dimensions (cabin) | 79" W × 52" D × 87" H |
| Roof footprint | 89" W × 67" D |
| Interior dimensions | 65" W × 48" D × 68" H |
| Interior volume | About 123 cu ft (calculated from the interior dimensions) |
| Bench | For four, with backrest and cup holders |
| Door and windows | Glass door between two front windows |
| Wood | Canadian hemlock; sealed with a weatherproof finish |
| Roof | Metal composite |
| Infrared heaters | Ten carbon far-infrared heaters |
| Wattage | 2,400 W |
| Maximum temperature | 140°F; the manual's normal setting is 120–140°F |
| Heat-up time | About 8–15 minutes, per SunRay's manual |
| Controls | Control panel for power, timer, thermostat (°F or °C), color light, lights and music |
| Lighting | Recessed interior lighting; reading light; color therapy light with seven colors |
| Audio | Bluetooth speaker system; plays music from a USB drive (SunRay's manual) |
| Air | Oxygen ionizer; opening roof vent |
| Electrical | 240 V (SunRay's spec sheet lists 220–240 V), 30 A dedicated circuit and outlet; SunRay does not state the plug type |
| Certification | ETL/CSA certified, as listed by SunRay |
| Weight | 552 lbs (SunRay's listed shipping weight) |
| Warranty | 10-year structural; 1-year parts and electronics (SunRay warranty certificate); residential use only |
What electrical connection does the SunRay Cayenne need?
A dedicated 240 V circuit rated for 30 A, the same kind of circuit an electric clothes dryer uses; SunRay's spec sheet lists the supply as 220–240 V. The ten heaters draw 2,400 W, SunRay's D3 manual says no other appliance may share the sauna's outlet, and a licensed electrician runs the circuit and installs the outlet. If your electrical panel has no room for another 240 V breaker, your electrician may need to upgrade it first.
SunRay does not state which 240 V plug the Cayenne uses, so contact us before your electrician fits the outlet and we will confirm the connection with you. Everything inside the cabin is joined by plugs as it is built: the power plugs connect at the bench panel, and the color light, reading light and oxygen ionizer lines pass through the ceiling to their connectors in the roof. Only the supply circuit and its outlet are wired on site, and both should be ready before delivery day.
Where can the SunRay Cayenne be installed?

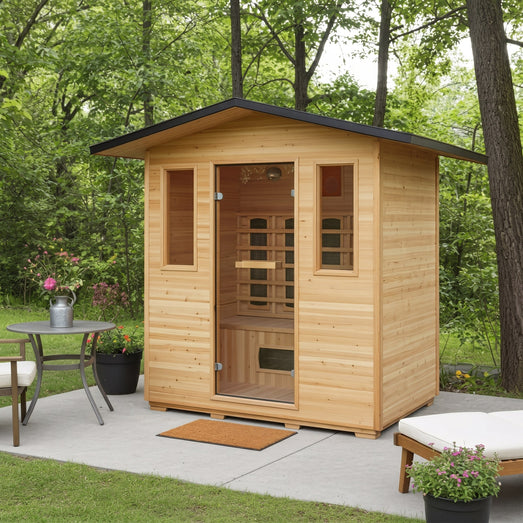

Outdoors, on a level base. SunRay made the Cayenne for outdoor placement: a sealed weatherproof cabin under a metal composite roof. The D3 manual names a wooden deck, a concrete pad or pavers, and wants a waterproof barrier between the floor and the surface on damp ground or wherever the floor rests on pavers or another ground-contact surface. The site has to take the 89" × 67" roof footprint, which is larger than the 79" × 52" cabin.
Looking after it outdoors
According to SunRay's D3 manual, the weather sealant on the cabin deteriorates with outdoor exposure, and the exterior should be resealed annually or as needed. SunRay's warranty certificate makes annual resealing a requirement for outdoor saunas that ship without a weather cover, and the Cayenne ships without one.
How is the SunRay Cayenne assembled?
From flat-packed panels, by at least 2 adults, in the order SunRay's D3 series install manual gives. The floor is set level first and each wall gets waterproof sealant along its bottom edge; the back wall goes on, then the side walls and the front wall are secured with latches. The vertical bench panel is installed and its power plugs connected, and the bench top is screwed on. The backrest and door handle are fixed with the included screws, the interior ceiling goes in with the accessory lines fed out, and the metal roof is screwed down with sealant between its two panels and along the inside edges of the roof cover. The manual finishes with sealant around the door frame and the joint at the base.
SunRay estimates about two hours for the build and lists a Phillips screwdriver or a drill with a Phillips bit as the tool you need; the sealant work also takes a caulking gun, and SunRay does not say whether the sealant is supplied. The 240 V connection is work for a licensed electrician.
How is the SunRay Cayenne delivered?
The SunRay Cayenne ships by LTL freight, with its panels boxed and strapped to a wooden pallet, and SunRay lists its shipping weight at 552 lbs. Delivery is curbside with a lift gate, which lowers the shipment to the driveway; moving it from there to the base is up to you, so plan the route before the truck arrives.
| Freight type | LTL truck; boxed panels on a wooden pallet |
|---|---|
| Delivery point | Curbside, lowered to the driveway by lift gate |
| Shipping weight | 552 lbs (SunRay) |
| Shipping cost | Free within the contiguous US |
| Appointment | Required; someone must be present to inspect and sign |
The carrier will reach out to book the delivery appointment once the shipment reaches their local terminal.
Inspect the shipment before you sign. SunRay's warranty excludes freight damage caused by the carrier, so note any visible damage on the delivery receipt, photograph it, and contact us before you start assembly. SunRay's delivery policy asks for internal damage found after unpacking to be reported within 3 business days of delivery.
SunRay publishes a single D3 series install manual for the Cayenne, Grandby and Burlington. It sets out the roof dimensions and wattage of each model, the base and outlet requirements, the assembly steps and the controller, and is worth reading before delivery.
SunRay D3 series install manual (metal roof), covering the Cayenne (PDF)
This warranty covers all SunRay branded saunas purchased directly from SunRay Saunas or any of its authorized affiliates. This warranty is non-transferable.
Structural Warranty — 7 Years
SunRay warrants the sauna structure against manufacturer defects in materials and workmanship for 7 years from the date of purchase.
What's covered:
- Wooden sauna panels, flooring, ceiling, and glass
- Replacement parts necessary for repair
- If a structural defect cannot be remedied by a replacement part, SunRay may send a full replacement sauna at its sole discretion
Note: Surface cracks in the wood and minor blemishes are normal characteristics of natural wood and are not considered defects.
Parts & Electronics Warranty — 1 Year
All sauna parts, including the heater and electrical components, are guaranteed against defects in materials and workmanship for 1 year from the date of purchase.
- Covers replacement parts only
- Labor costs for replacing a part are not covered
Warranty Terms
-
Applies to the original customer at the original delivery address only
-
Customers must have written consent from SunRay before proceeding with any warranty repair to be reimbursed
-
SunRay has sole responsibility for determining the cause and nature of any warranty claim
-
If a replacement sauna is provided, the customer is responsible for assembly/installation costs of the new unit
What Is NOT Covered
This warranty is voided if the sauna has been subjected to:
- Alteration, neglect, misuse, or abuse
- Freight damage caused by the carrier
- Accidents or acts of God
- Installation, operation, or maintenance not in accordance with the owner's manual
- Commercial use — saunas used in a commercial setting are excluded from all warranty coverage
Disclaimers
- SunRay shall not be liable for any incidental or consequential damages, including loss of use or cost of removal
- Liability under this warranty shall not exceed the original purchase price
- Warranty coverage begins on the original date of purchase and does not extend beyond the stated periods for any reason
Filing a Claim
To file a warranty claim, contact the SunRay Claims Department:
Phone: 800.976.5530
