Sunray Eagle Outdoor Traditional Sauna 200D1 · 2-Person
A 2-person outdoor traditional sauna in aged Canadian hemlock with a metal composite roof, a wooden door and an included 4.5 kW Harvia electric heater.
- Includes a 4.5 kW Harvia electric heater: up to 170°F, with about 45–60 minutes to warm up per SunRay's manual.
- 51" × 51" hemlock cabin with double-paneled walls under a 61" × 61" metal composite roof.
- SunRay warranty: 10 years on the structure, 1 year on parts and electronics.
- Description
- What's Included?
- Specifications
- Assembly & Installation
- Shipping
- Documents
- SunRay Warranty
- FAQs

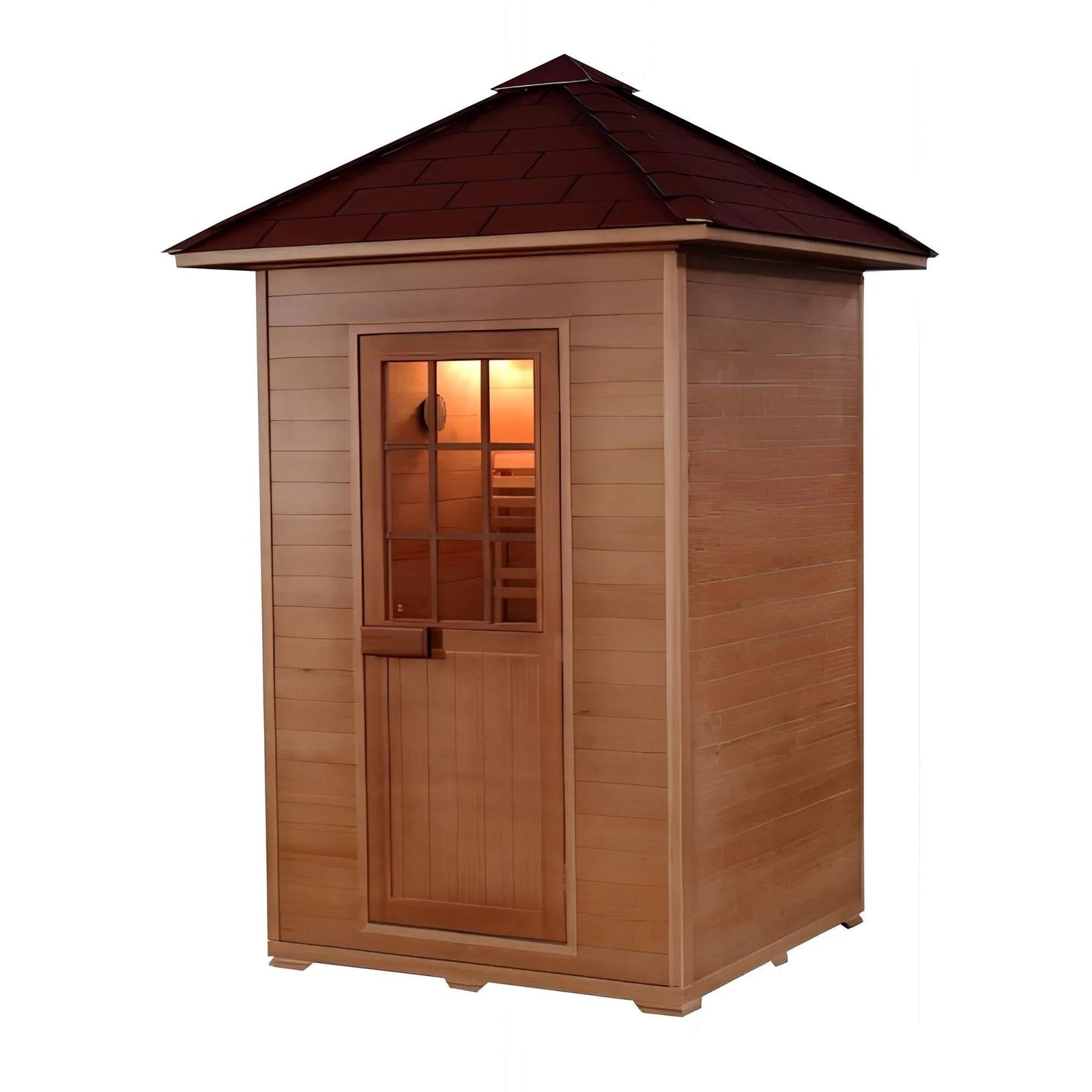

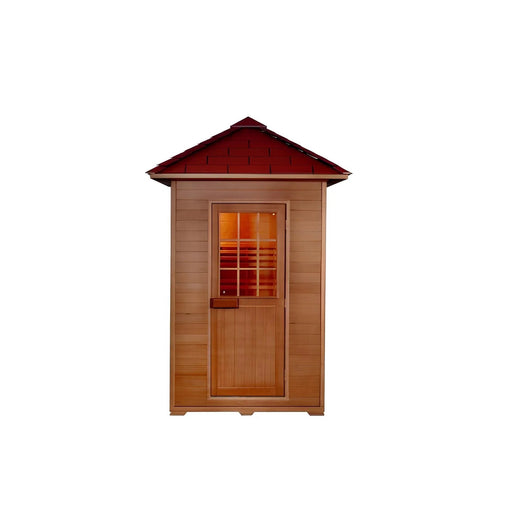

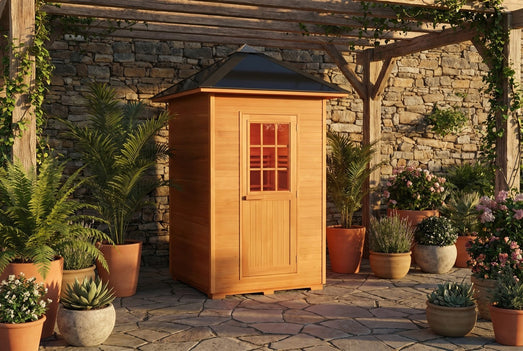

The SunRay Eagle (model 200D1) is a 2-person outdoor traditional sauna built from aged Canadian hemlock, with a metal composite roof, a wooden door with a small grid window, and a 4.5 kW Harvia electric heater included. It measures 51" W × 51" D × 98" H as a cabin, with a 61" × 61" roof footprint, and 45" W × 45" D × 73" H inside. SunRay sells it as a wet/dry sauna and includes a wooden bucket and ladle. SunRay lists the Eagle at 725 lbs, and it ships by LTL freight as a kit for on-site assembly.
The Eagle and the SunRay Bristow are the two 2-person models covered by SunRay's traditional outdoor series manual. The Bristow has the same 61" × 61" roof footprint, 45" × 45" interior and 4.5 kW heater in a 50" × 50" cabin, with a glass door and a front window where the Eagle has a wooden door. For three people, the SunRay Freeport and the SunRay Waverly use the same heater in a 61" × 51" cabin. For other sizes and brands, see our outdoor traditional saunas.

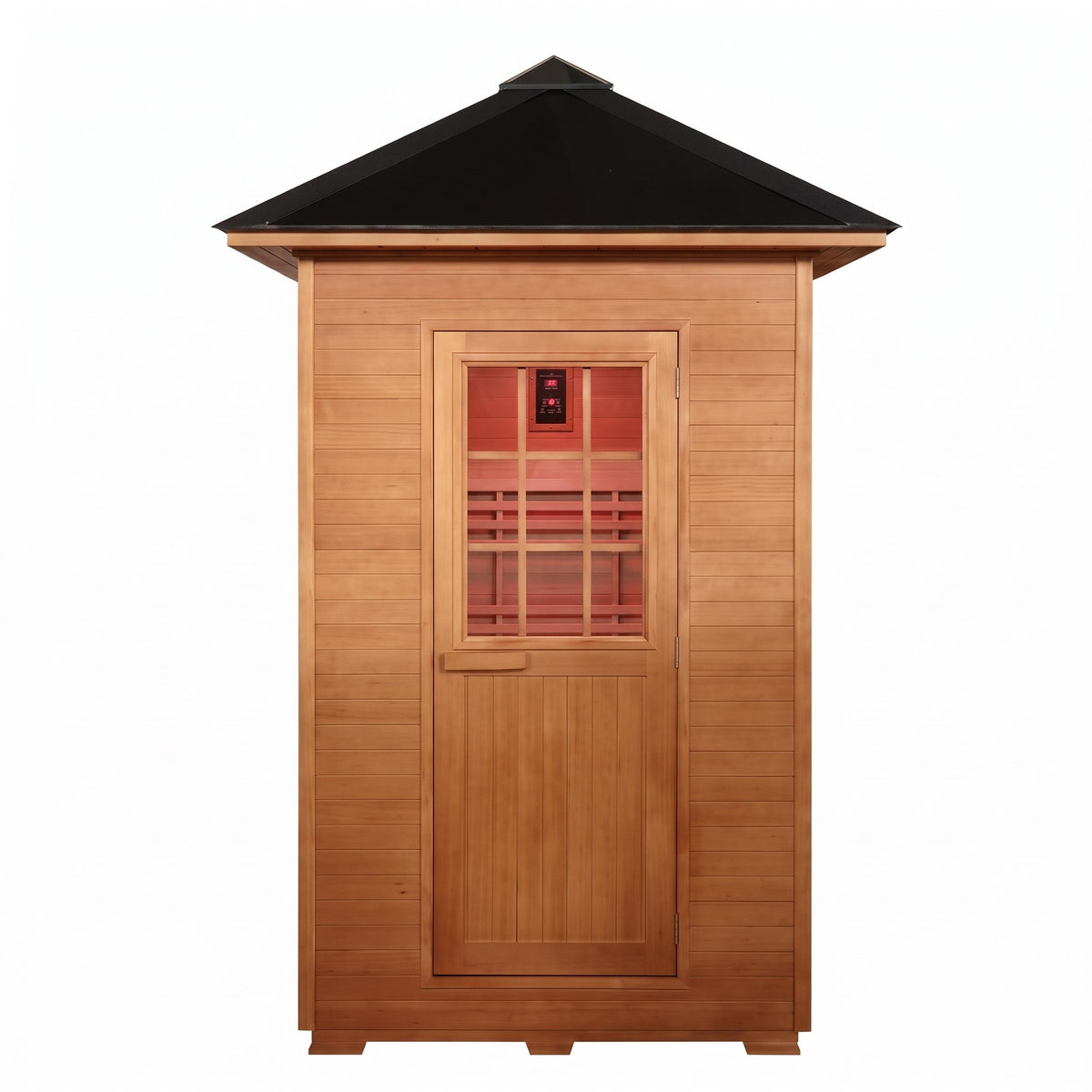

How the SunRay Eagle is built
SunRay builds the Eagle as a sealed, weatherproof cabin for outdoor use, and the heater, lights, speakers and control keypad all come in the kit.
- Aged Canadian hemlock: double-paneled walls, joined tongue-and-groove.
- Metal composite roof: a hip roof whose overhang takes the footprint from the 51" × 51" cabin to 61" × 61".
- Door: wooden, with a small grid window.
- 4.5 kW Harvia electric heater: it sits in a wooden heater frame inside the cabin. SunRay does not name the Harvia model.
- Temperature: up to 170°F. SunRay's manual suggests a setting of 125–170°F and a warm-up of about 45–60 minutes.

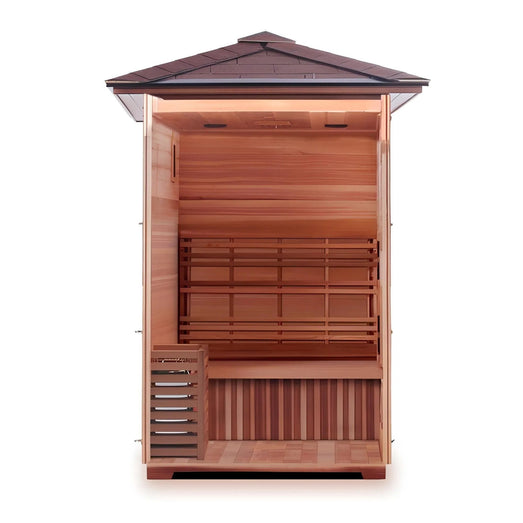

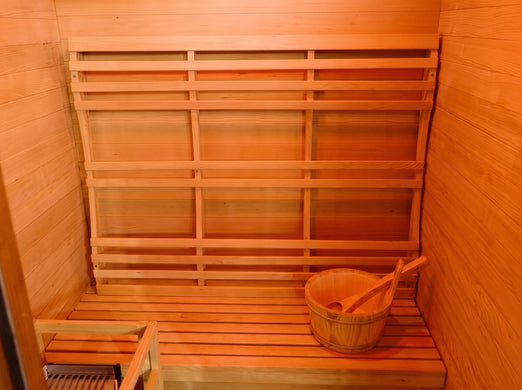

- 44" bench: one bench with a backrest and cup holders.

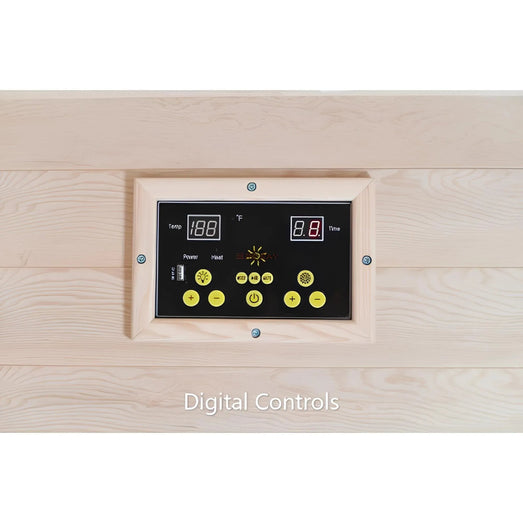

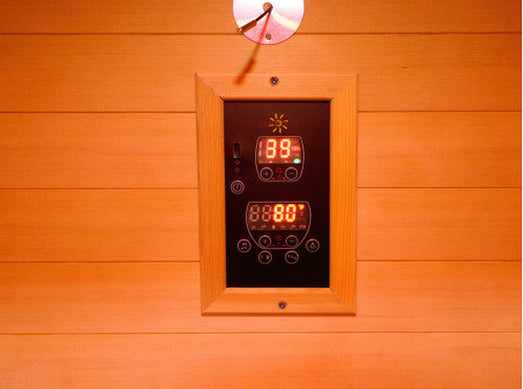

- Digital keypad: power, a session timer, the thermostat (°F or °C), the interior light, the color light and Bluetooth music. Once the room reaches the set temperature, the heater switches on and off to hold it.

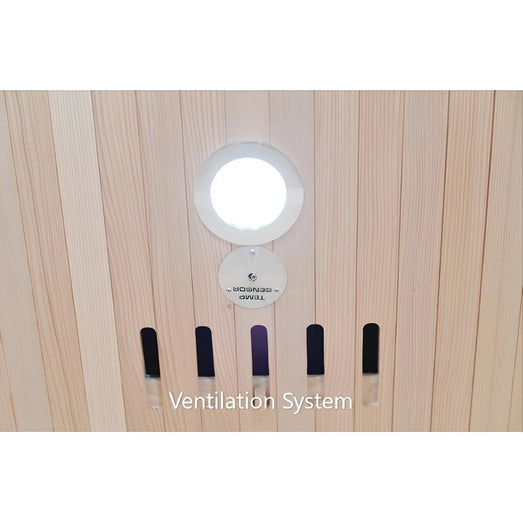

- Ceiling vent: it can be opened during a session to let in fresh air.

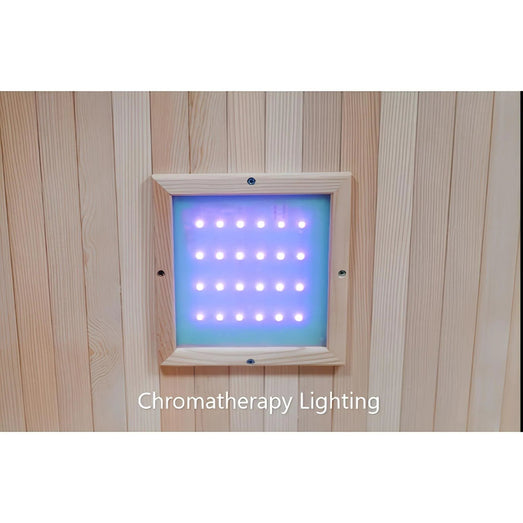

- Light and sound: an interior light, chromotherapy lighting that cycles through seven colors, and Bluetooth speakers.

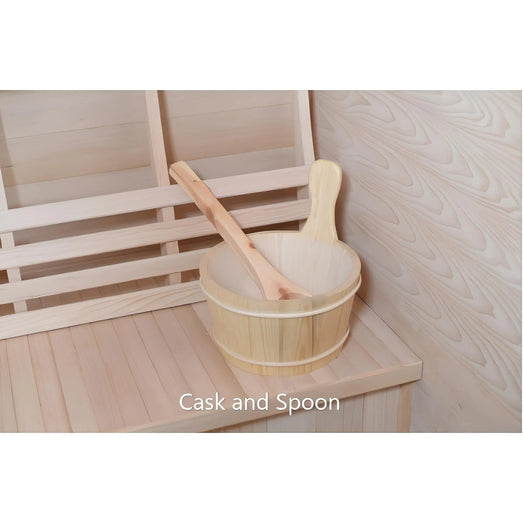

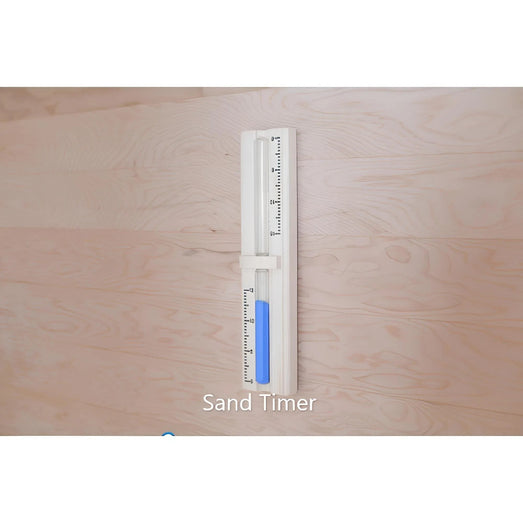

- Accessories: a hygrometer and thermometer, a sand timer, and a wooden bucket and ladle.
What comes with the SunRay Eagle?
The SunRay Eagle arrives as a complete outdoor sauna kit, heater included: the hemlock wall and floor panels, the metal composite roof, the door, the bench, the 4.5 kW Harvia heater, the keypad, the lighting, the speakers, the accessories and SunRay's assembly manual. The 240 V circuit, its connection and the foundation are arranged separately.
Included in the kit
Cabin and roof
- Aged Canadian hemlock wall and floor panels, double-paneled and tongue-and-groove
- Metal composite roof
- Wooden door with a small grid window, and its handle
Heat and interior
- 4.5 kW Harvia electric heater, in a wooden heater frame
- 44" bench with a backrest and cup holders
- Digital control keypad
- Ceiling vent
- Interior light and chromotherapy lighting
- Bluetooth speaker system
Accessories
- Hygrometer and thermometer
- Sand timer
- Wooden bucket and ladle
Documentation
- SunRay's traditional outdoor series assembly manual
- The Harvia heater's own manual, which SunRay's manual points to for the heater's exact voltage and amperage
Not included — arranged separately
- A dedicated 240 V, 30 A circuit and its connection, by a licensed electrician
- The foundation: a level concrete pad, wood deck or pavers
- Exterior sealant for the annual resealing SunRay's warranty requires
Does the SunRay Eagle include a heater?
Yes. A 4.5 kW Harvia electric heater comes with the SunRay Eagle, so there is no heater to choose separately. SunRay does not name the Harvia model. It draws 4,500 W and needs a dedicated 240 V, 30 A circuit, installed by a licensed electrician.
| Model | SunRay Eagle, model 200D1 |
|---|---|
| Brand | SunRay Saunas |
| Sauna type | Traditional, wet/dry |
| Placement | Outdoor |
| Capacity | 2 people |
| Exterior dimensions (cabin) | 51" W × 51" D × 98" H (the assembly manual lists 50" × 50") |
| Roof footprint | 61" × 61" |
| Interior dimensions | 45" W × 45" D × 73" H |
| Interior volume | About 86 cu ft (calculated from the interior dimensions) |
| Bench | 44" wide, with a backrest and cup holders |
| Door | Wooden door with a small grid window |
| Wood | Aged Canadian hemlock; double-paneled, tongue-and-groove walls |
| Roof | Metal composite, hip style |
| Heater | 4.5 kW Harvia electric heater, included (model not named by SunRay) |
| Wattage | 4,500 W |
| Maximum temperature | 170°F; SunRay's manual recommends a setting of 125–170°F |
| Heat-up time | About 45–60 minutes (SunRay's manual) |
| Controls | Digital keypad: power, timer, thermostat (°F or °C), interior light, color light, Bluetooth music |
| Lighting | Interior light; chromotherapy lighting in seven colors |
| Audio | Bluetooth speaker system |
| Ventilation | Ceiling vent, opens for fresh air |
| Electrical | 240 V (SunRay lists 220–240 V), 50/60 Hz, 30 A dedicated circuit; SunRay does not state whether it is hard-wired or connected by plug |
| Weight | 725 lbs (SunRay's listed shipping weight) |
| Warranty | 10-year structural; 1-year parts and electronics (SunRay warranty certificate); residential use only |
Can you assemble the SunRay Eagle yourself?
The cabin, yes; the 240 V connection, no. SunRay's assembly manual says the build needs at least two adults, SunRay names a Phillips screwdriver or a drill with a Phillips bit as the only tool, and SunRay estimates about two hours of work. The electrical connection is work for a licensed electrician.

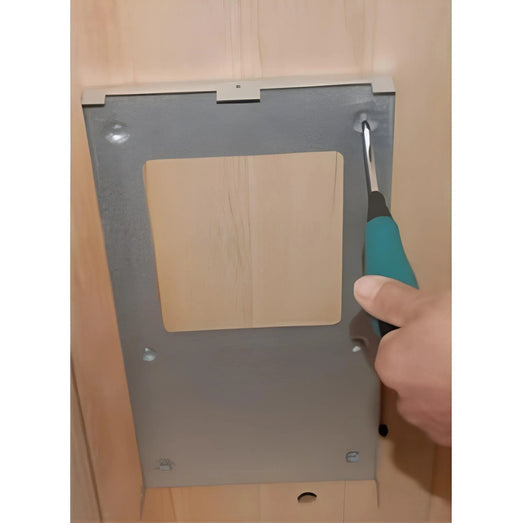

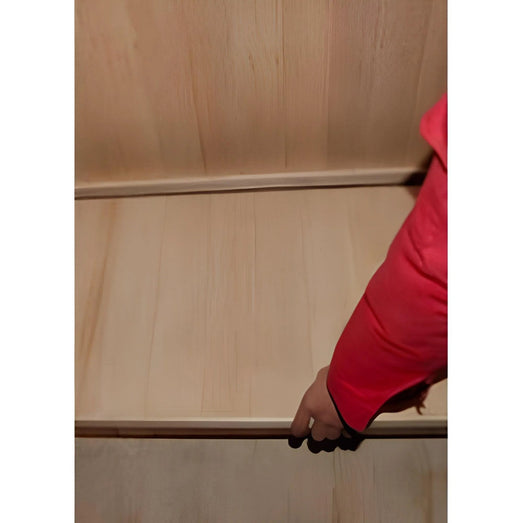

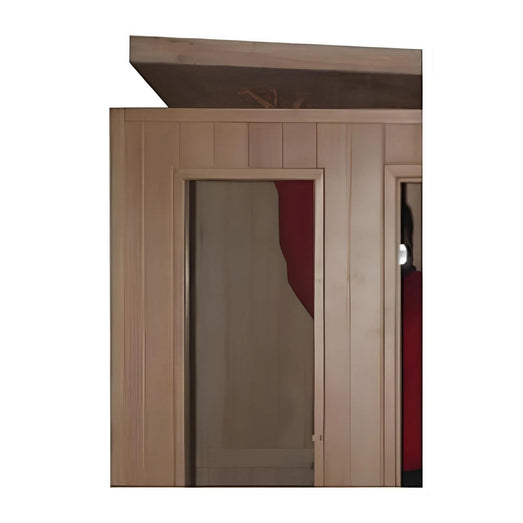

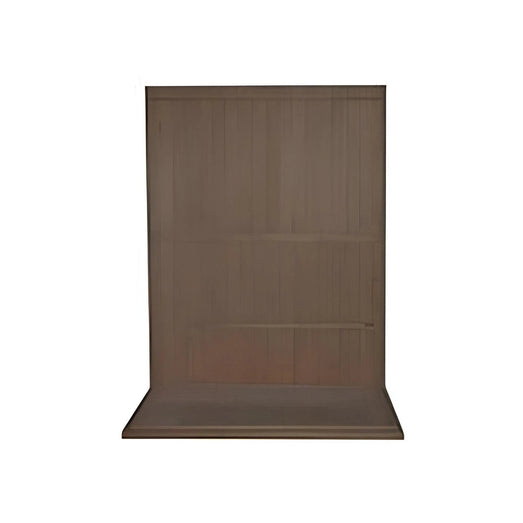

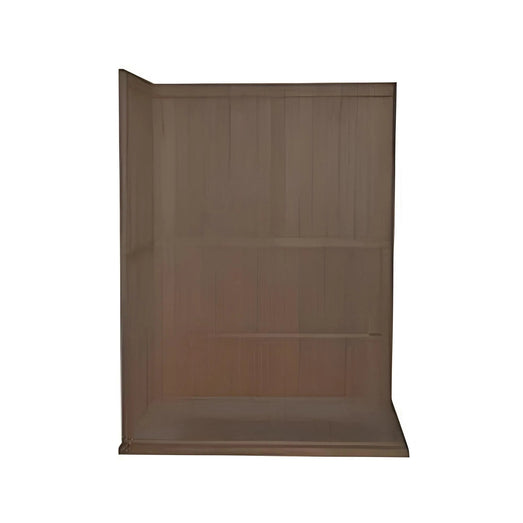

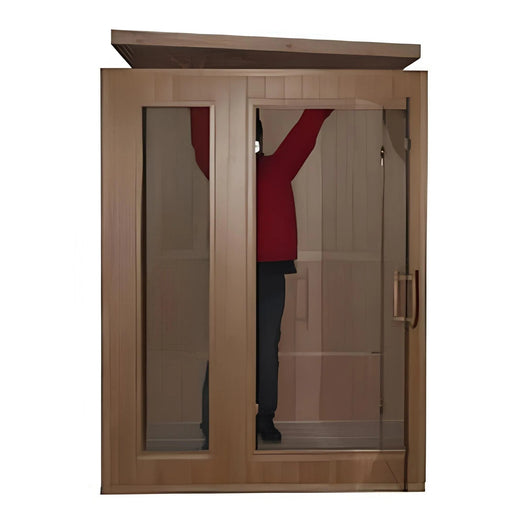

The manual works up from the floor: the bottom panel, the back wall, the side walls on their slide brackets, then the front wall and the door handle. The heater goes into its wooden frame and its plug connects to the cabin's power box. The bench slides into channels in the side walls, the backrest and accessories screw on, and the flat ceiling goes on with the accessory wires fed up through it and joined by plug connectors. The outer roof goes on last.
Before the sauna arrives
- Prepare the base. SunRay's manual calls for a sturdy, level surface such as a concrete pad, a wood deck or pavers, rules out setting the sauna directly on the ground, and asks for a floor separator or moisture barrier where the ground is damp.
- Have a licensed electrician run a dedicated 240 V, 30 A circuit to the site. SunRay does not say whether the Eagle is hard-wired or connected by plug, so confirm the connection with us before the work is booked.
- Plan how the boxed panels will get from the curb to the base. See Shipping below.
Tools you supply
A Phillips screwdriver or a drill with a Phillips bit, and at least one other adult to help.
What electrical service does the SunRay Eagle need?
A dedicated 240 V circuit rated for 30 A, the same kind of circuit an electric clothes dryer uses; SunRay lists it as 220–240 V, 50/60 Hz. The heater draws 4,500 W, and nothing else can share the circuit. If your electrical panel has no room for another 240 V breaker, your electrician may need to upgrade it before delivery.
The electrician runs that circuit to the sauna and makes the connection. SunRay does not state whether the Eagle is hard-wired or plugged in, so contact us before the circuit goes in and we will confirm it with you. Inside the cabin, the wiring plugs together during assembly: the heater plugs into the power box and the ceiling accessories join through plug connectors, so the supply circuit is the only site wiring. SunRay's manual sends you to the Harvia heater manual supplied with the sauna for the exact voltage and amperage; give both manuals to your electrician.
How do you look after the SunRay Eagle outdoors?
Reseal the exterior every year. SunRay's warranty certificate makes annual resealing a condition of cover for outdoor saunas sold without a weather cover, and SunRay lists no weather cover with the Eagle. The same certificate treats surface cracks and minor blemishes in the wood as normal rather than defects.
How is the SunRay Eagle delivered?
The SunRay Eagle ships by LTL freight, with its panels boxed and strapped to a wooden pallet, and SunRay lists its shipping weight at 725 lbs. Delivery is curbside with a lift gate, which lowers the shipment to the driveway; moving it from there to the base is up to you, so plan the route before the truck arrives.
| Freight type | LTL truck; boxed panels on a wooden pallet |
|---|---|
| Delivery point | Curbside, lowered to the driveway by lift gate |
| Shipping weight | 725 lbs (SunRay) |
| Shipping cost | Free within the contiguous US |
| Appointment | Required; someone must be present to inspect and sign |
The carrier will reach out to book the delivery appointment once the shipment reaches their local terminal.
Inspect the shipment before you sign. SunRay's warranty excludes freight damage caused by the carrier, so note any visible damage on the delivery receipt, photograph it, and contact us before you start assembly. SunRay's delivery policy asks for internal damage found after unpacking to be reported within 3 business days of delivery.
SunRay's assembly manual for its traditional outdoor series covers the Eagle's parts, build sequence, heater connection, keypad and operation, so your electrician can review it before delivery. Two things in it differ from SunRay's current Eagle listing: its model table gives the 2-person cabin as 50" × 50" rather than 51" × 51", and its roof pages show the series' earlier shingled roof, where the Eagle now ships with a metal composite roof. The Harvia heater's own manual, with the heater's electrical data, comes with the sauna.
SunRay traditional outdoor series assembly manual, covering the Eagle (PDF)
This warranty covers all SunRay branded saunas purchased directly from SunRay Saunas or any of its authorized affiliates. This warranty is non-transferable.
Structural Warranty — 7 Years
SunRay warrants the sauna structure against manufacturer defects in materials and workmanship for 7 years from the date of purchase.
What's covered:
- Wooden sauna panels, flooring, ceiling, and glass
- Replacement parts necessary for repair
- If a structural defect cannot be remedied by a replacement part, SunRay may send a full replacement sauna at its sole discretion
Note: Surface cracks in the wood and minor blemishes are normal characteristics of natural wood and are not considered defects.
Parts & Electronics Warranty — 1 Year
All sauna parts, including the heater and electrical components, are guaranteed against defects in materials and workmanship for 1 year from the date of purchase.
- Covers replacement parts only
- Labor costs for replacing a part are not covered
Warranty Terms
-
Applies to the original customer at the original delivery address only
-
Customers must have written consent from SunRay before proceeding with any warranty repair to be reimbursed
-
SunRay has sole responsibility for determining the cause and nature of any warranty claim
-
If a replacement sauna is provided, the customer is responsible for assembly/installation costs of the new unit
What Is NOT Covered
This warranty is voided if the sauna has been subjected to:
- Alteration, neglect, misuse, or abuse
- Freight damage caused by the carrier
- Accidents or acts of God
- Installation, operation, or maintenance not in accordance with the owner's manual
- Commercial use — saunas used in a commercial setting are excluded from all warranty coverage
Disclaimers
- SunRay shall not be liable for any incidental or consequential damages, including loss of use or cost of removal
- Liability under this warranty shall not exceed the original purchase price
- Warranty coverage begins on the original date of purchase and does not extend beyond the stated periods for any reason
Filing a Claim
To file a warranty claim, contact the SunRay Claims Department:
Phone: 800.976.5530
Electrical Requirements
Indoor traditional saunas require a dedicated 240V circuit in order to accommodate the high heat output of the heater. Please reference the product specification sheet to determine the specific requirements for your sauna.
Ventilation Requirements
Indoor traditional saunas are equipped with an air vent in the ceiling. This air vent is designed to help circulate heat throughout the sauna during the heat-up phase and to allow moisture to leave the sauna if you are adding humidity and using it as a steam sauna. The sauna cabin air vent also allows you to lower the sauna temperature without opening the door if the temperature inside the sauna becomes too hot.
Maximum Temperature
SunRay indoor traditional saunas have a maximum operating temperature of 170 degrees Fahrenheit. The normal operating range is 160-170 degrees Fahrenheit.
Traditional Sauna Shipping
All traditional saunas are shipped via truck freight with curbside and lift-gate delivery service unless otherwise specified. SunRay traditional saunas and steam saunas are shipped on a wooden pallet with removable bracing to protect the sauna boxes. Please contact us if you have special requirements for delivery. The trucking company will call you to schedule a delivery appointment.
Sauna Warranty
SunRay home saunas carry a 7-year structural warranty and 1-year parts warranty. All SunRay sauna parts, including electronic parts and the electric heater, are guaranteed for 1 year against defects.
Electrical Connection
Indoor traditional saunas for the home come with a power cord attached to the heater. The power cord does not have a plug. It is designed to be hard-wired into a junction box or you can put a plug on the end of the power cord. Please note that the power requirements differ by sauna model. Consult your traditional sauna user manual for the specific power requirements.
Assembly and Installation
An indoor traditional sauna is easily assembled by two adults. The typical assembly time is 1 hour. No special tools are required for the sauna to be assembled.
Cleaning Your Home Sauna
Your home sauna should be cleaned a minimum of every 3-4 months or more frequently depending on usage. To clean the interior of your home sauna, use a mixture of baking soda and water (3 teaspoons baking soda to 1 gallon of warm water). Using a clean towel, wipe down the interior of the sauna, focusing on where sweat accumulates. Let the area dry with the sauna door open. Use a standard ammonia-based glass cleaner to clean the sauna doors and windows.
Traditional Sauna Origin
SunRay traditional sauna cabins are constructed from Hemlock or Cedar wood imported from Canada. SunRay's manufacturing facility is in China and its distribution facility is in the United States. Warranty claims are handled by SunRay Saunas, based in Richmond, VA, and Topture helps you coordinate them.
Sauna Specification Sheets
Each SunRay sauna has a specification sheet with all the details of the kit, including the power requirements. Contact us if you would like a copy.
Placing an Indoor Sauna Outdoors
SunRay indoor traditional saunas are not rated for outdoor use. They have an open top that is not protected from the elements. If you place the indoor sauna outdoors, it must be covered and protected from the elements. Indoor saunas that are placed outdoors will not be covered under SunRay's sauna warranty.
Sauna Heating Time
The average heating time for traditional home saunas ranges between 30-45 minutes depending on the room temperature, size of the sauna, and the heater type.
Ceiling Clearance
You need at least 3-4 inches between the top of the home sauna and the ceiling. This allows the electrical components on the top of the sauna to receive the appropriate amount of airflow.
Sauna Stones
SunRay indoor traditional saunas come with heater stones that sit on top of the heater elements. The heater stones are used to help radiate heat throughout the sauna and can be used to create humidity inside the sauna. DO NOT pour excess water on the heater stones as it will cause damage to the heater. To create humidity in the sauna, simply drizzle a small amount of water over the stones once they are hot.
Sauna Heater Placement
All indoor traditional saunas are equipped with either a wall mounting bracket or cradle for the heater to sit in. DO NOT place the sauna heater directly on the floor as it could become a fire hazard. The sauna must be elevated off the floor to create airflow through the heating elements.
Sauna Lighting
All indoor traditional saunas come with ambient dome lighting. Saunas with dome lighting can be connected to the heater so that the light turns off when the heater turns off. Alternatively, you can wire the lighting separately on its own switch. Consult your sauna heating wiring guide for instructions on how to wire your sauna light into the heater.
