HUUM HIVE Wood LS 17kW Wood-Burning Sauna Heater Package
HUUM HIVE Wood 17 LS stove, loaded from the next room through the wall, with 9 boxes of stones and your choice of chimney kit, for 283–565 cu ft rooms
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
- Fire loaded and tended from the next room
- 287 lb of stones for long, mild steam
- Stove, stones and chimney kit matched in one order
- Description
- What's Included
- Specifications
- Installation
- Documents
- Warranty
What is the HUUM HIVE Wood 17 LS package?
The HUUM HIVE Wood 17 LS package combines three parts: the HUUM HIVE Wood 17 LS wood-burning sauna stove, nine 33 lb boxes of HUUM Stones 24 and the HUUM chimney kit you choose. It is sized for sauna rooms of 283–565 cu ft, burns wood logs only and needs no electrical connection. The package price is the sum of its three parts; ordering them together means the stone quantity and chimney kit are already matched to the stove.

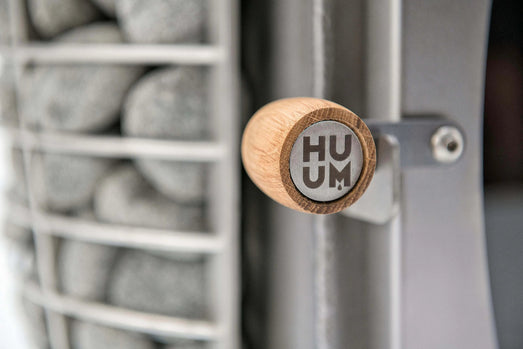

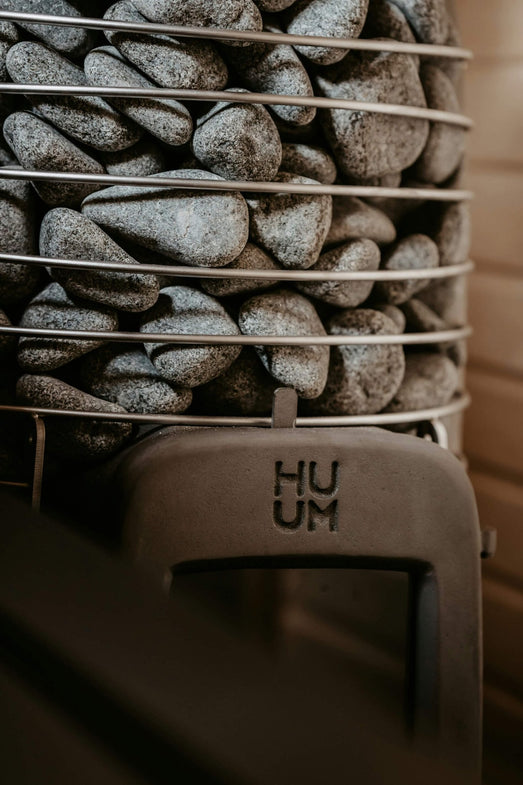

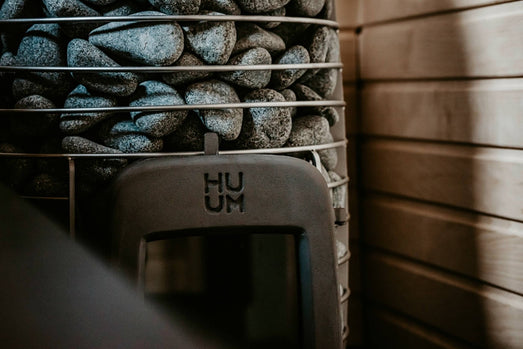

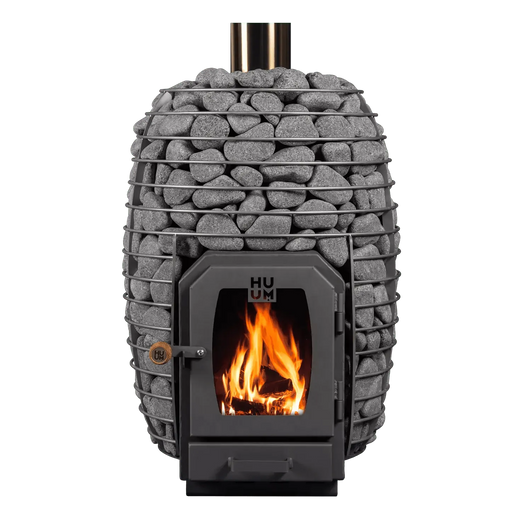

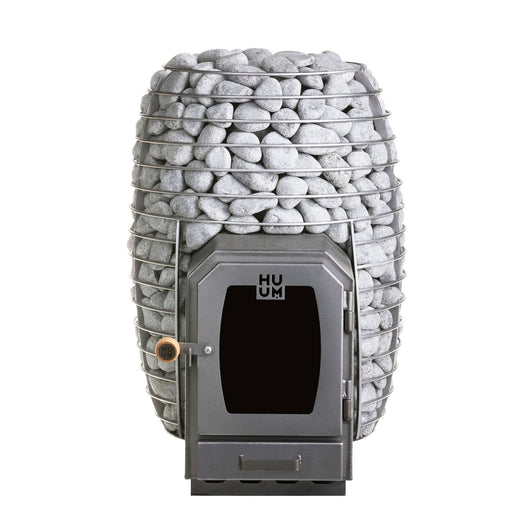

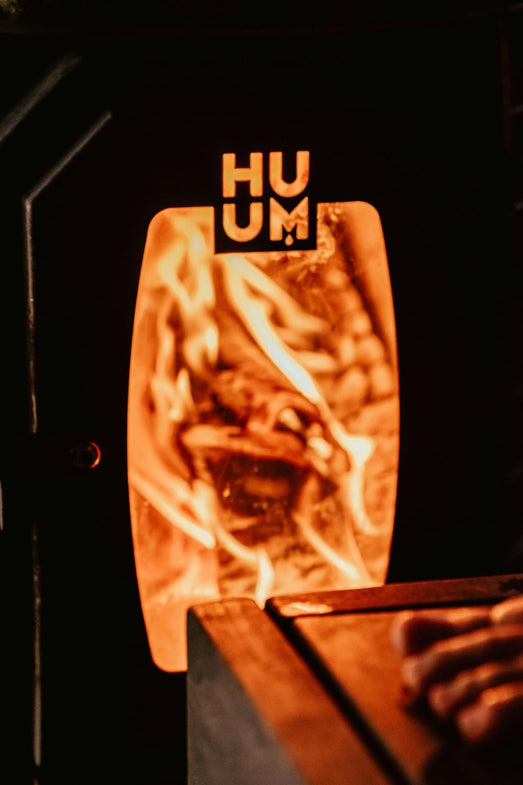

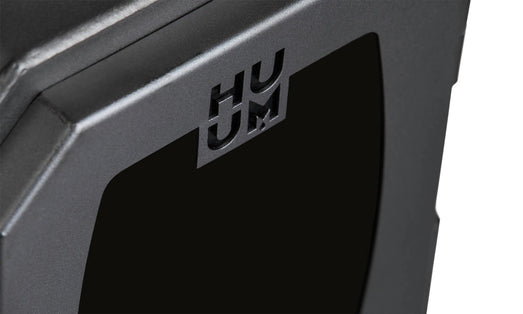

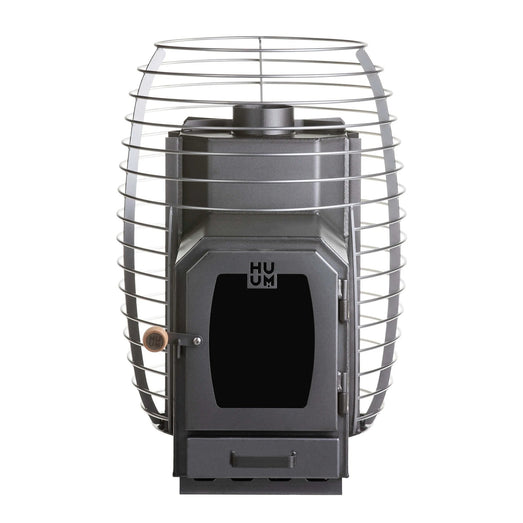

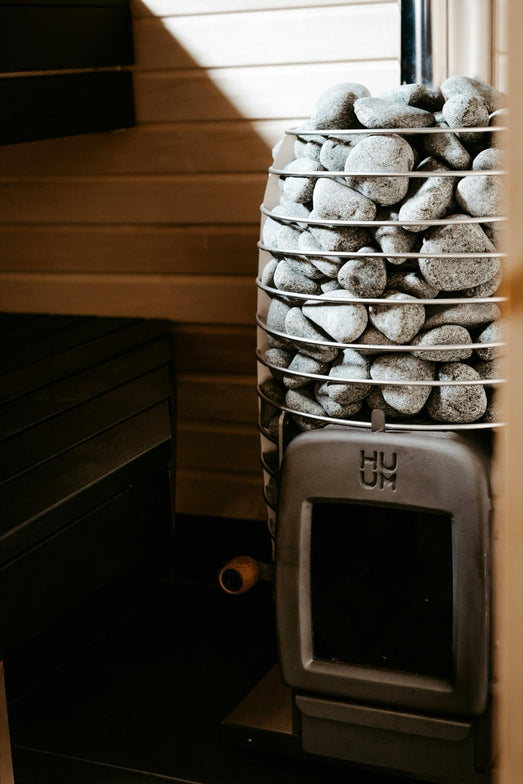

The HIVE Wood 17 LS's round steel frame holds 287 lb (130 kg) of stones, which HUUM says gives long-lasting, mild steam, and its glass door shows the fire. A 0.2 in (5 mm) stainless-steel flame tamer lines the firebox.

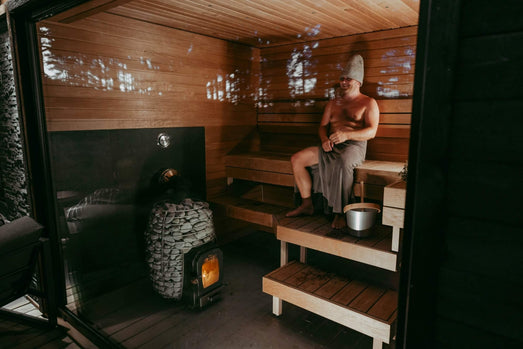

The firebox of the HIVE Wood 17 LS passes through a non-combustible wall, so the fire is loaded and tended from an adjacent room while the stones heat the sauna. HUUM's protective bedding is not made for LS models, so this package has no floor bed.
Which chimney kit should I choose?
All three kits connect to the top of the HIVE Wood 17 LS; choose the one that matches where the chimney leaves your sauna. HUUM leaves the chimney's height to local fire-safety regulations, and HUUM extension pipes lengthen any of the kits.
| Where the chimney exits | How it runs | |
|---|---|---|

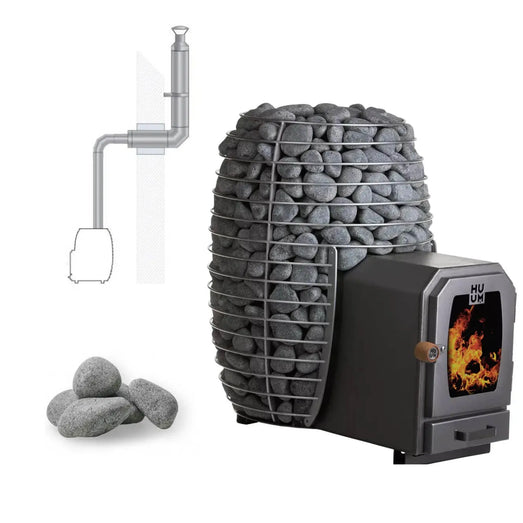

| HUUM Thru-Wall Chimney Kit (H3102) | Through the side wall | Off the top of the stove, 90° through the wall, then up the outside wall on an adjustable bracket |

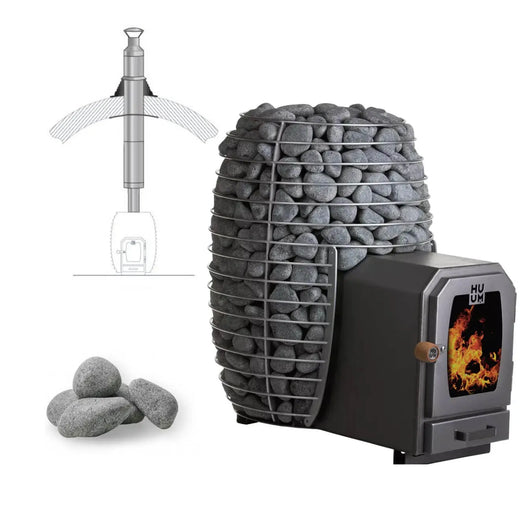

| HUUM Barrel Chimney Kit (H3101) | Through a single-layer roof, flat or curved (barrel) | Straight up through the roof, sealed by a universal rubber roof flashing |

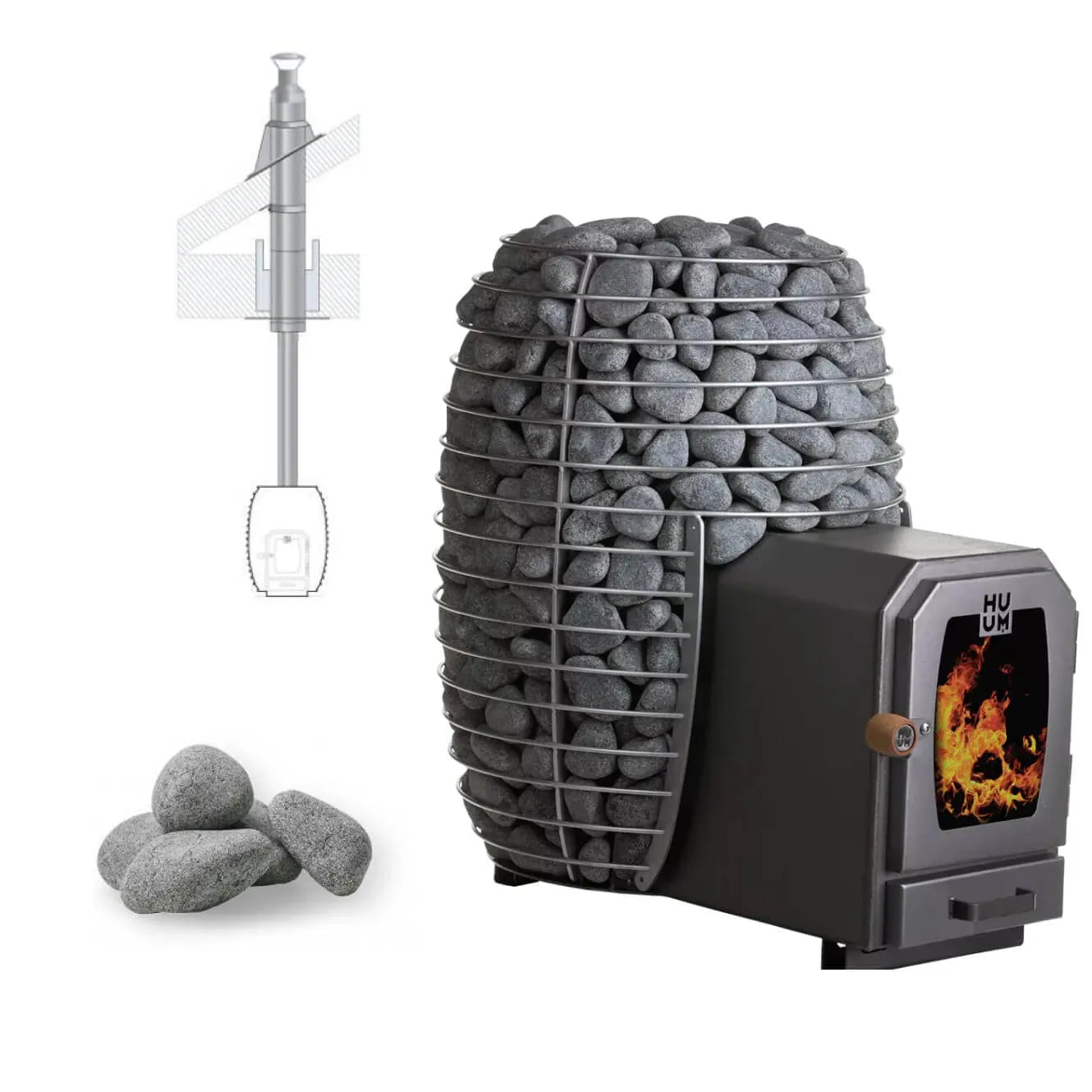

| HUUM Thru-Angled Ceiling Chimney Kit (H3100) | Through the ceiling and a roof pitched 0–20° | Straight up, with a rigid roof penetration, rain collar and chimney cap |
What's included in the HUUM HIVE Wood 17 LS package?
HUUM HIVE Wood 17 LS stove
- HUUM HIVE Wood 17 LS wood-burning sauna stove, 17 kW
- Installation and user instructions
HUUM Stones 24
- 9 boxes × 33 lb of rounded 2–4 in (5–10 cm) HUUM Stones 24, the quantity HUUM's manual specifies; the stove holds 287 lb (130 kg)
HUUM Thru-Wall Chimney Kit (H3102), if you choose it
- Single-wall chimney, 0.25 m (9.8 in)
- Cuttable single-wall chimney adapter, 150–250 mm (5.9–9.8 in)
- 90° single-wall elbow with cleaning hatch
- Double-wall welded chimney base
- Double-wall chimney, 0.5 m (19.7 in)
- Cover plate (2 parts)
- T600 insulation plate for wall and ceiling
- 90° double-wall elbow
- Adjustable wall bracket, 50–150 mm (2–5.9 in) from the wall
- Double-wall chimney, 1.0 m (39.4 in)
- Chimney cap
- Installation sheet
HUUM Barrel Chimney Kit (H3101), if you choose it
- Single-wall chimney, 0.25 m (9.8 in)
- Single-wall chimney, 0.5 m (19.7 in)
- Cuttable single-wall chimney adapter, 150–250 mm (5.9–9.8 in)
- Double-wall welded chimney base
- Double-wall cover plate for a sloped-ceiling penetration (2 parts)
- T600 insulation plate for wall and ceiling
- Universal rubber roof flashing
- Rain collar
- Double-wall chimney, 1.0 m (39.4 in)
- Chimney cap
- Installation sheet
HUUM Thru-Angled Ceiling Chimney Kit (H3100), if you choose it
- Single-wall chimney, 0.25 m (9.8 in)
- Single-wall chimney, 0.5 m (19.7 in)
- Cuttable single-wall chimney adapter, 150–250 mm (5.9–9.8 in)
- Double-wall welded chimney base
- Cover plate (2 parts)
- T600 insulation detail for the ceiling
- Double-wall chimney, 1.0 m (39.4 in)
- Roof rafter attachment
- Roof penetration for a 0–20° roof pitch
- Rain collar
- Chimney cap
- Installation sheet
What you still need
- A specialist to connect the stove to the chimney (HUUM's manual)
- HUUM extension pipes if local fire-safety rules call for a taller chimney than the kit
- A non-combustible wall, such as stone or concrete, for the firebox to pass through (HUUM's manual)
- If the floor in front of the firebox door is combustible: fire-resistant floor protection 23.63 in (600 mm) wider than the door and at least 15.75 in (400 mm) deep, per HUUM's manual
- Optional add-ons offered with this package: the Reflect H reflector, which lets the stove sit at half the safety distance from the wall, and the HUUM Cage HSTV stone cage (stones for it sold separately)
What's in the HUUM HIVE Wood 17 LS package, and what isn't?
| Stove | Included: HUUM HIVE Wood 17 LS, 17 kW, loaded from an adjacent room through a non-combustible wall |
|---|---|
| Stones | Included: 9 boxes × 33 lb of HUUM Stones 24 (2–4 in), the quantity HUUM specifies for the stove's 287 lb |
| Chimney kit | Included: Thru-Wall (H3102), flat or curved roof (H3101) or Thru-Angled Ceiling (H3100), by the option you choose |
| Extension pipes | Not included; needed only if local fire-safety rules call for a taller chimney than the kit |
| Floor protection | Not included: on a combustible floor, HUUM's manual requires fire-resistant protection in front of the door, 23.63 in (600 mm) wider than the door and at least 15.75 in (400 mm) deep; HUUM's bedding is not made for LS models |
| Non-combustible wall | Required for the firebox to pass through (stone, concrete or similar); not part of the package |
| Chimney connection | By a specialist (HUUM's manual); not included |
| Chimney requirement | HUUM's manual: temperature class T600, at least 15.81 sq in (10,200 mm²) cross-section and 12 Pa draught, on its own flue |
| Electrical connection | None needed: the stove burns wood logs only |
| Reflect H reflector | Optional, not included; lets the stove sit at half the safety distance from the wall |
| Stone cage | Optional, not included (HUUM Cage HSTV; its stones are extra) |
HUUM HIVE Wood 17 LS stove specifications
| Nominal output | 17 kW |
|---|---|
| Sauna room volume | 283–565 cu ft (8–16 m³) |
| Stone capacity | 287 lb (130 kg); this package includes the 9 boxes × 33 lb HUUM specifies |
| Height / frame diameter | 29.6 in (750 mm) / 21.9 in (555 mm) |
| Firewood | Logs 15.7 in (40 cm) long, 3.1–5.9 in (8–15 cm) across; up to 23.4 lb (10.6 kg) per load |
| Fire loaded from | An adjacent room, through a non-combustible wall |

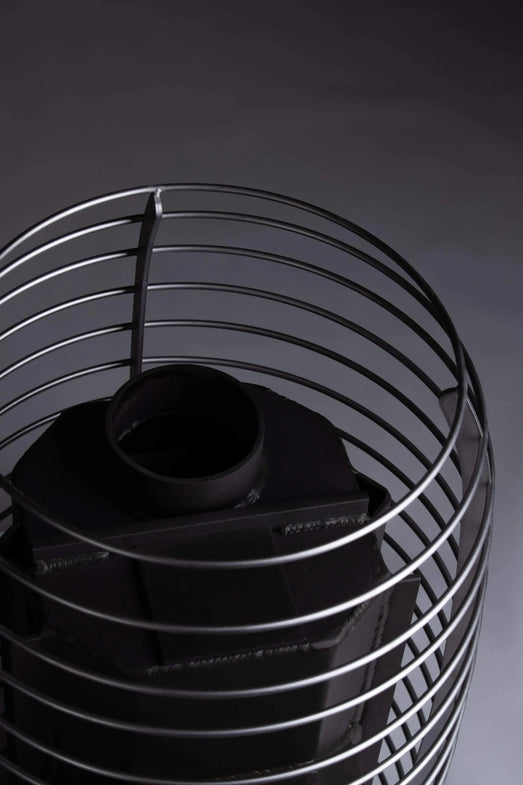

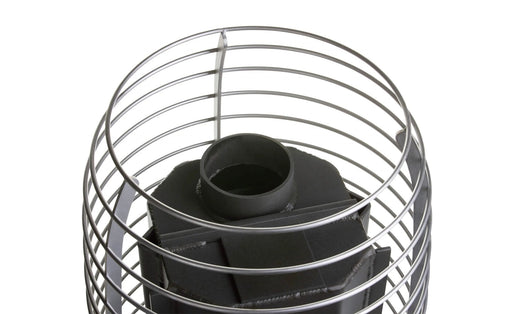

| Flue outlet | 4.53 in (115 mm), on top of the stove |
| Flue gas temperature | 829°F (443°C) |
| Total efficiency | 66% |
| Flame tamer | 0.2 in (5 mm) stainless steel |
| Standard | EN 15821:2010 |
| Made in | Estonia |
| HUUM part number | H1010012 |
| Warranty | Stove: 3 years private use, 1 year commercial use (HUUM); the door glass, ash grate and stones are excluded. The chimney kit is a HUUM accessory, which HUUM's warranty does not cover |
Every HIVE Wood model, as a stove and as a package, is in the HUUM HIVE Wood collection; all HUUM wood-burning stoves are in the HUUM wood-burning stove collection.
How is the HUUM HIVE Wood 17 LS package installed?
The HUUM HIVE Wood 17 LS stands on a non-combustible floor strong enough for the stove and 287 lb of stones, and its firebox passes through a non-combustible wall into the adjacent room. Only a specialist may connect the stove to the chimney, and HUUM recommends a specialist lay the stones. Installation must follow your local building and fire-safety rules.
HUUM HIVE Wood 17 LS safety distances
Keep at least these distances from the HIVE Wood 17 LS to combustible materials. The Reflect H reflector lets the stove sit at half the safety distance from the wall.
| A: each side | 19.7 in (500 mm) |
|---|---|
| B: behind the stove | 19.7 in (500 mm) |
| C: in front of the door | 39.4 in (1,000 mm) |
| Above the stove | 47.3 in (1,200 mm) |
- In a niche of non-combustible material such as stone or concrete, leave at least 4 in (100 mm) between the wall and the stove for air movement
- A single heat barrier halves the distance to combustible materials and a double barrier quarters it; leave at least 1.2 in (30 mm) between the barrier and the surface it protects
- No electrical equipment or wiring may sit inside the stove's safety area
What chimney does the HIVE Wood 17 LS need?
The HIVE Wood 17 LS's flue outlet is on top of the stove, 4.53 in (115 mm) across. HUUM's manual calls for a T600 chimney with at least 15.81 sq in (10,200 mm²) of cross-section and 12 Pa of draught, joined with metal flue pipes with smooth elbows and venting into its own flue: a flue shared with another furnace is not permitted. Only a specialist may connect the stove to the chimney.
HUUM's Thru-Wall Backside Connection kit is for the HIVE Flow's rear outlet, not the HIVE Wood. HUUM leaves the chimney's height to local fire-safety regulations; HUUM extension pipes lengthen a kit where needed. Keep the kit's single-wall parts at least 19.7 in (500 mm) and double-wall parts at least 2 in (50 mm) from combustible materials.
Installing the HIVE Wood 17 LS through a wall
- The firebox passes through a non-combustible wall, such as stone or concrete; HUUM recommends insulating the opening with mineral wool or similar
- Leave at least 0.4 in (10 mm) around the firebox for air movement, so add 0.8 in (20 mm) to HUUM's Table 1 height D (18.1 in) and width G (11.8 in) when sizing the opening
- If the floor in front of the firebox door is combustible, install fire-resistant floor protection 23.63 in (600 mm) wider than the door and at least 15.75 in (400 mm) deep
- HUUM's protective bedding is not made for LS models
First firing
Fire the stove outdoors once before installing it: HUUM's manual says the heat-resistant paint on the outer casing gives off an unpleasant odor while it cures during the first firing, and a short piece of flue on the smoke outlet improves the draft. Until then, handle the painted metal carefully to avoid scratches.
Firing and caring for the HIVE Wood 17 LS
- Burn wood logs only. HUUM finds 15.7 in (40 cm) logs for the HIVE Wood 17 LS best, 3.1–5.9 in (8–15 cm) across, with some small, easily lit pieces at the start
- Open the ash tray up to 0.4 in (10 mm) while lighting, then close it to 0.08–0.12 in (2–3 mm) depending on the draught, and keep the door closed except to add wood
- If the firebox glows red, the stove is overheating: close the ash tray completely, keep the door shut and, if possible, cut off air to the room. HUUM does not cover metal deformed by overheating
- Empty the ash tray before each firing, clean the stove's heating surfaces at least every 20 uses and have the chimney and flues cleaned at least once a year
- Wash the stones before laying them; HUUM recommends a specialist lay them. Ceramic stones can shorten the stove's life, and crumbled stones should be replaced once a year
- Keep water off the hot door glass, and don't throw salt water, hard water or iron-rich water on the stove
- HUUM gives no fixed heat-up time: it depends on the wall materials, the room's size and the stove's output
HUUM warranty periods
HUUM's limited warranty (Limited Warranty Terms and Conditions, US, v2) covers new HUUM products bought from HUUM or its authorized dealers, such as Topture, against defects in materials and workmanship. The period starts on the date the end user buys the product.
| HUUM product | Private use | Commercial use |
|---|---|---|
| Electric sauna heaters | 3 years | 1 year |
| Wood-burning sauna stoves | 3 years | 1 year |
| Control units (UKU) | 3 years | 1 year |
| Spare parts | 1 year | 1 year |
HUUM counts as commercial use a business using the product commercially, a private owner using it commercially, or a private owner using it for more than 1,500 hours in 12 months.
What the warranty does not cover
- Heating elements of electric heaters
- HUUM accessories, such as rails, reflectors, flanges, protective bedding and chimney parts
- Door glass and ash grate of wood-burning stoves
- Sauna stones
- All controller sensors
- Damage from a heater that is the wrong size for the room, from unsuitable stones, or from installation, use or maintenance that does not follow HUUM's manuals
What keeps the warranty in effect
- Inspect the product when it arrives and report any visible damage within 7 days, with photos, before installing it.
- Install it following HUUM's manual and local building, electrical and fire codes. An electric product must be connected by a licensed electrician, with proof of the installation.
- Report a defect within 30 days of finding it. For products bought from Topture, report it to Topture, which passes the claim to HUUM and helps with troubleshooting.
