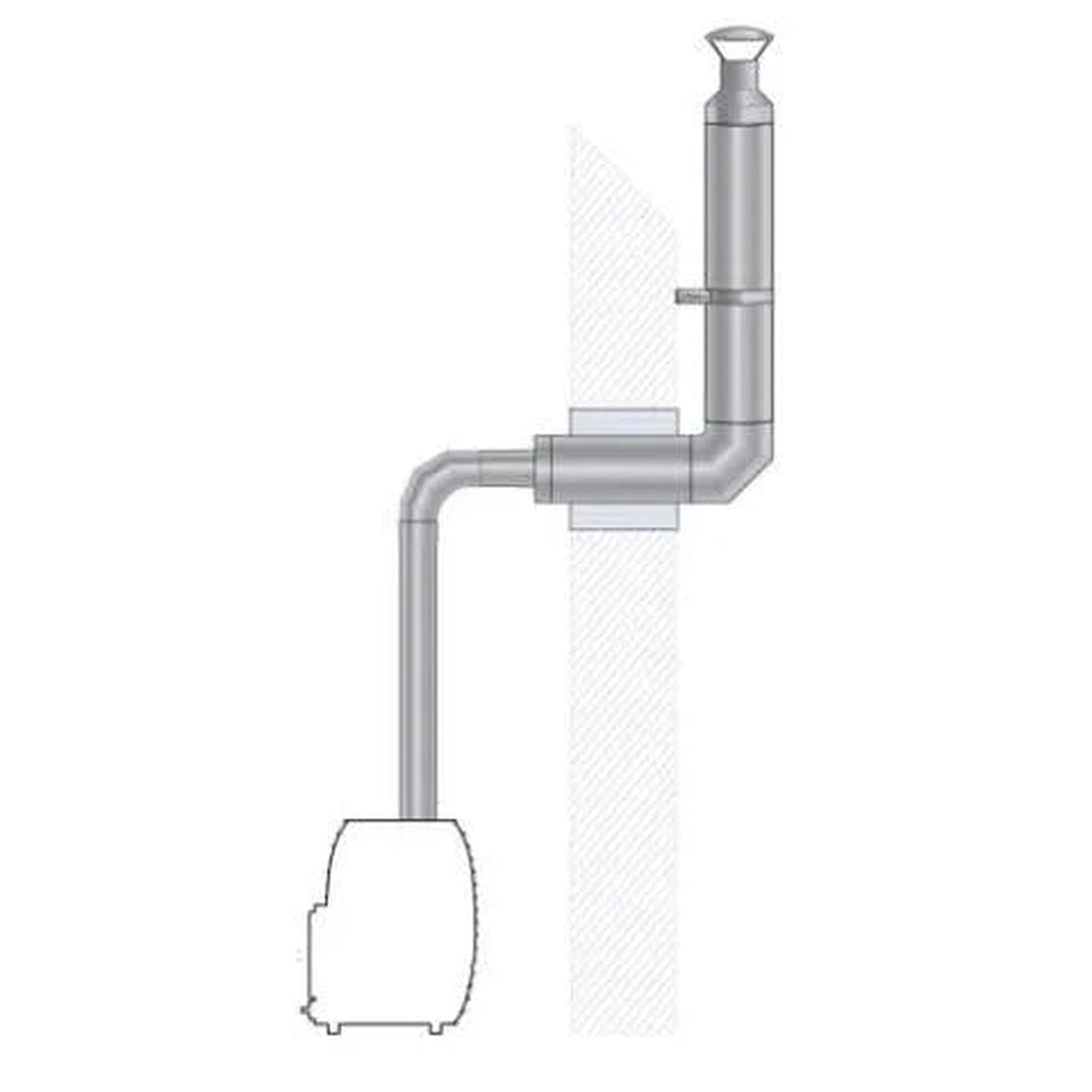

HUUM thru-wall chimney kit diagram showing routing from stove through the wall
HUUM

HUUM Thru-Wall Chimney Kit

$1,670
$1,999
Save $329
+ Free Shipping Free Delivery within the Continental US

In stock

Estimated delivery

7–12 days after you order

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

Description

What is the HUUM Thru-Wall Chimney Kit?

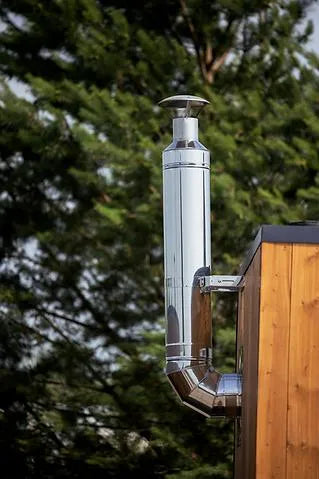

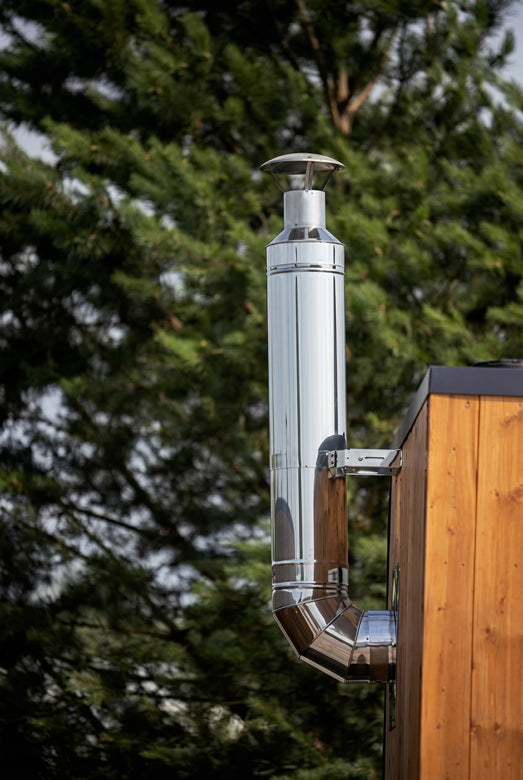

The HUUM Thru-Wall Chimney Kit (H3102) is HUUM's chimney set for taking a wood-burning sauna stove's flue off the top of the stove, turning it 90° through the sauna wall and running it up the outside of the building. Inside, a single-wall pipe, a cuttable adapter and a 90° single-wall elbow with a cleaning hatch make the connection; a double-wall welded base, cover plate and T600 insulation plate take it through the wall; double-wall sections, a 90° double-wall elbow and an adjustable wall bracket carry it up the wall to the chimney cap.

Does the HUUM Thru-Wall Chimney Kit fit my stove?

The HUUM Thru-Wall Chimney Kit fits the HUUM HIVE Wood 13, 17 and 17 LS, whose flue outlet is on top, and all four HIVE Flow models, the HIVE Flow, HIVE Flow Mini, HIVE Flow LS and HIVE Flow Mini LS, whose manual lists it among HUUM's chimney sets. For a HIVE Flow connected at the back, use the Thru-Wall Backside Connection kit instead.

How is the HUUM Thru-Wall Chimney Kit installed?

HUUM's stove manuals say only a specialist may connect the stove to the chimney. Keep the kit's single-wall parts at least 19.7 in (500 mm) and double-wall parts at least 2 in (50 mm) from combustible materials. The stove's manual sets the chimney requirements: the HIVE Wood needs a T600 chimney on its own flue, the HIVE Flow a T450 chimney. HUUM leaves the chimney's height to local fire-safety regulations; HUUM single-wall and double-wall extension pipes are sold separately to lengthen it.

What's Included

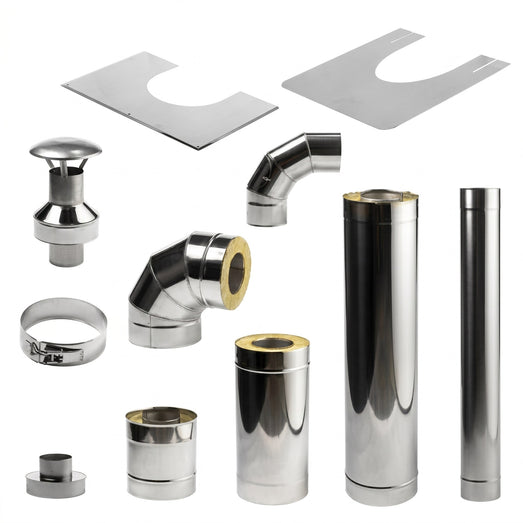

What's in the box with the HUUM Thru-Wall Chimney Kit?

  • Single-wall chimney, 0.25 m (9.8 in)
  • Cuttable single-wall chimney adapter, 150–250 mm (5.9–9.8 in)
  • 90° single-wall elbow with cleaning hatch
  • Double-wall welded chimney base
  • Double-wall chimney, 0.5 m (19.7 in)
  • Cover plate (2 parts)
  • T600 insulation plate for wall and ceiling
  • 90° double-wall elbow
  • Adjustable wall bracket, 50–150 mm (2–5.9 in) from the wall
  • Double-wall chimney, 1.0 m (39.4 in)
  • Chimney cap
  • Installation sheet

HUUM's limited warranty does not cover HUUM accessories, including this one.

Specifications

HUUM Thru-Wall Chimney Kit specifications

HUUM Thru-Wall Chimney Kit (H3102), HUUM chimney-set sheet
HUUM part number H3102
Stove connection Top of the stove, 90° single-wall elbow with cleaning hatch
Route Through the wall, then up the outside wall
Single-wall parts 0.25 m (9.8 in), plus a cuttable adapter 150–250 mm (5.9–9.8 in)
Double-wall parts 0.5 m (19.7 in) and 1.0 m (39.4 in), with a 90° elbow
Wall bracket Adjustable, 50–150 mm (2–5.9 in) from the wall
Clearance to combustibles Single-wall parts 19.7 in (500 mm); double-wall parts 2 in (50 mm)
Chimney height Set by local fire-safety regulations
Extension pipes Sold separately; not included, for a chimney taller than the kit
Stove-to-chimney connection By a specialist (HUUM's stove manuals); not included
Installation sheet Included
Fits HIVE Wood 13, 17 and 17 LS; HIVE Flow, HIVE Flow Mini, HIVE Flow LS and HIVE Flow Mini LS
Material Stainless steel
Documents

HUUM Thru-Wall Chimney Kit Installation Sheet (H3102)

Warranty

HUUM warranty periods

HUUM's limited warranty (Limited Warranty Terms and Conditions, US, v2) covers new HUUM products bought from HUUM or its authorized dealers, such as Topture, against defects in materials and workmanship. The period starts on the date the end user buys the product.

HUUM products and warranty periods (HUUM warranty terms, US, v2)
HUUM product Private use Commercial use
Electric sauna heaters 3 years 1 year
Wood-burning sauna stoves 3 years 1 year
Control units (UKU) 3 years 1 year
Spare parts 1 year 1 year

HUUM counts as commercial use a business using the product commercially, a private owner using it commercially, or a private owner using it for more than 1,500 hours in 12 months.

What the warranty does not cover

  • Heating elements of electric heaters
  • HUUM accessories, such as rails, reflectors, flanges, protective bedding and chimney parts
  • Door glass and ash grate of wood-burning stoves
  • Sauna stones
  • All controller sensors
  • Damage from a heater that is the wrong size for the room, from unsuitable stones, or from installation, use or maintenance that does not follow HUUM's manuals

What keeps the warranty in effect

  • Inspect the product when it arrives and report any visible damage within 7 days, with photos, before installing it.
  • Install it following HUUM's manual and local building, electrical and fire codes. An electric product must be connected by a licensed electrician, with proof of the installation.
  • Report a defect within 30 days of finding it. For products bought from Topture, report it to Topture, which passes the claim to HUUM and helps with troubleshooting.

Read HUUM's full Limited Warranty Terms and Conditions (US)
