Harvia Virta 10.5kW Electric Sauna Heater | HL110E
A 10.5kW Harvia Virta electric heater — 154 lbs of stones for serious steam, with a removable element module that makes servicing genuinely simple.
- Heats a 177–635 cu ft sauna room in 20–30 minutes.
- Stainless steel build; heating elements removable for easy service.
- WiFi control via Harvia Xenio kit: schedule sessions up to 12 hours out.
See What People Are Saying…
“This has completely transformed my workspace. The natural light is a game changer!”
“Built it in a weekend with my brother. Glass front is the move — feels like a real room, not a closet.”
“I love the design and how easy it was to set up. Highly recommend for any home owner.”
- Description
- What’s Included?
- Specifications
- Documents
- Warranty
Harvia Virta 10.5kW Floor-Standing Electric Sauna Heater (240V/1PH or 208V/3PH)
The Harvia Virta 10.5kW Electric Sauna Heater is a powerful, stylish, and durable floor-standing heater designed for a premium sauna experience. Engineered for even, soft heat distribution, it creates a balanced and relaxing atmosphere, making it an excellent choice for saunas between 177 and 635 cubic feet.
Constructed with high-quality stainless steel, the Virta heater is built for long-term performance. It holds up to 154 lbs of genuine Finnish sauna stones, ensuring efficient heat retention and the ability to generate invigorating steam when water is poured over the stones. The heating elements are designed to last longer by being separated from direct stone contact, reducing wear. When maintenance is required, the entire heating element module can be quickly removed, making servicing easy and efficient.
The Virta 10.5kW pairs with the Harvia Xenio Digital Control Kit (sold separately), which allows for precise temperature control and scheduling up to 12 hours in advance. For added convenience, the Xenio control panel is WiFi-compatible, enabling remote access through the MyHarvia app.
This model is part of the Virta heater series, with additional sizes available in 6kW, 8kW and 9kW, plus the commercial Virta Pro line at 16kW and 20kW, to accommodate different sauna sizes.
Key Features
- Ideal for Medium to Large Saunas – Designed for sauna rooms 177 to 635 cubic feet
- Premium Stainless Steel Construction – Durable housing and industrial-grade, serviceable heating elements
- Even Heat Distribution – Provides soft, consistent warmth for a comfortable sauna session
- Generates Authentic Steam – Pour water over stones for a true Finnish sauna experience
- Quick Heating Time – Reaches optimal temperatures in 20-30 minutes
- Floor-Mounted Installation – Can be placed against a sidewall or in a corner
- WiFi & Smart Controls – Compatible with the Harvia Xenio Digital Control Kit (sold separately) for remote access and scheduling
- Easy Maintenance – Removable heating element module for quick servicing
- Designed & Manufactured in Finland – Precision-engineered for reliability and efficiency
- Harvia Virta 10.5kW Sauna Heater
- Installation and Operation Manual
- 2-Year Warranty (Consumer Use)
Required for Operation (Sold Separately):

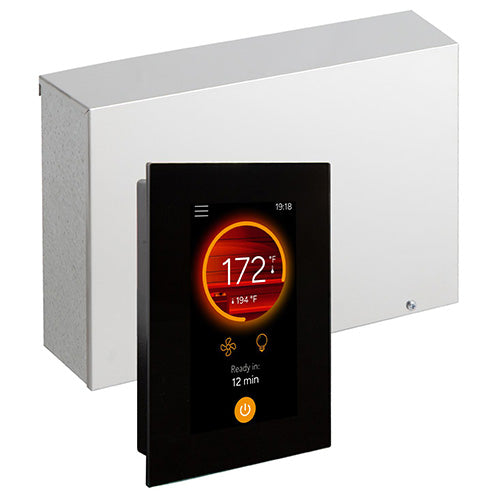

- Harvia Xenio Digital Control Kit (CX45-U1-U3) – Provides WiFi capability for remote control via the MyHarvia app
-
Sauna Stones (~150 lbs required)
- 4 Boxes of Split-Face Olivine Diabase Stones (4-6")
Optional Add-On:
- Safety Railing (HL3M) – Protects against accidental contact with the hot surface
Model: Harvia Virta 10.5kW
Sauna Size Capacity: 177 - 635 cu. ft.
Power Output: 10.5 kW
Voltage/Phase: 240V/1PH (HL11U1) or 208V/3PH (HL11U3)
Amperage: 43.75A at 240V/1PH; 29.2A at 208V/3PH
Wire Size: 6 AWG at 240V/1PH; 8 AWG at 208V/3PH (single group)
Heater Weight: 55 lbs
Weight with Stones: 187.7 lbs
Dimensions (W x D x H): 16" x 16" x 33"
Sauna Room Ventilation and Guard-Fence Clearances
| Requirement | Dimension |
|---|---|
| Air inlet (lower vent) — height above floor, close to the heater | 4" (100 mm) |
| Air outlet (upper vent) — minimum below ceiling, on the opposite wall | 6" (150 mm) |
| Air outlet — lowest permitted position above floor | 24" (600 mm) |
| Air changes | 5 per hour |
| Heater to guard fence — minimum, all sides | 2" (50 mm) |
| Top of guard fence below top of heater — minimum | 1" (25 mm) |
Both vents must be adjustable. The guard fence is required for safety, is built from softwood to match the sauna interior, and is fastened to the wall — its top edge must stay below the heater's rock line. Clearances from the heater to the wall, bench and ceiling are given separately in the Installation Details table below. Ventilation must also satisfy the local code authority.
Installation Details — 10.5 kW
| Specification | HL(S)11U1 / 11U3 |
|---|---|
| Output | 10.5 kW |
| Dimensions (W × D × H) | 16 / 16 / 33" (415 / 410 / 840 mm) |
| Weight | 55.1 lb (25 kg) |
| Maximum stone load | 154 lb (70 kg) |
| Sauna room volume | 177–635 cu ft |
| Sauna floor area | 28–102 sq ft |
| Minimum ceiling height | 75" (1900 mm) |
| Heater to wall / bench (A) | 2" (50 mm) |
| Heater to ceiling (B) | 42" (1060 mm) |
| Floor clearance under heater | 2.8" (70 mm) |
| Temperature sensor below ceiling | 4" (100 mm) |
Confirm against the Installation and Operation Manual linked below before wiring or building.
