Harvia Spirit 6kW Electric Sauna Heater | SP60E
A 6kW Harvia Spirit electric heater with a high stone capacity and curved design — steady, enveloping heat with a distinctly Finnish feel.
- Heats to 194°F in 20–30 min: ready when you are.
- Stainless steel housing with serviceable elements built to last.
- Control temp and schedules remotely via the MyHarvia Wi-Fi app.
See What Topture Customers Are Saying…
“This has completely transformed my workspace. The natural light is a game changer!”
“Built it in a weekend with my brother. Glass front is the move — feels like a real room, not a closet.”
“I love the design and how easy it was to set up. Highly recommend for any home owner.”
- Description
- Technical Specifications
- Installation Video
- What's Included?
- Documents
- Warranty

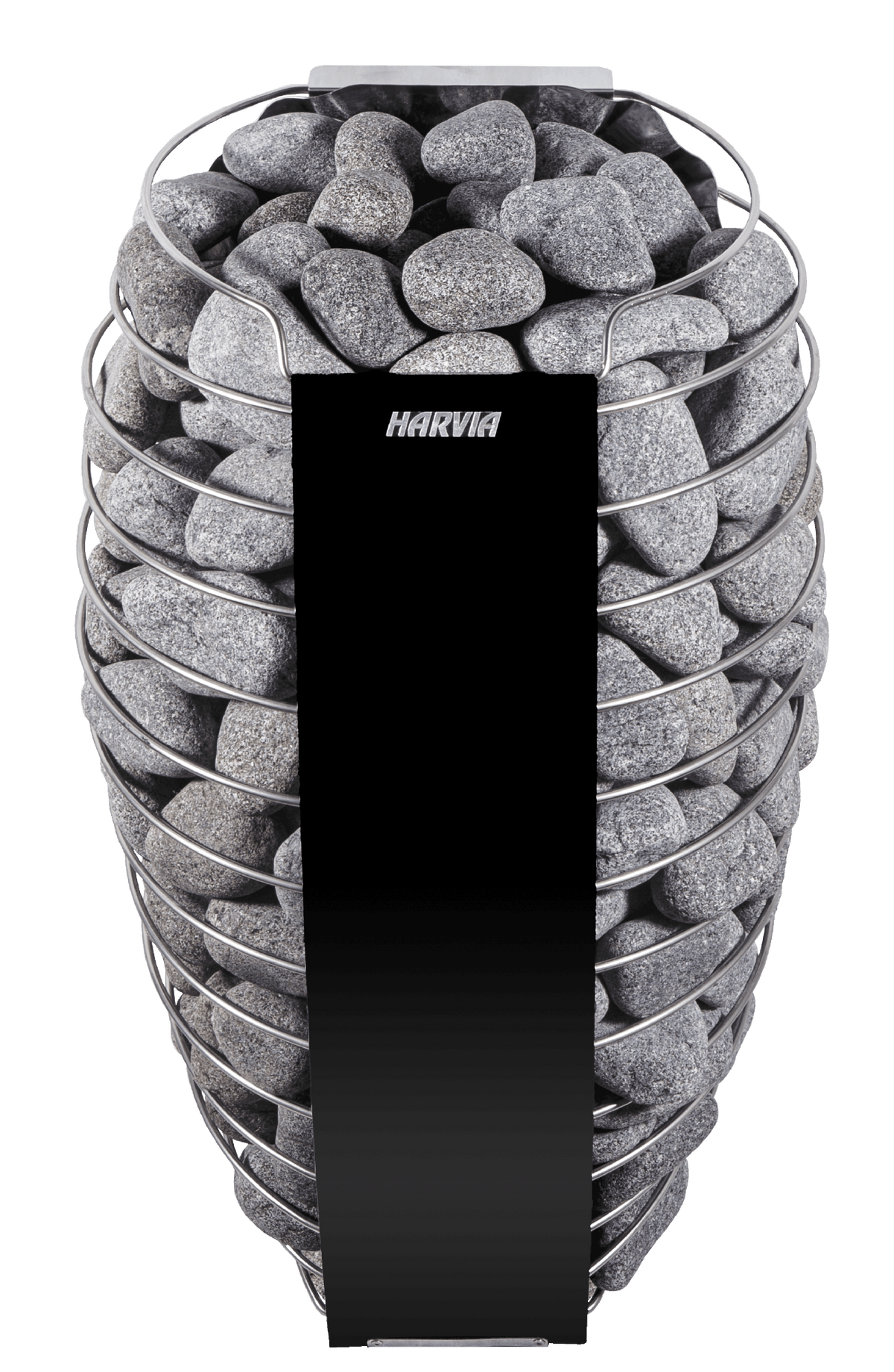

Harvia Spirit SP60E 6kW Sauna Heater 240V/1PH– Elegant & Efficient Heating

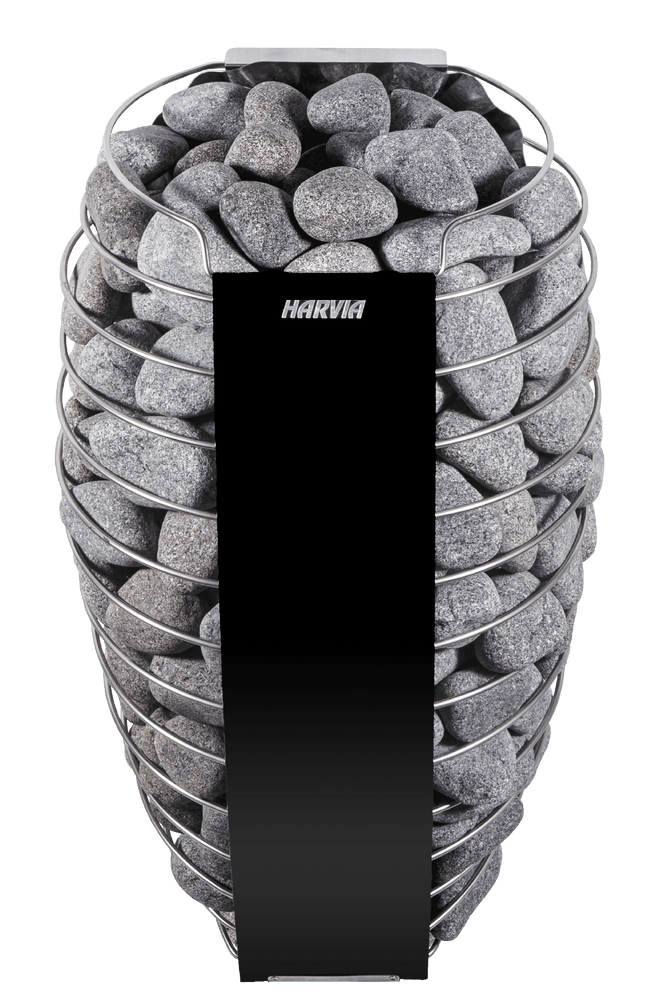

The Harvia Spirit SP60E is a premium 6kW electric sauna heater designed to deliver a superior sauna experience with both style and performance. Its elegantly curved shape, inspired by nature, complements the rounded sauna stones, creating a gentle, consistent heat for deep relaxation. The high stone capacity ensures steady warmth, while the stainless steel construction enhances durability and longevity.
Smart & Safe Operation
Equipped with dual safety sensors, the Spirit heater continuously monitors both the heater and the sauna space to prevent overheating. For added security, it features an automatic shutdown function that prevents operation if objects are placed on top. The heater is compatible with the Harvia Xenio Digital Control Kit, including an optional Wi-Fi upgrade for remote operation via the MyHarvia app.
Key Features:
- Ideal for sauna sizes: 177-294 cu. ft.
- Rapid heat-up time: 20-30 minutes
- Temperature range: 104°F - 194°F

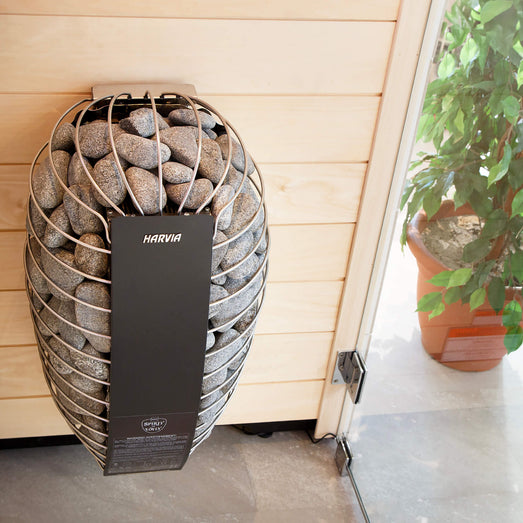

- Wall-mounted design for space efficiency

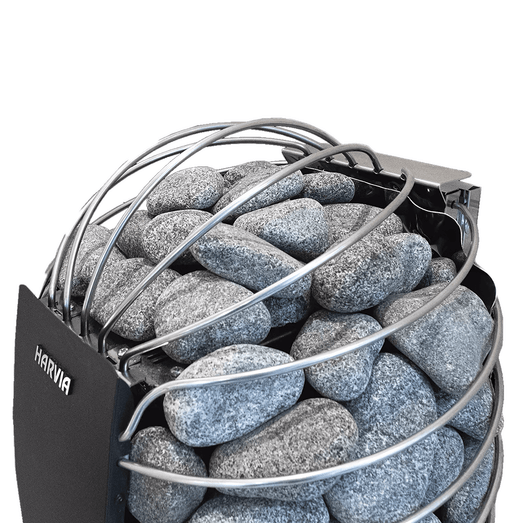

- High stone capacity for stable, enveloping heat
- Pour water on stones for authentic sauna steam

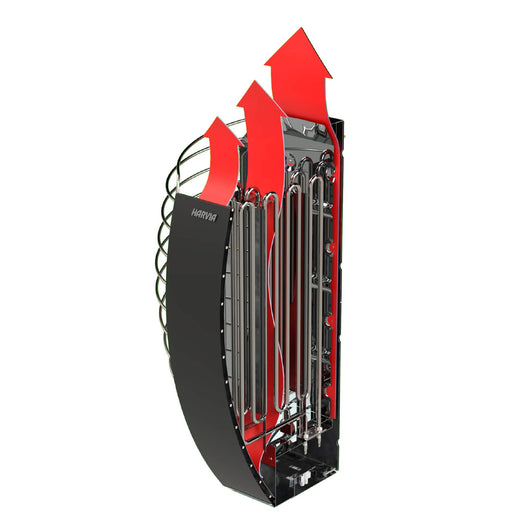

- Industrial-grade, serviceable heating elements
- Built-in separator/protector for extended heating element lifespan
- Durable stainless steel housing
- Designed, engineered, and made in Finland
- Meets all U.S. safety and performance standards
| Model | SP60E |
|---|---|
| Kilowatt Rating (kW) | 6kW |
| Primary Fuel | Electric |
| Minimum Sauna Size | 177 cu. ft. |
| Maximum Sauna Size | 294 cu. ft. |
| Voltage | 240V |
| Phase | 1 |
| Width | 15" |
| Depth | 13.1" |
| Height | 29.5" |
| Shipping Weight with Sauna Stones | 160.8 lbs (72.9 kg) |
Safety & Installation
- Integrated safety functions prevent unauthorized operation
- Requires a minimum of 110 lbs (4 boxes) of stones (R-991 recommended)
- Additional stones recommended for optimal selection and fit (extra freight charges may apply)
- Compatible with Harvia Xenio Control System (sold separately)
Dimensions
| Dimension | Harvia Spirit SP60E (HSPE60U1M) |
|---|---|
| Width | 15" (385 mm) |
| Depth | 13.1" (334 mm) |
| Height | 29.5" (750 mm) |
| Weight, heater only (no stones) | 28.8 lb (13 kg) |
Every Harvia Spirit shares one cabinet, so these figures do not change with the heater's output. The drawing below shows which face each dimension is measured across.
Technical Data
| Specification | Harvia Spirit SP60E (HSPE60U1M) |
|---|---|
| Maximum power output | 6 kW |
| Operating voltage | 240 VAC |
| Frequency | 50/60 Hz |
| Total amperage — one supply circuit | 25.0 A |
| Supply wire size — one supply circuit | 10 AWG |
| Total amperage — two separate supply circuits | 16.7 A |
| Supply wire size — two separate supply circuits | 12 AWG |
| Connection cable type | Copper supply wire, temperature rating min. 194 °F (90 °C) |
| Sauna stones | Rounded stones, Ø 2–4" (5–10 cm), approx. 110 lb (50 kg) |
| Storage temperature | 32 – 122 °F (0 – 50 °C) |
| Height | 29.5" (750 mm) |
| Width | 15" (385 mm) |
| Depth | 13.1" (334 mm) |
| Weight, heater only (no stones) | 28.8 lb (13 kg) |
| Sauna room volume | 177 – 294 cu ft (5 – 8 m³) |
| Sauna room floor area | 28 – 47 sq ft |
| Sauna room height, minimum | 75" (1900 mm) |

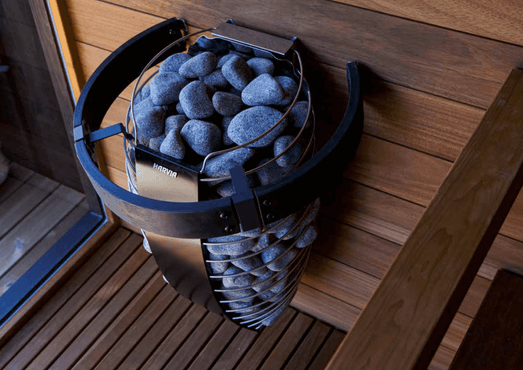

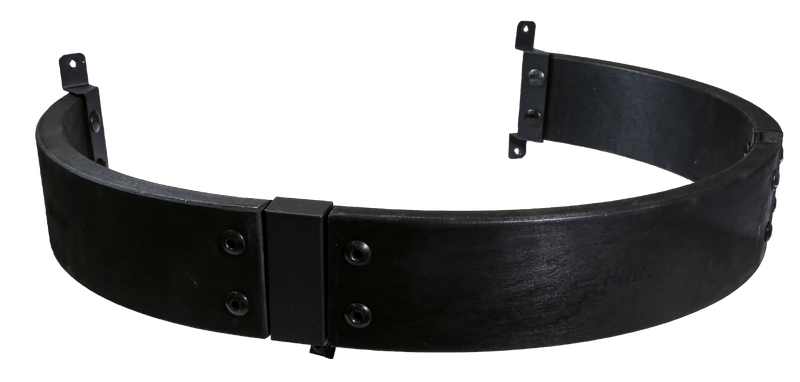

| Approved accessories | Embedding flange HSP1; safety railing HSP3M |
| Suitable Harvia control units | Xenio CX30-U1-U3, CX45-U1-U3, CX30-U1-U3-XW, CX45-U1-U3-XW (sold separately) |
| Control unit heater grade | B1 |
Figures are for the SP60E (HSPE60U1M) only. The two-circuit amperage and wire size apply when the heater is wired across two separate supply circuits — see the circuit diagram in the Installation and Operation Manual. A licensed electrician must size the breaker and confirm every value against that manual before wiring.
Safety Distances
| Minimum clearance | Harvia Spirit SP60E (HSPE60U1M) |
|---|---|
| Heater to side wall | 3.2" (80 mm) |
| Heater to combustible material, left and right | 3.2" (80 mm) |
| Heater front to combustible material | 3.2" (80 mm) |
| Top of heater to ceiling | 35.5" (900 mm) |
| Floor to underside of heater (mounting height) | 4" – 12" (100 – 300 mm) |
| Sauna room height | 75" (1900 mm) |
| Clear wall area required — width | 21.5" (545 mm) |
| Clear wall area required — depth from the wall face | 16.3" (414 mm) |
Harvia states the same clearances at every Spirit output, so these do not change with the heater's kW rating. The last two rows are the total protected zone — cabinet plus the 3.2" clearance on each free side (385 + 80 + 80 = 545 mm wide, 334 + 80 = 414 mm deep). Neglecting these values causes a risk of fire; confirm against the Installation and Operation Manual linked below before building.
- 6kW Harvia Spirit Sauna Heater
- Safety device on top of the heater
- Wall-mounting bracket
- Installation & operation manual
- 2-Year Warranty (Consumer Use)
