Harvia

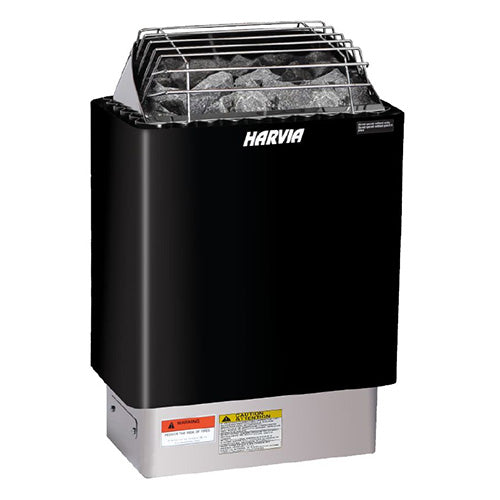

Harvia KIP Series Black Electric Sauna Heater, Requires Xenio Control (6kW/ 8kW)

The Harvia KIP in graphite black, 6 or 8 kW for 170–425 cu ft rooms; requires a separate Harvia Xenio CX170-U1-15-XW control

$1,092

$1,299

Save $207

In stock

Estimated delivery

7–12 days after you order

Runs from a Harvia Xenio CX170-U1-15-XW control with MyHarvia Wi-Fi (sold separately)
44 lb of 2–4" stones behind a protective stone guard
Graphite-black casing, 6 or 8 kW on 240 V

The Sauna Mastery Protocol Digital Guide

Full-Value Freight Protection

Perfect for sauna rooms from 170 - 300 ft³

Select Stones

Required for Operation

Harvia Split-Face Olivine Diabase Sauna Heater Stones 2-4" / 44lbs | AC3000 | 1 Box
$59

Select Sauna Heater Control

Required for Operation

Harvia Xenio CX170 Sauna Control | CX170-U1-15-XW | 240V/1PH
$1,035

Select Add-Ons

KOLO 1 Gallon Sauna Bucket+Ladle Aluminum & Bamboo | Black
$149

Quantity

Usually ships by UPS or FedEx; a signature is generally not required.

Secure checkout
30-day return window*
2-year manufacturer warranty

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

Description

What is the graphite-black Harvia KIP with separate control?

The graphite-black Harvia KIP with separate control (KIP60W and KIP80W) is a wall-mounted electric sauna heater with a graphite-black casing and no controls of its own: it runs from a Harvia Xenio CX170-U1-15-XW control, sold separately. It comes in 6 and 8 kW for sauna rooms of 170 to 425 cu ft on 240 V single-phase power, and holds 44 lb (20 kg) of 2–4" stones behind a protective stone guard.

Which control does the black Harvia KIP need?

The graphite-black Harvia KIP with separate control needs a Harvia Xenio CX170 control, the CX170-U1-15-XW for 240 V single-phase. Harvia's KIP manual says the control is purchased separately and brings the power unit and temperature sensor with it. The CX170-U1-15-XW has Wi-Fi for Harvia's MyHarvia app; the Xenio can be set from 104 to 194°F (40–90°C), runs the heater for up to 1 hour per start and can delay a start by up to 12 hours. An older plain CX170-U1 is limited to 7 kW on one supply circuit, too little for the 8 kW KIP; the CX170-U1-15-XW handles up to 10.5 kW that way. Topture offers the black KIP only with the Xenio CX170; Harvia's Fenix controls are not offered for it.

Black Harvia KIP key features

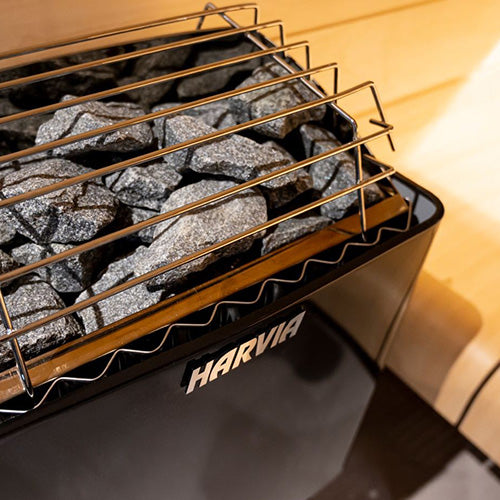

Wall-mounted on two lag screws, with a protective stone guard
Graphite-black casing with dual-wall construction (Harvia)
44 lb (20 kg) of 2–4" split-face stones: one box of Harvia AC3000
6 or 8 kW on 240 V single-phase power
Runs from a Harvia Xenio CX170-U1-15-XW control with Wi-Fi, sold separately
c-UL-us listed; complies with UL 875

The same heater in stainless steel is the Harvia KIP with separate control, which also comes in 4.5 kW and for 208 V three-phase power. With thermostat and timer dials on the heater instead of a wall control, it is the graphite-black KIP with built-in controls. The Harvia KIP collection has every KIP heater and package.

Specifications

Which black Harvia KIP size fits my sauna?

Choose the graphite-black Harvia KIP with separate control by the volume of your sauna room. Harvia's manual adds 1.2 m³ for every square meter of uninsulated brick, glass block, glass, concrete or tile wall, about 3.9 cu ft per sq ft, and a glass door counts: its example is a 10 m³ room with a glass door, which needs the output of a 12 m³ room. Multiply the volume of a solid-log sauna by 1.5.

Graphite-black Harvia KIP with separate control, by output (Harvia KIP manual Y05-1593 B, §5.3; net weights from Harvia's product data)
	6 kW	8 kW
Harvia model	KIP60W	KIP80W
Sauna room volume	170–300 cu ft (4.8–8.5 m³)	250–425 cu ft (7.1–12 m³)
Sauna floor area	28–40 sq ft	40–65 sq ft
Current, 240 V single-phase	25.0 A	33.3 A
Cable, 240 V (supply + control conductor)	10/2 + 14/2 AWG	8/2 + 14/2 AWG
Net weight	29.7 lb	30.4 lb
Part number	JH60WU1MUL	JH80WU1MIUL

Black Harvia KIP dimensions, stones and ratings

Graphite-black Harvia KIP with separate control, both outputs
Dimensions	17" W × 11" D × 25" H (Harvia installation drawing)
Stones	44 lb (20 kg) of 2–4" (5–10 cm) split-face stones: one box of Harvia AC3000
Power supply	240 V single-phase (KIP-60-W1, KIP-80-W1), 50/60 Hz
Control	Harvia Xenio CX170-U1-15-XW, sold separately; required
Temperature setting	Set on the Xenio control, 104–194°F (40–90°C)
Heat-up time	30–60 minutes, which Harvia counts inside the control's 1-hour heating time
Mounting	Wall-mounted; not in a wall recess
Materials	Graphite-black casing with a protective stone guard, dual-wall construction (Harvia)
Certification	c-UL-us listed; complies with UL 875
Warranty	2-year manufacturer warranty; Harvia adds a third year when the heater is registered on harvia.com within 30 days of purchase; stones are not covered

Installation

How is the graphite-black Harvia KIP with separate control installed?

The graphite-black Harvia KIP with separate control mounts on the sauna wall on two supplied lag screws, with its bottom 7–12" (178–305 mm) above the floor. Harvia does not allow it in a wall recess, and a sauna room takes only one electric heater. The Xenio control's power unit goes on a wall outside the sauna room, and its temperature sensor on the wall above the heater. Harvia's KIP manual says only a qualified electrician may do the electrical work. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code. Harvia's installation manual, under Documents, gives the exact screw, sensor and wiring positions.

Graphite-black Harvia KIP with separate control safety distances

Keep at least these distances between the graphite-black Harvia KIP with separate control and walls, benches and anything that can burn.

Graphite-black Harvia KIP with separate control minimum distances by output (Harvia KIP manual Y05-1593 B, §5.3 and §6.4)
	6 kW	8 kW
Heater side to side wall	4" (100 mm)	5" (125 mm)
Heater to upper bench (horizontal)	4" (100 mm)	5" (125 mm)

Graphite-black Harvia KIP with separate control, every output (Harvia KIP manual Y05-1593 B, §5.1 and §6.4)
Non-metallic guard rail, front and sides	Required, at least 2" (50 mm) from the heater: the caution label on the heater says one shall be installed
Lower bench beside the heater	At least 2" (50 mm) from the heater front, if the bench top is at least 1" (25 mm) below the top of the heater
Wall to front of the lower bench	At least 13" (329 mm)
Top of the heater to the ceiling	At least 43.3" (1,100 mm)
Bottom of the heater to the floor	7–12" (178–305 mm)
Sauna room height	At least 75" (USA) or 78" (Canada); ceiling no higher than 90"

Does the sauna room need ventilation?

Yes. Harvia's KIP manual calls for six air changes an hour, through a supply-air vent and a mandatory exhaust vent near the floor; the manual gives their positions and sizes.

What's Included

What's in the box with the black Harvia KIP?

Graphite-black Harvia KIP electric sauna heater with separate control (6 or 8 kW, 240 V single-phase, by the option you choose)
Mounting screws
Two signs for the sauna: "Reduce the risk of fire" and "Reduce the risk of overheating"
Installation and user manual

What you need separately

A Harvia Xenio CX170 control (required): the CX170-U1-15-XW for 240 V. It includes the control panel, power unit, data cable and temperature sensor
One 44 lb box of Harvia AC3000 2–4" split-face stones
The circuit and wiring from your panel to the Xenio power unit and on to the heater, installed by a licensed electrician
A non-metallic guard rail around the heater, at least 2" from it

Documents

Harvia KIP with Separate Control Installation and User Manual (US)

Bathing Brands Harvia Stone Requirements Chart

Bathing Brands Harvia Element Requirements Chart

Warranty

Harvia Warranty

Read the full LIMITED WARRANTY TERMS AND CONDITIONS

Step 1

Size it right

Every heater page lists the exact room size it's rated for, so you can match it to your sauna before you order.

Step 2

Get it installed

We provide the install spec sheet your electrician needs and our team is available if questions come up.

Step 3

Real löyly

With the heater, stones, and room properly matched, water on the rocks delivers the steam wave and rolling heat of a true Finnish session.

The Topture Experience

More than just a heater

Your purchase includes thoughtful extras to help you get started and enjoy your sauna with confidence.

BONUS 1

The Sauna Mastery Protocol

The session times, temperatures, and weekly rhythm that turn a sauna into a habit you keep. Covers heat-up protocols and what to expect across your first 30 sessions. Sent to your inbox after purchase.

INCLUDED

BONUS 2

Full-Value Freight Protection

Large orders ship fully insured. If freight arrives damaged, Topture helps coordinate the claim and replacement process with the carrier and manufacturer. Proper inspection and damage documentation at delivery are required. Most in-stock orders ship within 2–7 business days.

INCLUDED

Choose your options now

We thought about buying a sauna for years and finally did. We absolutely love it, especially in the winter. It’s incredibly easy to assemble with two people the whole family uses it.

Verified buyer

Ordered this sauna fall 2024 and we love it. No better feeling during a Minnesota winter. Lastly, I have to mention the customer service for this purchase has been like no other. Any questions or requests I had were addressed immediately by Topture. I got more than I expected from them and have already recommended them to several people looking for saunas. SO if you're thinking about it, JUST DO IT already..

Verified buyer

Thanks for the great service - greatly appreciated.

Verified buyer

Choosing the right sauna

Compare models from multiple sauna manufacturers based on your space, climate, capacity, preferences, and budget.

Will they help you compare alternatives, or only answer questions about the product you've already selected?

Heater & electrical fit

Get help matching the heater to the sauna volume, glass area, controls, and electrical requirements.Try our heater calculator

Ask who will check that the heater and controls are right for your installation before you order.

Authorized products

Products are sourced through authorized channels and include the applicable manufacturer warranty.View independent listings

Verify that the retailer is authorized for the brand and that your manufacturer warranty will be valid.

Freight delivery

We help coordinate heavy-freight delivery and provide guidance on receiving and inspecting your shipment.

Ask how the order ships, how it will be unloaded, and what happens if freight arrives damaged.

Installation information

We help provide the manuals, specifications, clearances, and electrical information your installer may need.

Find out what documentation and project support will be available after checkout.

After the sale

Questions after delivery? We help with troubleshooting, documentation, warranty coordination, and manufacturer support.Read customer reviews

Ask who you will actually contact if something doesn't work after the order arrives.

463 Customer Reviews

Product and store reviews from Topture customers, collected by Judge.me.

Lifetime Expert Support

Same team before and after the sale, from sizing to warranty support.

Authorized Harvia Retailer

Sold by Topture, with the applicable manufacturer warranty.

Full-Value Freight Protection

Freight damage? We help coordinate the claim and replacement process.

STILL UNSURE?

Frequently Asked Questions

What comes with the graphite-black Harvia KIP with separate control, and what else does it need to run?

The graphite-black Harvia KIP with separate control ships as the heater with its mounting screws, two warning signs for the sauna and Harvia's installation manual. It does not run on its own: Harvia's KIP manual says the control unit is purchased separately and brings the power unit and temperature sensor with it, and for this 240 V heater that is the Harvia Xenio CX170-U1-15-XW. The heater also needs 44 lb of 2–4 in split-face stones (one box of Harvia AC3000), a circuit installed by a licensed electrician and a non-metallic guard rail. The control and stones are sold separately.

Which control does the graphite-black Harvia KIP with separate control need?

The graphite-black Harvia KIP with separate control needs a Harvia Xenio CX170-U1-15-XW, the 240 V single-phase Xenio with Wi-Fi for Harvia's MyHarvia app. The Xenio can be set from 104 to 194°F (40–90°C), runs the heater for up to 1 hour per start and can delay a start by up to 12 hours. An older plain CX170-U1 is limited to 7 kW on one supply circuit, too little for the 8 kW KIP. Topture offers the black KIP only with the Xenio CX170, not with Harvia's Fenix controls.

What size graphite-black Harvia KIP with separate control does my sauna need?

Choose the graphite-black Harvia KIP with separate control by the volume of the sauna room: Harvia's KIP manual gives 170–300 cu ft for the 6 kW and 250–425 cu ft for the 8 kW. Harvia adds 1.2 m³ for every square meter of uninsulated brick, glass, concrete or tile wall, about 3.9 cu ft per sq ft, and counts a glass door; a solid-log sauna's volume is multiplied by 1.5. The room must be at least 75 in tall in the US (78 in in Canada) and no more than 90 in. Rooms under 170 cu ft suit the 4.5 kW, which Topture sells in stainless steel.

What electrical supply does the graphite-black Harvia KIP with separate control need?

The graphite-black Harvia KIP with separate control runs on 240 V single-phase power. Harvia's KIP manual lists 25.0 amps for the 6 kW and 33.3 amps for the 8 kW at 240 V. The heater is wired through the Xenio control's power unit, and Harvia's manual says only a qualified electrician may do the electrical work. For 208 V three-phase power, Topture sells the stainless KIP with separate control. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code.

How is the graphite-black Harvia KIP with separate control installed?

The graphite-black Harvia KIP with separate control mounts on the sauna wall on two supplied lag screws, with its bottom 7–12 in above the floor; Harvia does not allow it in a wall recess, and only one electric heater may go in a sauna room. Keep 4 or 5 in, by output, to the side wall and the upper bench and 43.3 in to the ceiling, and install the non-metallic guard rail Harvia requires, at least 2 in from the heater. The Xenio's power unit goes outside the sauna room and its temperature sensor above the heater; Harvia's manual gives the exact positions.

How long does the graphite-black Harvia KIP with separate control take to heat up?

The graphite-black Harvia KIP with separate control takes 30–60 minutes to heat the sauna, according to Harvia's KIP manual, and that time counts inside the Xenio control's 1-hour heating time, so restart the heating from the panel when you go in if you need longer. Harvia's troubleshooting says slow heating calls for checking that the elements glow, that the heater is powerful enough for the room, and that the ventilation is right. Uninsulated brick, glass or tile walls raise the output a room needs. Before the first sauna, run the heater for 5 minutes with the door open to burn off the coating on the elements.

How do you load and maintain the stones in the graphite-black Harvia KIP?

The graphite-black Harvia KIP with separate control takes 44 lb (20 kg) of 2–4 in split-face stones, which one box of Harvia AC3000 covers; Harvia names peridotite, olivine diabase, olivine or vulcanite. Harvia's manual says to put the stones in by hand, one by one, so that no heating element shows between or below them, because bare elements are a fire hazard. Check the stones at least once a year, remove debris and broken stones, and replace them all every two years, or sooner with heavy use. Throw only clean water onto the stones; chlorinated water and sea water are prohibited.

What problems do graphite-black Harvia KIP owners run into, and how are they avoided?

Most problems Harvia's KIP manual covers for the graphite-black Harvia KIP with separate control come down to settings, installation and stones. If it will not heat, check the breaker, the time and temperature set on the Xenio, and the overheat protector, which resets with a button in the heater's electric box once the heater is cool and the breaker is off. Slow heating calls for checking that the elements glow and that the ventilation is right. Panels that darken quickly mean the safety distances are too short or elements show through the stones. Odor during the first uses is normal, and occasional bangs are stones cracking in the heat.

Who makes the graphite-black Harvia KIP with separate control, and what is it made of?

The graphite-black Harvia KIP with separate control is made by Harvia, the Finnish sauna manufacturer. It has a graphite-black casing with a protective stone guard and dual-wall construction, and no dials of its own. The KIP is c-UL-us listed and complies with UL 875. On Harvia's installation drawing it measures 17 in wide, 11 in deep and 25 in high, and Harvia gives net weights of 29.7 lb for the 6 kW and 30.4 lb for the 8 kW.

What warranty does the graphite-black Harvia KIP with separate control have?

Harvia's manufacturer warranty covers the graphite-black Harvia KIP with separate control for 2 years, and Harvia adds a third year when the heater is registered on harvia.com within 30 days of purchase. The Xenio control has its own 2-year manufacturer warranty, with no registration year. Sauna stones are not covered, and Harvia's terms require the heater to be installed by a qualified electrician, with proof of the installation. Harvia US Inc. is the warrantor in North America; Topture is an authorized Harvia retailer and assists with troubleshooting and warranty coordination.

How does the graphite-black Harvia KIP with separate control compare with the stainless KIP?

The graphite-black Harvia KIP with separate control is the same heater as the stainless KIP with separate control in a black casing: the same Xenio CX170 control, 44 lb stone load, room ranges, amps and safety distances. The black version comes in 6 and 8 kW for 240 V single-phase; the stainless one also comes in 4.5 kW and in 208 V three-phase models, and is sold in packages with the Xenio control and stones. Both are c-UL-us listed to UL 875 and carry the same Harvia warranty.

Where can you buy the graphite-black Harvia KIP with separate control from an authorized dealer?

Topture is an authorized Harvia retailer and sells the graphite-black Harvia KIP with separate control in 6 and 8 kW for 240 V, with the Xenio CX170-U1-15-XW control and AC3000 stones as options, as well as the stainless KIP heaters and KIP packages. Topture adds Lifetime Expert Support, help with troubleshooting and warranty coordination, free shipping on orders over $200 within the continental US, financing through Shop Pay Installments at checkout, and a 30-day return window.

What does a graphite-black Harvia KIP with separate control cost in total, delivered?

The delivered cost of a graphite-black Harvia KIP with separate control from Topture is the heater price plus the parts it needs to run: a Harvia Xenio CX170-U1-15-XW control and one 44 lb box of AC3000 stones. Topture has free shipping on orders over $200 within the continental US, so a KIP order ships free there. Budget separately for a licensed electrician and a non-metallic guard rail. Compare delivered totals, because some listings price the heater without its control. Financing is available through Shop Pay Installments at checkout.
