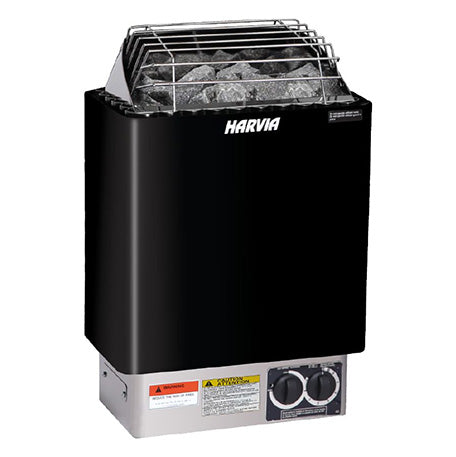

Harvia KIP Series Black Electric Sauna Heater w/ Built-In Controls (6kW/ 8kW)
The KIP in graphite black — built-in timer and thermostat, so no separate wall control is needed.
- Built-in time and temperature controls — no separate control unit to buy or wire
- Direct rock-to-element contact for fast heat-up and generous steam
- Industrial-grade, serviceable heating elements
See What People Are Saying…
“This has completely transformed my workspace. The natural light is a game changer!”
“Built it in a weekend with my brother. Glass front is the move — feels like a real room, not a closet.”
“I love the design and how easy it was to set up. Highly recommend for any home owner.”
- Description
- Key Features
- What's Included
- Documents
- Warranty
The KIP in graphite black — built-in timer and thermostat, so no separate wall control is needed.
The Harvia KIP with built-in controls carries its timer and thermostat on the heater itself, so there is no separate wall control to wire or find space for. A dual-wall construction keeps the exterior cool to the touch, and the stones sit directly on the elements for fast, generous steam. This is the graphite black finish of the heater we have sold in stainless for years.
- Built-in time and temperature controls — no separate control unit to buy or wire
- Dual wall keeps the exterior cool to the touch
- Direct rock-to-element contact for fast heat-up and generous steam
- Industrial-grade, serviceable heating elements
- Wall-mounted design in a graphite black finish
Specifications
| Specification | KIP60B (6 kW) | KIP80B (8 kW) |
|---|---|---|
| Model | KIP60B | KIP80B |
| Output | 6 kW | 8 kW |
| Sauna room volume | 170–300 cu ft | 250–425 cu ft |
| Sauna floor area | 28–40 sq ft | 40–65 sq ft |
| Voltage / phase | 240V / 1PH | 240V / 1PH |
| Current draw | 25 A | 33.3 A |
| Line fuse | 30 A | 40 A |
| Minimum wire size | 10/2 AWG | 8/2 AWG |
| Controls | Built in at the base — 60-minute timer, thermostat, 8-hour delayed start | Built in at the base — 60-minute timer, thermostat, 8-hour delayed start |
| Stone capacity | 44 lb (20 kg) | 44 lb (20 kg) |
| Stone size | 2"–4" (5–10 cm) | 2"–4" (5–10 cm) |
| Minimum clearance to adjacent surfaces | 4" (100 mm) | 5" (125 mm) |
| Dimensions (W × D × H) | 16.1" × 11" × 23.6" | 16.1" × 11" × 23.6" |
| Net weight | 30.8 lb (14 kg) | 31.5 lb (14.3 kg) |
| Shipping weight with stones | 74.8 lb (33.9 kg) | 75.5 lb (34.2 kg) |
| Finish | Graphite Black | Graphite Black |
| Installation | Wall mounted | Wall mounted |
| Certifications | ETL, CE, EAC | ETL, CE, EAC |
Stones
Sold separately. This heater requires 44 lb (20 kg) of 5-10 cm split-face stones — 1 box of AC3000. Fill the stone compartment loosely but completely; a sparsely filled compartment exposes the elements and is a fire hazard.
- Sauna heater with built-in control panel
- Installation and Operation Manual
Safety Distances
| Clearance | Minimum |
|---|---|
| Heater to side wall | 2" (50 mm) |
| Heater to bench or guard fence — 6 kW | 4" (100 mm) |
| Heater to bench or guard fence — 8 kW | 5" (125 mm) |
| Wall to guard fence | 2" (50 mm) |
| Floor to underside of heater | 7" (178 mm) |
| Gap between guard fence and bench | 1" (25 mm) |
| Minimum sauna ceiling height — USA | 75" (1900 mm) |
| Minimum sauna ceiling height — Canada | 78" (1980 mm) |
| Ventilation inlet and outlet, each | 20 sq in (130 cm²) |
From Table 1 and Figures 3, 3a and 4 of the Harvia KIP Installation and Operation Manual. Always confirm against the manual before building.
Warranty
Harvia warrants this heater for 2 years in family use and 2 years for commercial or other non-consumer use (heating elements 6 months). Registering an electric heater with Harvia adds a third year to the family-use term. Sauna stones, and other parts subject to wear, are excluded. Full terms are in Harvia's warranty document at harvia.com/en/warranty/.
Delivery
This heater ships by parcel carrier. Sauna stones are heavy and ship separately unless they are ordered together with the heater, which is normally cheaper — add them in the picker above.
