Harvia Cilindro Half Series Electric Sauna Heater w/ Built-in Controls (6kW/ 8kW/ 9kW)

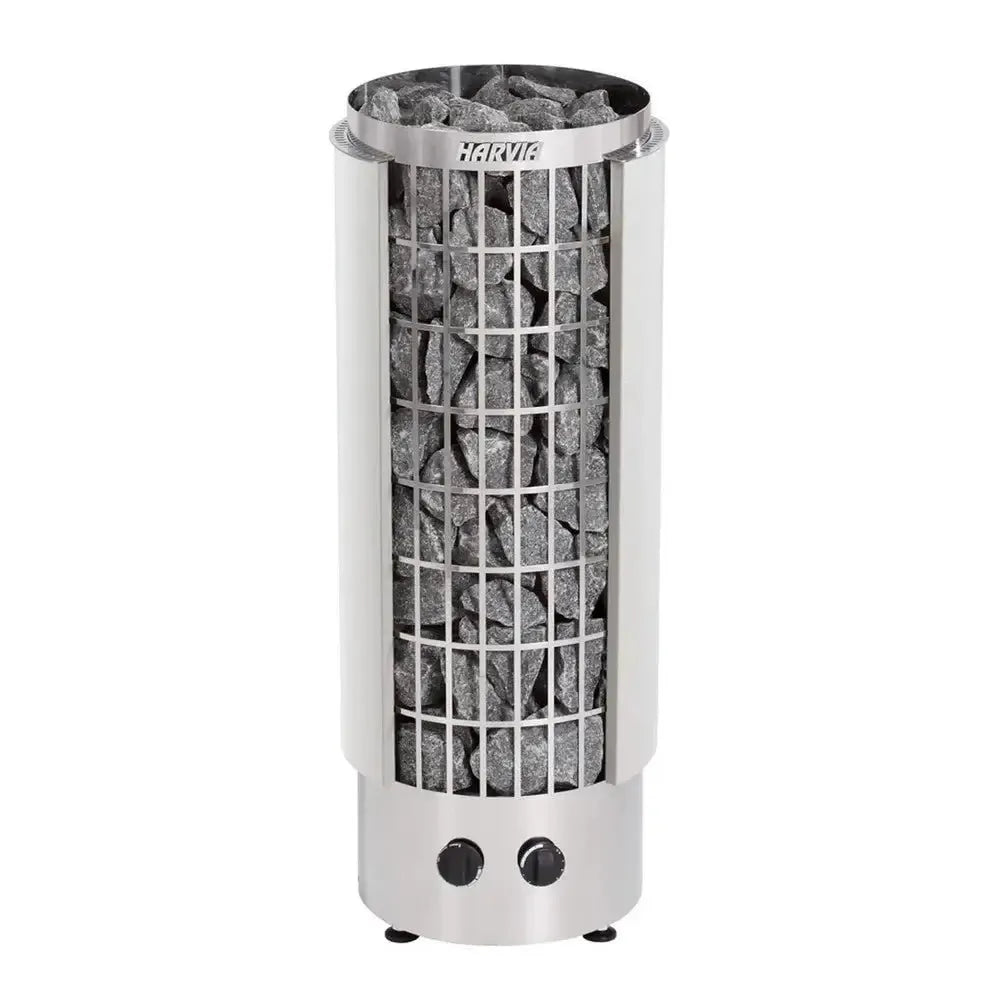

Floor-standing Harvia Cilindro Half electric sauna heater with timer and thermostat knobs on the heater, 6–9 kW for 141–494 cu ft rooms; 200 lb stone load

$1,625

$1,899

Save $274

Timer and thermostat on the heater: no separate control to buy
Stainless-steel pillar with a 200 lb stone load
Soft or sharp steam, depending on where the water lands

The Sauna Mastery Protocol Digital Guide

$49 FREE

Full-Value Freight Protection

$299 FREE

Perfect for sauna rooms from 141 - 494 ft³

Select Stones

Required for Operation

Harvia Split-Face Olivine Diabase Sauna Heater Stones 2-4" / 44lbs | AC3000 | 5 Boxes
$295

Select Accessories

Harvia Safety Railing | HPC3
$274
Harvia Safety Railing w/ LED-Lighting | HPCU3L
$574
KOLO 1 Gallon Sauna Bucket+Ladle Aluminum & Bamboo | Black
$149

Quantity

Secure checkout
30-day return window*
2-year manufacturer warranty

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

In stock — estimated delivery in 7–12 days

Usually ships by UPS or FedEx; a signature is generally not required.

Description

What is the Harvia Cilindro Half with built-in controls?

The Harvia Cilindro Half with built-in controls (PC60, PC80 and PC90) is a floor-standing electric sauna heater with a timer knob and a thermostat knob on its lower front, so it needs no separate control. It is a stainless-steel pillar, partially open at the front, that holds its stones around the heating elements, comes in 6, 8 and 9 kW for sauna rooms of 141 to 494 cu ft on 240 V single-phase power, and holds a 200 lb stone load.

How do the built-in controls on the Harvia Cilindro Half work?

The Harvia Cilindro Half's timer knob switches the heater on for up to 1 hour, or, turned into its pre-setting section, delays the start by 0 to 8 hours, after which the heater runs for an hour. The thermostat knob holds the sauna at the temperature you choose; it is marked from min to max, and Harvia prints no temperature scale for it. There is no Wi-Fi and no app connection; for that, see the Harvia Cilindro Half with separate control.

Harvia Cilindro Half with built-in controls key features

6, 8 or 9 kW for sauna rooms of 141–494 cu ft, on 240 V single-phase power
Timer (1 hour, with a 0–8 hour delayed start) and thermostat knobs on the heater's lower front
Stainless-steel pillar, partially open at the front, with a steel grid around the stones and a top safety grid
200 lb stone load of 2–4" split-face stones: five boxes of Harvia AC3000
Soft or sharp steam, depending on where the water lands on the stones (Harvia)
Floor-standing on adjustable legs, fixed to the wall and floor
Made by Harvia in Muurame, Finland
ETL Listed; conforms to UL 875

The Harvia Cilindro Half with separate control is the same heater run from a separate Xenio or Fenix control, and it also comes in 10.5 kW; the Cilindro 9 kW package and Cilindro 10.5 kW package add the Xenio CX45 control and stones. The Harvia Cilindro collection has every Cilindro Half heater and package.

Specifications

Which Harvia Cilindro Half with built-in controls fits my sauna?

Choose the Harvia Cilindro Half by the volume of your sauna room. Harvia's Cilindro manual gives each output's range for a well-insulated room lined with wood panel. Brick, glass-block and plaster walls must be insulated, and a log sauna's volume is multiplied by 1.5. For glass, Harvia's newer heater manuals add 1.2 m³ for every square meter, about 3.9 cu ft per sq ft, and count a glass door.

Harvia Cilindro Half with built-in controls, by output (Harvia Cilindro Half built-in manual Y05-0770, Tables 2 and 3)
	6 kW	8 kW	9 kW
Harvia type code	PC60	PC80	PC90
Part number	HPCS6U1HBUL	HPCS8U1HBUL	HPCS9U1HBUL
Sauna room volume	141–294 cu ft (4–8 m³)	141–431 cu ft (4–12 m³)	141–494 cu ft (4–14 m³)
Sauna floor area	23–47 sq ft	23–69 sq ft	23–79 sq ft
Current, one supply circuit (240 V)	25 A	33.4 A	37.5 A
Supply wire, one circuit	AWG 12	AWG 8	AWG 8
Current per circuit, two circuits	16.7 A	22.3 A	25 A
Supply wire, two circuits	AWG 14	AWG 12	AWG 10

Harvia Cilindro Half with built-in controls: dimensions, stones and ratings

Harvia Cilindro Half with built-in controls, every output
Dimensions	14" W × 13" D × 40" H (360 × 340 × 1010 mm)
Net weight	37.5 lb (17 kg)
Stone load	200 lb (90 kg) of 2–4" (5–10 cm) angular split-face stones: five 44 lb boxes of Harvia AC3000
Sauna room height, minimum	75" (1,900 mm)
Power supply	240 V single-phase, 60 Hz, on one supply circuit or two
Controls	Built in: timer knob (1 hour on, 0–8 hour delayed start) and thermostat knob marked min to max; no Wi-Fi
Heat-up time	About half an hour for a properly insulated sauna; Harvia says to allow at least 30 minutes
Construction	Stainless-steel pillar, partially open at the front, with a steel grid and a top safety grid (Harvia)
Mounting	Floor-standing on adjustable legs, fixed to the wall and floor; side wall or corner
Certification	ETL Listed; conforms to UL 875
Made in	Finland (Harvia, Muurame)
Warranty	2-year manufacturer warranty; Harvia adds a third year when the heater is registered on harvia.com within 30 days of purchase; stones are not covered

Installation

How is the Harvia Cilindro Half with built-in controls installed?

The Harvia Cilindro Half with built-in controls stands on the floor on adjustable legs, beside a side wall or in a corner, and is fixed to the wall with the supplied wall-mounting device and two fixing kits; after the final hookup the electrician screws it to the floor with at least two screws or bolts. Its controls sit on the heater, so there is no power unit or wall panel to place. Harvia's manual says only a licensed electrician may connect it, permanently wired through seal-tight conduit, and a sauna room takes only one electric heater. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code. Harvia's installation manual, under Documents, gives the exact vent and wiring positions.

Harvia Cilindro Half safety distances

Keep at least these distances between the Harvia Cilindro Half and walls, benches and anything that can burn. Harvia's room guidance also keeps the sauna ceiling no higher than 7 ft 6 in (2,300 mm).

Harvia Cilindro Half, every output (Harvia Cilindro Half built-in manual Y05-0770, §3.2–3.3 and Figures 4 and 5)
Heater side to a side wall or bench side (A)	1.2" (30 mm)
Heater front to the heater fence or bench (B)	4" (100 mm)
Heater fence	Required by Harvia: softwood, fixed to the wall, at least 4" (100 mm) in front of the heater and at least 32" high, with its top at least 1" below the top of the heater; built on site, not in the box
Floor to the underside of the heater	At least 2.8" (70 mm)
Floor under and near the heater	Heat-resistant; Harvia advises dark grout and stone floor coverings there

Harvia Cilindro Half ceiling distance and room height (Harvia Cilindro Half built-in manual Y05-0770, Table 2 and Figure 5)
Top of the heater to the ceiling (C)	35" (890 mm)
Sauna room height, minimum	75" (1,900 mm)

Harvia Cilindro Half built-in manual, Figure 4: sauna ventilation and minimum distances from the side walls and the wooden heater fence

Harvia Cilindro Half built-in manual, Figure 5: minimum safety distances A, B and C and the floor clearance

Does the sauna room need ventilation?

Yes. Harvia's Cilindro manual calls for an adjustable supply vent near the floor close to the heater and an exhaust vent, on the opposite wall where possible, for about five air changes an hour; the manual gives their positions, and local code may ask for more.

What's Included

What's in the box with the Harvia Cilindro Half with built-in controls?

Harvia Cilindro Half electric sauna heater with built-in timer and thermostat (6, 8 or 9 kW, 240 V, by the option you choose) and its top safety grid
Wall-mounting device and two fixing kits
Two metal signs, "CAUTION" for the wall above the heater and "WARNING" for the sauna door, with screws and nails
Installation and user manual

What you need separately

Five 44 lb boxes of Harvia AC3000 2–4" split-face stones
The circuit and wiring, installed by a licensed electrician
A softwood heater fence, built on site to Harvia's distances
Optional: a Harvia safety railing that fixes to the top of the heater: the HPC3, or the HPCU3L with LED lighting

Documents

Harvia Cilindro Half with Built-In Controls Installation and User Manual (US)

Bathing Brands Harvia Stone Requirements Chart

Bathing Brands Harvia Element Requirements Chart

Warranty

Harvia Warranty

Read the full LIMITED WARRANTY TERMS AND CONDITIONS

Step 1

Size it right

Every heater page lists the exact room size it's rated for, so you can match it to your sauna before you order.

Step 2

Get it installed

We provide the install spec sheet your electrician needs and our team is available if questions come up.

Step 3

Real löyly

With the heater, stones, and room properly matched, water on the rocks delivers the steam wave and rolling heat of a true Finnish session.

WHAT COMES WITH EVERY TOPTURE ORDER

Free Bonuses Included With Your Topture Order

Claim $348 in Free Bonuses Today

BONUS 1

The Sauna Mastery Protocol

The session times, temperatures, and weekly rhythm that turn a sauna into a habit you keep. Covers heat-up protocols and what to expect across your first 30 sessions. Sent to your inbox after purchase.

$49INCLUDED

BONUS 2

Full-Value Freight Protection

Large orders ship fully insured. If freight arrives damaged, Topture helps coordinate the claim and replacement process with the carrier and manufacturer. Proper inspection and damage documentation at delivery are required. Most in-stock orders ship within 2–7 business days.

$299INCLUDED

Retail Price: $1,899

Today's price: $1,625

Choose your options now

We thought about buying a sauna for years and finally did. We absolutely love it, especially in the winter. It’s incredibly easy to assemble with two people the whole family uses it.

Verified buyer

Ordered this sauna fall 2024 and we love it. No better feeling during a Minnesota winter. Lastly, I have to mention the customer service for this purchase has been like no other. Any questions or requests I had were addressed immediately by Topture. I got more than I expected from them and have already recommended them to several people looking for saunas. SO if you're thinking about it, JUST DO IT already..

Verified buyer

Thanks for the great service - greatly appreciated.

Verified buyer

Choosing the right sauna

Compare models from multiple sauna manufacturers based on your space, climate, capacity, preferences, and budget.

Will they help you compare alternatives, or only answer questions about the product you've already selected?

Heater & electrical fit

Get help matching the heater to the sauna volume, glass area, controls, and electrical requirements.Try our heater calculator

Ask who will check that the heater and controls are right for your installation before you order.

Authorized products

Products are sourced through authorized channels and include the applicable manufacturer warranty.View independent listings

Verify that the retailer is authorized for the brand and that your manufacturer warranty will be valid.

Freight delivery

We help coordinate heavy-freight delivery and provide guidance on receiving and inspecting your shipment.

Ask how the order ships, how it will be unloaded, and what happens if freight arrives damaged.

Installation information

We help provide the manuals, specifications, clearances, and electrical information your installer may need.

Find out what documentation and project support will be available after checkout.

After the sale

Questions after delivery? We help with troubleshooting, documentation, warranty coordination, and manufacturer support.Read customer reviews

Ask who you will actually contact if something doesn't work after the order arrives.

462 Customer Reviews

Product and store reviews from Topture customers, collected by Judge.me.

Lifetime Expert Support

Same team before and after the sale, from sizing to warranty support.

Authorized Harvia Retailer

Sold by Topture, with the applicable manufacturer warranty.

Full-Value Freight Protection

Freight damage? We help coordinate the claim and replacement process.

STILL UNSURE?

Frequently Asked Questions

What comes with the Harvia Cilindro Half with built-in controls, and what else does it need?

The Harvia Cilindro Half with built-in controls ships as the heater with its timer and thermostat knobs and top safety grid, a wall-mounting device, two fixing kits, metal caution and warning signs, and Harvia's manual. It needs no separate control, but it does need five 44 lb boxes of Harvia AC3000 2–4 in split-face stones for its 200 lb stone load, a circuit installed by a licensed electrician, and a softwood heater fence, which Harvia's manual requires. Topture sells the stones and the HPC3 and HPCU3L safety railings separately.

How do the built-in controls on the Harvia Cilindro Half work?

The Harvia Cilindro Half with built-in controls has two knobs on its lower front: a timer and a thermostat. Turning the timer to its on section starts the heater for up to 1 hour; turning it into the pre-setting section delays the start by 0 to 8 hours, after which the heater runs for an hour. The thermostat knob holds the temperature you choose and is marked only from min to max, so Harvia's manual suggests starting at the maximum and turning it down a little if the sauna gets too hot. There is no Wi-Fi or app connection.

What size Harvia Cilindro Half with built-in controls does my sauna need?

Choose the Harvia Cilindro Half with built-in controls by the volume of the sauna room. Harvia's manual gives 141–294 cu ft for the 6 kW, 141–431 cu ft for the 8 kW and 141–494 cu ft for the 9 kW, for a well-insulated room lined with wood panel and at least 75 in tall. Brick, glass-block and plaster walls must be insulated, and a log sauna's volume is multiplied by 1.5; for glass, Harvia's newer heater manuals add about 3.9 cu ft per sq ft. For a room up to 636 cu ft, the 10.5 kW Cilindro Half with separate control is the larger option.

What electrical supply does the Harvia Cilindro Half with built-in controls need?

The Harvia Cilindro Half with built-in controls runs on 240 V single-phase power. Harvia's manual lists 25 amps for the 6 kW, 33.4 amps for the 8 kW and 37.5 amps for the 9 kW on one supply circuit, or 16.7, 22.3 and 25 amps per circuit on a two-circuit hookup. Harvia says only a licensed electrician may connect it, permanently wired through seal-tight conduit. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code.

How is the Harvia Cilindro Half with built-in controls installed?

The Harvia Cilindro Half with built-in controls stands on the floor on adjustable legs, beside a side wall or in a corner, fixed to the wall with its wall-mounting device and screwed to the floor. Harvia's manual keeps it at least 1.2 in from the side wall, 4 in from the heater fence or bench in front and 35 in below the ceiling, with at least 2.8 in under the heater. The required softwood fence stands at least 32 in high, its top at least 1 in below the heater top. Only one electric heater may go in a sauna room, and there is no control unit to mount.

How long does the Harvia Cilindro Half with built-in controls take to heat up?

The Harvia Cilindro Half with built-in controls takes about half an hour to bring a properly insulated sauna to bathing temperature when the heater suits the room, according to Harvia's manual, which says to allow at least 30 minutes. The stones reach temperature at the same time as the room. For a sauna ready at a set time, use the timer's 0–8 hour pre-setting section: Harvia's example sets it to two hours for a sauna ready in about two and a half. If the room heats slowly, Harvia says to check that every element glows and to turn the thermostat higher.

How do you load and maintain the stones in a Harvia Cilindro Half with built-in controls?

The Harvia Cilindro Half with built-in controls takes a 200 lb stone load of 2–4 in angular split-face stones, which five 44 lb boxes of Harvia AC3000 cover with about 20 lb to spare. Harvia's manual says to wash off the dust, place the stones by hand with a dense layer against the steel grid and the rest loose, never drop them in or wedge them between the elements, and make sure no element shows. Rearrange them at least once a year, replace crumbled ones, and throw only clean tap water, at most 0.05 gal (0.2 L) at a time.

What problems can happen with the Harvia Cilindro Half with built-in controls, and how are they avoided?

Most problems Harvia's manual covers for the Harvia Cilindro Half with built-in controls come down to power, settings, ventilation and stones. If it will not heat, check the breakers, the connection cable, the thermostat setting and the overheat protectors, which can trip below 23°F in storage or transport and are reset once the heater is at about 64°F. Stones that stay cool while the room heats point to an output too high for the room or to poor ventilation. Darkening panels mean short safety distances, elements showing or stones packed too tightly. Odor on the first heatings is normal, and occasional bangs are stones cracking in the heat.

Who makes the Harvia Cilindro Half with built-in controls, and what is it made of?

The Harvia Cilindro Half with built-in controls is made by Harvia, the Finnish sauna manufacturer, at its heater plant in Muurame, Finland. It is a stainless-steel pillar, partially open at the front so the stones show through a steel grid, with a top safety grid and its timer and thermostat knobs on the lower front. The heater is ETL Listed and conforms to UL 875. Harvia's manual gives 14 in wide, 13 in deep and 40 in high for every output, and 37.5 lb without stones.

What warranty does the Harvia Cilindro Half with built-in controls have?

Harvia's manufacturer warranty covers the Harvia Cilindro Half with built-in controls for 2 years, and Harvia adds a third year when the heater is registered on harvia.com within 30 days of purchase. Its timer and thermostat are part of the heater. Sauna stones are not covered, and Harvia's terms require the heater to be installed by a qualified electrician, with proof of the installation. Harvia US Inc. is the warrantor in North America; Topture is an authorized Harvia retailer and assists with troubleshooting and warranty coordination.

How does the Harvia Cilindro Half with built-in controls compare with the Cilindro Half with separate control?

The Harvia Cilindro Half with built-in controls is set with two knobs on the heater, while the Cilindro Half with separate control runs from a Xenio or Fenix wall panel, sold separately. Both share the same stainless-steel body, room ranges, amps and 200 lb stone load. The built-in timer runs the heater for an hour and can delay the start by up to 8 hours, with no Wi-Fi; the Xenio sets a temperature from 104 to 194°F, delays a start by up to 12 hours and connects to the MyHarvia app. The separate-control model also comes in 10.5 kW.

Where can you buy the Harvia Cilindro Half with built-in controls from an authorized dealer?

Topture is an authorized Harvia retailer and sells the Harvia Cilindro Half with built-in controls in 6, 8 and 9 kW, with AC3000 stones and the HPC3 and HPCU3L safety railings as options, alongside the separate-control Cilindro Half and the Cilindro packages with the Xenio control and stones sized for the heater. Topture adds Lifetime Expert Support, help with troubleshooting and warranty coordination, free shipping on orders over $200 within the continental US, financing through Shop Pay Installments at checkout, and a 30-day return window.

What does a Harvia Cilindro Half with built-in controls cost in total, delivered?

The delivered cost of a Harvia Cilindro Half with built-in controls from Topture is the heater price plus five 44 lb boxes of AC3000 stones; no separate control is needed. Topture has free shipping on orders over $200 within the continental US, so a Cilindro order ships free there. Budget separately for a licensed electrician to run the circuit and for a softwood heater fence, and add a safety railing if you want one. Compare delivered totals, because some listings price the heater without its stones. Financing is available through Shop Pay Installments at checkout.

General Topture Questions

Where are you located, and where do you ship from?

Topture is an online retailer serving customers in the contiguous United States. The company is Topture LLC, a Wyoming limited liability company, and its registered business address is 30 N Gould St, Ste N, Sheridan, WY 82801.

Orders ship from manufacturer and distributor warehouses in the U.S. and Canada, and some products ship directly from the manufacturer in Europe. Each product page shows its estimated delivery time.

How much is shipping?

Orders over $200 ship free within the continental United States. Orders under $200 carry a small shipping fee.

Two exceptions: SaunaLife and ThermaSol products carry a freight charge at any order value, and sauna stones ordered without a heater ship at $60 per box because of their weight.

Every charge is shown at checkout before you pay.

Do you provide financing?

Absolutely! To view your financing offer, simply select Shop Pay Installments as your payment method at Step 3 of checkout.

You'll need to enter a debit card to receive your offer, but don’t worry—you can still back out before completing the purchase.

How long will it take for my items to arrive?

If your order is in stock, most orders ship within 2–7 business days of purchase. Transit time then depends on the distance from the warehouse and, for freight, on booking a delivery appointment.

For custom, pre-order or made-to-order items, the estimated delivery time frame is listed on the product page. Delivery dates are estimates, so please don't book installation labor until your order has arrived and been inspected.

What happens after I place my order?

As soon as you place your order, you'll receive a confirmation email with your order details—be sure to keep it for your records. Once your order ships, you'll receive another email with tracking information.

For freight deliveries, the carrier will call or text you to schedule an appointment once the shipment reaches their local terminal. Someone needs to be there to inspect the shipment and sign for it. Smaller parcels arrive by UPS or FedEx without an appointment.

Is there a warranty?

Yes. Products purchased through Topture include the applicable manufacturer’s warranty, subject to the manufacturer’s terms. You’ll find the warranty details for each product under the "Warranty" tab on its product page, and we help with troubleshooting and warranty coordination if an issue comes up.

Do you have a showroom?

We don’t have a showroom — we sell online. Our team is available by phone, email and chat to help you compare models, sizes and heaters, and we can send dimensions, installation manuals and electrical requirements before you buy.

Where do you deliver to?

We deliver throughout the 48 contiguous states, with curbside freight delivery for large items. Free shipping and standard rates apply there only. Alaska, Hawaii, Puerto Rico, other U.S. islands and Canada are quoted separately, depending on the brand and model. We can't ship freight or oversized items to P.O. boxes.

Do you ship internationally?

International Shipping

For many products, yes, including to Canada, by custom quote. Email contact@topture.com with the product and your address before you order; availability and cost depend on the brand and model. Any duties, taxes and customs fees are your responsibility.

Shipping to Hawaii, Alaska, and Puerto Rico

Free shipping applies to the continental United States only. Shipping to Alaska, Hawaii, Puerto Rico and other U.S. islands is quoted separately and depends on the brand and model. Email contact@topture.com for a quote before you order.

Your electric sauna heater, done the right way.

Timer and thermostat on the heater: no separate control to buy
Stainless-steel pillar with a 200 lb stone load
Soft or sharp steam, depending on where the water lands

The Sauna Mastery Protocol Digital Guide

$49 FREE

Full-Value Freight Protection

$299 FREE

Secure checkout
30-day return window*
2-year manufacturer warranty

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

Harvia Cilindro Half Series Electric Sauna Heater w/ Built-in Controls (6kW/ 8kW/ 9kW)

What is the Harvia Cilindro Half with built-in controls?

How do the built-in controls on the Harvia Cilindro Half work?

Harvia Cilindro Half with built-in controls key features

Which Harvia Cilindro Half with built-in controls fits my sauna?

Harvia Cilindro Half with built-in controls: dimensions, stones and ratings
