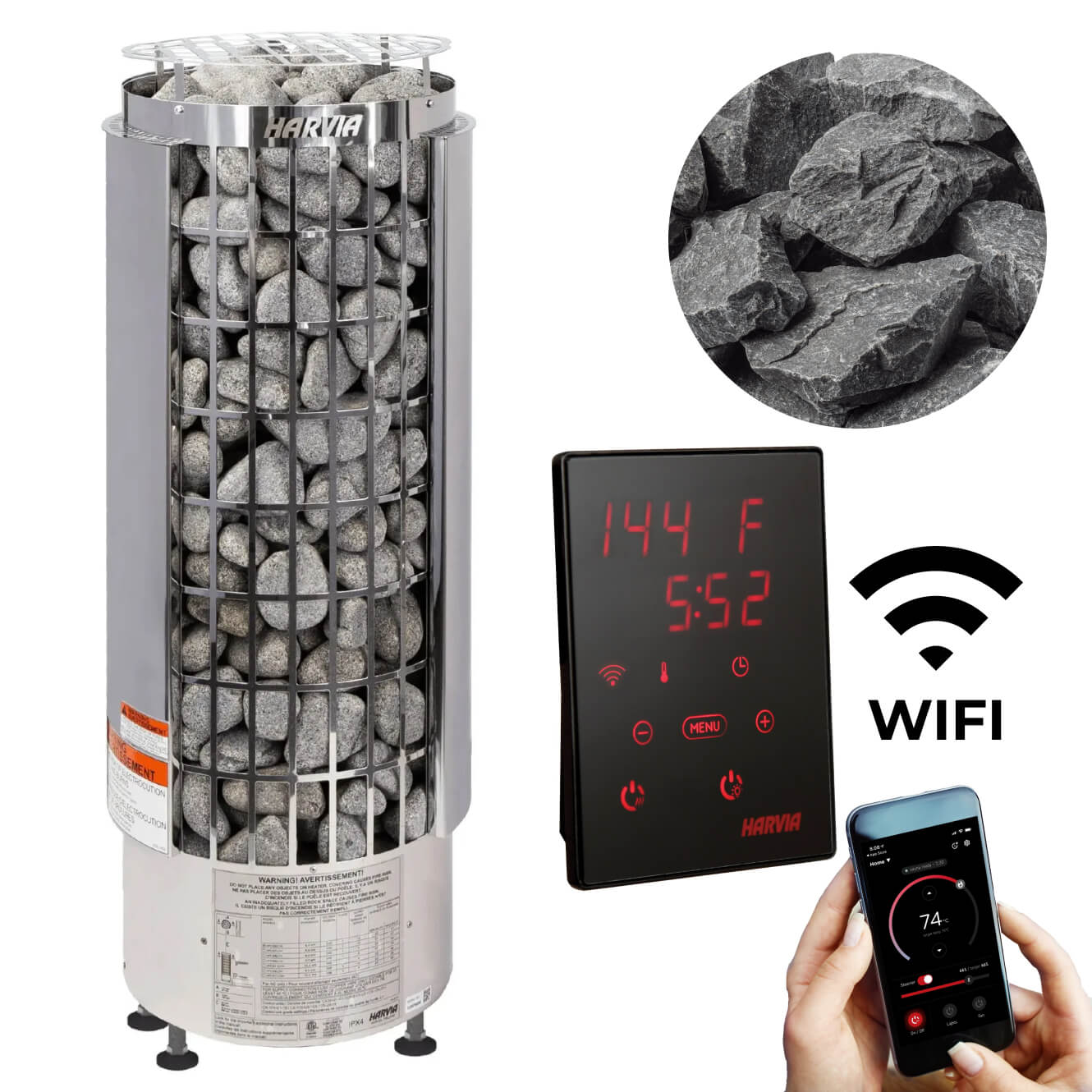

Harvia Cilindro 10.5kW Electric Heater Package w/ Digital Controller and Wifi and Stones
A 10.5kW Harvia Cilindro electric heater package with Xenio Wi-Fi control — pillar design fits benches or glass walls, with 264 lbs of stones for real steam.
- 264 lbs of stones included: no separate stone order needed.
- Xenio Wi-Fi controller lets you schedule and adjust from your phone.
- Pour water on the side for soft steam or on top for intense bursts.
See What Topture Customers Are Saying…
“This has completely transformed my workspace. The natural light is a game changer!”
“Built it in a weekend with my brother. Glass front is the move — feels like a real room, not a closet.”
“I love the design and how easy it was to set up. Highly recommend for any home owner.”
- Description
- What's Included?
- Specifications
- Documents
- Warranty

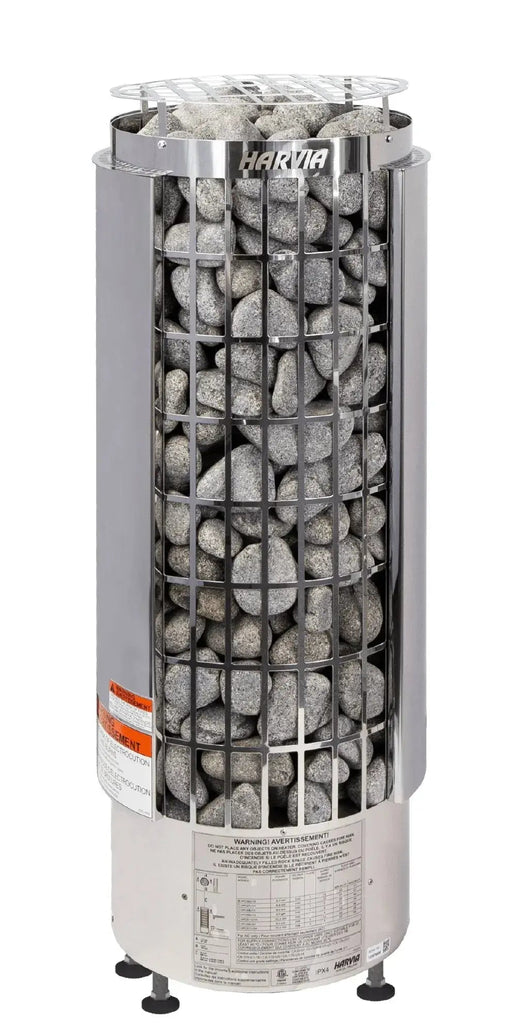

The Harvia Cilindro 10.5kW Electric Sauna Heater Package delivers a modern, high-performance sauna experience with a stylish pillar design and impressive steam generation. Ideal for medium to large sauna rooms, this floor-standing heater features a partially open front casing that allows for a high stone capacity and customizable steam intensity. Whether you're looking to embed the heater into a bench or display it against a glass wall, its sleek form and versatile installation options make it a standout choice. Paired with the advanced Xenio Digital Control Kit and WiFi connectivity, this heater offers both convenience and performance for a premium home or commercial sauna environment.
Features
- Ideal for Medium to Large Saunas: Designed for sauna rooms from 141 to 636 cubic feet

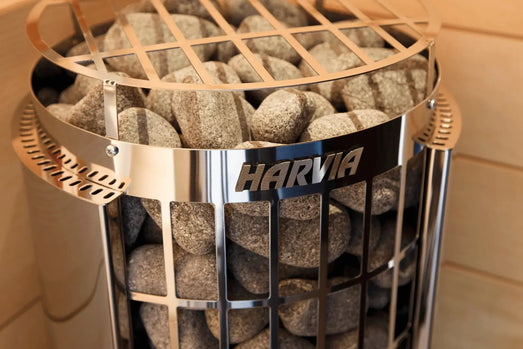

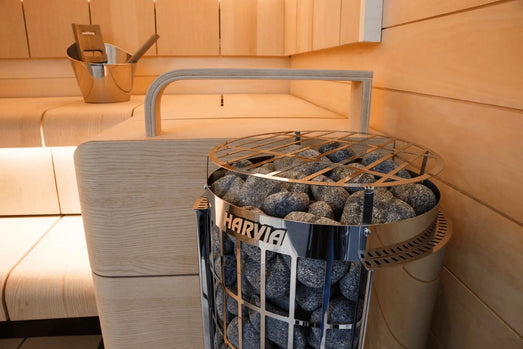

- High Stone Capacity: Holds up to 264 lbs of stones (6 boxes) for consistent, enveloping steam
- Customizable Steam Experience: Pour water on the sides for soft steam or on top for intense bursts

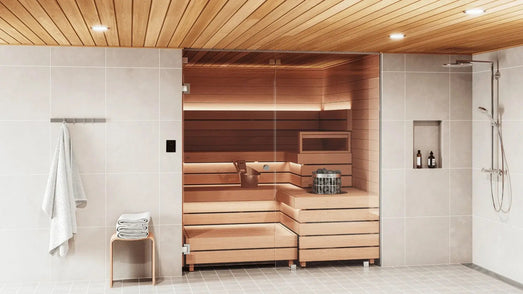

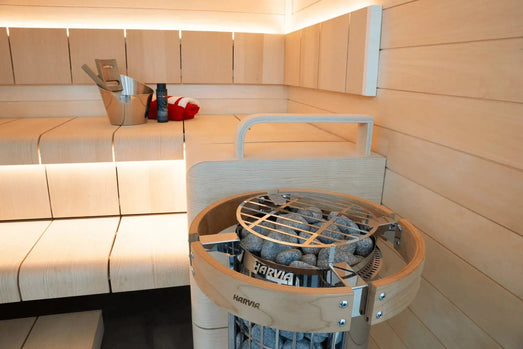

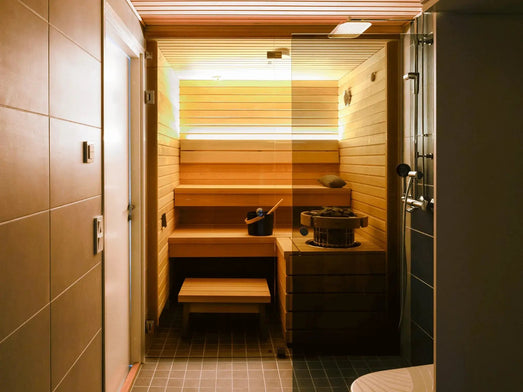

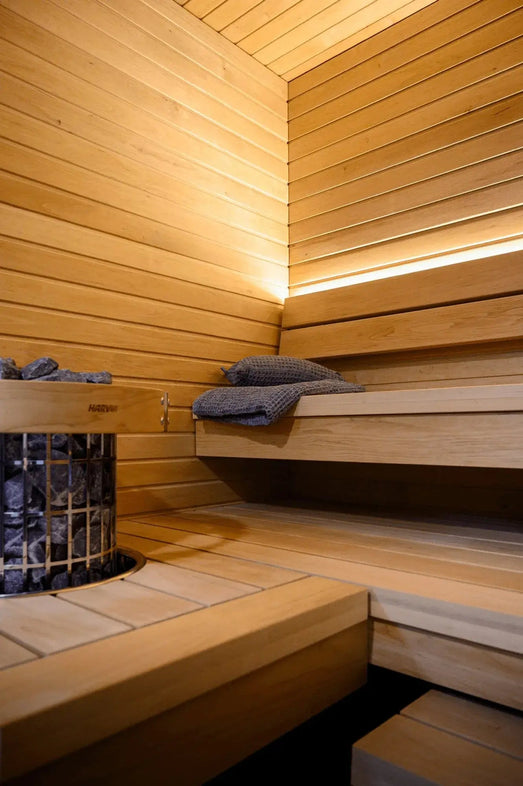

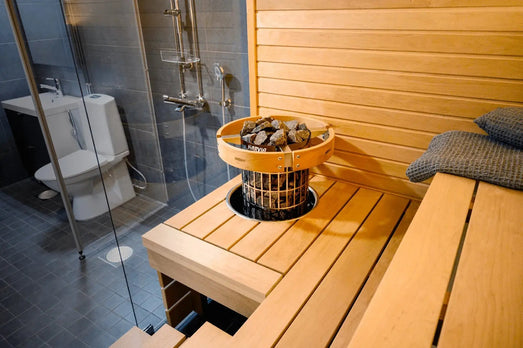

- Pillar Design: Modern vertical form integrates easily into benches or glass wall setups
- Stainless Steel Construction: Durable and attractive casing with industrial-grade heating elements
- Direct Stone-to-Element Contact: Enhances heating efficiency and steam production
- Flexible Installation: Suitable for corner or side-wall placement

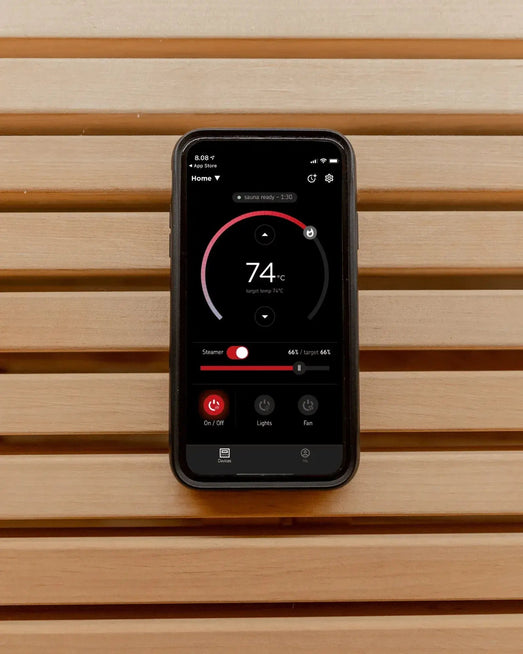

- WiFi-Enabled Controls: Includes Xenio Digital Control Kit with scheduling, temperature control, and remote access via the MyHarvia app
- Precision-Engineered in Finland: Built for long-lasting reliability and performance

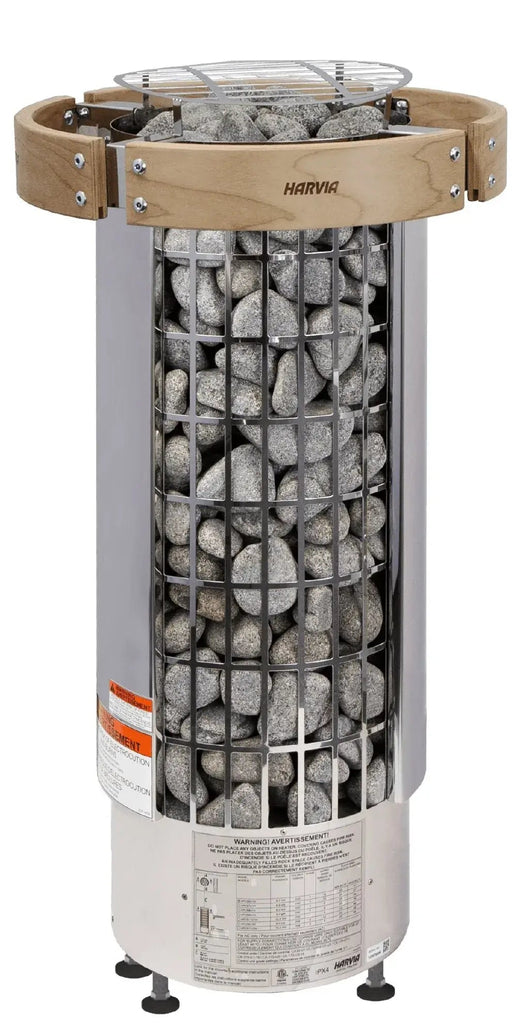

- Harvia Cilindro 10.5kW Electric Sauna Heater

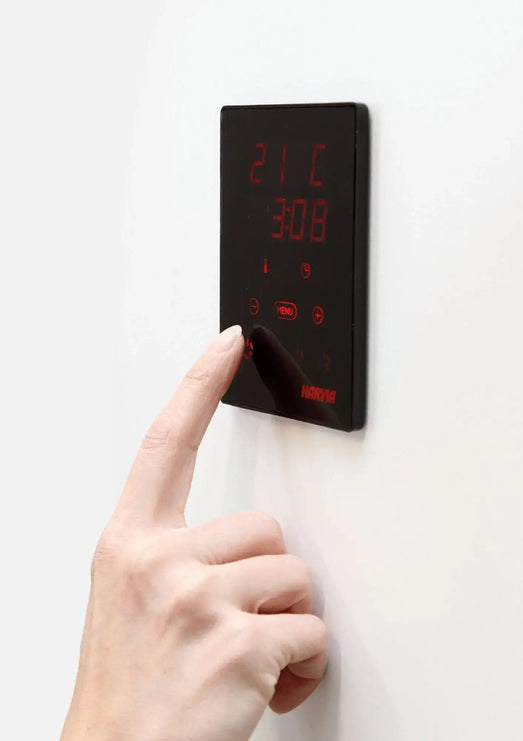

- Xenio Digital Control Kit with WiFi Module (CX45-U1-U3)
- 6 Boxes of Split-Face Olivine Diabase Sauna Stones
- Installation and Operation Manual
- 2-Year Warranty (Consumer Use)
- Optional Add-Ons:
- Harvia Safety Railing for Cilindro 10.5kW (HPC4)
- Harvia Safety Railing with LED Lighting (HPCU4L)
- Embedding Flange for Cilindro 10.5kW (HPC7)
- Embedding Flange with LED Lighting (HPCU7L)
| Heater Size | 10.5 kW |
| Sauna Room | 141 to 636 cu. ft. |
| Stone Capacity | 264 lbs (6 boxes) |
| Height | 45" (1143mm) |
| Width | 16" (406mm) |
| Depth | 15" (381mm) |
| Weight | 46.3 lbs |
| Shipping Weight with Sauna Stones | 310.3 lbs |
Power
| Heater Size | 10.5 kW |
| Voltage | 240 |
| Phase | 1 |
| Nominal Amps | 43.75 |
Safety Clearance
Installation Clearances
| Minimum clearance | 10.5 kW |
|---|---|
| A — heater to side wall | 1.2" (30 mm) |
| B — heater front to guard fence or bench | 4" (100 mm) |
| C — top of heater to ceiling | 32.5" (830 mm) |
| Minimum sauna room height | 78" (1980 mm) |
| Temperature sensor, below the ceiling | 4" (100 mm) |
| Temperature sensor, offset to the side of the heater | Centred above the heater |
| Applies to every Cilindro output | Minimum |
|---|---|
| Floor to underside of heater | 2.8" (70 mm) |
| Guard fence height above the floor | 32" (813 mm) |
| Top of guard fence, below the top of the heater | 1" (25 mm) |
| Ventilation inlet, above the floor beside the heater | 4" (100 mm) |
| Ventilation outlet, below the ceiling on the opposite wall | 6" (150 mm) |
A, B and C are the letters used on Harvia's drawings below. All figures are minimums to a combustible surface. The ventilation outlet may sit as low as 24" (600 mm) above the floor instead. Taken from the Cilindro Installation and Operation Manual (Table 2 and Figures 3, 5 and 6) linked below — confirm against it before building or wiring.
