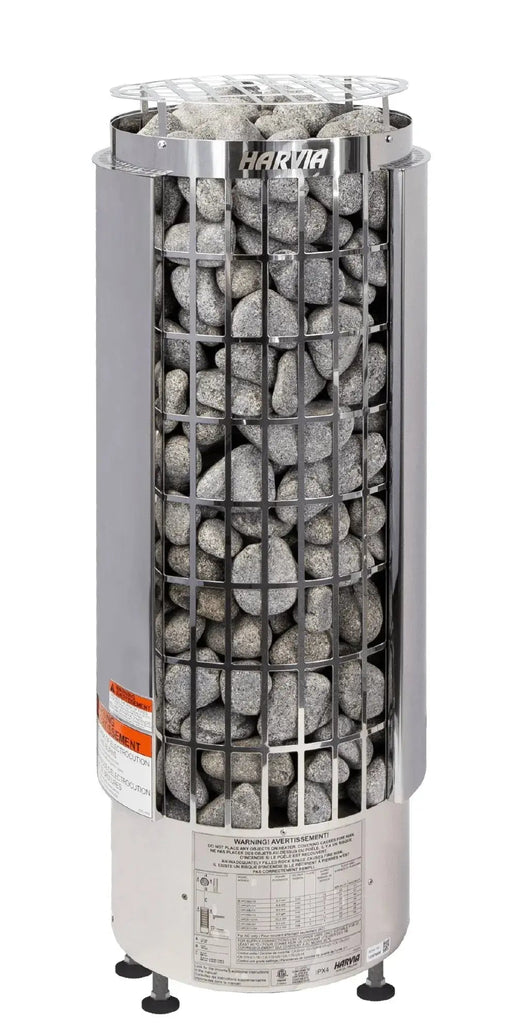

Harvia Cilindro 9kW Electric Heater Package w/ Digital Controller and Wifi and Stones
A 9kW Harvia Cilindro electric heater package — tall pillar design fits corners and bench cutouts, with Xenio Wi-Fi control via the MyHarvia app.
- Holds 200 lbs of stones for steady, enveloping heat.

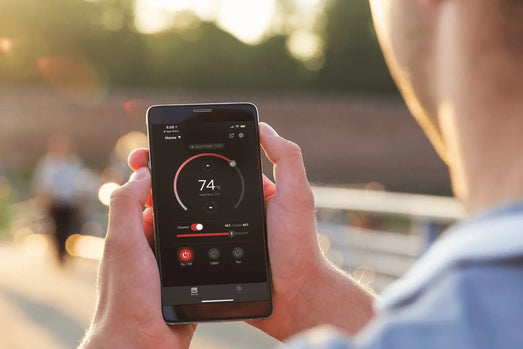

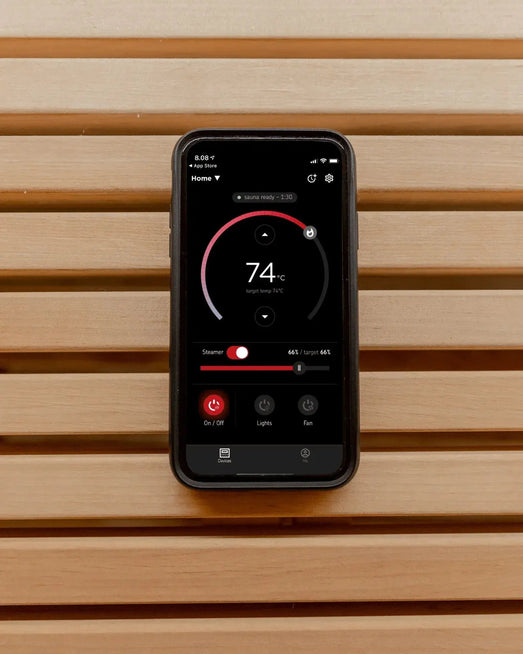

- Xenio Wi-Fi controller lets you preheat from your phone.
- Pour water on the sides for soft steam or on top for an intense löyly.
See What Topture Customers Are Saying…
“This has completely transformed my workspace. The natural light is a game changer!”
“Built it in a weekend with my brother. Glass front is the move — feels like a real room, not a closet.”
“I love the design and how easy it was to set up. Highly recommend for any home owner.”
- Description
- What's Included?
- Specifications
- Documents
- Warranty

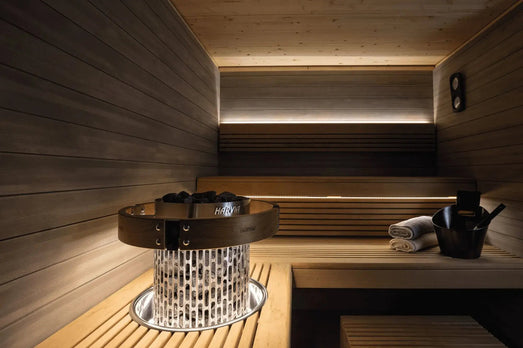

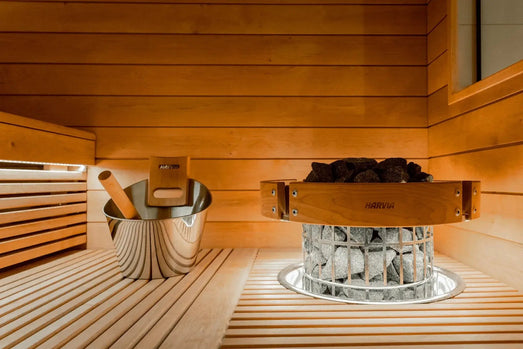

The Harvia Cilindro 9kW Electric Sauna Heater Package combines elegant design, exceptional steam quality, and modern digital control for a high-end sauna experience. With its tall pillar structure and partially open front, this heater offers an impressive stone capacity that produces soft, consistent heat and customizable steam. Perfect for sauna rooms between 141 and 494 cubic feet, the Cilindro 9kW easily integrates into a variety of layouts, including recessed bench installations or open wall displays. The included Xenio Digital Control Kit with WiFi capability allows remote operation and scheduling via the MyHarvia app, delivering full control with convenience and reliability.
Features
- Ideal for Medium Sauna Rooms: Heats sauna spaces between 141 and 494 cubic feet
- Large Stone Capacity: Holds up to 200 lbs of stones (5 boxes) for enveloping, long-lasting heat
- Adjustable Steam Intensity: Pour water on the sides for gentle steam or on top for a more intense experience

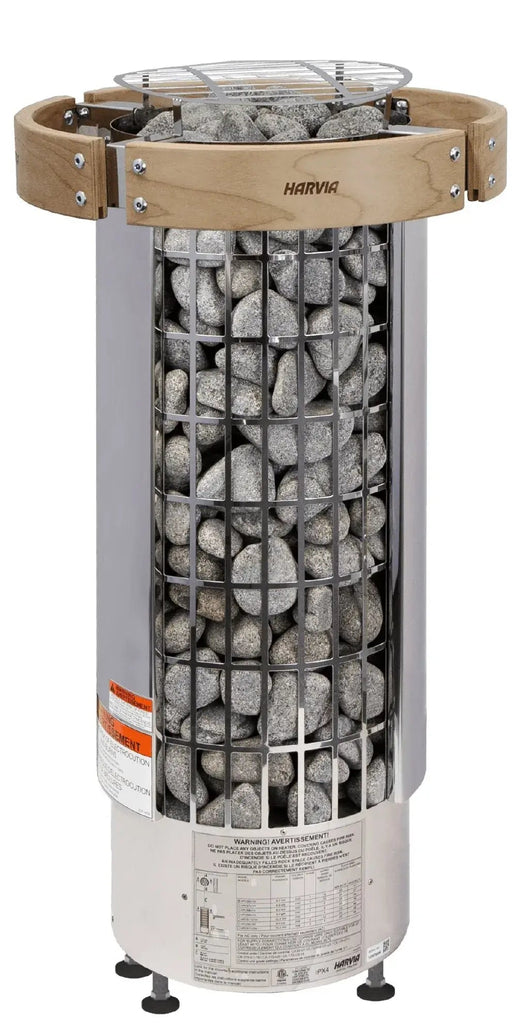

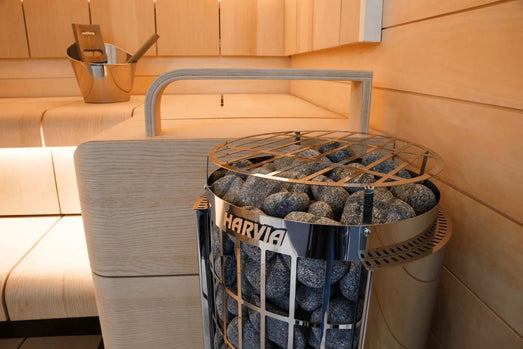

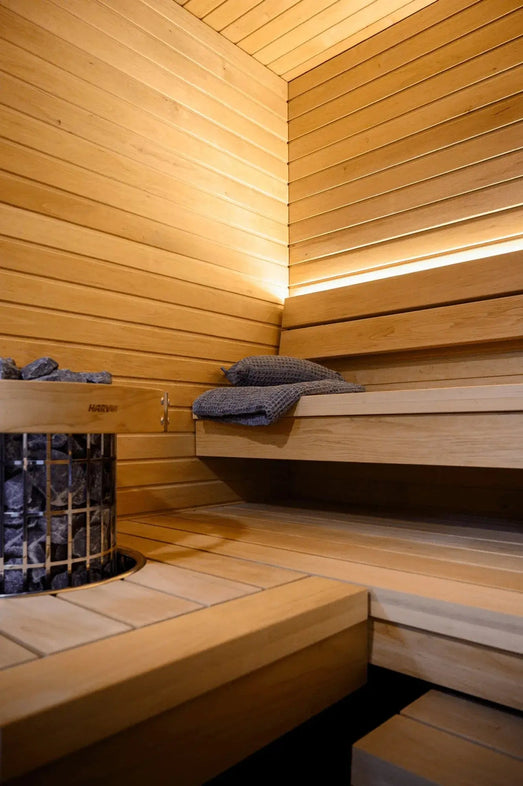

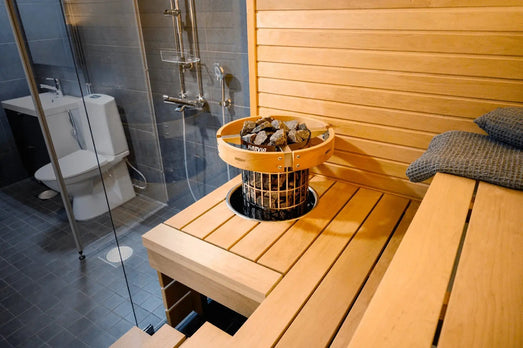

- Stylish Pillar Design: Slim and vertical heater fits elegantly in corners, against walls, or embedded into benches
- Stainless Steel Housing: Durable, rust-resistant build with industrial-grade, serviceable heating elements

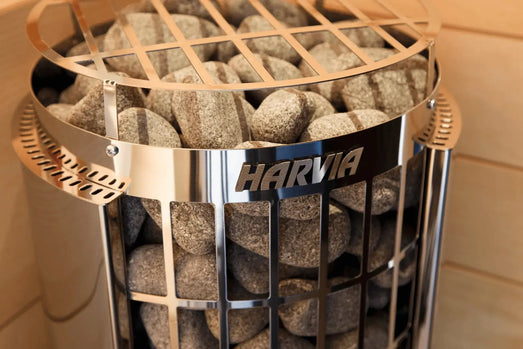

- Direct Rock-to-Element Contact: Promotes rapid heating and enhanced steam generation

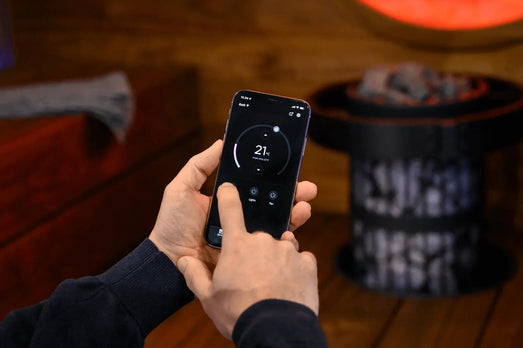

- WiFi-Enabled Controls: Includes Xenio Digital Control Kit with remote access via the MyHarvia mobile app
- Flexible Installation: Suitable for side-wall or corner placement, and compatible with embedding accessories
- Designed & Made in Finland: Precision engineering for consistent performance and longevity

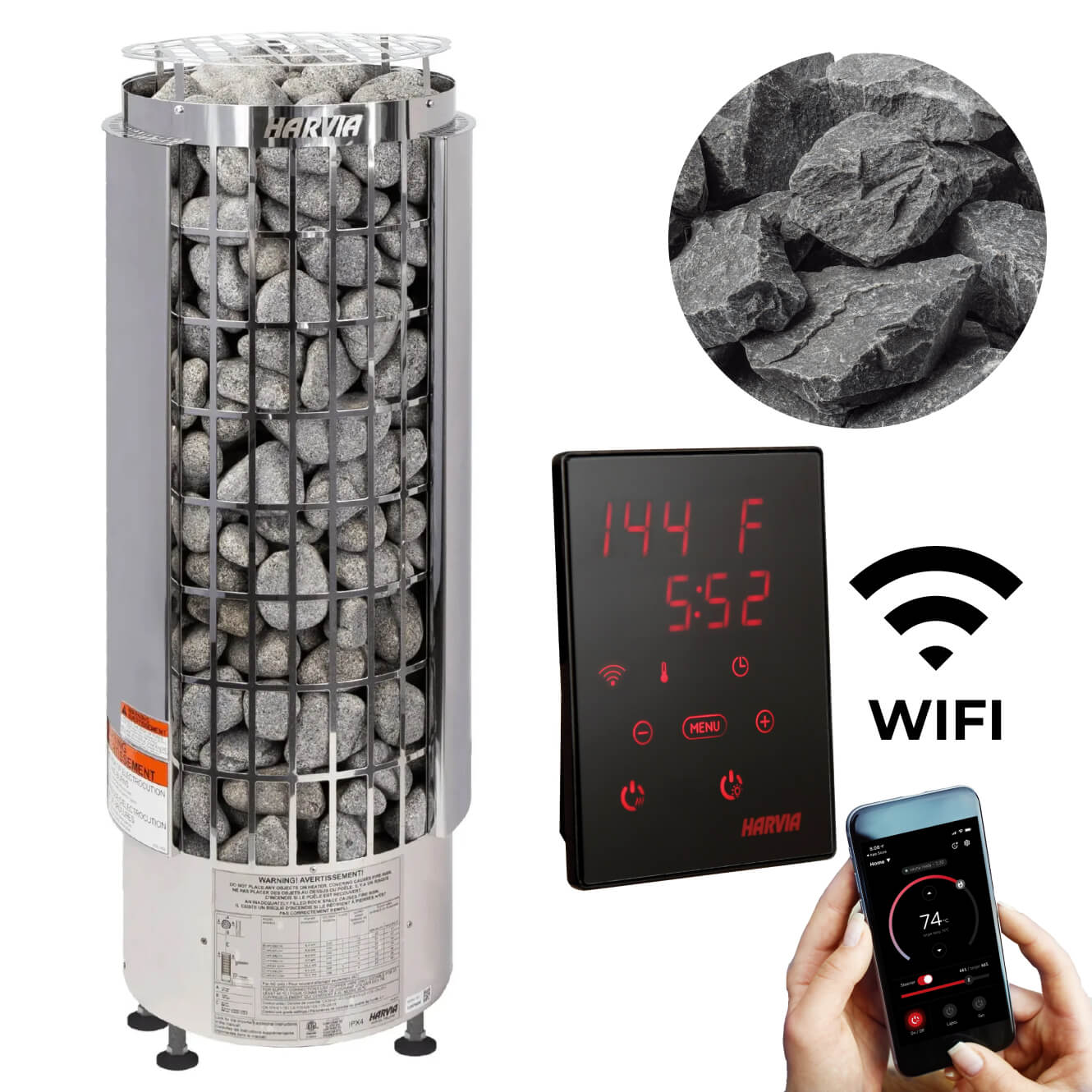

- Harvia Cilindro 9kW Electric Sauna Heater

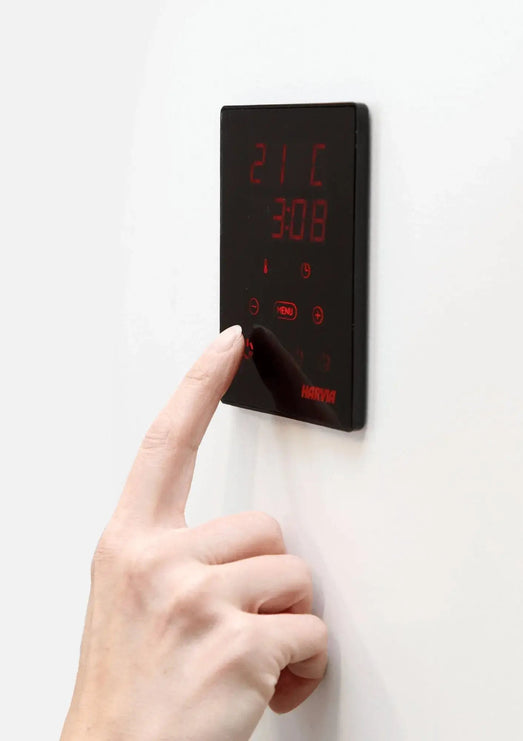

- Xenio Digital Control Kit with WiFi Module (CX45-U1-U3)
- 5 Boxes of Split-Face Olivine Diabase Sauna Stones
- Installation and Operation Manual
- 2-Year Warranty (Consumer Use)
- Optional Add-Ons:
- Harvia Safety Railing for Cilindro 6/8/9kW (HPC3)
- Harvia Safety Railing with LED Lighting (HPC3UL)

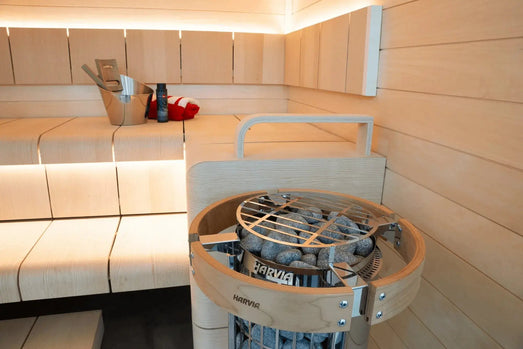

- Embedding Flange for Cilindro 6/8/9kW (HPC2)
- Embedding Flange with LED Lighting (HPCU2L)
| Heater Size | 9 kW |
| Sauna Room | 141 to 494 cu. ft. |
| Stone Capacity | 200 lbs (5 boxes) |
| Height | 40" (1016mm) |
| Width | 14" (355mm) |
| Depth | 13" (330mm) |
| Weight | 37.5 lbs |
| Shipping Weight with Sauna Stones | 257.5 lbs |
Power
| Heater Size | 9 kW |
| Voltage | 240 |
| Phase | 1 |
| Nominal Amps | 37.5 |
Safety Clearance
Installation Clearances
| Minimum clearance | 9 kW |
|---|---|
| A — heater to side wall | 1.2" (30 mm) |
| B — heater front to guard fence or bench | 4" (100 mm) |
| C — top of heater to ceiling | 35" (890 mm) |
| Minimum sauna room height | 75" (1900 mm) |
| Temperature sensor, below the ceiling | 4" (100 mm) |
| Temperature sensor, offset to the side of the heater | 3" (80 mm) |
| Applies to every Cilindro output | Minimum |
|---|---|
| Floor to underside of heater | 2.8" (70 mm) |
| Guard fence height above the floor | 32" (813 mm) |
| Top of guard fence, below the top of the heater | 1" (25 mm) |
| Ventilation inlet, above the floor beside the heater | 4" (100 mm) |
| Ventilation outlet, below the ceiling on the opposite wall | 6" (150 mm) |
A, B and C are the letters used on Harvia's drawings below. All figures are minimums to a combustible surface. The ventilation outlet may sit as low as 24" (600 mm) above the floor instead. Taken from the Cilindro Installation and Operation Manual (Table 2 and Figures 3, 5 and 6) linked below — confirm against it before building or wiring.
