Pacific Outdoor Infrared Sauna · 4-Person
A 4-person outdoor far-infrared sauna in Canadian hemlock with a painted, weatherproof finish, a metal composite roof and a 4,800 W heater system.
In stock
Estimated delivery
14–22 days after you order
Stock checked Oct 20, 2026
- 4,800 W of far-infrared heaters reaching 140°F, with around 30 minutes to warm up per SunRay's manual.
- Seats 4 in a 68" × 57" interior with a 73" ceiling.
- Runs on a dedicated 240 V, 30 A circuit that a licensed electrician installs.
- Description
- What's Included?
- Specifications
- Assembly & Installation
- Shipping
- Documents
- SunRay Warranty
- FAQs

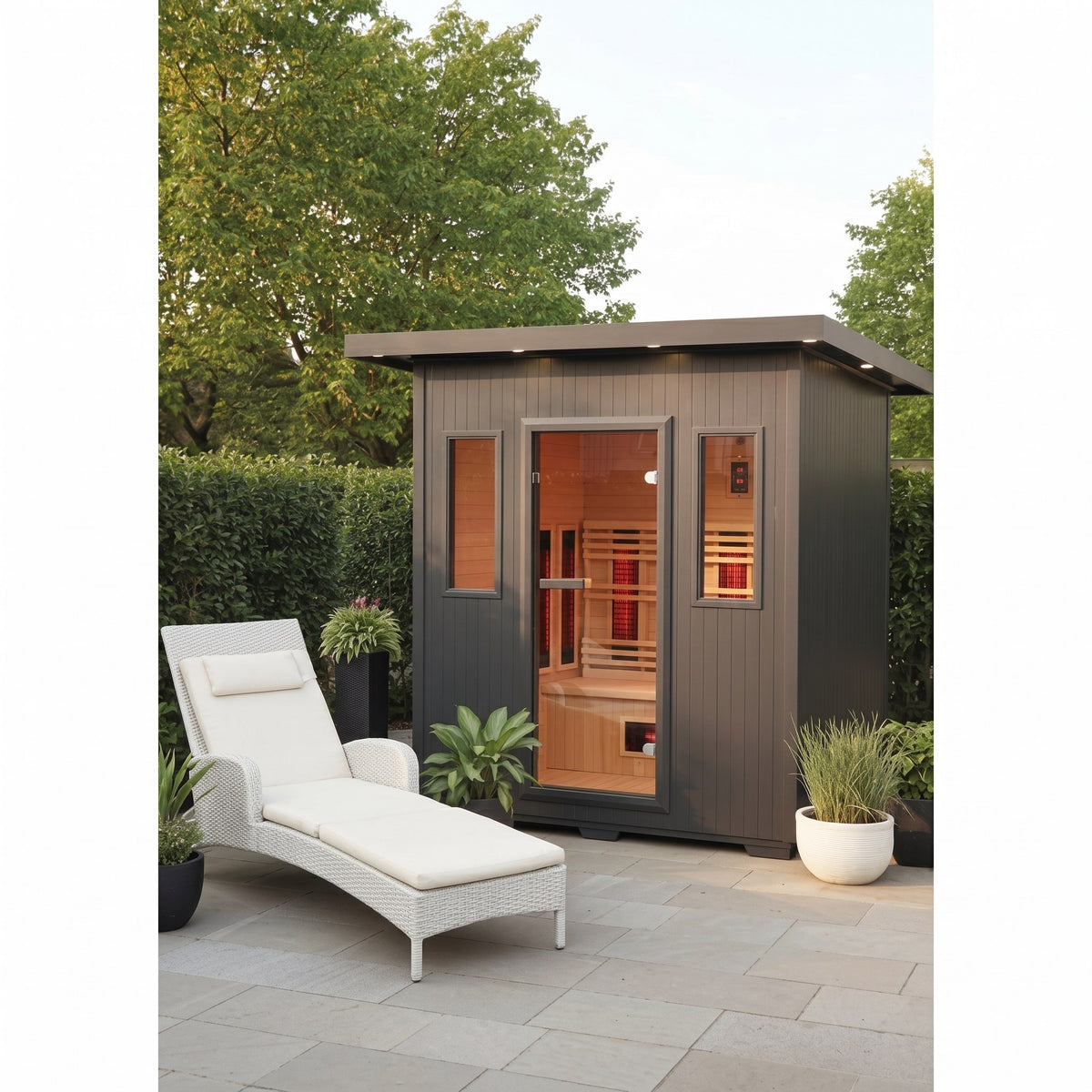

The SunRay Pacific (model 400D6) is a 4-person outdoor far-infrared sauna built from Canadian hemlock, with a painted, weatherproof finish, a metal composite roof and a glass door between two front windows. Its cabin is 72" W × 62" D × 88" H, its roof covers an 88" W × 82" D footprint, and the interior measures 68" W × 57" D × 73" H. The far-infrared heaters draw 4,800 W and reach 140°F on a dedicated 240 V, 30 A circuit. SunRay lists the Pacific at 401 lbs, and it ships by LTL freight as a kit for on-site assembly.
The Pacific is the 4-person model in SunRay's modern outdoor infrared series. The 2-person SunRay Logan is the smaller version, with a 49" × 49" cabin and a 2,800 W system on a 20 A circuit, and the two share SunRay's D6 assembly manual. For other sizes and brands, see our outdoor infrared saunas.
How the SunRay Pacific heats
The Pacific heats with far-infrared panels instead of a stove, and SunRay rates the cabin to 140°F.

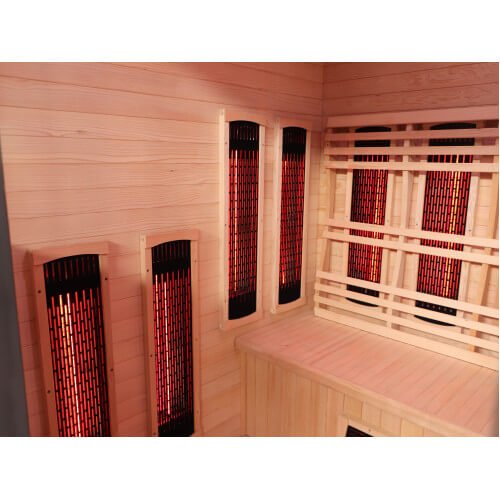

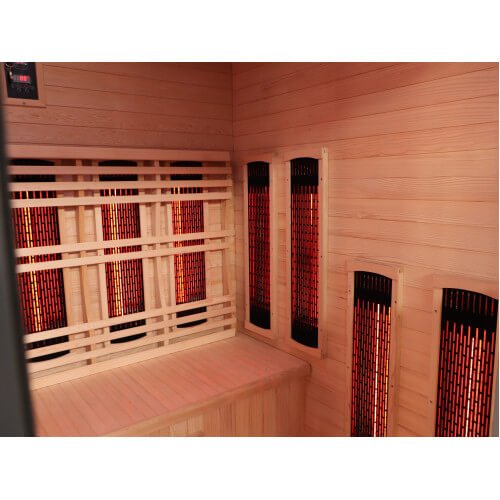

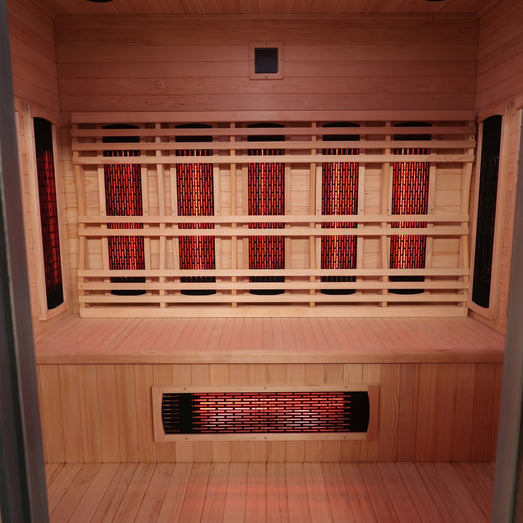

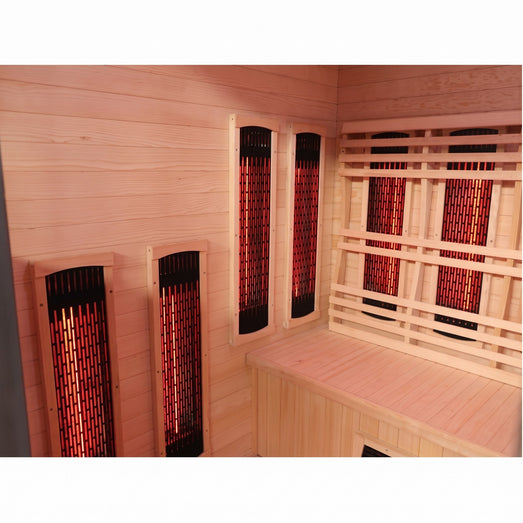

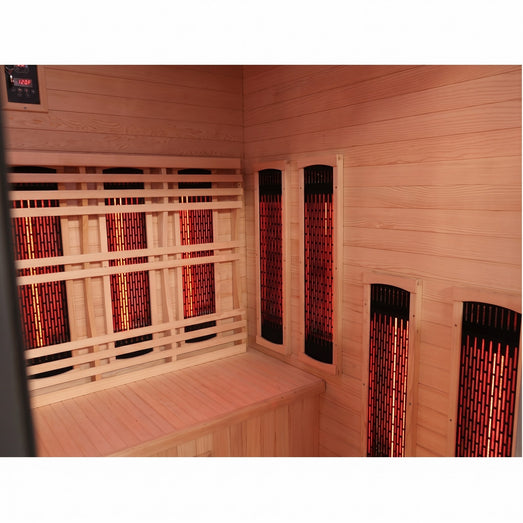

- Far-infrared heaters: 4,800 W across the system. SunRay publishes neither how many heaters there are nor their type.
- Temperature: up to 140°F. SunRay's D6 manual suggests setting it to 104–122°F and allows around 30 minutes of warm-up.
- Control panel: one digital panel inside the cabin handles power, the session timer, the thermostat (reads in °F or °C), the interior light, the color light and Bluetooth music, and the heaters cycle on and off to hold the set temperature. A separate switch on the back of the bench runs the exterior lights.

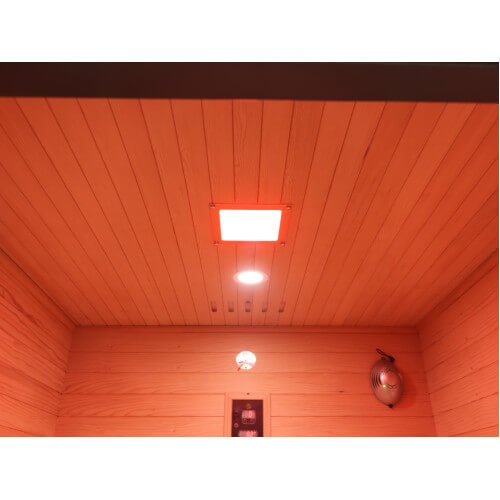

- Roof vent: opens during a session to let in fresh air.

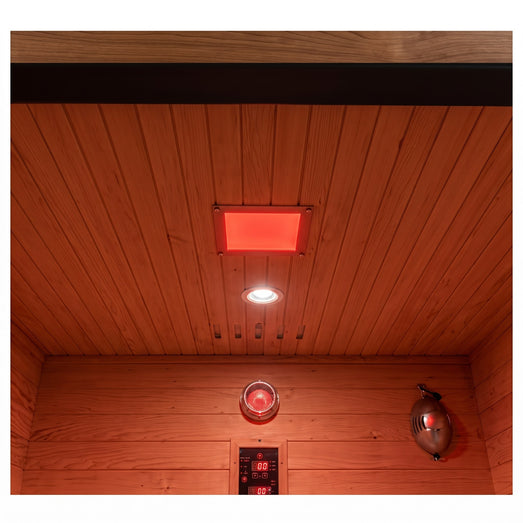

- Lighting: LED lights inside and outside the cabin, and a chromotherapy light with seven colors.
- Sound: a Bluetooth sound system.
- Air purification system: listed by SunRay among the Pacific's features.

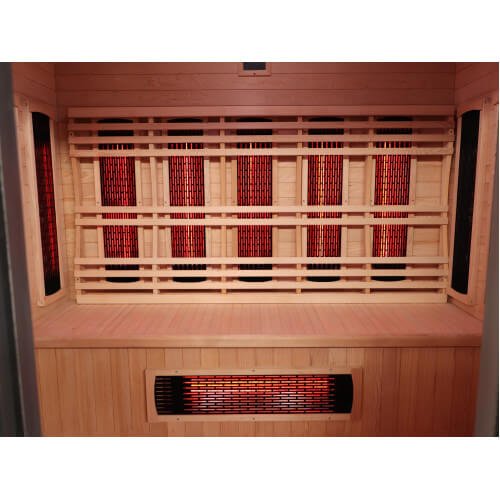

- Seating: a bench for four, with a backrest and cup holders.

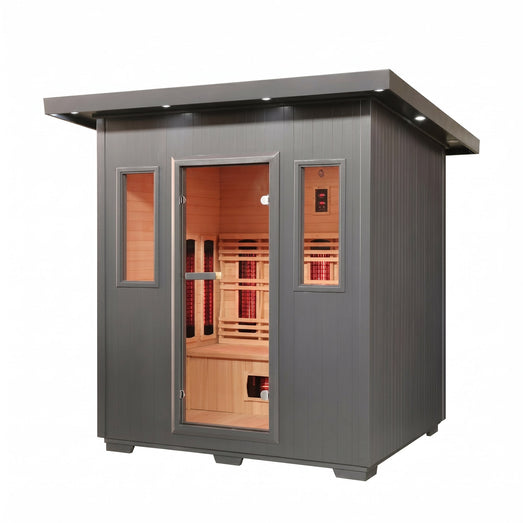

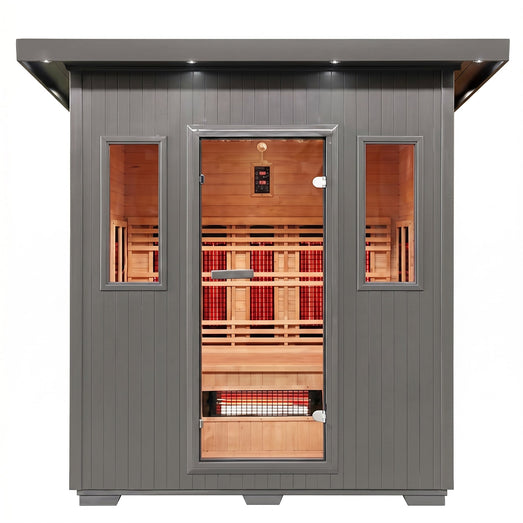

- Cabin: Canadian hemlock with a painted, weatherproof finish under a metal composite roof, and a glass door between two front windows.
What comes with the SunRay Pacific?
The SunRay Pacific is supplied as a complete outdoor infrared sauna kit: the base, the hemlock wall panels with their painted, weatherproof finish, the front panel with its glass door and two windows, the inner and outer roof with the metal composite panels, the far-infrared heaters, the digital control panel, the interior and exterior lighting, the sound system, the air purification system, the bench and SunRay's D6 series assembly manual. The 240 V circuit and its connection, and the foundation, are arranged separately.
Included in the kit
Cabin and roof
- Base
- Canadian hemlock wall panels with a painted, weatherproof finish

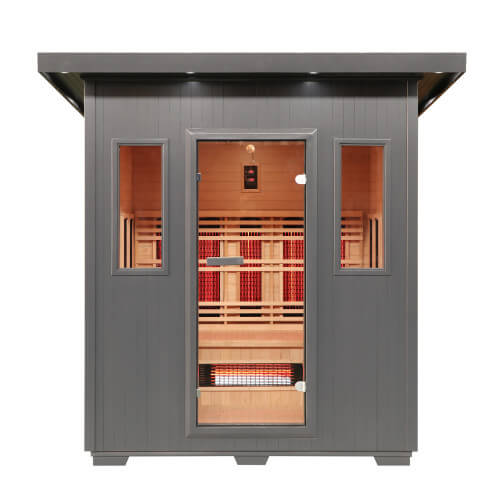

- Front panel with a glass door and two windows
- Inner and outer roof with metal composite panels
Heat and controls
- Far-infrared heaters, 4,800 W in total
- Digital control panel
- Roof vent
Interior
- Bench for four, with backrest support and cup holders
- Interior and exterior LED lighting
- Chromotherapy lighting in seven colors
- Bluetooth sound system
- Air purification system
Documentation
- SunRay's D6 series assembly manual
Not included — arranged separately
- A dedicated 240 V, 30 A circuit and outlet, installed by a licensed electrician
- The foundation: a concrete pad, wood deck or other solid, level surface
- Exterior paint or waterproof sealer for the yearly upkeep in SunRay's manual
| Model | SunRay Pacific, model 400D6 |
|---|---|
| Brand | SunRay Saunas |
| Sauna type | Far-infrared |
| Placement | Outdoor |
| Capacity | 4 people |
| Exterior dimensions (cabin) | 72" W × 62" D × 88" H (the assembly manual lists 72" × 61.5") |
| Roof footprint | 88" W × 82" D |
| Interior dimensions | 68" W × 57" D × 73" H |
| Interior volume | About 164 cu ft (calculated from the interior dimensions) |
| Bench | For four, with backrest support and cup holders |
| Door and windows | Glass door with a window on each side |
| Wood | Canadian hemlock; painted, weatherproof finish outside |
| Roof | Metal composite |
| Infrared heaters | Far-infrared; SunRay publishes neither the number nor the type |
| Wattage | 4,800 W |
| Maximum temperature | 140°F; SunRay's manual suggests a setting of 104–122°F |
| Heat-up time | Around 30 minutes (SunRay's manual) |
| Controls | Digital panel inside the cabin: power, session timer, thermostat in °F or °C, interior light, color light and Bluetooth music; exterior lights switched from the back of the bench |
| Lighting | LED lighting inside and outside the cabin; seven-color chromotherapy light |
| Audio | Bluetooth sound system |
| Air | Air purification system (as SunRay lists it); roof vent for fresh air |
| Electrical | 240 V (SunRay lists 220–240 V) on a dedicated 30 A circuit and outlet; plug type not stated by SunRay |
| Certification | ETL/CSA certified, as listed by SunRay |
| Weight | 401 lbs (SunRay's listed shipping weight) |
| Warranty | 10-year structural; 1-year parts and electronics (SunRay warranty certificate); residential use only |
What electrical connection does the SunRay Pacific need?
A dedicated 240 V outlet on its own 30 A circuit, the same kind of circuit an electric clothes dryer uses; SunRay lists the supply as 220–240 V. The Pacific's heaters draw 4,800 W, SunRay's D6 manual requires the sauna to be installed on a dedicated circuit, and a licensed electrician runs it. If your electrical panel has no room for another 240 V breaker, your electrician may need to upgrade it first.
SunRay does not state which 240 V plug the Pacific uses, so contact us before the outlet is installed and we will confirm the connection with you. The cabin's own wiring is plug-in: when the bench support goes in, its heater plugs are connected inside the bench cavity, so the circuit and its outlet are the only electrical work on site. Have both ready before the sauna arrives.
Where can the SunRay Pacific be installed?
Outdoors, on a sturdy, level base. SunRay made the Pacific for outdoor placement, with a weatherproof finish on the hemlock and a metal composite roof. The D6 manual lists a concrete pad, a wood deck or another solid surface, rules out setting the sauna directly on the ground, and calls for a floor separator or moisture barrier where the floor would sit on damp ground. Allow space for the 88" × 82" roof footprint, which is larger than the 72" × 62" cabin.
Looking after it outdoors
The D6 manual recommends repainting the Pacific's exterior or treating it with a waterproof sealer every year, and SunRay's warranty certificate requires annual resealing for outdoor saunas sold without a weather cover. The Pacific does not come with one.
How is the SunRay Pacific assembled?
From flat-packed panels, in the order SunRay's D6 series manual sets out. The base goes on a solid, level surface, and the back and side walls get a layer of waterproof sealant along their edges and bottoms; the back wall goes on first, and the side walls buckle to it at each corner. The vertical bench support with its heater slides into slots in the side panels and its plugs are connected inside the bench cavity, then the bench seat is fixed with two 35 mm screws. The front panel with the door latches onto the side panels (the door can be taken off to make the panel easier to handle), and the door handle goes on with two 20 mm Phillips screws.
The backrest support is screwed to the back wall where you want it, the inner and outer roof go on, silicone is run along the middle seam where the metal composite overlaps, and the roof is screwed down at each corner and in the middle before its white plastic cover is peeled off. Silicone on the outside corners and the door threshold finishes the build. SunRay says two people can put it together in about two hours with a Phillips screwdriver or a drill with a Phillips bit; the silicone steps also need a caulking gun. The 240 V connection is work for a licensed electrician.
How is the SunRay Pacific delivered?
The SunRay Pacific ships by LTL freight, with its panels boxed and strapped to a wooden pallet, and SunRay lists its shipping weight at 401 lbs. Delivery is curbside with a lift gate, which lowers the shipment to the driveway; moving it from there to the base is up to you, so plan the route before the truck arrives.
| Freight type | LTL truck; boxed panels on a wooden pallet |
|---|---|
| Delivery point | Curbside, lowered to the driveway by lift gate |
| Shipping weight | 401 lbs (SunRay) |
| Shipping cost | Free within the contiguous US |
| Appointment | Required; someone must be present to inspect and sign |
The carrier will reach out to book the delivery appointment once the shipment reaches their local terminal.
Inspect the shipment before you sign. SunRay's warranty excludes freight damage caused by the carrier, so note any visible damage on the delivery receipt, photograph it, and contact us before you start assembly. SunRay's delivery policy asks for internal damage found after unpacking to be reported within 3 business days of delivery.
The Pacific and the Logan share SunRay's D6 series assembly manual. It gives both models' dimensions and power requirements, the build sequence, the controller and operation, so your electrician can check the requirements before delivery.
SunRay D6 series assembly manual, covering the Pacific (PDF)
This warranty covers all SunRay branded saunas purchased directly from SunRay Saunas or any of its authorized affiliates. This warranty is non-transferable.
Structural Warranty — 7 Years
SunRay warrants the sauna structure against manufacturer defects in materials and workmanship for 7 years from the date of purchase.
What's covered:
- Wooden sauna panels, flooring, ceiling, and glass
- Replacement parts necessary for repair
- If a structural defect cannot be remedied by a replacement part, SunRay may send a full replacement sauna at its sole discretion
Note: Surface cracks in the wood and minor blemishes are normal characteristics of natural wood and are not considered defects.
Parts & Electronics Warranty — 1 Year
All sauna parts, including the heater and electrical components, are guaranteed against defects in materials and workmanship for 1 year from the date of purchase.
- Covers replacement parts only
- Labor costs for replacing a part are not covered
Warranty Terms
-
Applies to the original customer at the original delivery address only
-
Customers must have written consent from SunRay before proceeding with any warranty repair to be reimbursed
-
SunRay has sole responsibility for determining the cause and nature of any warranty claim
-
If a replacement sauna is provided, the customer is responsible for assembly/installation costs of the new unit
What Is NOT Covered
This warranty is voided if the sauna has been subjected to:
- Alteration, neglect, misuse, or abuse
- Freight damage caused by the carrier
- Accidents or acts of God
- Installation, operation, or maintenance not in accordance with the owner's manual
- Commercial use — saunas used in a commercial setting are excluded from all warranty coverage
Disclaimers
- SunRay shall not be liable for any incidental or consequential damages, including loss of use or cost of removal
- Liability under this warranty shall not exceed the original purchase price
- Warranty coverage begins on the original date of purchase and does not extend beyond the stated periods for any reason
Filing a Claim
To file a warranty claim, contact the SunRay Claims Department:
Phone: 800.976.5530
