Logan Outdoor Infrared Sauna · 2-Person

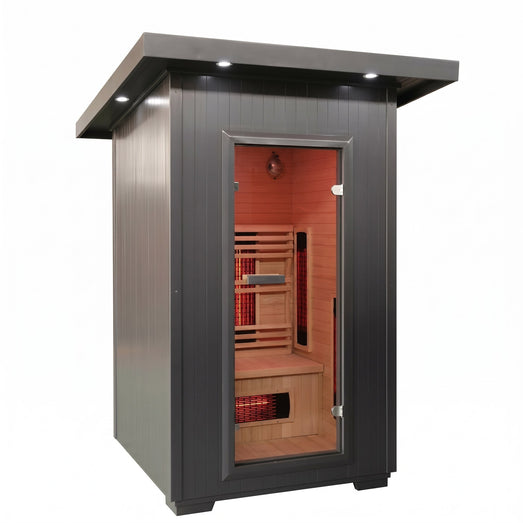

A 2-person outdoor far-infrared sauna in aged Canadian hemlock with a painted, sealed exterior, a metal composite roof and a full-height glass door.
- Far-infrared heat up to 140°F; SunRay's manual allows about 30 minutes to warm up.
- Built for outdoor placement: painted and sealed hemlock under a metal composite roof.
- Runs on a dedicated 240 V, 20 A circuit, connected by a licensed electrician.
- Description
- What's Included?
- Specifications
- Assembly & Installation
- Shipping
- Documents
- SunRay Warranty
- FAQs
The SunRay Logan (model 200D6) is a 2-person outdoor far-infrared sauna built from aged Canadian hemlock, with a weather-resistant painted and sealed exterior, a metal composite roof and a full-height glass door. It measures 49" W × 49" D × 88" H as a cabin, with a 66" × 69" roof footprint, and 45" W × 45" D × 73" H inside. Its far-infrared heaters draw 2,800 W and reach 140°F on a dedicated 240 V, 20 A circuit. SunRay lists the Logan at 361 lbs, and it ships by LTL freight as a kit for on-site assembly.
The Logan is the 2-person model in SunRay's modern outdoor infrared series. The 4-person SunRay Pacific is the larger version, at 72" × 62" with a 4,800 W system on a 30 A circuit. For other sizes and brands, see our outdoor infrared saunas.
How the SunRay Logan heats
The Logan uses far-infrared heaters and runs at lower air temperatures than a traditional sauna: SunRay rates it to 140°F.

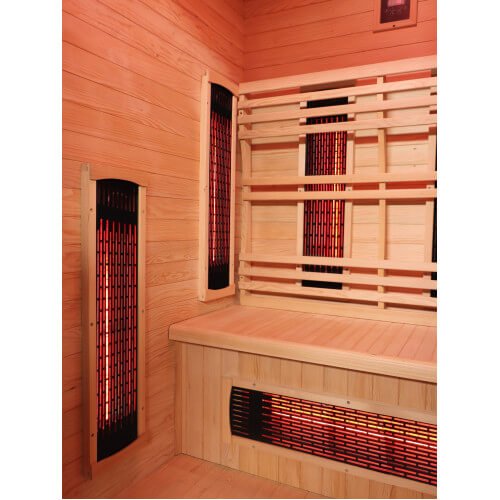

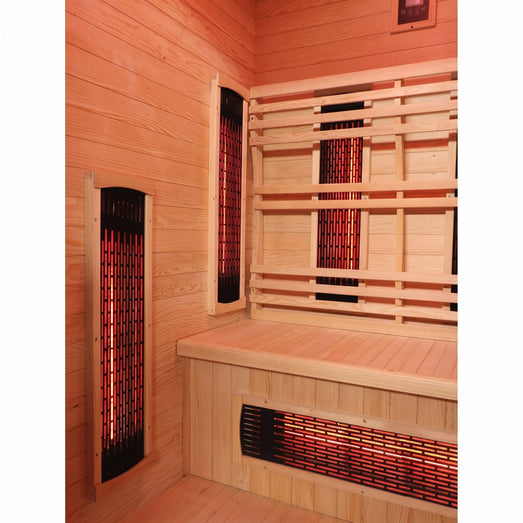

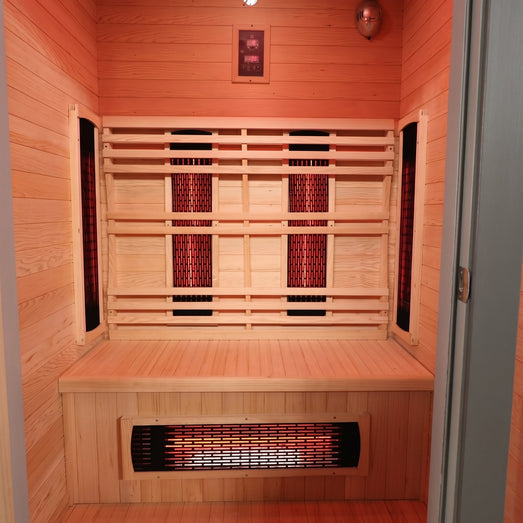

- Far-infrared heaters: 2,800 W in total. SunRay does not publish the number or type of heaters.
- Heat: up to 140°F. SunRay's manual recommends a setting of 104–122°F and allows about 30 minutes to warm up.

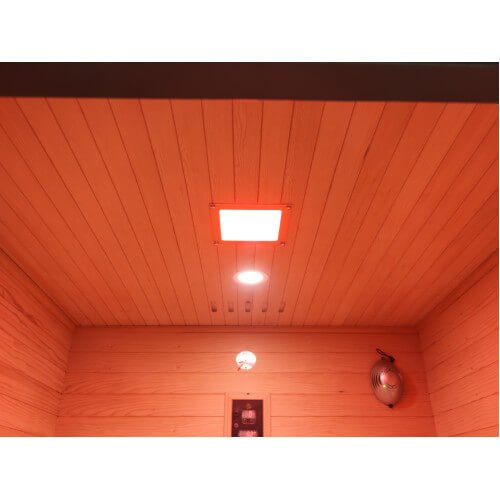

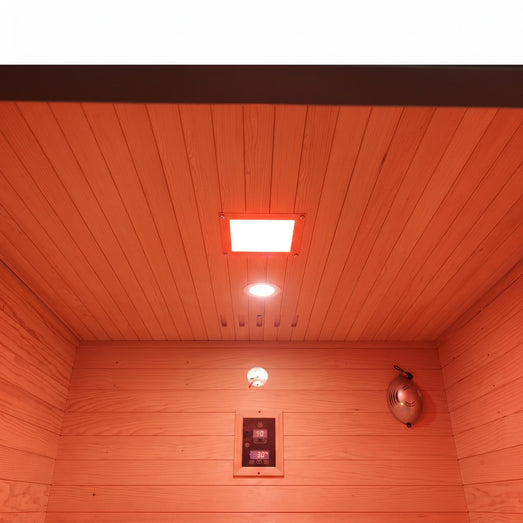

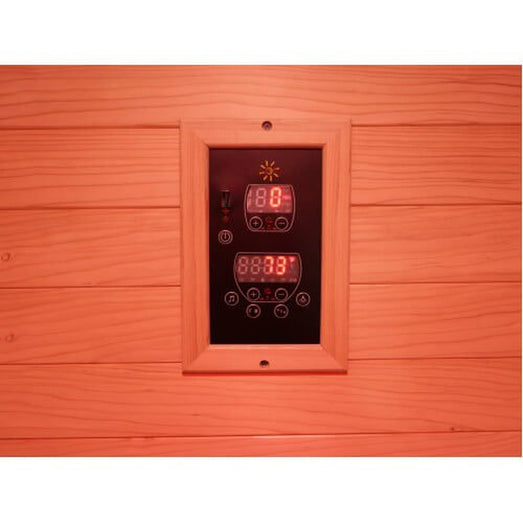

- Controls: a digital panel inside the cabin for power, a session timer, the thermostat (switchable between °F and °C), the interior light, the color light and Bluetooth music. At the set temperature, the heaters cycle on and off to hold it. The exterior lights have their own switch on the back of the bench.
- Roof vent: opens for fresh air during a session.
- Lighting: interior and exterior LED lighting, with chromotherapy lighting inside that cycles through seven colors.
- Audio: a Bluetooth sound system.
- Air purification system, as SunRay lists it.

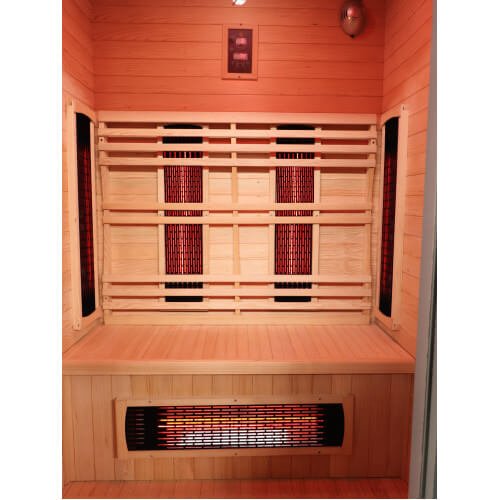

- Seating: a bench for two, with cup holders.
- Cabin: aged Canadian hemlock with a weather-resistant paint and sealant, under a metal composite roof.
What comes with the SunRay Logan?
The SunRay Logan ships as a complete outdoor infrared sauna kit: the hemlock cabin panels with their painted, sealed finish, the glass door, the metal composite roof, the far-infrared heaters, the control panel, the lighting, the sound system, the air purification system, the bench and SunRay's assembly manual. The 240 V circuit, its connection and the foundation are not included.
Included in the kit
Cabin and roof
- Aged Canadian hemlock wall panels with a weather-resistant painted and sealed finish

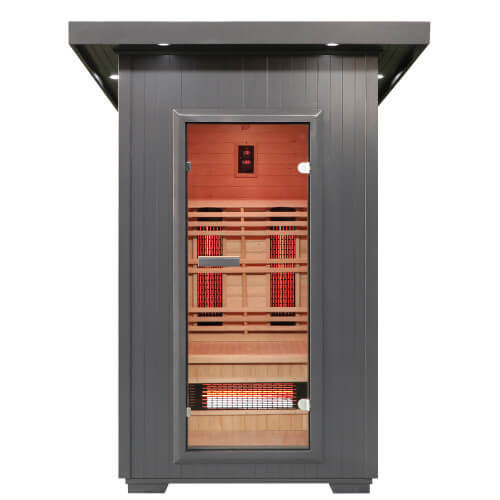

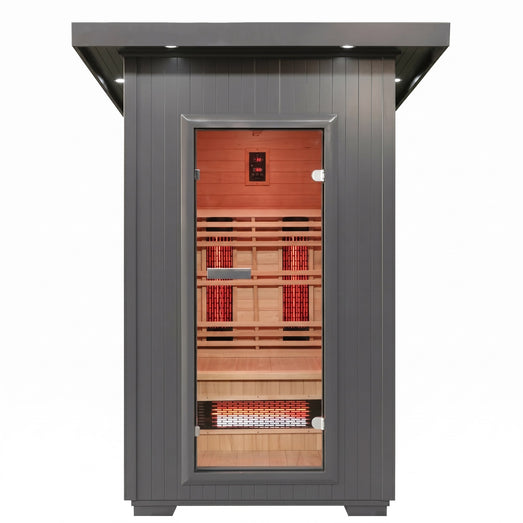

- Front panel with a full-height glass door
- Metal composite roof
Heat and controls
- Far-infrared heaters, 2,800 W in total
- Digital control panel
- Roof vent
Interior
- Bench for two, with cup holders
- Interior and exterior LED lighting
- Color-changing chromotherapy lighting
- Bluetooth sound system
- Air purification system
Documentation
- SunRay's D6 series assembly manual
Not included — arranged separately
- A dedicated 240 V, 20 A circuit and its connection, by a licensed electrician
- The foundation: a level concrete pad, wood deck or other solid surface
- Exterior paint or waterproof sealer for the yearly maintenance SunRay's manual calls for
| Model | SunRay Logan, model 200D6 |
|---|---|
| Brand | SunRay Saunas |
| Sauna type | Far-infrared |
| Placement | Outdoor |
| Capacity | 2 people |
| Exterior dimensions (cabin) | 49" W × 49" D × 88" H |
| Roof footprint | 66" × 69" |
| Interior dimensions | 45" W × 45" D × 73" H |
| Interior volume | About 86 cu ft (calculated from the interior dimensions) |
| Bench | For two, with cup holders |
| Door | Full-height glass door |
| Wood | Aged Canadian hemlock; weather-resistant paint and sealant outside |
| Roof | Metal composite |
| Infrared heaters | Far-infrared (number and type not published by SunRay) |
| Wattage | 2,800 W |
| Maximum temperature | 140°F; SunRay's manual recommends a setting of 104–122°F |
| Heat-up time | About 30 minutes (SunRay's manual) |
| Controls | Digital panel: power, timer, thermostat (°F or °C), interior light, color light, Bluetooth music; separate switch for the exterior lights |
| Lighting | Interior and exterior LED; chromotherapy lighting in seven colors inside |
| Audio | Bluetooth sound system |
| Air | Air purification system; roof vent that opens for fresh air |
| Electrical | 240 V (SunRay lists 220–240 V), 20 A dedicated circuit and outlet; SunRay does not state the plug type |
| Certification | ETL/CSA certified, as listed by SunRay |
| Weight | 361 lbs (SunRay's listed shipping weight) |
| Warranty | 10-year structural; 1-year parts and electronics (SunRay warranty certificate); residential use only |
What electrical connection does the SunRay Logan need?
A dedicated 240 V outlet on its own 20 A circuit, the same kind of circuit an electric clothes dryer uses; SunRay lists it as 220–240 V. The Logan's heaters draw 2,800 W, nothing else can share the circuit, and SunRay requires it to be run by a licensed electrician. If your electrical panel has no room for another 240 V breaker, your electrician may need to upgrade it first.
SunRay does not state which 240 V plug the Logan uses, so contact us before your electrician installs the outlet and we will confirm the connection with you. Inside the cabin everything is plug-in: during assembly the heaters plug together inside the bench cavity, so the only site wiring is the supply circuit and its outlet. Have them in place before delivery day.
Where can the SunRay Logan be installed?

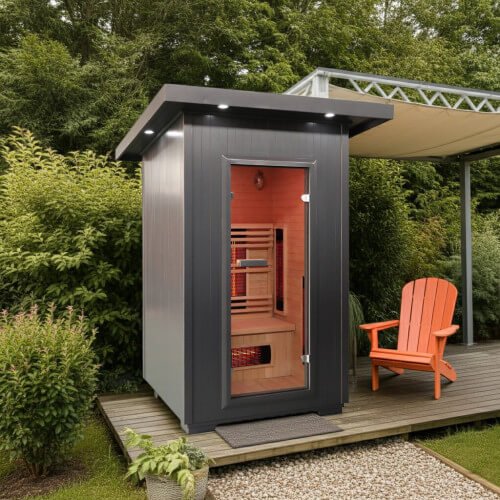

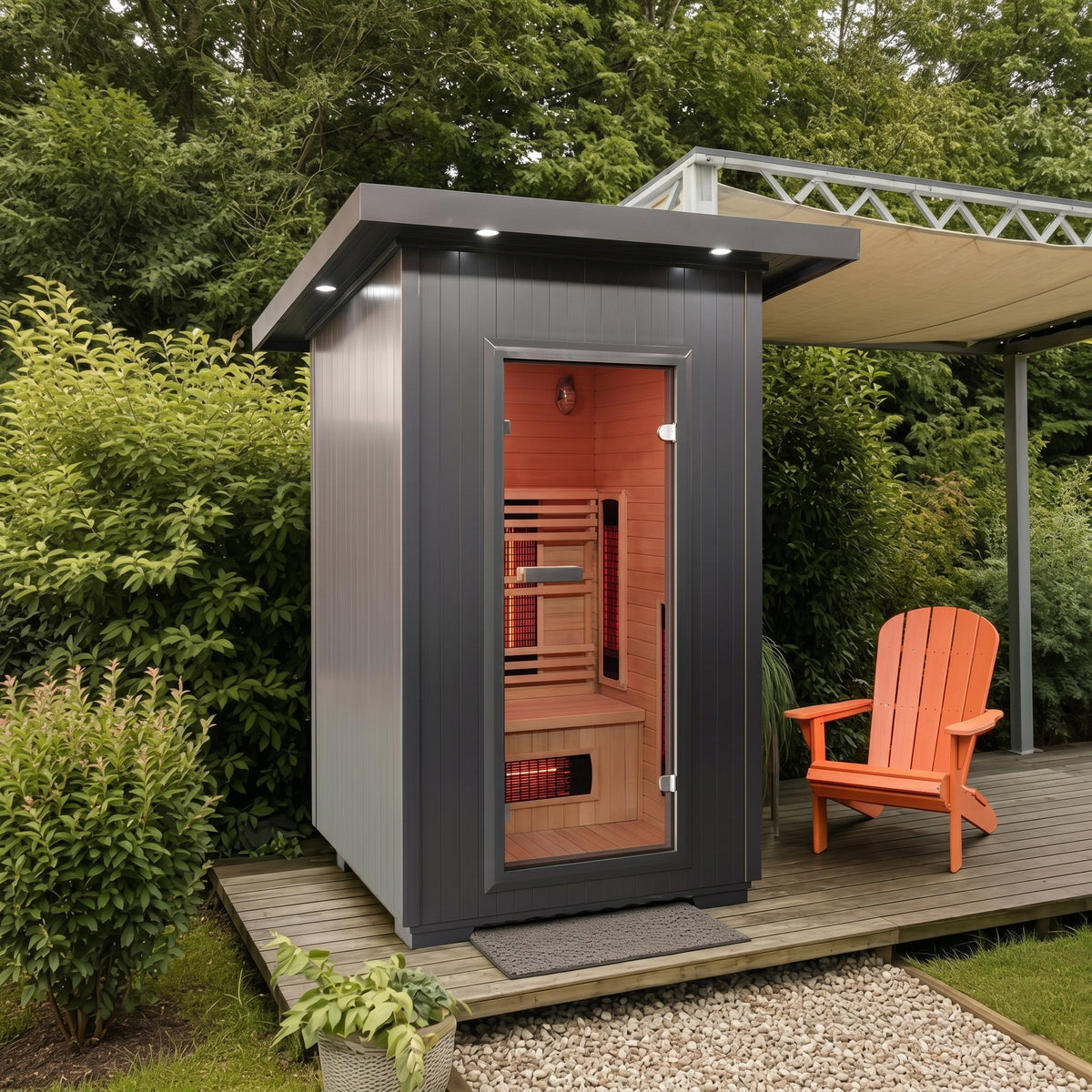

Outdoors, on a sturdy, level surface. SunRay built the Logan as an outdoor sauna, with a painted and sealed hemlock exterior and a metal composite roof. SunRay's manual names a concrete pad, a wood deck or another solid surface, says the sauna should never sit directly on the ground, and recommends a floor separator where the ground is damp. The site needs room for the 66" × 69" roof footprint, not just the 49" × 49" cabin.
Looking after it outdoors
SunRay's manual calls for the exterior to be repainted or treated with a waterproof sealer every year, and SunRay's warranty certificate makes annual resealing a condition of cover for outdoor saunas sold without a weather cover. The Logan does not include one.
How is the SunRay Logan assembled?
From flat-packed panels, following SunRay's D6 series manual. The manual's sequence: set the base on a solid, level surface, apply sealant to the wall edges and bottoms, then fit the back wall, the side walls, the bench supports and seat, the front panel with the door, and the backrest support (35 mm screws), and finish with the inner and outer roof, sealing the metal composite overlap with silicone. SunRay says two people can assemble it in about two hours with a Phillips screwdriver or a drill with a Phillips bit. The electrical connection is work for a licensed electrician.
How is the SunRay Logan delivered?
The SunRay Logan ships by LTL freight, with its panels boxed and strapped to a wooden pallet, and SunRay lists its shipping weight at 361 lbs. Delivery is curbside with a lift gate, which lowers the shipment to the driveway; moving it from there to the base is up to you, so plan the route before the truck arrives.
| Freight type | LTL truck; boxed panels on a wooden pallet |
|---|---|
| Delivery point | Curbside, lowered to the driveway by lift gate |
| Shipping weight | 361 lbs (SunRay) |
| Shipping cost | Free within the contiguous US |
| Appointment | Required; someone must be present to inspect and sign |
The carrier will reach out to book the delivery appointment once the shipment reaches their local terminal.
Inspect the shipment before you sign. SunRay's warranty excludes freight damage caused by the carrier, so note any visible damage on the delivery receipt, photograph it, and contact us before you start assembly. SunRay's delivery policy asks for internal damage found after unpacking to be reported within 3 business days of delivery.
SunRay's D6 series assembly manual covers the Logan and the Pacific: the parts, the build sequence, the electrical requirements and operation, so your electrician can review it before delivery.
SunRay Saunas Warranty
This warranty covers all SunRay branded saunas purchased directly from SunRay Saunas or any of its authorized affiliates. This warranty is non-transferable.
Structural Warranty — 10 Years
SunRay warrants the sauna structure against manufacturer defects in materials and workmanship for 10 years from the date of purchase.
What's covered:
- Wooden sauna panels, flooring, ceiling, and glass
- Replacement parts necessary for repair
- If a structural defect cannot be remedied by a replacement part, SunRay may send a full replacement sauna at its sole discretion
Note: Surface cracks in the wood and minor blemishes are normal characteristics of natural wood and are not considered defects.
Parts & Electronics Warranty — 1 Year
All sauna parts, including the heater and electrical components, are guaranteed against defects in materials and workmanship for 1 year from the date of purchase.
- Covers replacement parts only
- Labor costs for replacing a part are not covered
Warranty Terms
-
Applies to the original customer at the original delivery address only
-
Customers must have written consent from SunRay before proceeding with any warranty repair to be reimbursed
-
SunRay has sole responsibility for determining the cause and nature of any warranty claim
-
If a replacement sauna is provided, the customer is responsible for assembly/installation costs of the new unit
What Is NOT Covered
This warranty is voided if the sauna has been subjected to:
- Alteration, neglect, misuse, or abuse
- Freight damage caused by the carrier
- Accidents or acts of God
- Installation, operation, or maintenance not in accordance with the owner's manual
- Commercial use — saunas used in a commercial setting are excluded from all warranty coverage
Disclaimers
- SunRay shall not be liable for any incidental or consequential damages, including loss of use or cost of removal
- Liability under this warranty shall not exceed the original purchase price
- Warranty coverage begins on the original date of purchase and does not extend beyond the stated periods for any reason
Filing a Claim
To file a warranty claim, contact the SunRay Claims Department:
Phone: 800.976.5530
Electrical Requirements
Indoor traditional saunas require a dedicated 240V circuit in order to accommodate the high heat output of the heater. Please reference the product specification sheet to determine the specific requirements for your sauna.
Ventilation Requirements
Indoor traditional saunas are equipped with an air vent in the ceiling. This air vent is designed to help circulate heat throughout the sauna during the heat-up phase and to allow moisture to leave the sauna if you are adding humidity and using it as a steam sauna. The sauna cabin air vent also allows you to lower the sauna temperature without opening the door if the temperature inside the sauna becomes too hot.
Maximum Temperature
SunRay indoor traditional saunas have a maximum operating temperature of 170 degrees Fahrenheit. The normal operating range is 160-170 degrees Fahrenheit.
Traditional Sauna Shipping
All traditional saunas are shipped via truck freight with curbside and lift-gate delivery service unless otherwise specified. SunRay traditional saunas and steam saunas are shipped on a wooden pallet with removable bracing to protect the sauna boxes. Please contact us if you have special requirements for delivery. The trucking company will call you to schedule a delivery appointment.
Sauna Warranty
SunRay home saunas carry a 10-year structural warranty and 1-year parts warranty. All SunRay sauna parts, including electronic parts and the electric heater, are guaranteed for 1 year against defects.
Electrical Connection
Indoor traditional saunas for the home come with a power cord attached to the heater. The power cord does not have a plug. It is designed to be hard-wired into a junction box or you can put a plug on the end of the power cord. Please note that the power requirements differ by sauna model. Consult your traditional sauna user manual for the specific power requirements.
Assembly and Installation
An indoor traditional sauna is easily assembled by two adults. The typical assembly time is 1 hour. No special tools are required for the sauna to be assembled.
Cleaning Your Home Sauna
Your home sauna should be cleaned a minimum of every 3-4 months or more frequently depending on usage. To clean the interior of your home sauna, use a mixture of baking soda and water (3 teaspoons baking soda to 1 gallon of warm water). Using a clean towel, wipe down the interior of the sauna, focusing on where sweat accumulates. Let the area dry with the sauna door open. Use a standard ammonia-based glass cleaner to clean the sauna doors and windows.
Traditional Sauna Origin
SunRay traditional sauna cabins are constructed from Hemlock or Cedar wood imported from Canada. SunRay's manufacturing facility is in China and its distribution facility is in the United States. Warranty claims are handled by SunRay Saunas, based in Richmond, VA, and Topture helps you coordinate them.
Sauna Specification Sheets
Each SunRay sauna has a specification sheet with all the details of the kit, including the power requirements. Contact us if you would like a copy.
Placing an Indoor Sauna Outdoors
SunRay indoor traditional saunas are not rated for outdoor use. They have an open top that is not protected from the elements. If you place the indoor sauna outdoors, it must be covered and protected from the elements. Indoor saunas that are placed outdoors will not be covered under SunRay's sauna warranty.
Sauna Heating Time
The average heating time for traditional home saunas ranges between 30-45 minutes depending on the room temperature, size of the sauna, and the heater type.
Ceiling Clearance
You need at least 3-4 inches between the top of the home sauna and the ceiling. This allows the electrical components on the top of the sauna to receive the appropriate amount of airflow.
Sauna Stones
SunRay indoor traditional saunas come with heater stones that sit on top of the heater elements. The heater stones are used to help radiate heat throughout the sauna and can be used to create humidity inside the sauna. DO NOT pour excess water on the heater stones as it will cause damage to the heater. To create humidity in the sauna, simply drizzle a small amount of water over the stones once they are hot.
Sauna Heater Placement
All indoor traditional saunas are equipped with either a wall mounting bracket or cradle for the heater to sit in. DO NOT place the sauna heater directly on the floor as it could become a fire hazard. The sauna must be elevated off the floor to create airflow through the heating elements.
Sauna Lighting
All indoor traditional saunas come with ambient dome lighting. Saunas with dome lighting can be connected to the heater so that the light turns off when the heater turns off. Alternatively, you can wire the lighting separately on its own switch. Consult your sauna heating wiring guide for instructions on how to wire your sauna light into the heater.
