HUUM HIVE Mini 9kW Electric Sauna Heater Package
A 9kW HUUM HIVE Mini electric heater package — 330 lbs of stones for softer, longer steam, with your choice of UKU local or Wi-Fi control.
- 330 lbs of stones packed in: softer, longer-lasting steam.
- Air tunnel cuts heat-up time by 25%, extends element life.
- UKU controller included — set temp, timer, or delay up to 48 hrs.
See What Topture Customers Are Saying…
“This has completely transformed my workspace. The natural light is a game changer!”
“Built it in a weekend with my brother. Glass front is the move — feels like a real room, not a closet.”
“I love the design and how easy it was to set up. Highly recommend for any home owner.”
- Description
- Features
- Package Includes
- Specifications
- Documents
- Warranty

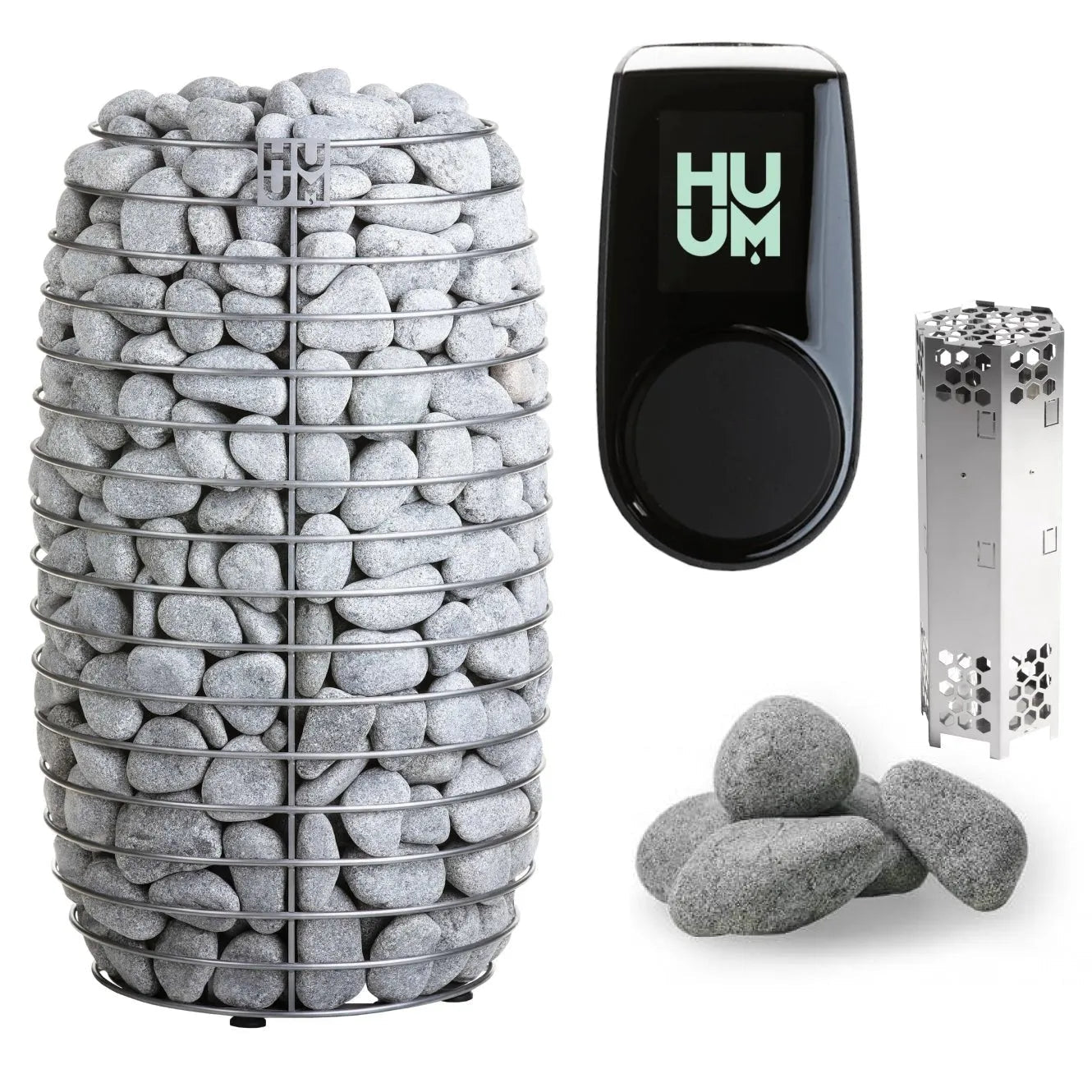

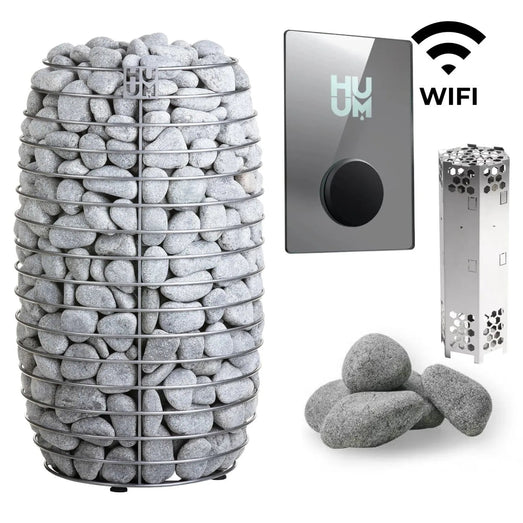

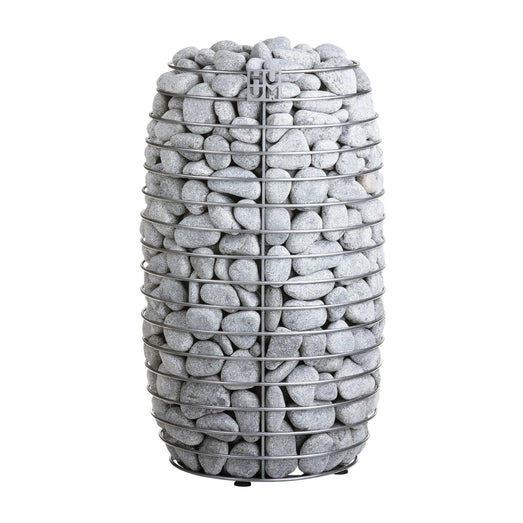

Complete HUUM HIVE Mini 9kW 240V/1PH Electric Sauna Heater Package
The HUUM HIVE Mini 9kW sauna heater package blends traditional design with modern elegance, offering everything you need to create your ideal sauna experience. Engineered for sauna rooms up to 530 cubic feet (CF), this all-inclusive package features the free-standing HIVE Mini 9kW sauna heater, UKU control system (with optional Wi-Fi), and a substantial 330-pound stone capacity.
Designed for high capacity and pure performance, the large stone capacity ensures maximum thermal efficiency, consistent soft heat, and long-lasting hot steam. With its precision engineering and impressive heat retention, the HUUM HIVE Mini series delivers an exceptional home sauna experience.

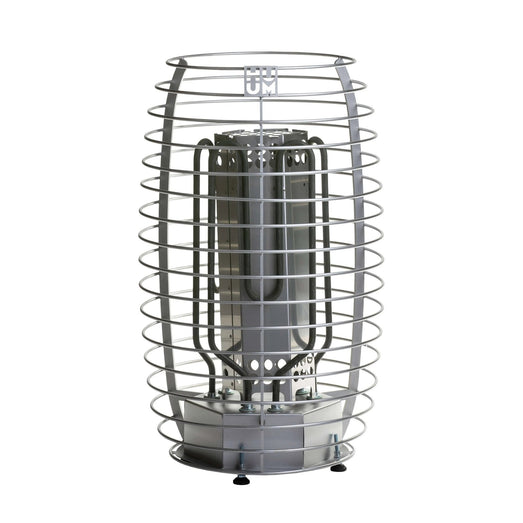

HUUM has updated its HIVE and HIVE MINI sauna heaters to include a HUUM Air Tunnel. This stainless-steel housing, positioned at the center of the heater will speed up heating by 25%, enhance air circulation, and increase the lifespan of the heating elements.
- Elegant design
- 240V/1PH operation
- For sauna rooms from 282 to 530 cu. ft.
- Works with UKU controls
- 330 pound stone capacity

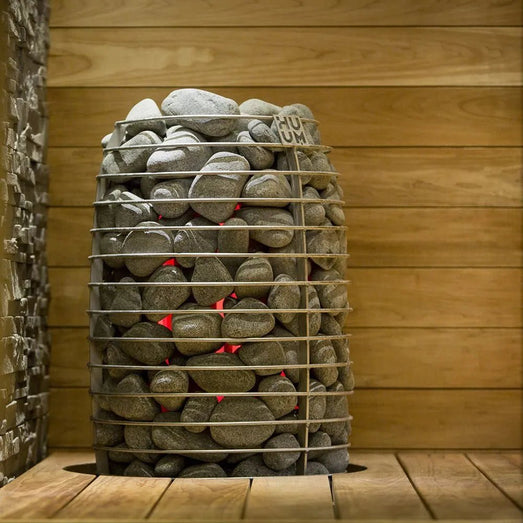

- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Air tunnel shortens heat-up time and increases life of heating elements
- Designed, engineered, and made in Estonia
- Dimensions: 18.1"Diameter (460mm) x 29.5"H (750mm)
- SGS listed
- Limited 3-year warranty (excluding elements)
UKU
- Control display panel (appearance depends on variant you select)
- Multiple Color Options available
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance

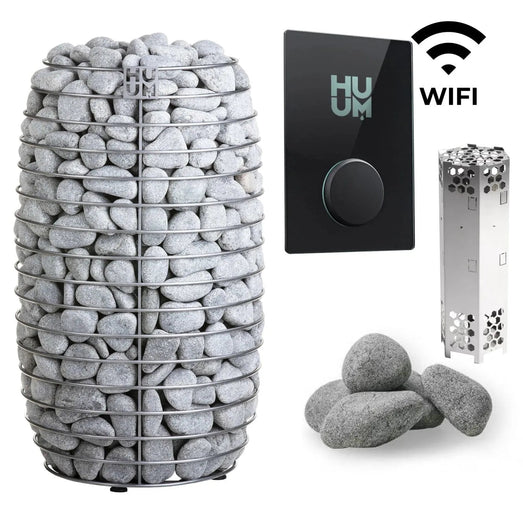

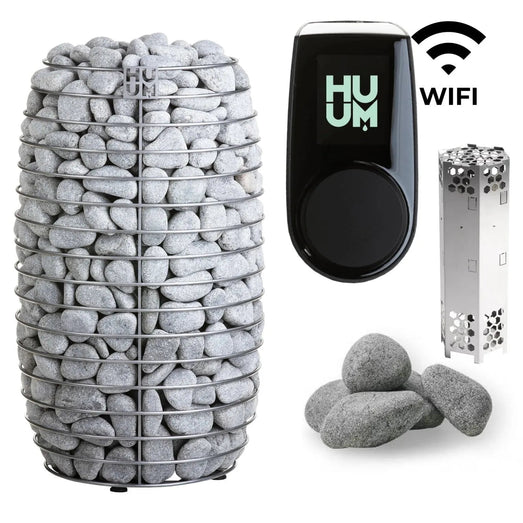

- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24
- HUUM 2-4" rounded olivine sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
HIVE Mini 9.0kW Sauna Heater
- 9.0kW Sauna Heater
- Adjustable Legs
- Pre-Installed HIVE Air Tunnel
- Installation and Operation Manual
- 3-Year Limited Warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 3-Year Limited Warranty
Stones 24
- 330 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
HUUM Air Tunnel
- Compatible with all HIVE heaters
- Shortens heat-up time
- Increases life of heating elements
- Full stone load still required — the air tunnel does not reduce the quantity of stones
- Constructed of stainless steel
| Heater Size | 6 kW | 9 kW | 10.5 kW |
| Sauna Room |
177-318 cu. ft. (5-9 m³) |
283-460 cu. ft. (8-13 m³) |
354-566 cu. ft. (10-16 m³) |
| Stone Capacity |
330 lbs (150 kg) |
330 lbs (150 kg) |
330 lbs (150 kg) |
| Height |
29.53" (750mm) |
29.53" (750mm) |
29.53" (750mm) |
| Diameter | 18.11 in (460 mm) |
18.11 in (460 mm) |
18.11 in (460 mm) |
| Weight | 35.2 lb (16 kg) |
39.7 lbs (18 kg) | 39.7 lbs (18 kg) |
Safety Distance
| Heater Size | 6 kW | 9 kW | 10.5 kW |
| A | 2.36 in (60 mm) | 3.54 in (90 mm) | 4.33 in (110 mm) |
| B | 22.83 in (580 mm) | 25.2 in (640 mm) | 26.77 in (680 mm) |
Power
Each HIVE Mini runs on a single dedicated circuit. Figures below are taken from the current HUUM installation & operation manual. Installation must be carried out by a licensed electrician, and local code applies wherever it is stricter.
| 240V Supply | Mini 6 | Mini 9 | Mini 10.5 |
| Output | 6 kW | 9 kW | 10.5 kW |
| Current Draw | 25 A | 37.5 A | 43.75 A |
| Circuit Breaker | 30 A | 50 A | 50 A |
| Min. Wire Size | 10 AWG | 6 AWG | 6 AWG |
The same heaters run on a 208V supply at reduced output, which also reduces the room they can heat:
| 208V Supply | Mini 6 | Mini 9 | Mini 10.5 |
| Output | 4.5 kW | 6.75 kW | 7.9 kW |
| Current Draw | 21.63 A | 32.45 A | 37.98 A |
| Circuit Breaker | 30 A | 40 A | 50 A |
| Min. Wire Size | 10 AWG | 8 AWG | 6 AWG |
| Sauna Room | 142-248 cu. ft. (4-7 m³) |
212-354 cu. ft. (6-10 m³) |
265-424 cu. ft. (7.5-12 m³) |
UKU Control
| Minimum Temperature Setting | 104°F |
| Maximum Temperature Setting | 230°F |
| Shipping Weight | 20 lbs |
| Console Dimensions | |
| Width | 2.2" (55mm) |
| Depth | 0.9" (22mm) |
| Height | 4.1" (105mm) |
| Main Module Dimensions | |
| Width | 3.5" (90mm) |
| Depth | 2.3" (58mm) |
| Height | 5.6" (142mm) |
| Display Panel Cable | |
| Length | 9.8 ft |
| AWG | 22 |
| Temp Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
| Door Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
