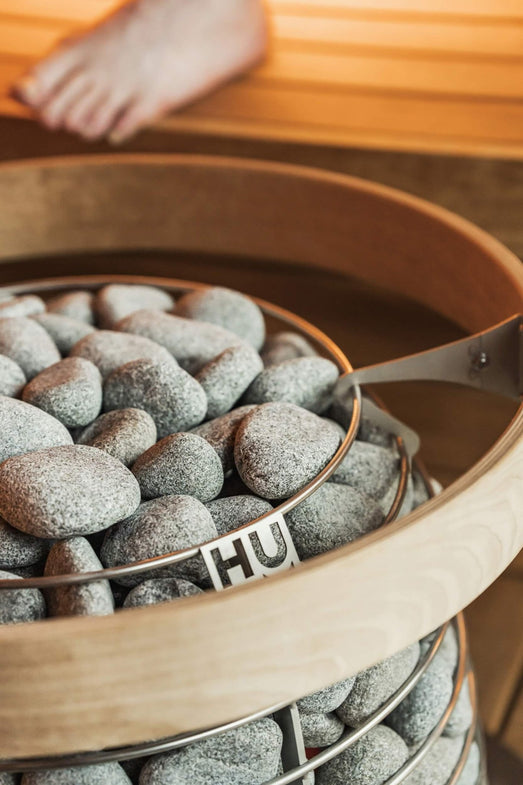

HUUM HIVE 15kW Electric Sauna Heater Package
HUUM HIVE 15 kW heater, UKU control, UKU Extension Box and 16 boxes of stones in one package, for 530–813 cu ft sauna rooms
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
- Heater, UKU control, Extension Box and stones matched in one order
- 551 lb (250 kg) stone capacity around a stainless-steel air tunnel
- Wi-Fi options add HUUM app control
- Description
- What's Included
- Specifications
- Installation
- Documents
- Warranty
What is the HUUM HIVE 15 kW electric heater package?

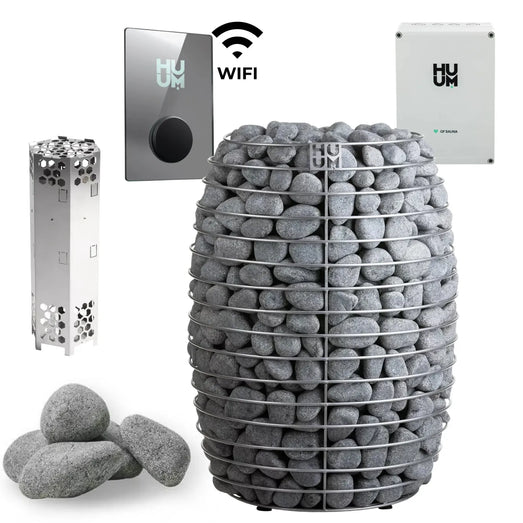

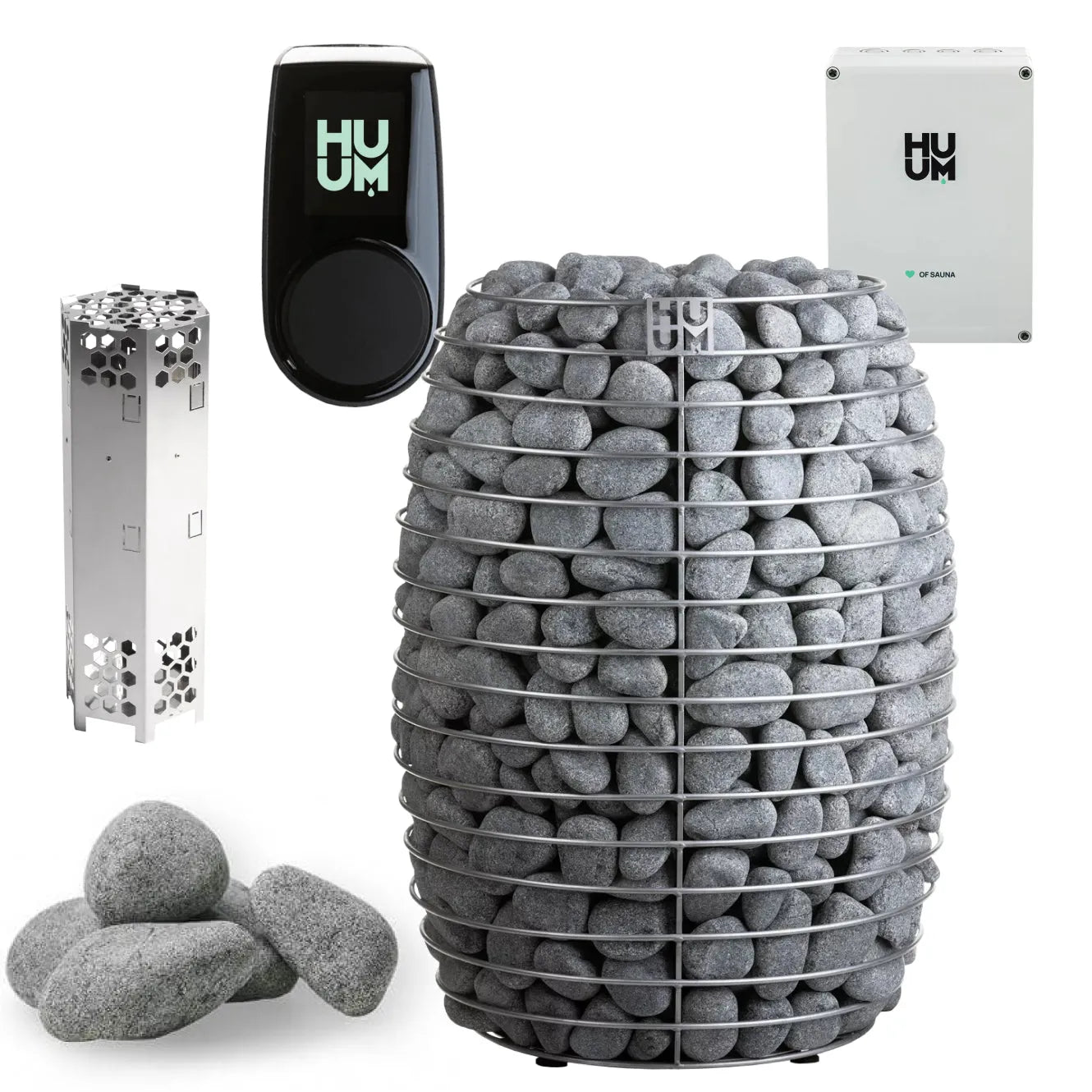

The HUUM HIVE 15 kW package combines four parts: the HUUM HIVE 15 floor-standing electric sauna heater, a HUUM UKU control (UKU Local, or UKU Wi-Fi with a black, glass or mirror panel), the HUUM UKU Extension Box that the UKU needs to run a heater above 11 kW, and 16 boxes × 33 lb of HUUM Stones 24. It is sized for sauna rooms of 530–813 cu ft at 240 V (389–601 cu ft at 208 V). The package price is the sum of the four parts; ordering them together means the stone quantity, the control and the Extension Box are already matched to the heater.

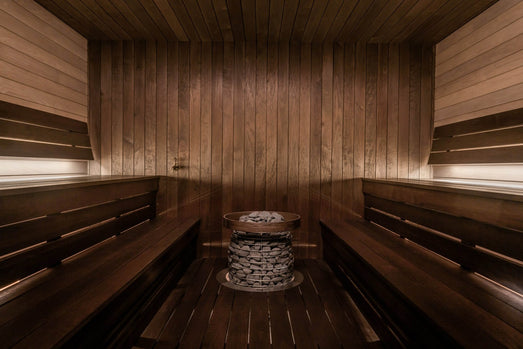

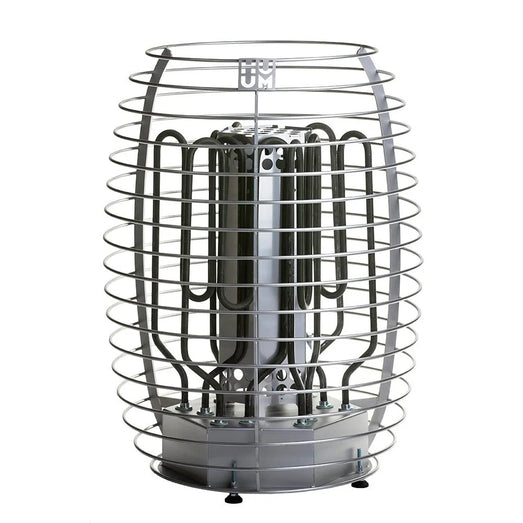

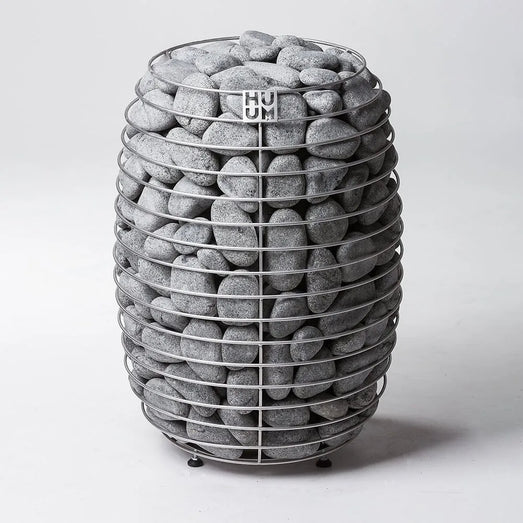

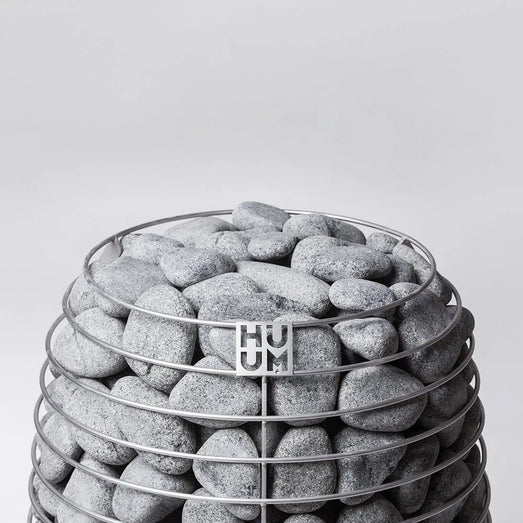

The HIVE holds 551 lb (250 kg) of stones laid around and between its heating elements, and every current HIVE ships with HUUM's stainless-steel air tunnel. HUUM's manual says the air tunnel moves air through the heater to shorten the time the sauna takes to heat, keeps the heating elements from overheating and supports them. The full stone load is still required.
Which UKU control should I choose?

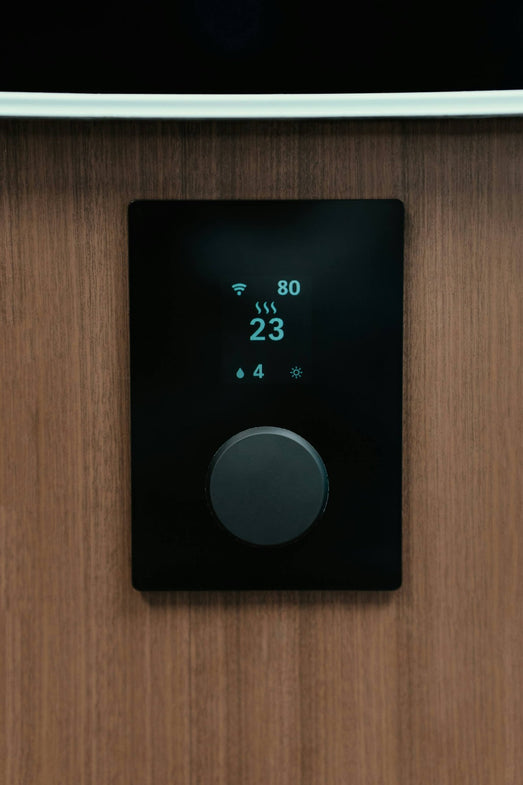

All four options run the HUUM HIVE 15 kW through the included Extension Box and set temperature, heating time and a start timer from the wall panel. The Wi-Fi options add the HUUM app, so you can start the sauna on your way home. The black CLASSIC panel must be mounted outside the sauna room. The glass and mirror panels are recessed into the wall, or mounted on the HUUM UKU Surface Frame where the wall can't take a recess, and HUUM allows them inside the sauna room if they sit away from the heater, with the top edge no higher than 40" above the floor and at least 20" from any exhaust vent (on the other side of the door if the vent is in the door wall).
| Panel | App control | Where the panel can go | |
|---|---|---|---|
| UKU Local Black | black CLASSIC panel (plastic) | Wall panel only; no app | Outside the sauna room (outdoors, HUUM recommends a weatherproof box) |
| UKU Wi-Fi Black | black CLASSIC panel (plastic) | HUUM app over 2.4 GHz Wi-Fi | Outside the sauna room (outdoors, HUUM recommends a weatherproof box) |
| UKU Wi-Fi Glass | black glass panel | HUUM app over 2.4 GHz Wi-Fi | Inside the sauna room (away from the heater, top edge no higher than 40" above the floor, at least 20" from an exhaust vent) or outside it; recessed, or on the UKU Surface Frame |
| UKU Wi-Fi Mirror | mirror-finish glass panel | HUUM app over 2.4 GHz Wi-Fi | Inside the sauna room (away from the heater, top edge no higher than 40" above the floor, at least 20" from an exhaust vent) or outside it; recessed, or on the UKU Surface Frame |

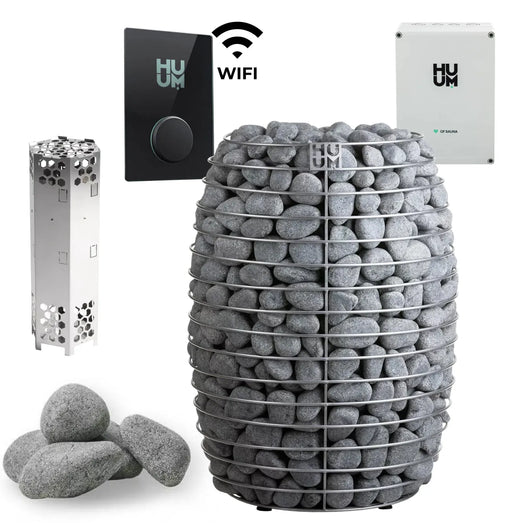

What's included in the HUUM HIVE 15 kW package?
HUUM HIVE 15 kW heater
- HUUM HIVE electric sauna heater, 15 kW
- Four adjustable legs
- Stainless-steel air tunnel
- Installation and operation manual
HUUM UKU control
- UKU control panel (black plastic, black glass or mirror glass, by the option you choose)
- UKU main module (Wi-Fi models connect to the HUUM app)
- Temperature (safety) sensor, mounted above the heater
- Door sensor with magnet
- Cables for the control panel and sensors
- Installation and user manual
The Wi-Fi Black and Wi-Fi Mirror controls ship as HUUM's UKU 4.2, whose kit also includes a bench sensor that reads temperature and humidity at bench height; HUUM recommends installing it, and with it fitted the highest temperature setting is 194°F (90°C). The Local Black and Wi-Fi Glass controls still ship as UKU 4.1, with the one temperature sensor, until the remaining 4.1 stock runs out.
HUUM UKU Extension Box
- HUUM UKU Extension Box (EXTENSION BOX 63, HUUM part H2003012), which lets the UKU run heaters up to 18 kW
HUUM Stones 24
- 16 boxes × 33 lb of rounded 2–4" (5–10 cm) HUUM Stones 24, the quantity in HUUM's HIVE stone table
What you still need
- A heat-resistant power cable, connected by a licensed electrician, and a separate circuit breaker for the Extension Box

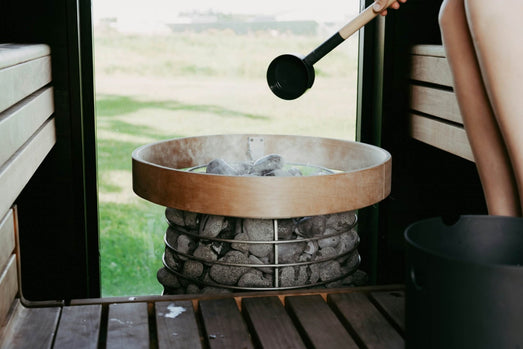

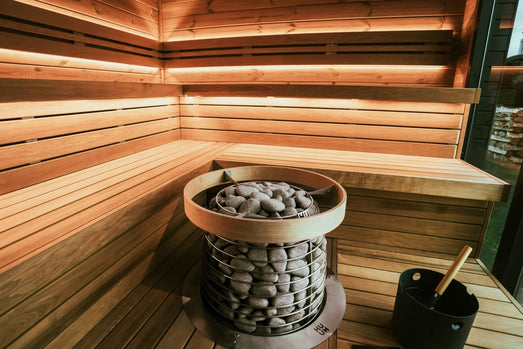

- Optional: HUUM Rail H safety rail, HUUM Flange H embedding flange or HUUM Reflect H reflector
HUUM HIVE 15 kW heater specifications
| HUUM model | HIVE 15 |
|---|---|
| Sauna room volume | 530–813 cu ft (15–23 m³) at 240 V; 389–601 cu ft (11–17 m³) at 208 V; add 3.3 cu ft per sq ft of uninsulated brick, tile or glass wall |
| Power supply at 240 V | 15 kW, single phase; 62.5 A; two supply circuits |
| Power supply at 208 V | 11.25 kW, single phase; 54.09 A |
| Circuit breaker / minimum wire | 240 V: 50 + 50 A / 6 + 6 AWG; 208 V: 40 + 40 A / 8 + 8 AWG |
| Dimensions | 29.53" H × 22.05" diameter (750 × 560 mm) |
| Heater weight | 50.7 lb (23 kg) |
| Stones | Included: 16 boxes × 33 lb of HUUM Stones 24 (2–4"); the heater's capacity is 551 lb (250 kg) |
| Heat-up time | About one hour (HUUM) |
| Made in | Estonia |
| HUUM part number | H1003022 |
| Power cable and wiring | Not included: a heat-resistant power cable and a licensed electrician's work |
| Optional accessories | Not included: Rail H, Flange H and Reflect H |
| Warranty | Heater: 3 years private use, 1 year commercial use (HUUM); heating elements, stones and sensors are excluded. UKU: 3 years private use, 1 year commercial use (HUUM); sensors are excluded |
All three HIVE sizes, as heaters and as packages, are in the HUUM HIVE collection.
HUUM UKU control specifications
| Heater power | The HUUM HIVE 15 kW is over the UKU's 11 kW limit, so this package includes the HUUM UKU Extension Box (up to 18 kW) |
|---|---|
| Temperature setting | From 104°F (40°C) up to 230°F (110°C) with the included safety sensor; UKU 4.2 kits also include a bench sensor, and with it fitted the maximum setting is 194°F (90°C) |
| Heating time | 3 or 6 hours for a home sauna (12 hours semi-public, 18 hours public) |
| App control | UKU Wi-Fi options: the HUUM app, over 2.4 GHz Wi-Fi only (802.11 b/g/n). UKU Local: wall panel only, no app |
| Door sensor | Must be installed (HUUM requires it); included in the package |
| Outdoor installation (optional, not included) | The main module goes outside the sauna room. Outdoors, HUUM recommends a box to shield the black panel from the weather, and weatherproof housing can be added for the main module; SaunaLife's Sauna Gear 300 (panel) and 302 (main module) enclosures are offered as add-ons |
| Other safety features | Overheating protection in the included temperature sensor, child lock; the Wi-Fi options also ask for a safety confirmation at the panel before the sauna can be started remotely |
| Sauna light or fan (optional, not included) | The UKU can switch one you add: up to 100 W incandescent lamp or fan, or 50 W LED, at 120 V |
| Steamer (optional, not included) | The UKU can run one you add: 1,250 W at 120 V or 2,500 W at 240 V; steam switches off above 194°F (90°C) |
HUUM UKU Extension Box specifications
| In this package | Included; the HUUM HIVE 15 kW is over the UKU's 11 kW limit, so the UKU runs it through the Extension Box |
|---|---|
| Rating | 240 V 2~, 2 × 63 A, 60 Hz (EXTENSION BOX 63) |
| Enclosure | IPX4 |
| Used with | HUUM UKU Local and UKU Wi-Fi, to run heaters over 11 kW |
| Location | Outside the sauna room, near the UKU main module, fixed with 4 screws |
| Circuit breaker | Its own, separate from the UKU main module's; the wiring is not included |
How is the HUUM HIVE 15 kW package installed?

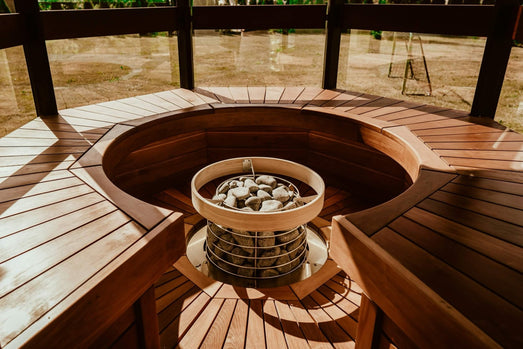

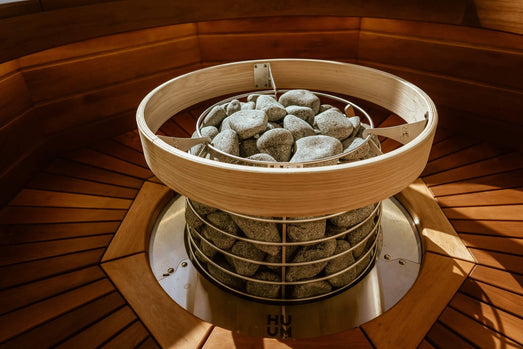

The HIVE stands on the sauna floor on its four adjustable legs, levelled so that all four carry the weight; it can also sit partly inside the bench, with at least 13.8" (350 mm) above the bench and the HUUM Flange H covering the cut edges. HUUM recommends ceramic tile with dark grout under and around the heater, because stone chips and stone dust wash onto the floor and can stain light grout. The UKU main module goes outside the sauna room (for the Wi-Fi options, where your 2.4 GHz Wi-Fi reaches it), and the door sensor included with the UKU must be installed. The HUUM UKU Extension Box mounts outside the sauna room near the UKU main module, and HUUM's wiring instructions put the main module and the Extension Box on separate circuit breakers.
HUUM's manual says the electrical connection of the HIVE 15 kW must be made by a licensed electrician. It wires to two supply circuits (terminals V1 U1 and V2 U2), with a heat-resistant power cable meeting UL 62 (US) or CSA 49 (Canada), never PVC-insulated cable, and crimped wire ends; the cable enters through the heater's bottom cover. Your electrician sizes the breaker and wire from the manual that ships with the heater and your local code.
The UKU 4.2 manual puts the UKU safety sensor on the ceiling, directly above the heater and centered over its stones, no more than 50 ft of cable from the UKU main module, because every HIVE size has a minimum safety distance of more than 1 9/16" (40 mm).
HUUM HIVE 15 kW safety distances
Keep at least these distances from the HUUM HIVE 15 kW to walls, benches and anything that can burn. The letters match the drawing.
| A | 5.91" (150 mm) |
|---|---|
| B | 33.86" (860 mm) |
- A: minimum distance from the HUUM HIVE 15 kW to the walls and to the bench, on every side
- B: minimum width from wall to wall across the heater (its diameter plus A on each side)
- At least 47 1/4" (1,200 mm) from the top of the heater to the ceiling
- The distances apply only when the heating elements are fully covered by stones
HUUM requires a sauna room at least 77" (1,950 mm) tall, recommends 79–91" (2,000–2,300 mm), and puts the top bench 44–51" (1,100–1,300 mm) below the ceiling.
HUUM's manual asks for about six air changes an hour: a supply-air pipe 2–4" (50–100 mm) across, an exhaust pipe twice its diameter and a drying vent under the ceiling. Sauna doors should open outward.
Stacking and caring for the stones

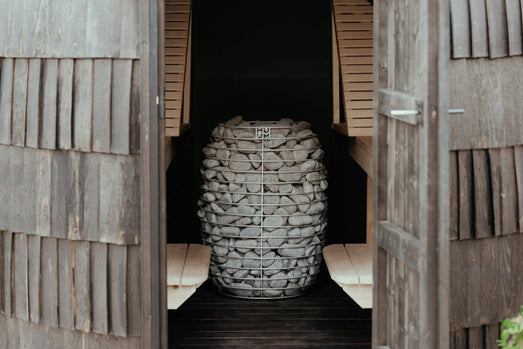

HUUM recommends that a specialist lays the stones in the HUUM HIVE 15 kW. Wash them, then lay them one by one by hand, larger stones at the bottom and sides and smaller ones between the heating elements, so that no element shows through; a too sparsely filled heater is a fire hazard, and elements left visible void the safety distances. Use natural sauna stones 2–4" (5–10 cm) across, such as olivine diabase, and avoid decorative stones, which break easily and can block air holes. Check the stones once a year and replace broken pieces.

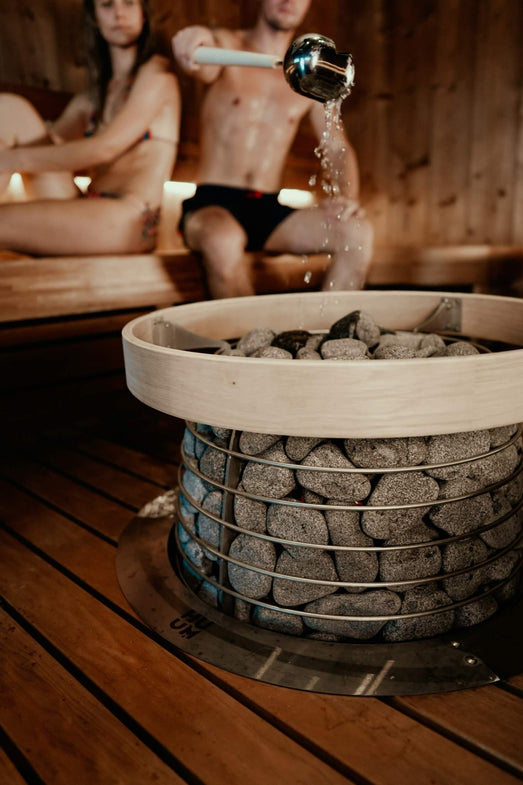

Ladle about 2 3/4 oz (80 ml) of clean, warm water at a time onto fully heated stones, never onto metal surfaces, and never while someone is right beside the heater.
HUUM warranty periods
HUUM's limited warranty (Limited Warranty Terms and Conditions, US, v2) covers new HUUM products bought from HUUM or its authorized dealers, such as Topture, against defects in materials and workmanship. The period starts on the date the end user buys the product.
| HUUM product | Private use | Commercial use |
|---|---|---|
| Electric sauna heaters | 3 years | 1 year |
| Wood-burning sauna stoves | 3 years | 1 year |
| Control units (UKU) | 3 years | 1 year |
| Spare parts | 1 year | 1 year |
HUUM counts as commercial use a business using the product commercially, a private owner using it commercially, or a private owner using it for more than 1,500 hours in 12 months.
What the warranty does not cover
- Heating elements of electric heaters
- HUUM accessories, such as rails, reflectors, flanges, protective bedding and chimney parts
- Door glass and ash grate of wood-burning stoves
- Sauna stones
- All controller sensors
- Damage from a heater that is the wrong size for the room, from unsuitable stones, or from installation, use or maintenance that does not follow HUUM's manuals
What keeps the warranty in effect
- Inspect the product when it arrives and report any visible damage within 7 days, with photos, before installing it.
- Install it following HUUM's manual and local building, electrical and fire codes. An electric product must be connected by a licensed electrician, with proof of the installation.
- Report a defect within 30 days of finding it. For products bought from Topture, report it to Topture, which passes the claim to HUUM and helps with troubleshooting.
