HUUM CLIFF 6kW Electric Sauna Heater Package
HUUM CLIFF 6 kW heater, UKU control and 165 lb of stones in one package, for 177–318 cu ft sauna rooms
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
In stock
Estimated delivery
7–12 days after you order
- Heater, UKU control and stones matched in one order
- Red Dot award-winning CLIFF design
- Wi-Fi options add HUUM app control
- Description
- What's Included
- Specifications
- Installation
- Documents
- Warranty
What is the HUUM CLIFF 6 kW electric heater package?

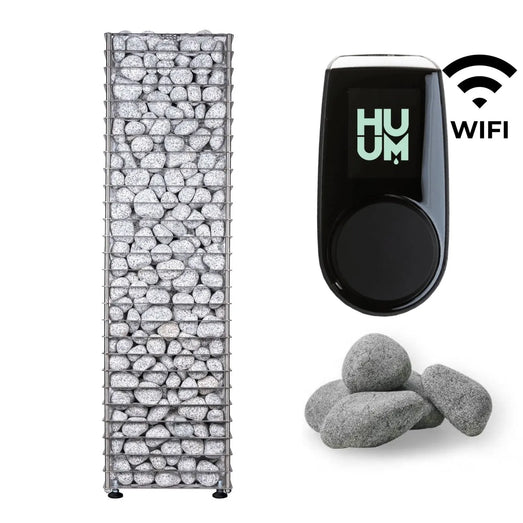

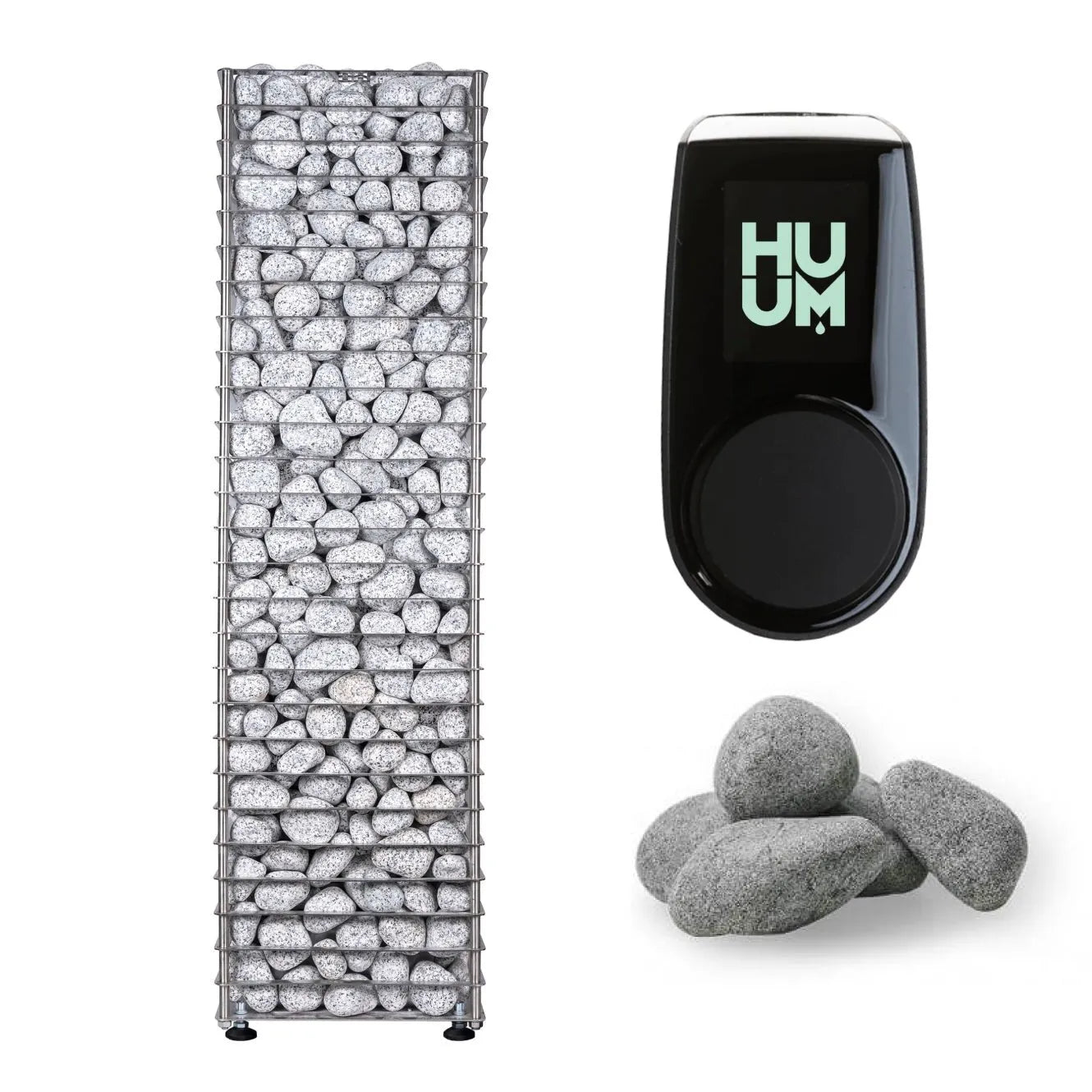

The HUUM CLIFF 6 kW package combines three parts: the HUUM CLIFF 6 kW floor-standing electric sauna heater, a HUUM UKU control (UKU Local, or UKU Wi-Fi with a black, glass or mirror panel) and five 33 lb boxes of HUUM Stones 12. It is sized for sauna rooms of 177–318 cu ft and runs on 240 V or 208 V. The package price is the sum of the three parts; ordering them together means the stone quantity and the control are already matched to the heater.

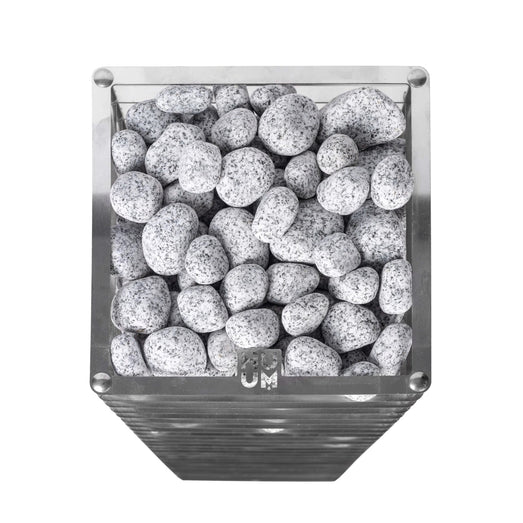

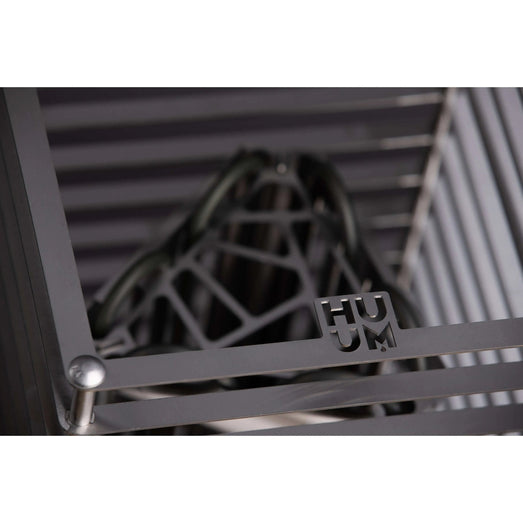

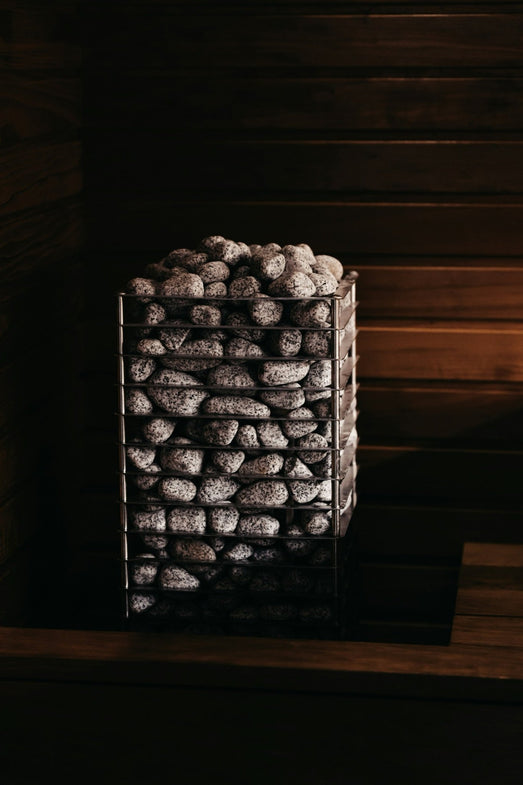

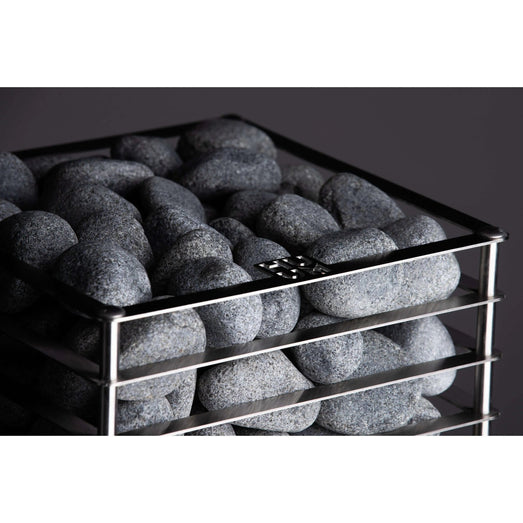

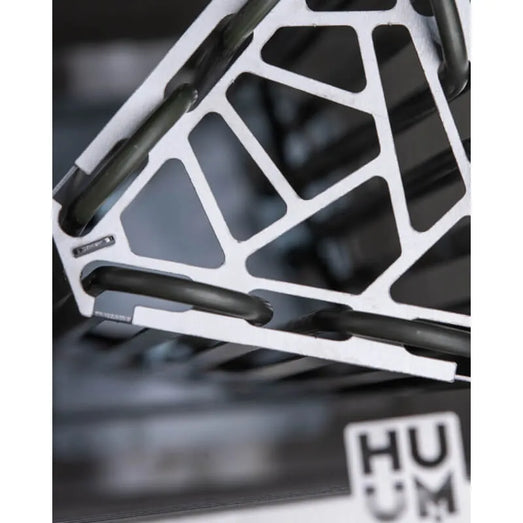

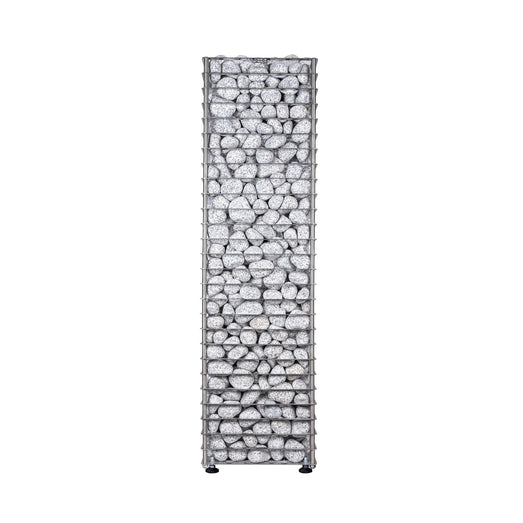

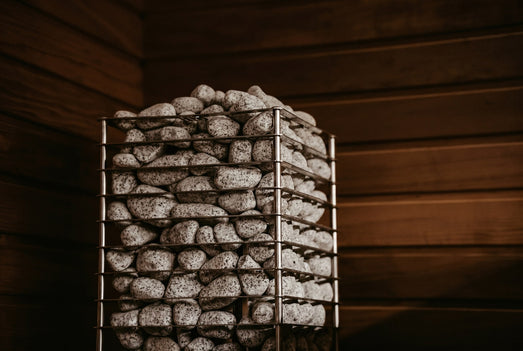

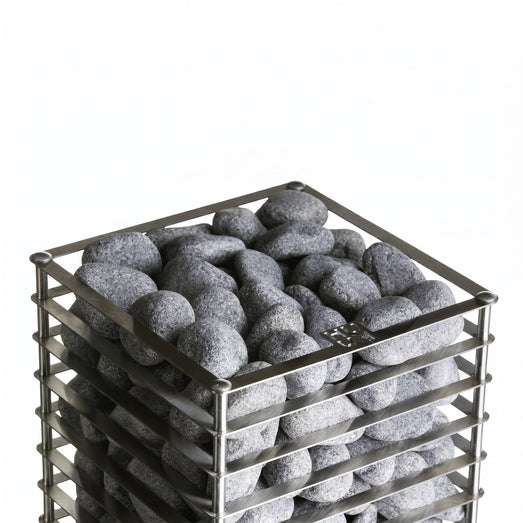

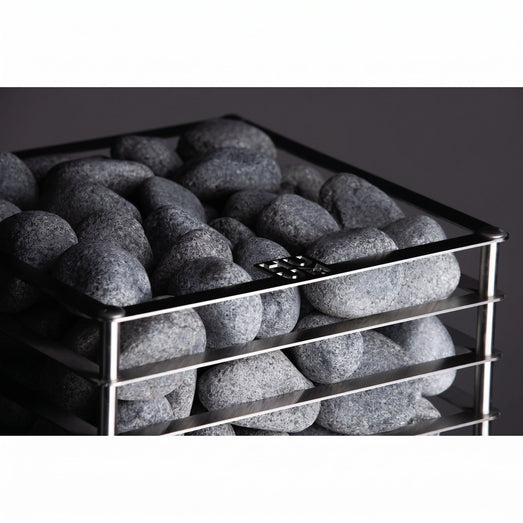

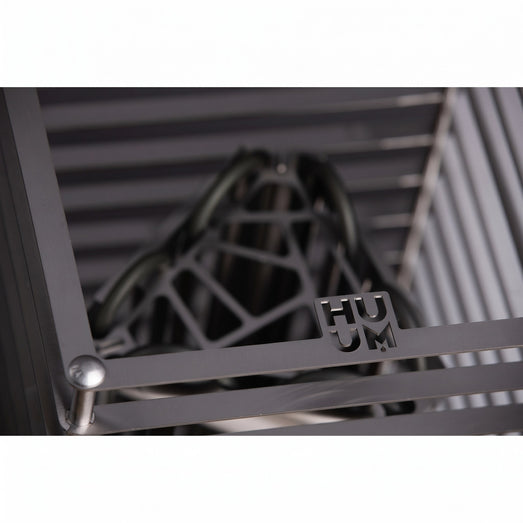

On the CLIFF 6 kW, the stones show between stainless-steel ribs that HUUM cuts from the offcuts of its STEEL heaters, so two heaters come from one sheet of steel. HUUM says the large stone load gives mild, long-lasting steam, and that an internal air tunnel speeds heating by 25% and extends the life of the heating elements. The CLIFF design won a Red Dot award in 2021.
Which UKU control should I choose?
All four options run the HUUM CLIFF 6 kW and set temperature, heating time and a start timer from the wall panel. The Wi-Fi options add the HUUM app, so you can start the sauna on your way home. The black CLASSIC panel must be mounted outside the sauna room. The glass and mirror panels are recessed into the wall, or mounted on the HUUM UKU Surface Frame where the wall can't take a recess, and HUUM allows them inside the sauna room if they sit away from the heater, with the top edge no higher than 40" above the floor and at least 20" from any exhaust vent (on the other side of the door if the vent is in the door wall).
| Panel | App control | Where the panel can go | |
|---|---|---|---|
| UKU Local Black | black CLASSIC panel (plastic) | Wall panel only; no app | Outside the sauna room (outdoors, HUUM recommends a weatherproof box) |
| UKU Wi-Fi Black | black CLASSIC panel (plastic) | HUUM app over 2.4 GHz Wi-Fi | Outside the sauna room (outdoors, HUUM recommends a weatherproof box) |

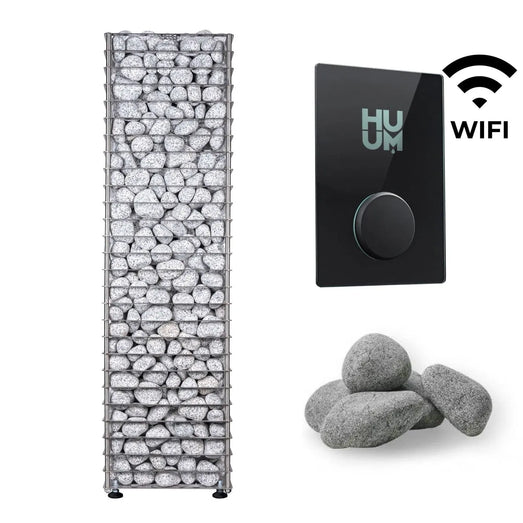

| UKU Wi-Fi Glass | black glass panel | HUUM app over 2.4 GHz Wi-Fi | Inside the sauna room (away from the heater, top edge no higher than 40" above the floor, at least 20" from an exhaust vent) or outside it; recessed, or on the UKU Surface Frame |

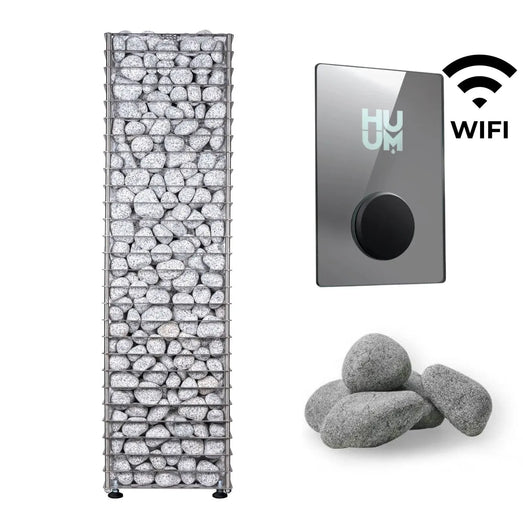

| UKU Wi-Fi Mirror | mirror-finish glass panel | HUUM app over 2.4 GHz Wi-Fi | Inside the sauna room (away from the heater, top edge no higher than 40" above the floor, at least 20" from an exhaust vent) or outside it; recessed, or on the UKU Surface Frame |
What's included in the HUUM CLIFF 6 kW package?
HUUM CLIFF 6 kW heater
- HUUM CLIFF electric sauna heater, 6 kW
- Adjustable legs
- Floor brackets for anchoring the heater
- Two prop blocks for removing the ribs
- Installation and operation manual
HUUM UKU control
- UKU control panel (black plastic, black glass or mirror glass, by the option you choose)
- UKU main module (Wi-Fi models connect to the HUUM app)
- Temperature (safety) sensor, mounted above the heater
- Door sensor with magnet
- Cables for the control panel and sensors
- Installation and user manual
The Wi-Fi Black and Wi-Fi Mirror controls ship as HUUM's UKU 4.2, whose kit also includes a bench sensor that reads temperature and humidity at bench height; HUUM recommends installing it, and with it fitted the highest temperature setting is 194°F (90°C). The Local Black and Wi-Fi Glass controls still ship as UKU 4.1, with the one temperature sensor, until the remaining 4.1 stock runs out.
HUUM Stones 12
- 5 boxes × 33 lb = 165 lb of rounded 1.2–2" (3–5 cm) HUUM Stones 12, olivine diabase
What you still need
- A heat-resistant power cable, connected by a licensed electrician
- Optional, not included: HUUM Rail C safety rail, HUUM Reflect C reflector or HUUM Flange CS embedding flange
HUUM CLIFF 6 kW heater specifications
| HUUM model | CLIFF 6 |
|---|---|
| Sauna room volume | 177–318 cu ft (5–9 m³) at 240 V; 142–248 cu ft (4–7 m³) at 208 V; add 3.3 cu ft per sq ft of uninsulated brick, tile or glass wall |
| Power supply | 240 V or 208 V, single phase; 25 A at 240 V, 21.63 A at 208 V |
| Circuit breaker / minimum wire | 30 A / 10 AWG (240 V and 208 V) |
| Dimensions | 38.4" H × 10.6" W × 10.6" D (975 × 270 × 270 mm) |
| Heater weight | 35.2 lb (16 kg) |
| Stones | About 165 lb (75 kg) of 1.2–2" stones; the package includes 5 boxes (165 lb) |
| Heat-up time | About one hour |
| Made in | Estonia |
| HUUM part number | H1004012 |
| Warranty | Heater: 3 years private use, 1 year commercial use (HUUM); heating elements, stones and sensors are excluded. UKU: 3 years private use, 1 year commercial use (HUUM); sensors are excluded |
All CLIFF sizes, as heaters and as packages, are in the HUUM CLIFF collection.
HUUM UKU control specifications
| Heater power | Runs the HUUM CLIFF 6 kW on its own; no extension box needed (a UKU alone runs heaters up to 11 kW) |
|---|---|
| Temperature setting | From 104°F (40°C) up to 230°F (110°C) with the included safety sensor; UKU 4.2 kits also include a bench sensor, and with it fitted the maximum setting is 194°F (90°C) |
| Heating time | 3 or 6 hours for a home sauna (12 hours semi-public, 18 hours public) |
| App control | UKU Wi-Fi options: the HUUM app, over 2.4 GHz Wi-Fi only (802.11 b/g/n). UKU Local: wall panel only, no app |
| Door sensor | Must be installed (HUUM requires it); included in the package |
| Outdoor installation (optional, not included) | The main module goes outside the sauna room. Outdoors, HUUM recommends a box to shield the black panel from the weather, and weatherproof housing can be added for the main module; SaunaLife's Sauna Gear 300 (panel) and 302 (main module) enclosures are offered as add-ons |
| Other safety features | Overheating protection in the included temperature sensor, child lock; the Wi-Fi options also ask for a safety confirmation at the panel before the sauna can be started remotely |
| Sauna light or fan (optional, not included) | The UKU can switch one you add: up to 100 W incandescent lamp or fan, or 50 W LED, at 120 V |
| Steamer (optional, not included) | The UKU can run one you add: 1,250 W at 120 V or 2,500 W at 240 V; steam switches off above 194°F (90°C) |
How is the HUUM CLIFF 6 kW package installed?

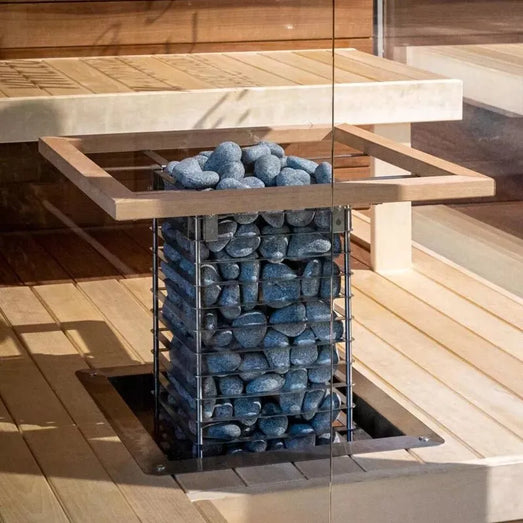

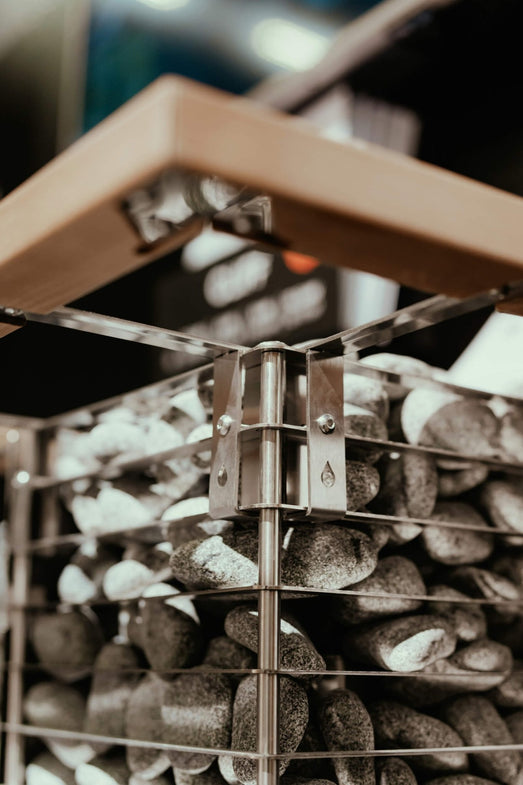

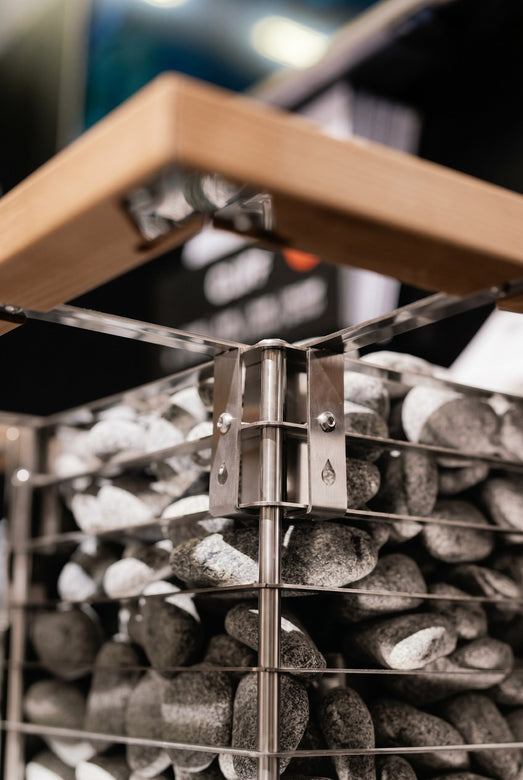

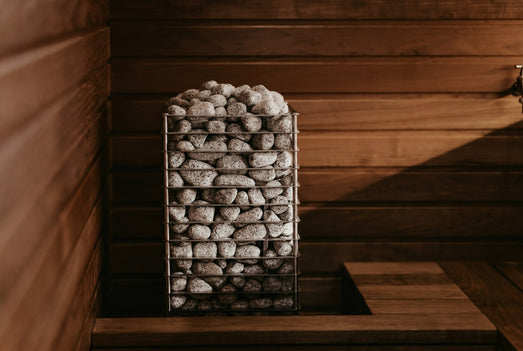

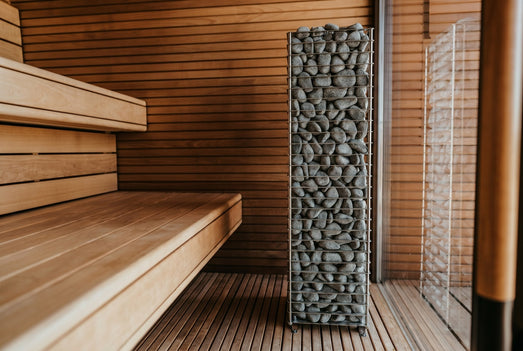

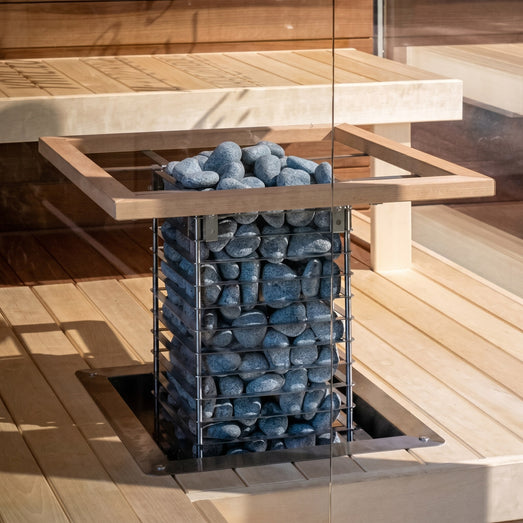

The CLIFF 6 kW stands on adjustable legs and is anchored to the floor with the supplied brackets, as HUUM's SGS listing requires; with the Flange CS it can sit partly inside the bench, with at least 21.7" (550 mm) above the bench surface. The UKU main module goes outside the sauna room (for the Wi-Fi options, where your 2.4 GHz Wi-Fi reaches it), and the door sensor included with the UKU must be installed.
HUUM's CLIFF manual says the electrical connection must be made by a licensed electrician, with a circuit breaker that disconnects all poles fitted before the sauna control, a heat-resistant power cable (no PVC insulation) and a waterproof junction box no higher than 20" (50 cm) above the floor; the cable enters through the heater's bottom cover. Your electrician sizes the breaker and wire from the manual that ships with the heater and your local code.
HUUM CLIFF 6 kW safety distances
Keep at least these distances from the HUUM CLIFF 6 kW to walls, benches and anything that can burn. The letters match the drawing.
| A | 2.36" (60 mm) |
|---|---|
| B | 15.35" (390 mm) |
- A: minimum distance from the sides and front of the heater to walls or anything that can burn
- B: minimum width between the walls on either side of the heater
- At least 47.3" (1,200 mm) from the top of the heater to the ceiling
- With a HUUM Reflect C hooked onto one side, HUUM says the heater's safety distance to flammable material on that side is halved
HUUM's CLIFF manual gives a minimum sauna room height of 86.6" (2,200 mm), with a regular ceiling height of 86.6–91", allows only one heater per room, and calls for a sauna door that opens outward.
Stacking and caring for the stones

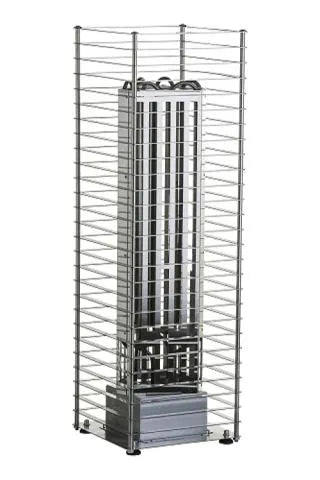

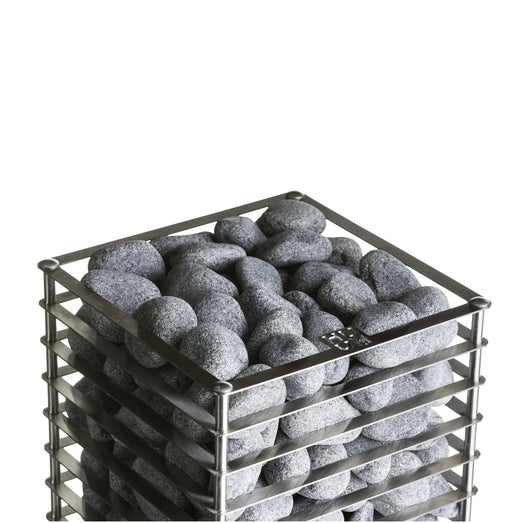

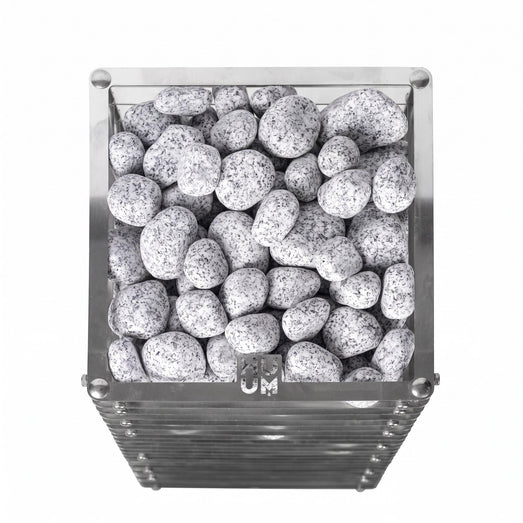

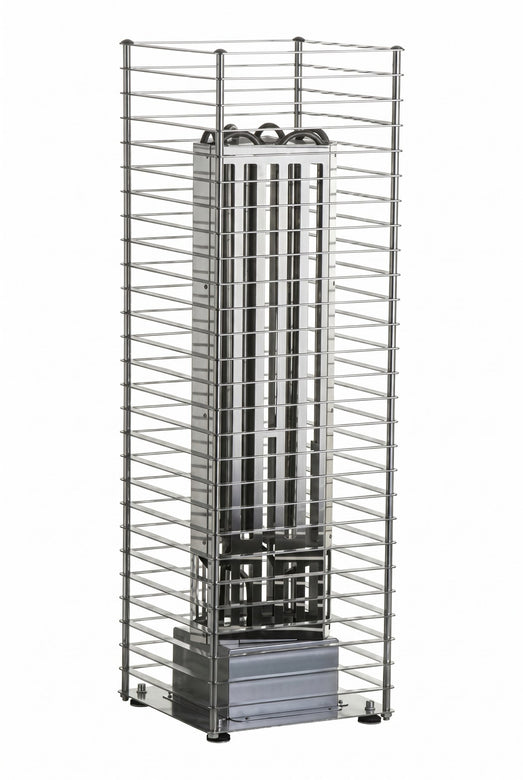

Wash the stones, then stack them loosely between the heating elements of the CLIFF and close together on the outside so no element shows. Packed too tightly, the elements overheat, wear out sooner and heat the room more slowly; a sparsely filled heater is a fire hazard. Take care not to bend the elements. Every rib lifts off with the two prop blocks supplied, which makes stacking easier. HUUM recommends having a specialist lay the stones. Stones crumble with use, so HUUM suggests ceramic tile with dark grout under and around the heater.
HUUM warranty periods
HUUM's limited warranty (Limited Warranty Terms and Conditions, US, v2) covers new HUUM products bought from HUUM or its authorized dealers, such as Topture, against defects in materials and workmanship. The period starts on the date the end user buys the product.
| HUUM product | Private use | Commercial use |
|---|---|---|
| Electric sauna heaters | 3 years | 1 year |
| Wood-burning sauna stoves | 3 years | 1 year |
| Control units (UKU) | 3 years | 1 year |
| Spare parts | 1 year | 1 year |
HUUM counts as commercial use a business using the product commercially, a private owner using it commercially, or a private owner using it for more than 1,500 hours in 12 months.
What the warranty does not cover
- Heating elements of electric heaters
- HUUM accessories, such as rails, reflectors, flanges, protective bedding and chimney parts
- Door glass and ash grate of wood-burning stoves
- Sauna stones
- All controller sensors
- Damage from a heater that is the wrong size for the room, from unsuitable stones, or from installation, use or maintenance that does not follow HUUM's manuals
What keeps the warranty in effect
- Inspect the product when it arrives and report any visible damage within 7 days, with photos, before installing it.
- Install it following HUUM's manual and local building, electrical and fire codes. An electric product must be connected by a licensed electrician, with proof of the installation.
- Report a defect within 30 days of finding it. For products bought from Topture, report it to Topture, which passes the claim to HUUM and helps with troubleshooting.
