Harvia Club 12.5kW Electric Sauna Heater Package w/ Digital Controller and Wifi and Stones
Harvia Club K12.5G 12.5 kW floor-standing heater, Xenio CX45 Wi-Fi control and 132 lb of stones in one package, for 500–750 cu ft sauna rooms
In stock
Estimated delivery
7–12 days after you order
- Heater, Xenio control and stones matched in one order
- Xenio panel with Wi-Fi for Harvia's MyHarvia app
- Three boxes of AC3000 stones: the Club's full 132 lb load
- Description
- What's Included
- Specifications
- Installation
- Documents
- Warranty
What is the Harvia Club 12.5 kW electric heater package with Xenio Wi-Fi control?

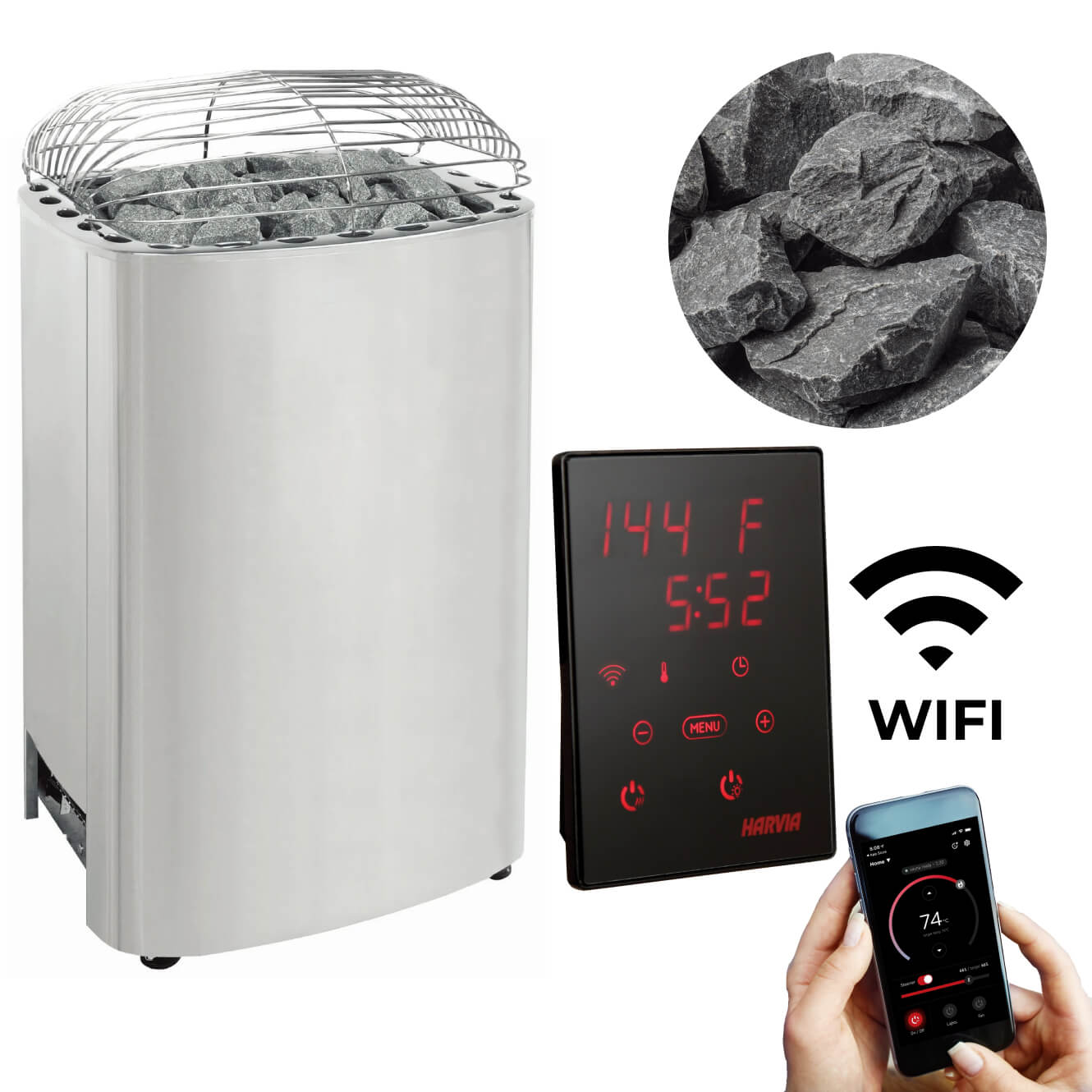

The Harvia Club 12.5 kW package combines three parts: the Harvia Club K12.5G floor-standing electric sauna heater (HRKGU12CU1UL, 240 V single-phase), the Harvia Xenio CX45-U1-U3-XW control with Wi-Fi, and three 44 lb boxes of Harvia AC3000 stones, 132 lb in all. It is sized for sauna rooms of 500–750 cu ft. The package price is the sum of the three parts; ordering them together means the control and the stones are already matched to the heater.
The Club has no controls of its own, which is why the package includes the Xenio. The Xenio can be set from 104 to 194°F (40–90°C), runs the heater for up to 1 hour per start and can delay a start by up to 12 hours; its Wi-Fi connects the sauna to Harvia's MyHarvia app.
Harvia Club 12.5 kW package key features
- Harvia Club K12.5G heater, 12.5 kW, for sauna rooms of 500–750 cu ft
- Harvia Xenio CX45-U1-U3-XW control panel with Wi-Fi for Harvia's MyHarvia app
- Three 44 lb (20 kg) boxes of AC3000 split-face stones: the Club's full 132 lb stone load
- Floor-standing heater, secured to the floor
- Heater ETL Listed; conforms to UL 875
For rooms of 390–600 cu ft, see the Club 10 kW package. The Harvia Club heater is also sold on its own in 10, 12.5 and 15 kW, and the Harvia Club collection has every Club heater and package.
What's included in the Harvia Club 12.5 kW package?
Harvia Club K12.5G heater (12.5 kW)

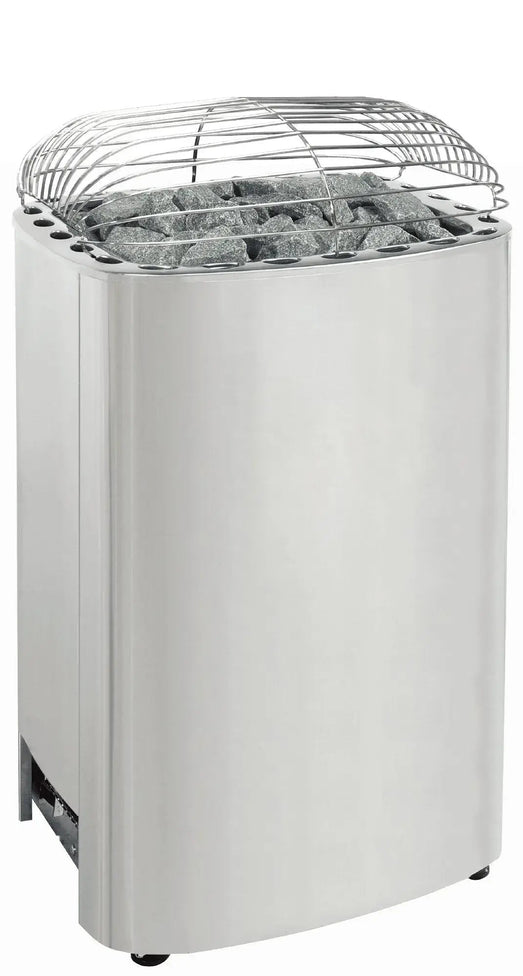

- Harvia Club K12.5G electric sauna heater, 12.5 kW, 240 V single-phase
- Two metal signs for the sauna: "CAUTION" and "WARNING"
- Installation and user manual
Harvia Xenio CX45-U1-U3-XW control
- Xenio control panel with Wi-Fi
- Power unit
- Data cable, 16.4 ft (5 m)
- Temperature sensor with an overheat protector
- Installation material and instructions
Harvia AC3000 stones
- Three 44 lb (20 kg) boxes of Harvia AC3000 split-face olivine diabase stones, 2–4" (5–10 cm), 132 lb in all
What you still need
- The circuit and wiring to the Xenio power unit and on to the heater, installed by a licensed electrician; on 240 V, the 2-pole, 2-breaker subpanel load center Harvia's manual says the electrical contractor supplies
- A softwood heater fence, at least 2½" from the heater, which Harvia's manual says is necessary for safety
Harvia Club K12.5G heater specifications
| Sauna room volume | 500–750 cu ft; floor area 78–114 sq ft; room height at least 6.5 ft (78") |
|---|---|
| Sizing | Add about 3.9 cu ft for every sq ft of uninsulated brick, glass, concrete or tile wall, glass doors included (Harvia: 1.2 m³ per m²); multiply a log sauna's volume by 1.5 |
| Power supply | 240 V single-phase; 52.7 A at 240 V single-phase |
| Supply wire (Harvia Table 2) | 240 V: #6 AWG to the subpanel; (4) #10 AWG onward |
| Dimensions | 19.9" W × 16.9" D × 27.6" H (505 × 429 × 701 mm) (Harvia product data) |
| Stones | 132 lb (60 kg) of 2–4" split-face stones; the package includes three boxes |
| Heat-up time | About one hour (Harvia) |
| Mounting | Floor-standing, secured to the floor with at least two screws or bolts; not recessed into a wall or floor |
| Materials | Steel (Harvia: main material) |
| Certification | ETL Listed; conforms to UL 875 |
| Part number | HRKGU12CU1UL (240 V) |
| Warranty | 2-year manufacturer warranty; Harvia adds a third year when the heater is registered on harvia.com within 30 days of purchase; stones are not covered |
Harvia Xenio CX45-U1-U3-XW control specifications
| Heater power | Runs the 12.5 kW Club, which draws 12.6 kW at 240 V; the CX45 handles up to 17 kW at 240 V on two supply groups |
|---|---|
| Temperature setting | 104–194°F (40–90°C), set on the control panel |
| Heating time | Up to 1 hour per start; a start can be delayed by up to 12 hours |
| Wi-Fi | Built in; connects to Harvia's MyHarvia app |
| Sizes | Control panel 3.4" × 1.0" × 4.4"; power unit 14.3" × 2.9" × 10.5" |
| Power unit placement | On a wall outside the sauna room, in a dry place above 32°F (0°C) |
| Certification | ETL Listed; conforms to UL 60730 |
| Warranty | 2-year manufacturer warranty; the registration year applies to the heater only |
How is the Harvia Club 12.5 kW package installed?

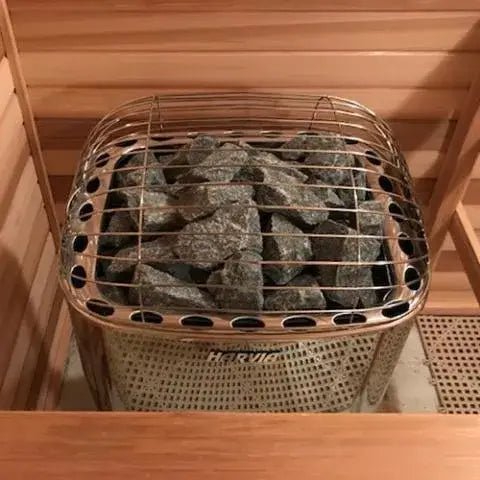

The Club K12.5G heater stands on the sauna floor inside the safety distances below, and the electrical contractor secures it to the floor with at least two screws or bolts; Harvia does not allow it to be recessed into a wall or floor, and a sauna room takes only one electric heater. Harvia's Club manual places the Xenio control outside the sauna room, in a dry place about 5 ft (1,500 mm) high and never outdoors, with its temperature sensor in a sensor box above the heater; the control's power unit needs a dry place above 32°F (0°C). Harvia's Club manual says only a licensed electrician may connect the heater. On 240 V single-phase, the electrical contractor also supplies a 2-pole, 2-breaker subpanel load center that feeds the Xenio power unit. Your licensed electrician sizes the breaker and wire from the manual that ships with the heater and your local code. Harvia's Club manual, under Documents, gives the wiring diagrams; the control's own manual gives the sensor position.
Harvia Club K12.5G safety distances
Keep at least these distances between the Harvia Club K12.5G and walls, benches and anything that can burn. Harvia's manual says neglecting them can cause a risk of fire.
| Heater to walls | 6" |
|---|---|
| Heater to benches | 6" |
| Heater fence | Required: Harvia's Club manual says a fence is necessary for safety. Softwood, attached to the wall, at least 2½" from the heater, 26" high, its top 1" below the top of the heater; not included |
|---|---|
| Sauna room height | At least 6.5 ft (78") |
| Mounting | Floor-standing, secured to the floor; never recessed into a wall or floor |
Does the sauna room need ventilation?
Yes. Harvia's manual for the Club calls for adjustable vents that change the air five times an hour: a lower vent close to the heater and an upper vent on the opposite wall. The manual gives their sizes and positions.
