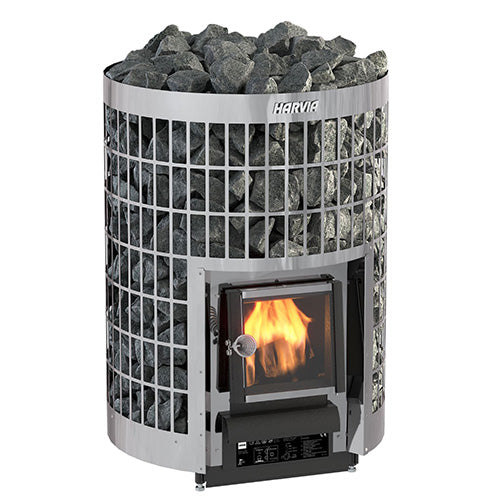

Harvia Cilindro 20 17kW Wood Burning Sauna Stove | WKPC20S

Harvia Cilindro 20 17 kW wood-burning pillar stove for 283–706 cu ft rooms: 264 lb of stones in a stainless-steel shell, with a glass door

$1,404

$1,699

Save $295

In stock

Estimated delivery

7–12 days after you order

264 lb of 4–6" stones in a round stainless-steel shell
Glass door and ash box; top or rear 4.5" chimney connection
Designed and crafted in Muurame, Finland (Harvia)

The Sauna Mastery Protocol Digital Guide

Full-Value Freight Protection

Perfect for sauna rooms from 283 - 706 ft³

Select Stones

Required for Operation

Harvia Split-Face Olivine Diabase Sauna Heater Stones 4-6" / 44lbs | AC3020 | 6 Boxes
$372

Select Chimney Kit

Required for Operation

Harvia Sauna Stove Chimney Kit | WHP1500 | Stainless Steel
$1,487
Harvia Sauna Stove Chimney Kit | WHP1500 | Black
$1,578

Select Add-Ons

Harvia Pipe Adapter | WZ115155
$105
Harvia Protective Sheath, Cilindro Series | WL200PC
$295
Harvia Chimney Cover, Cilindro Series | WL300PC
$148
Harvia Round Protective Bedding | WL120
$356
KOLO 1 Gallon Sauna Bucket+Ladle Aluminum & Bamboo | Black
$149

Quantity

Curbside freight delivery by appointment; an adult must sign for the shipment. How it works

Secure checkout
30-day return window*
2-year manufacturer warranty

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

Description

What is the Harvia Cilindro 20 wood-burning sauna stove?

The Harvia Cilindro 20 (WKPC20S) is a 17 kW wood-burning pillar stove for sauna rooms of 283–706 cu ft. Its stainless-steel outer shell holds 264 lb (120 kg) of 4–6" stones in a round grid around the fire chamber, with a glass door below. It stands on the floor and connects to the chimney at the top or the rear through a 4.5" (115 mm) opening. It burns firewood and needs no electrical connection; Harvia's data sheet says it is designed and crafted in Muurame, Finland.

The Harvia Cilindro 16 is the smaller Cilindro wood stove, for rooms of 212–459 cu ft. The Harvia wood-burning stove collection has every Harvia wood-burning stove Topture sells.

Harvia Cilindro 20 key features

17 kW for sauna rooms of 283–706 cu ft (8–20 m³)
Stainless-steel outer shell holding 264 lb (120 kg) of 4–6" stones
Top or rear chimney connection, 4.5" (115 mm)
Glass door and ash box
Takes firewood up to 15.4" (390 mm) long
Designed and crafted in Muurame, Finland (Harvia data sheet)
CE marked (EN 15821)
2-year manufacturer warranty

Specifications

Does the Harvia Cilindro 20 fit my sauna?

The Harvia Cilindro 20 heats sauna rooms of 283–706 cu ft (8–20 m³). Harvia's manual adds 1.2 m³ for every square meter of uninsulated brick, glass block, glass, concrete or tile wall, about 3.9 cu ft per sq ft, and a glass door counts: its example is a 10 m³ room with a glass door, which needs the output of a 12 m³ room. Multiply the volume of a solid-log sauna by 1.5. Harvia's data sheet gives a minimum sauna room height of 74.8" (1,900 mm), and the top of the stove needs at least 39.4" (1,000 mm) to the ceiling.

Harvia Cilindro 20 specifications

Harvia Cilindro 20 (WKPC20S), Harvia manual Y05-1377-1 09/25 and data sheet WKPC20S
Output	17 kW (Harvia declares 17.2 kW)
Sauna room volume	283–706 cu ft (8–20 m³)
Minimum room height	74.8" (1,900 mm)
Dimensions	21.9" W × 21.9" D × 30.4–31.6" H (557 × 557 × 773 mm, plus 0–30 mm of leg travel)
Net weight	136.7 lb (62 kg), Harvia data sheet
Stones	264 lb (120 kg) of 4–6" (10–15 cm) stones; six 44 lb boxes of Harvia AC3020
Chimney connection	Top or rear, 4.5" (115 mm); chimney class T600 with a flue at least 4.3" (110 mm) across
Firewood	Up to 15.4" (390 mm) long, 3.1–5.9" (8–15 cm) across
Materials	Stainless-steel outer shell and stone grid; glass door
Electrical connection	None; wood-fired
Certification	CE marked (EN 15821)
Harvia part number	WKPC20S (GTIN 6417659043328)
Packed for shipping	Stove only: 143.3 lb (65 kg), carton 22.8" W × 31.9" H × 22.8" D
Warranty	2-year manufacturer warranty; stones are not covered

Installation

How is the Harvia Cilindro 20 installed?

The Harvia Cilindro 20 stands on a non-combustible base or floor strong enough to carry it and its stones, inside the safety distances below, and connects to a T600 chimney. Harvia's manual says all local regulations apply, that a wood-burning heater cannot use a shared flue, and that the local fire authority that approves the installation can give guidance on fire-safety regulations. Harvia's installation manual, under Documents, gives the step-by-step installation and the chimney connection.

Does the Harvia Cilindro 20 need floor protection?

It depends on the floor under the Harvia Cilindro 20. A bare concrete floor at least 2.4" (60 mm) thick needs no protection. A tiled floor needs Harvia's round WL120 protection base or similar heat-radiation protection, because tile adhesives, grout and waterproofing do not resist the stove's heat. A floor made of combustible material needs the WL120 too, plus a spark protector on the floor in front of the door. The Harvia WL120 round protective bedding is sold separately; it does not come with the stove.

Harvia Cilindro 20 safety distances

Keep at least these distances between the Harvia Cilindro 20 and anything that can burn. Harvia's distances assume the stones are piled so that they cover the stove body.

Harvia Cilindro 20 minimum safety distances (Harvia manual Y05-1377-1 09/25)
Top of the stove to the ceiling	39.4" (1,000 mm)
Sides to combustible material	5.9" (150 mm)
Rear to combustible material	7.9" (200 mm)
Front to combustible material	19.7" (500 mm)
To a masonry wall	2.0" (50 mm) if the front and one side are open for air circulation; 3.9" (100 mm) in a wall recess

The Harvia WL200PC protective sheath and the Harvia WL300PC chimney cover, both sold separately, shorten the distances to a combustible wall; their pages give the reduced figures.

Connecting the Harvia Cilindro 20 to a chimney

The Harvia Cilindro 20 connects at the top or the rear through a 4.5" (115 mm) opening, to a chimney of temperature class T600 with a flue at least 4.3" (110 mm) across; it cannot share a flue with another fireplace. The Harvia WHP1500 chimney kit (sold separately) fits the top opening, and its page gives the roof and clearance requirements. For North American 6" chimney pipe, the Harvia WZ115155 pipe adapter (sold separately) adapts the opening.

Does the Harvia Cilindro 20 need a first firing?

Yes, outdoors. Harvia's manual says the Harvia Cilindro 20 must be heated once outdoors before it is used in a sauna, until the protective paint stops smoking; the stones are not needed for this firing. If an outdoor firing is impossible, the manual allows starting at installation, with more smoke in the sauna.

What's Included

What's in the box with the Harvia Cilindro 20?

Harvia Cilindro 20 wood-burning stove with its outer shell, frame, grate and ash box
Glass hatch, handle and auxiliary handle
Flue connection pipe and flue pipe connector
Stop plug and two soot-opening stoppers
Combustion-air deflectors
Flue-gas heat regulators (pack of 2)
Installation and user manual

What you need separately

Six 44 lb boxes (264 lb) of Harvia AC3020 4–6" stones
A chimney: the Harvia WHP1500 chimney kit in stainless steel or black, or a T600 masonry flue
On a tile or combustible floor: the Harvia WL120 round protective bedding, plus a spark protector in front of the door on a combustible floor
Optional: the Harvia WL200PC protective sheath (one to three screens) and the Harvia WL300PC chimney cover, which shorten the distances to combustible walls
Optional: the Harvia WZ115155 pipe adapter, for North American 6" chimney pipe

Documents

Harvia Cilindro 20 Installation and User Manual

Harvia Cilindro 20 Data Sheet

Bathing Brands Harvia Stone Requirements Chart

Warranty

Harvia Warranty

Read the full LIMITED WARRANTY TERMS AND CONDITIONS

Step 1

Size it right

Every heater page lists the exact room size it's rated for, so you can match it to your sauna before you order.

Step 2

Spec your chimney

Through-roof or through-wall, single-wall or insulated, we help you build the right kit for your install.

Step 3

Real löyly

Wood-fired stones make the most authentic löyly — pour water across them and the steam hits the way Finns intended.

The Topture Experience

More than just a heater

Your purchase includes thoughtful extras to help you get started and enjoy your sauna with confidence.

BONUS 1

The Sauna Mastery Protocol

The session times, temperatures, and weekly rhythm that turn a sauna into a habit you keep. Covers heat-up protocols and what to expect across your first 30 sessions. Sent to your inbox after purchase.

INCLUDED

BONUS 2

Full-Value Freight Protection

Large orders ship fully insured. If freight arrives damaged, Topture helps coordinate the claim and replacement process with the carrier and manufacturer. Proper inspection and damage documentation at delivery are required. Most in-stock orders ship within 2–7 business days.

INCLUDED

Choose your options now

We thought about buying a sauna for years and finally did. We absolutely love it, especially in the winter. It’s incredibly easy to assemble with two people the whole family uses it.

Verified buyer

Ordered this sauna fall 2024 and we love it. No better feeling during a Minnesota winter. Lastly, I have to mention the customer service for this purchase has been like no other. Any questions or requests I had were addressed immediately by Topture. I got more than I expected from them and have already recommended them to several people looking for saunas. SO if you're thinking about it, JUST DO IT already..

Verified buyer

Thanks for the great service - greatly appreciated.

Verified buyer

Choosing the right sauna

Compare models from multiple sauna manufacturers based on your space, climate, capacity, preferences, and budget.

Will they help you compare alternatives, or only answer questions about the product you've already selected?

Heater & electrical fit

Get help matching the heater to the sauna volume, glass area, controls, and electrical requirements.Try our heater calculator

Ask who will check that the heater and controls are right for your installation before you order.

Authorized products

Products are sourced through authorized channels and include the applicable manufacturer warranty.View independent listings

Verify that the retailer is authorized for the brand and that your manufacturer warranty will be valid.

Freight delivery

We help coordinate heavy-freight delivery and provide guidance on receiving and inspecting your shipment.

Ask how the order ships, how it will be unloaded, and what happens if freight arrives damaged.

Installation information

We help provide the manuals, specifications, clearances, and electrical information your installer may need.

Find out what documentation and project support will be available after checkout.

After the sale

Questions after delivery? We help with troubleshooting, documentation, warranty coordination, and manufacturer support.Read customer reviews

Ask who you will actually contact if something doesn't work after the order arrives.

463 Customer Reviews

Product and store reviews from Topture customers, collected by Judge.me.

Lifetime Expert Support

Same team before and after the sale, from sizing to warranty support.

Authorized Harvia Retailer

Sold by Topture, with the applicable manufacturer warranty.

Full-Value Freight Protection

Freight damage? We help coordinate the claim and replacement process.

STILL UNSURE?

Frequently Asked Questions

What comes with the Harvia Cilindro 20, and what else does it need?

The Harvia Cilindro 20 ships as the stove with its outer shell, frame, grate, ash box, glass hatch and handles, the flue connection pipe and flue pipe connector, a stop plug, soot-opening stoppers and Harvia's manual. It needs no electricity, but it does need 264 lb (120 kg) of 4–6 in sauna stones, which six 44 lb boxes of Harvia AC3020 cover, a T600 chimney such as Harvia's WHP1500 kit, and, on a tile or combustible floor, Harvia's round WL120 protection base. None of these come with the stove; Topture sells them, and the WL200PC sheath and WL300PC chimney cover, separately.

What size sauna does the 17 kW Harvia Cilindro 20 heat?

The Harvia Cilindro 20 is rated at 17 kW and heats sauna rooms of 283 to 706 cu ft (8–20 m³), according to Harvia's manual. Harvia adds 1.2 m³ for every square meter of uninsulated brick, glass, tile or concrete surface, about 3.9 cu ft per sq ft, and counts a glass door: a 10 m³ room with a glass door needs the output of a 12 m³ room. Multiply a solid-log sauna's volume by 1.5. Harvia's data sheet gives a minimum room height of 74.8 in (1,900 mm), with at least 39.4 in (1,000 mm) above the stove. The Cilindro 16 is the smaller Cilindro wood stove, for 212–459 cu ft.

What chimney does the Harvia Cilindro 20 need?

The Harvia Cilindro 20 needs a chimney of temperature class T600 with a flue at least 4.3 in (110 mm) across; it connects at the top or the rear through a 4.5 in (115 mm) opening, and Harvia's manual says a wood-burning heater cannot use a shared flue. Harvia's Cilindro manual names the WHP1500 steel chimney, which suits roofs pitched 10° or more (a flat roof needs the WHM24 rain flange) and is CE marked to EN 1856-1. An unprotected smoke pipe needs 19.7 in from anything that can burn; the WL300PC chimney cover, filled with stones, cuts that to 6.5 in.

How is the Harvia Cilindro 20 installed, and does it need electricity or floor protection?

The Harvia Cilindro 20 stands on a non-combustible base or floor strong enough to carry it and its stones, and needs no electrical connection. A bare concrete floor at least 2.4 in (60 mm) thick needs no protection; a tiled floor needs Harvia's round WL120 protection base or similar, and a combustible floor needs the WL120 plus a spark protector in front of the door. Keep the stove 39.4 in from the ceiling, 5.9 in at the sides, 7.9 in at the rear and 19.7 in in front from combustible material; the WL200PC sheath shortens the wall distances.

What has to be done before the first fire in a Harvia Cilindro 20?

The Harvia Cilindro 20 must be heated once outdoors before it is used in a sauna, Harvia's manual says, because the protective paint burns off with a lot of smoke; the stones are not needed for this firing. Fit the smoke pipes for draught, let the stove cool afterwards and remove any paint residue with a wire brush and a vacuum cleaner. If an outdoor firing is impossible, the manual allows starting at installation, with more smoke in the sauna and good ventilation until it stops.

What firewood does the Harvia Cilindro 20 burn, and how hot should the sauna get?

The Harvia Cilindro 20 takes firewood up to 15.4 in (390 mm) long and 3.1–5.9 in (8–15 cm) across; Harvia's manual says dry wood is the best fuel. Empty the ash box before each firing. The stove has no thermostat, so the fire sets the heat: Harvia's rule of thumb is that a sauna over 212°F (100°C) is too hot, and several full loads of wood in a row overheat the sauna, the stove and the chimney and can start a fire.

How do you load and maintain the stones in the Harvia Cilindro 20?

The Harvia Cilindro 20 holds up to 264 lb (120 kg) of 4–6 in (10–15 cm) stones; six 44 lb boxes of Harvia AC3020 split-face olivine diabase stones cover it. Pile them so they cover the stove body: Harvia's safety distances assume it, and an uncovered stove body radiates heat that can overheat nearby structures even outside those distances. Rinse the stone dust off first, and do not pack them so tightly that air cannot circulate between them. Rearrange the stones at least once a year and replace any that have broken down, and have the chimney and connection pipes swept regularly. Stones smaller than 4 in, or broken pieces, keep the stones from heating properly.

What problems do Harvia Cilindro 20 owners run into, and how are they avoided?

Most problems Harvia's manual lists for the Harvia Cilindro 20 trace back to the chimney, the wood or the stones. Smoke in the sauna points to a leaking flue joint, a cold or damp chimney, an extractor fan pulling air, a full ash box, blocked flues, or the rear connection plug missing when the top opening is used. A sauna that will not heat is usually too big for the stove or fired with wet wood; stones that stay cool are often smaller than 4 in. Charring on wooden surfaces means stopping and checking the safety distances.

Who makes the Harvia Cilindro 20, and what is it made of?

The Harvia Cilindro 20 (WKPC20S) is made by Harvia, the Finnish sauna manufacturer, and Harvia's data sheet says it is designed and crafted in Muurame, Finland. It has a stainless-steel outer shell holding the stones in a round grid, a glass door and an ash box, and it is CE marked to EN 15821. It measures 21.9 in wide and deep and 30.4–31.6 in high, and Harvia gives its weight as 136.7 lb (62 kg) without stones.

What warranty does the Harvia Cilindro 20 have?

Harvia's manufacturer warranty covers the Harvia Cilindro 20 for 2 years of family use. The extra registration year Harvia offers applies to electric heaters only, not to wood-burning stoves, and sauna stones are not covered; the warranty also excludes damage caused by stones Harvia does not recommend. Harvia US Inc. is the warrantor in North America. Topture is an authorized Harvia retailer and assists with troubleshooting and warranty coordination.

How does the Harvia Cilindro 20 compare with the Cilindro 16 and the Legend 150?

The Harvia Cilindro 20 is a stainless-steel pillar rated at 17 kW for 283–706 cu ft, with its 264 lb of stones on show behind a steel grid. The Cilindro 16 is the same design at 16 kW for smaller rooms of 212–459 cu ft. The Legend 150 is a 16 kW stove for 212–459 cu ft with 264 lb of stones in a round black steel frame, and the Legend 240 models are 21 kW for up to 848 cu ft.

Where can you buy the Harvia Cilindro 20 from an authorized dealer?

Topture is an authorized Harvia retailer and sells the Harvia Cilindro 20 with AC3020 stones, the WHP1500 chimney, the WL120 round protection base, the WL200PC sheath and the WL300PC chimney cover as options. Topture adds Lifetime Expert Support, help with troubleshooting and warranty coordination, free shipping on orders over $200 within the continental US, financing through Shop Pay Installments at checkout, and a 30-day return window.

What does a Harvia Cilindro 20 cost in total, delivered?

The delivered cost of a Harvia Cilindro 20 from Topture is the stove price plus the parts it needs: six boxes of AC3020 stones, a chimney such as the WHP1500 kit, and, on a tile or combustible floor, the WL120 protection base. Topture has free shipping on orders over $200 within the continental US, so a Cilindro 20 order ships free there; Harvia stoves travel on a pallet by freight, with Topture's full-value freight protection. Budget separately for installing the chimney. Compare delivered totals, because some listings price the stove without its stones and chimney. Financing is available through Shop Pay Installments at checkout.
