SaunaLife E6 | Outdoor Barrel Sauna · 3-Person

The SaunaLife ERGO-Series Outdoor sauna barrels were designed and engineered by sauna enthusiasts to be the most comfortable, durable, and attractive barrel saunas you can buy.

Ergonomics – Barrel Sauna Comfort

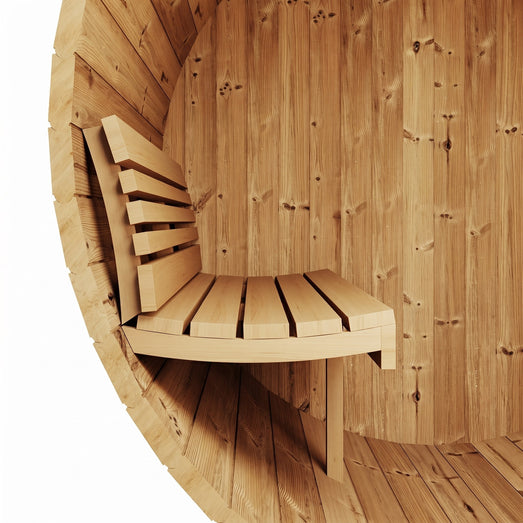

Bathing comfort cannot be overlooked when investing in an outdoor sauna barrel. The diameter of the barrel and the bench/backrest configuration must be considered. Barrels with a small diameter may be priced lower (less materials), but the tradeoffs are door height, bench comfort, and headroom. Smaller diameter barrels have a tighter arc which can create seating posture challenges, impact standing upright, and require one to duck upon entry and exit. ERGO Series Sauna Barrels benefit from a 6’5” interior height. Due to its large diameter, benches can be ergonomically contoured and formfitting. The generous barrel arc can support an expansive and arched backrest for true lumbar support. Touch and feel were not ignored when selecting the knot-free, silky-smooth grade-A Thermo-Aspen seating material designed to hug most any body size.

Durability – A lifetime of outdoor bathing pleasure

Did you know that Thermo-Spruce lasts up to 2X longer than Cedar wood? Every SaunaLife barrel begins with industry-leading 1.65” thick full-length staves that encapsulate the sauna and provide exceptional thermal resistance (R-value). This chemical-free, eco-friendly wood is dimensionally stable and ideally suited for outdoor saunas. We even build showers out of it! Wood thickness is the theme in the SaunaLife ERGO Series and provides bathers with ergonomically crafted benches and backrests from Thermo-Aspen (1.1” thick and 3-1/2” wide) nearly 50% thicker than most.

Ingenuity - Engineered to exceed expectations

Don’t let the simple design and installation process fool you, the ERGO-Series is jam-packed with barrel sauna innovation. Go ahead and splash the water, these beautiful outdoor spaces are built to thrive with water! It begins with industry-leading 1-7/8” wide and 1/8” thick stainless steel barrel bands that compress the massive staves and create your wellness retreat. Then, a watertight DIY shingle kit (a necessity for every barrel sauna) with side-mounted drip edges provides exceptional rainwater management. Inside the barrels are dual floor drains. One is purposefully placed under the sauna heater for your water-tossing pleasure. A second drain is near the door, where cold plunge or pool water may collect. Should this barrel shift out of level, these dual floor drains have you covered.

Illumination – Inside and out

Illuminating your barrel showcases the beauty of the wood and enhances your sauna experience. Only low-voltage and waterproof LED lighting will do. SaunaLife provides a superior white LED lighting system that is Wi-Fi app-based and allows one to set the ideal scene prior to entering the sauna. A hand-held remote control is also provided for on/off/dim operation. SaunaLife’s white LED fixture is heat and water certified (IP67) and is dotless so it provides an enchanting, even glow. Expandable up to four white fixtures, explore the available E Sconce+ Package which provides two striking out-door LED wall sconces and a secondary interior LED lightbar for ideal outdoor sauna ambiance. For the ultimate backyard sauna party attraction, consider adding E MOOD Lighting Package for both the inspirational and relaxing visual effects that an infinite range of color affords.

Beauty – A compliment to most any outdoor oasis

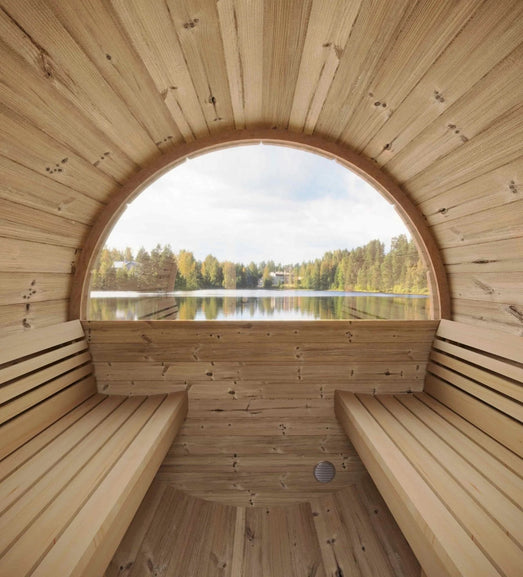

SaunaLife sources the highest quality Nordic Spruce and dries it to a rich golden color that accentuates its distinctive grain and rustic tight-knot charm. The barrel interior benefits from ergonomically designed benches and backrests of ultra-smooth Thermo-Aspen, a grade-A wood species that is rich in color, and free from knots. A complimentary bottle of paraffin oil, a natural wax, is provided to enrich and preserve the interior luster.

The MODEL E6 home sauna is designed by SaunaLife and precision-crafted in Northern Europe where sauna bathing is a healthy part of everyday life. Enjoy a lifetime of wellness in your own backyard and Live the SaunaLife!

SaunaLife barrel sauna kits are designed to be the most comfortable, durable, and attractive barrel saunas you can buy. They are constructed of the highest quality Nordic Spruce and have ergonomically designed, ultra-smooth Thermo-Aspen benches and backrests. They feature a white LED lighting system that is Wi-Fi app-based and allows one to set the ideal scene prior to entering the sauna. A shingled roof is included to protect it from the elements.

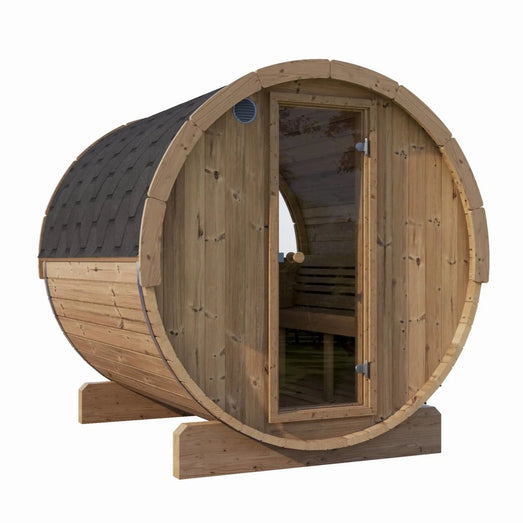

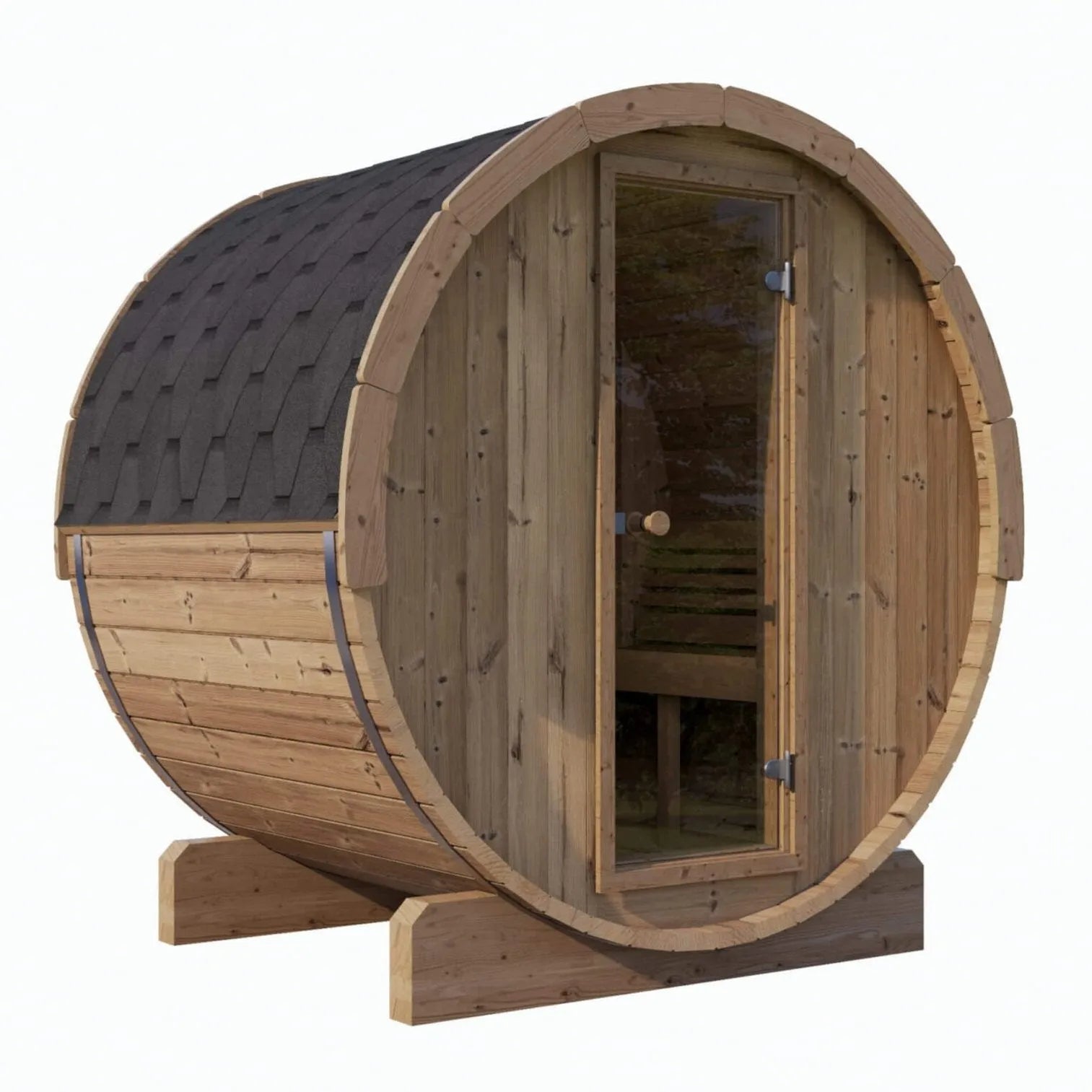

Model E6 Sauna Barrel

• Thermo-Spruce materials (lasts up to 2X longer than Cedar)

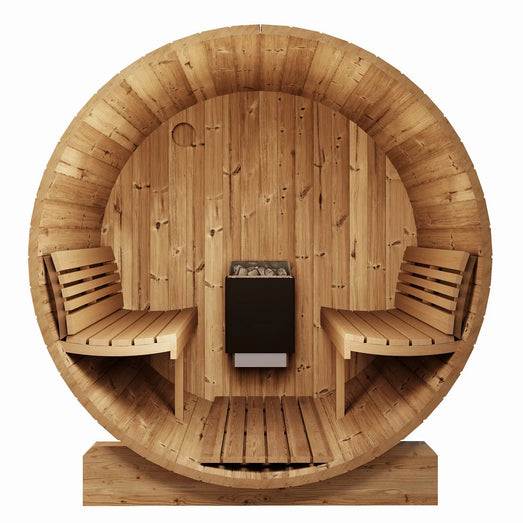

• Designed for ergonomic sauna bathing experiences
• Spacious 6’-5” interior height
• Engineered for simple DIY installation (1-day, 2-persons)
• Industry-leading wall, bench, and backrest material thicknesses
• Superior thermal resistance (R-value)

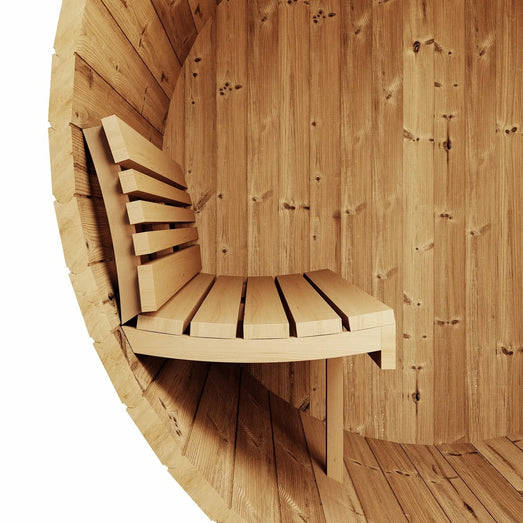

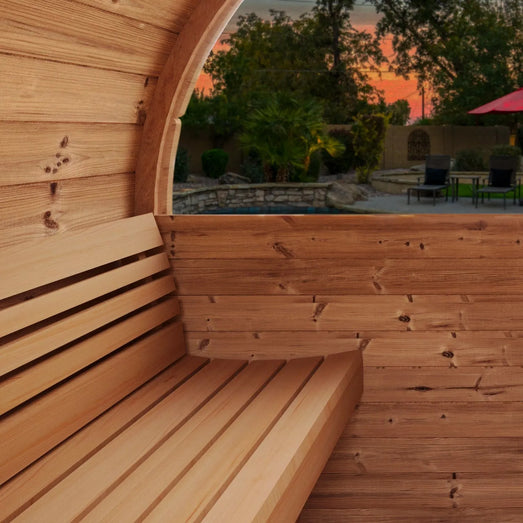

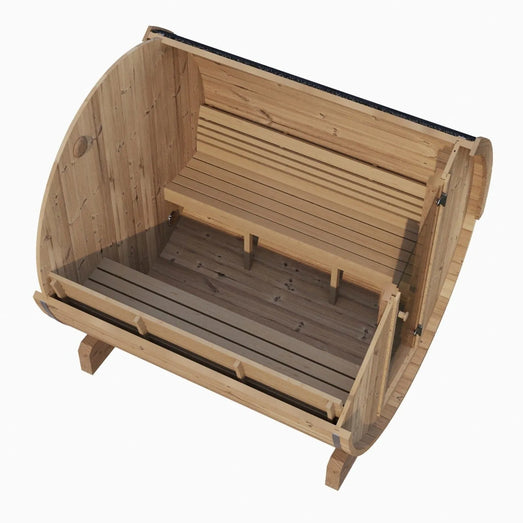

• Curved Thermo-Aspen benches for bather comfort
• Premium arched backrest for all body sizes
• Dual floor drains for effective water elimination

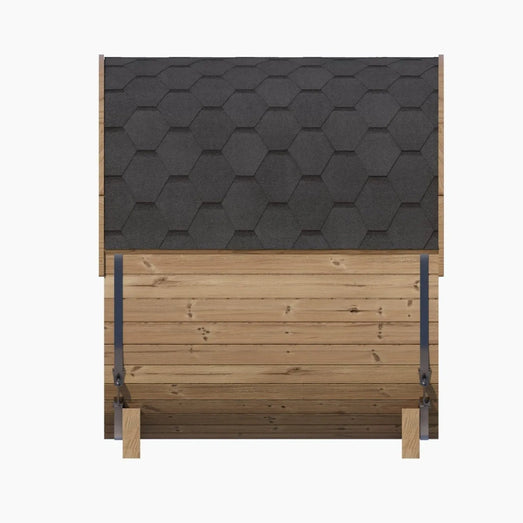

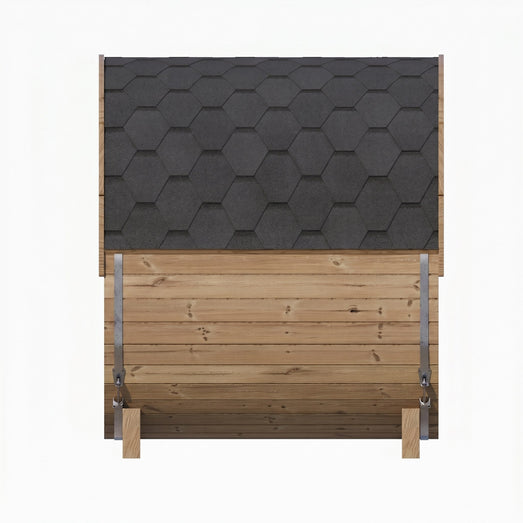

• Black shingle roof kit for weather-tight installation
• Roof drip edge for rainwater management

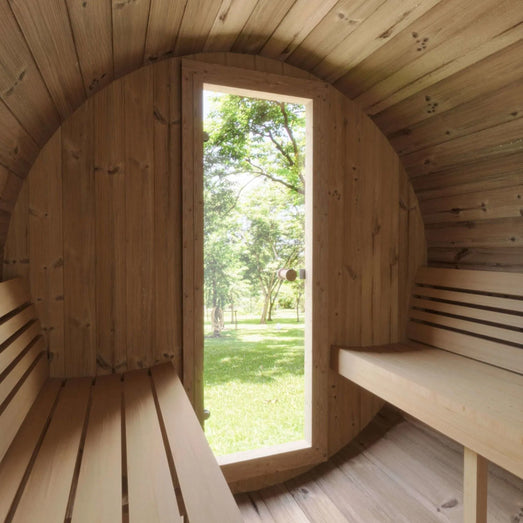

• Tempered bronze glass (5/16” thick)
• Enhanced bathing ambiance with E SCONCE+ and E MOOD lighting upgrades
• Heavy-duty stainless steel barrel bands (1-7/8” wide x 1/8” thick)
• Paraffin oil is provided to enrich and preserve sauna barrel luster
• Extra Thermo-Spruce staves to ensure success (2)
• Sauna heater guard

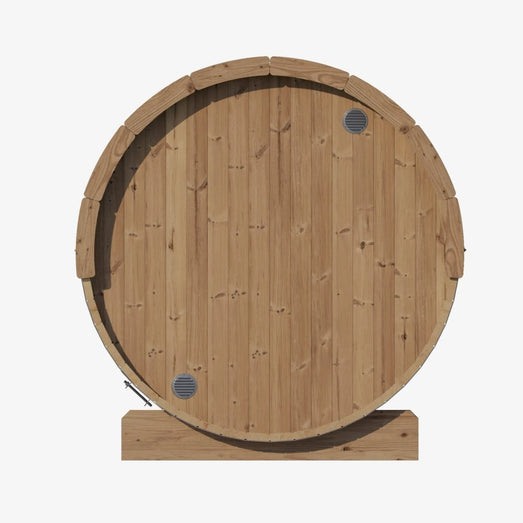

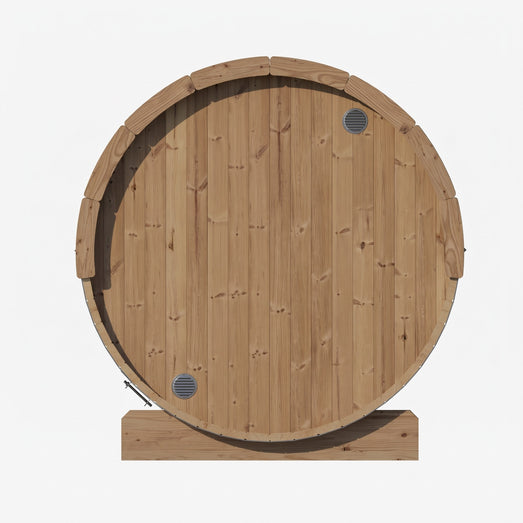

• Intake and exhaust air vents

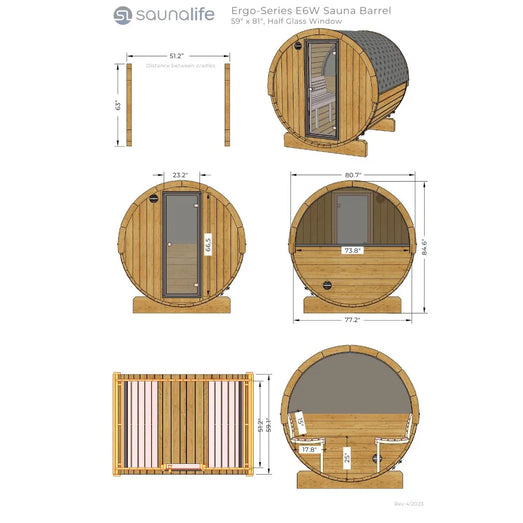

• Exterior dimensions - 59” long and 81” diameter
• Interior dimensions - 51” long and 77” diameter
• Up to 3 bathers
• Designed by SaunaLife and handcrafted in Northern Europe

Thermo-Spruce Barrel Sauna Advantages

• Lasts up to 2X longer than Cedar
• Superior thermal resistance (R-value)
• Eco-friendly
• Chemical-free
• Golden color
• Ideal sauna use (stable)
• Rustic tight knot charm

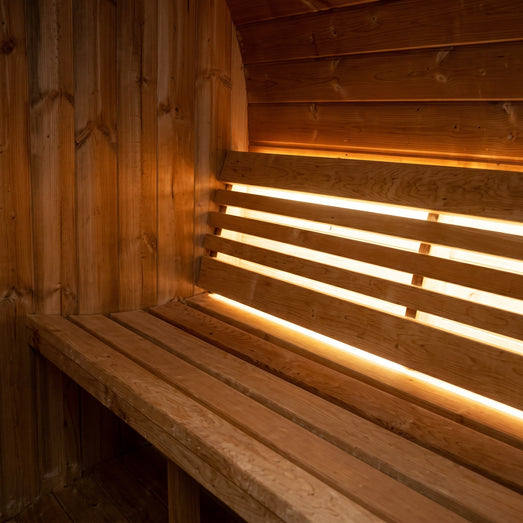

White LED Light Bar System with Wi-Fi App

• Dottless white glowing LED lighting
• Wi-Fi, app-based operation capability
• Wireless handheld remote (IP20) and control mounting cradle
• Water and heat rated LED and wire connections (IP67)
• Flush or articulating mounting clips to set the ideal scene
• Low voltage (24-volt DC) operation for bathing safety
• 30’ light cable (IP67) to suit all installation applications
• Expandable to control up to four white LED light sources (see E SCONCE+ Package)

Model Specifications

Lighting Specifications

Power Supply Specifications

Model E6 Sauna Barrel

• Full-length Thermo-Spruce staves (1.65” thick)
• Benches of Thermo-Aspen (1.1” bench tops, no knots)
• Backrest of Thermo-Aspen (1.1” rests, no knots)

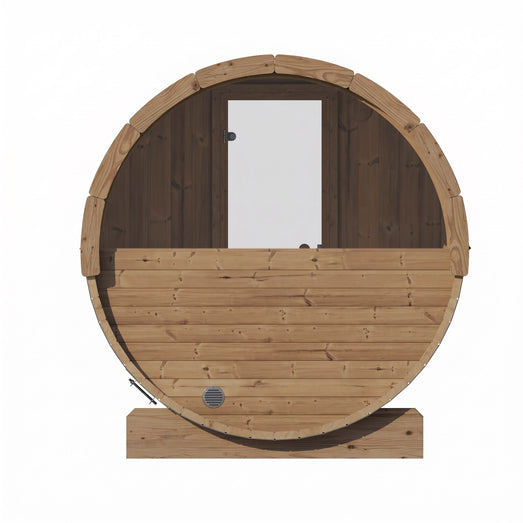

• Tempered bronze glass door
• Stainless steel barrel bands
• Black roof shingle kit
• Spruce cradles
• Spruce fascia boards
• Air intake and exhaust vents
• Extra staves (2)
• Fastener kit
• Paraffin oil, 16.9 oz bottle (500ml)
• Installation instructions

White LED Light Bar System with Wi-Fi App

• White LED light bar (1)
• Wi-Fi, app-based operation
• Wireless handheld remote & mounting cradle
• 90W power supply
• Driver
• 30’ light cable
• Mounting clips, articulating (3)
• Mounting clips, flush (3)
• Installation instructions

Add-Ons:

• Flat Floor
• Heater
• Lighting Upgrades

• Harvia KIP 6kW Electric Heater Package w/ Built-In Controller and Stones -

The most popular electric heater for this sauna. Electric Heaters are the most convenient. Just set and forget. They hold a consistent temperature and use no more energy than your clothes dryer or oven. It draws 25 amps @ 240V and requires 10 gauge wiring on a dedicated 30+ amp circuit.

• Harvia KIP 6kW Electric Heater Package w/ Digital Controller and Wifi and Stones -

A fan favorite for those who want to heat up their sauna from their phone. It also draws 25 amps @ 240V and requires 10 gauge wiring on a dedicated 30+ amp circuit.

• HUUM DROP 6kW Electric Heater w/ UKU Wifi Controller and Stones -

DROP heater is inspired by the purest element in nature – a water drop. But DROP isn’t only about the looks. This compact wall-mounted heater can actually fit up to 122 pounds of stones, exceeding most wood-burning stoves and guaranteeing long-lasting steam. It gets up to 220℉ so is a great choice for people who want their sauna to be HOT. It draws 25 amps @ 240V and requires 10 gauge wiring on a dedicated 30+ amp circuit.

• Harvia M3 Wood Burning Stove Kit w/ Chimney and Floor Protection and Stones -

Wood-burning heaters are a great option if you have access to firewood & want to avoid running electrical to the sauna. The even heat and efficient air circulation guarantee an enjoyable sauna session. This woodburning heater kit comes with steel protective bedding and a chimney out the roof so you have everything needed to properly set it up.

• Other Heaters -

We offer all of the major heater brands, so if you are looking for something specific let us know and we'll help you spec one out. Most 6kW electric, 8kW electric, or wood-burning sauna heaters in our store will work so if you find an alternative you prefer feel free to switch it out.

Installation Manual
