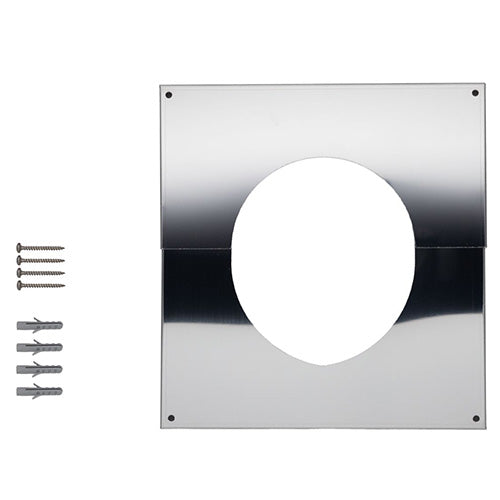

Harvia WZ020115 two-piece stainless-steel lead-through flange for a 115 mm smoke pipe, with fixing screws and plugs
Harvia

Harvia Lead-Through Flange for Sauna Stove Smoke Pipe | WZ020115

Two-piece stainless flange for the opening where a Harvia 115 mm smoke pipe passes through a wall

$81
$99
Save $18
+Shipping

In stock

Estimated delivery

7–12 days after you order

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

Description

What is the Harvia WZ020115 lead-through flange?

The Harvia WZ020115 is a two-piece stainless-steel lead-through flange for a smoke pipe 4.5–4.7" (115–120 mm) across. It covers the opening where Harvia's single-wall smoke pipe passes through a wall, with the pipe straight or at an angle, as Harvia's drawing shows.

Do you need the Harvia WZ020115?

You need it where a Harvia smoke pipe passes through a wall, for example into a masonry flue. Harvia's single-wall smoke pipe must stay at least 19.7" (500 mm) from combustible walls and 39.4" (1,000 mm) from a combustible ceiling, so the wall it passes through has to be non-combustible. It fits the 115 mm smoke pipe of every Harvia wood-burning stove Topture sells except the Harvia 50, whose connection opening is 140 mm.

It is not the ceiling flange of the Harvia WHP1500 chimney kit: that kit includes its own lead-through flange, sized for its 8.66" (220 mm) insulated chimney.

What's Included

What's in the box with the Harvia WZ020115?

  • Harvia WZ020115 lead-through flange in two stainless-steel pieces

What you need separately

  • The smoke pipe itself: the flange is only the trim around the opening
Specifications

Harvia WZ020115 specifications

Harvia WZ020115 (Harvia sheet 06062019/Y05-0582; smoke-pipe sheet Y05-0078 09/25)
Fits Smoke pipe 4.5–4.7" (115–120 mm) across, straight or angled
Construction Two pieces
Material Stainless steel
Smoke-pipe clearance 19.7" (500 mm) to combustible walls; 39.4" (1,000 mm) to a combustible ceiling
Net weight 0.4 lb (0.2 kg)
Harvia part number WZ020115 (GTIN 6417659004879)
Warranty 2-year manufacturer warranty
Documents

Harvia WZ020115 Lead-Through Flange Installation Instructions

Harvia Warranty Terms
