Harvia The Wall 6kW/8kW Electric Sauna Heater with Built-in Controls | HSW6U1B / HSWS6U1B / HSW8U1B / HSWS8U1B
The Harvia The Wall Electric Sauna Heater is a modern, sleek, and efficient solution for medium-sized sauna rooms. Designed with Scandinavian minimalism, this wall-mounted heater combines functionality with style, offering superior air circulation for an evenly heated sauna. Its illuminated control switches provide effortless adjustment of temperature and timer settings, ensuring a customized sauna experience.
With a flexible installation design, the heater can be mounted in either a left or right-handed configuration, allowing it to seamlessly integrate into your sauna layout. The compact structure, combined with a durable stainless steel finish, enhances both performance and longevity.
Key Features
- Designed for Medium-Sized Saunas – Suitable for sauna rooms 177-431 cubic feet
- Two Power Options – Available in 6kW or 8kW models

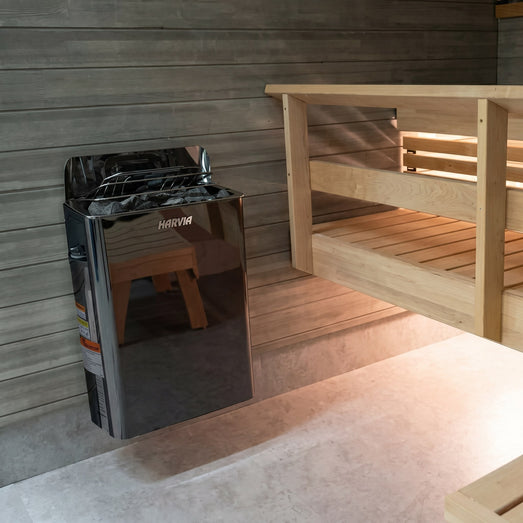

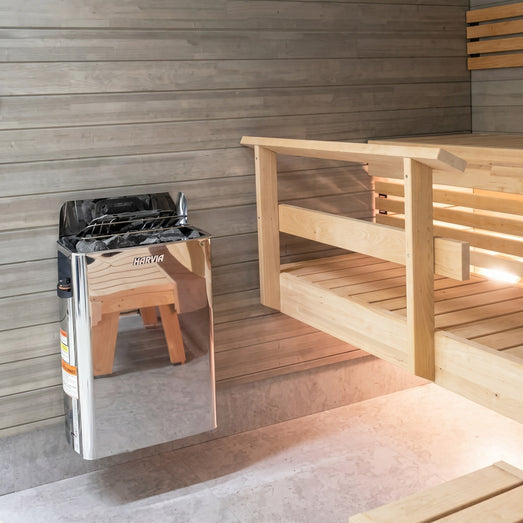

- Wall-Mounted Design – Space-saving and easy to install
- Flexible Installation – Can be mounted in a left or right-handed configuration

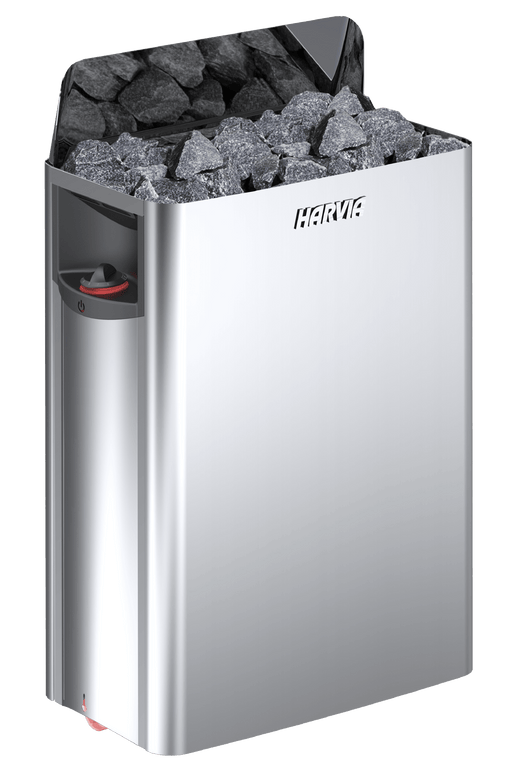

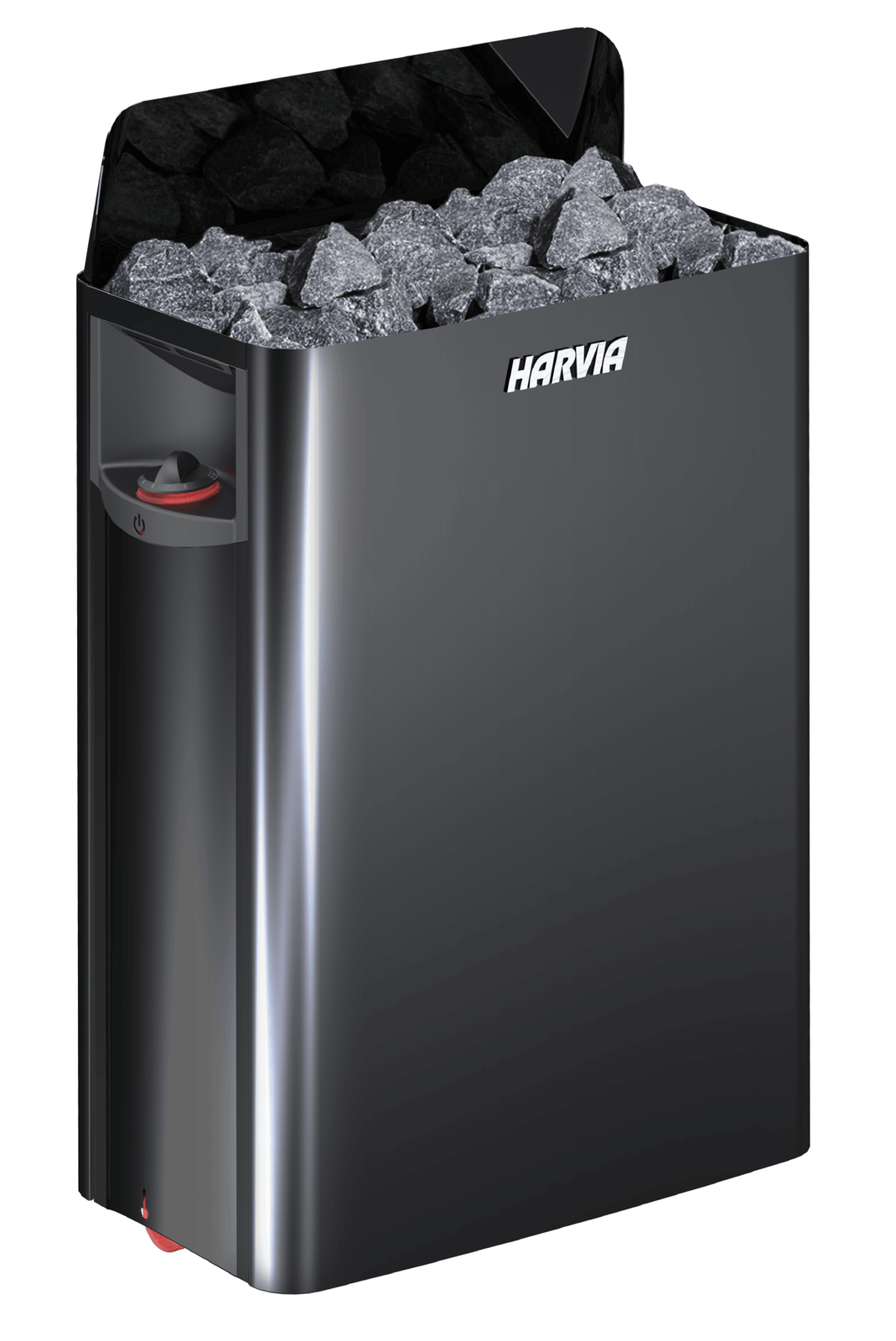

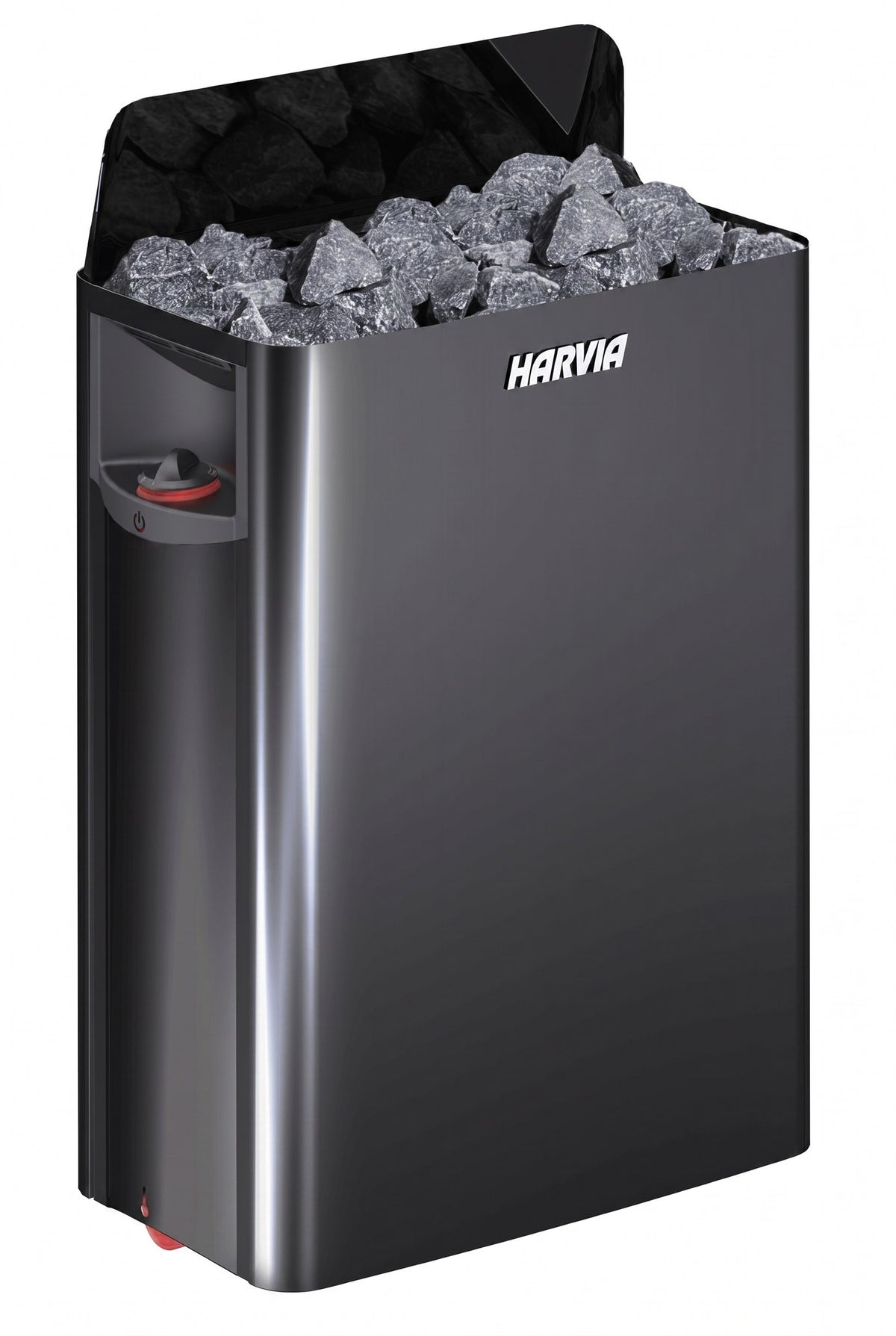

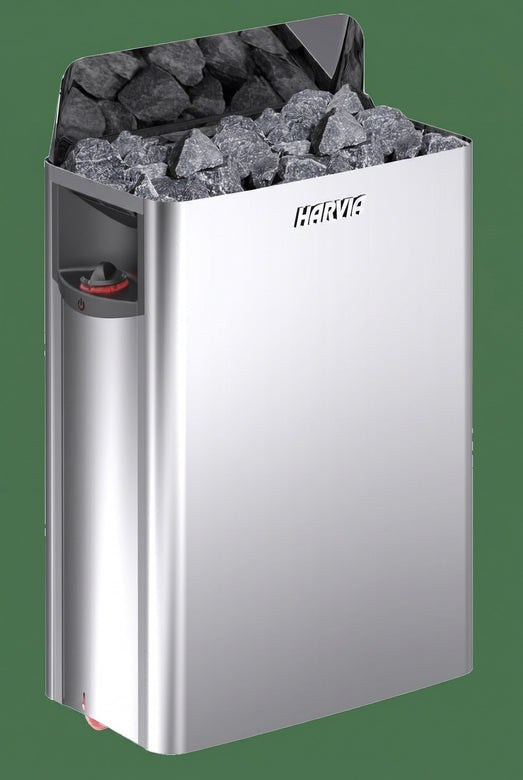

- Premium Construction – Stainless steel housing and heating elements, available in black stainless steel or polished stainless steel finishes

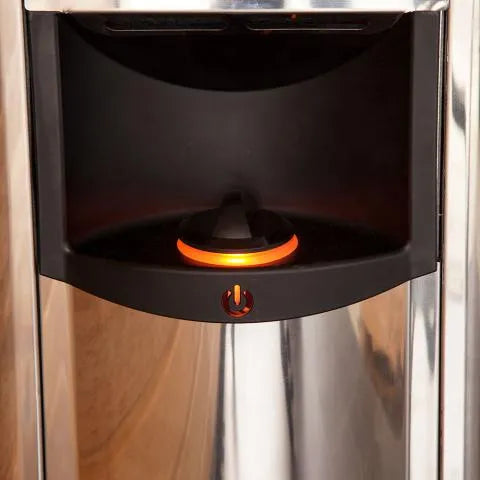

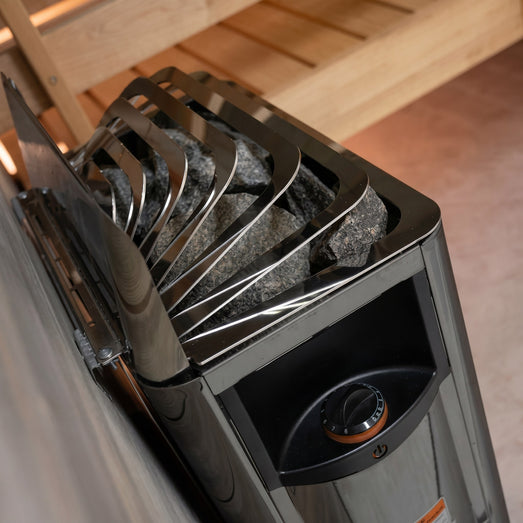

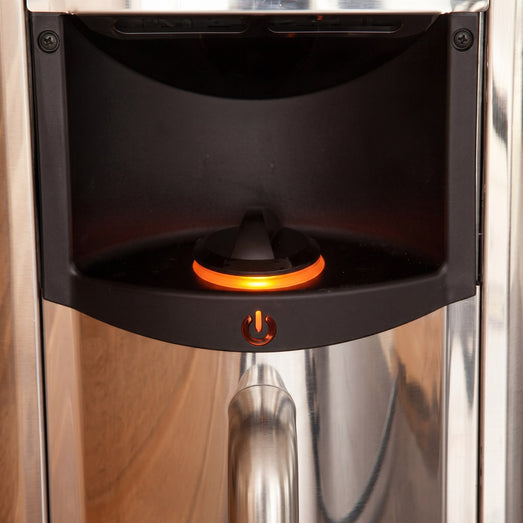

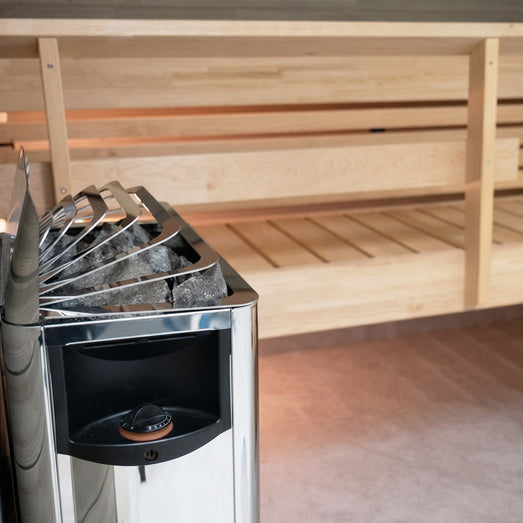

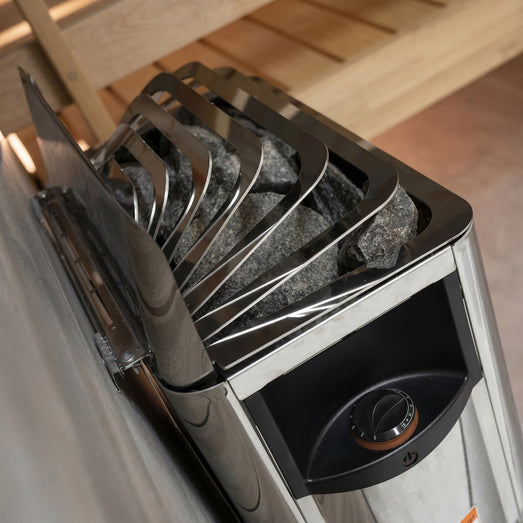

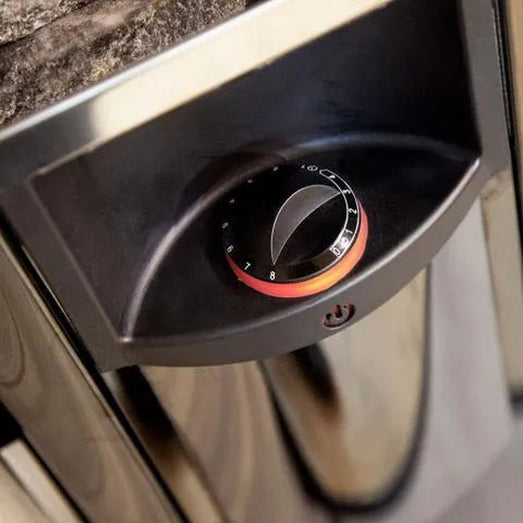

- Built-in Controls – Includes illuminated on/off, shutoff timer, and temperature controls
- Optimized Air Circulation – Evenly distributes heat for a consistent sauna experience
- Preset Timer – Allows for a delayed start of up to 8 hours
- Overheat Protection – Built-in safety features ensure reliable operation

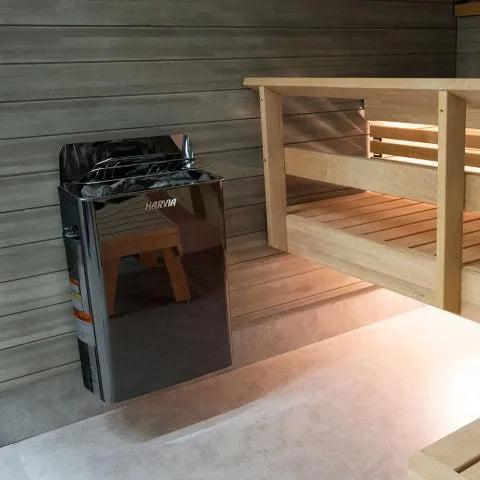

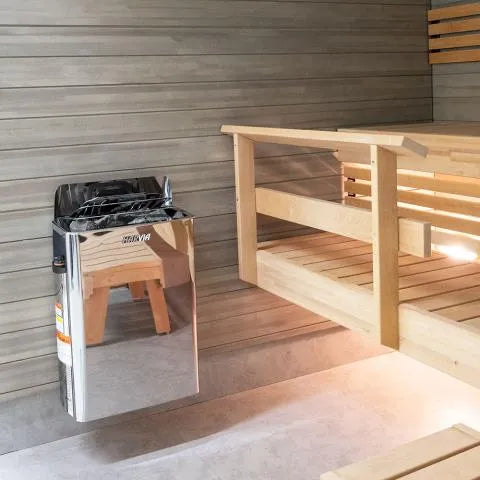

- Sauna Bench Integration – Smart design allows for integration into the sauna bench if desired
- Designed and Made in Finland – Engineered for durability and performance
- Harvia The Wall Sauna Heater
- Installation and Operation Manual
- 2-Year Manufacturer’s Warranty (Consumer Use)
Additional Recommendations:

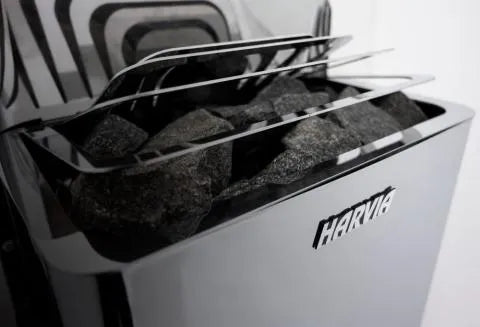

- Requires 44 lbs of sauna stones (sold separately – 1 box of Harvia AC3000 stones)
- Additional stones may be recommended for optimal fit and performance
| Heater Model | 6kW | 8kW |
|---|---|---|
| Sauna Size Range | 177-294 cu. ft. | 177-431 cu. ft. |
| Heater Weight | 31.5 lbs | 36.5 lbs |
| Shipping Weight with Sauna Stones | 75.5 lbs | 80.5 lbs |
| Voltage/Phase | 240V/1PH | 240V/1PH |
| Amperage | 25A | 33.4A |
| Temperature Range | 104°F - 194°F | 104°F - 194°F |
| Dimensions (W x D x H) | 16.9" x 10.15" x 27.59" | 16.9" x 10.15" x 27.59" |
Safety Distances
Minimum Safety Distances
| Figure "Minimum safety distances" | 6 kW and 8 kW |
|---|---|
| A — heater to a side wall, rear wall or bench beside it | 2.95" (75 mm) |
| B — heater to a bench or shelf above it | 9.84" (250 mm) |
| C — floor to the underside of the heater | 3.15" (80 mm) |
| D — top of the heater to the ceiling | 44.1" (1120 mm) |
| Figure "Ventilation and clearances from wall and fence" | 6 kW and 8 kW |
|---|---|
| A — top of the guard fence, below the top of the heater | 1" (25 mm) |
| B — floor to the top of the guard fence | 31" (780 mm) |
| C — floor to the underside of the heater | 3.2" (80 mm) |
| D — heater to the wood guard fence, every side | 3" (75 mm) |
| E — air inlet vent, above the floor | 4" (100 mm) |
| F — air outlet vent, below the ceiling | 6" (150 mm) |
| Minimum sauna ceiling height | 75" (1900 mm) |
Read each letter against its own figure — the two figures below reuse A, B, C and D for different distances. Every value applies to both the 6 kW and the 8 kW heater. The minimum ceiling height is Table 2 of the Installation and Operation Manual, and it is exactly the 3.15" (80 mm) floor clearance plus the 27.6" (700 mm) heater height plus the 44.1" (1120 mm) ceiling clearance. The guard fence must not stand higher than the top of the heater. Confirm against the manual before building.
