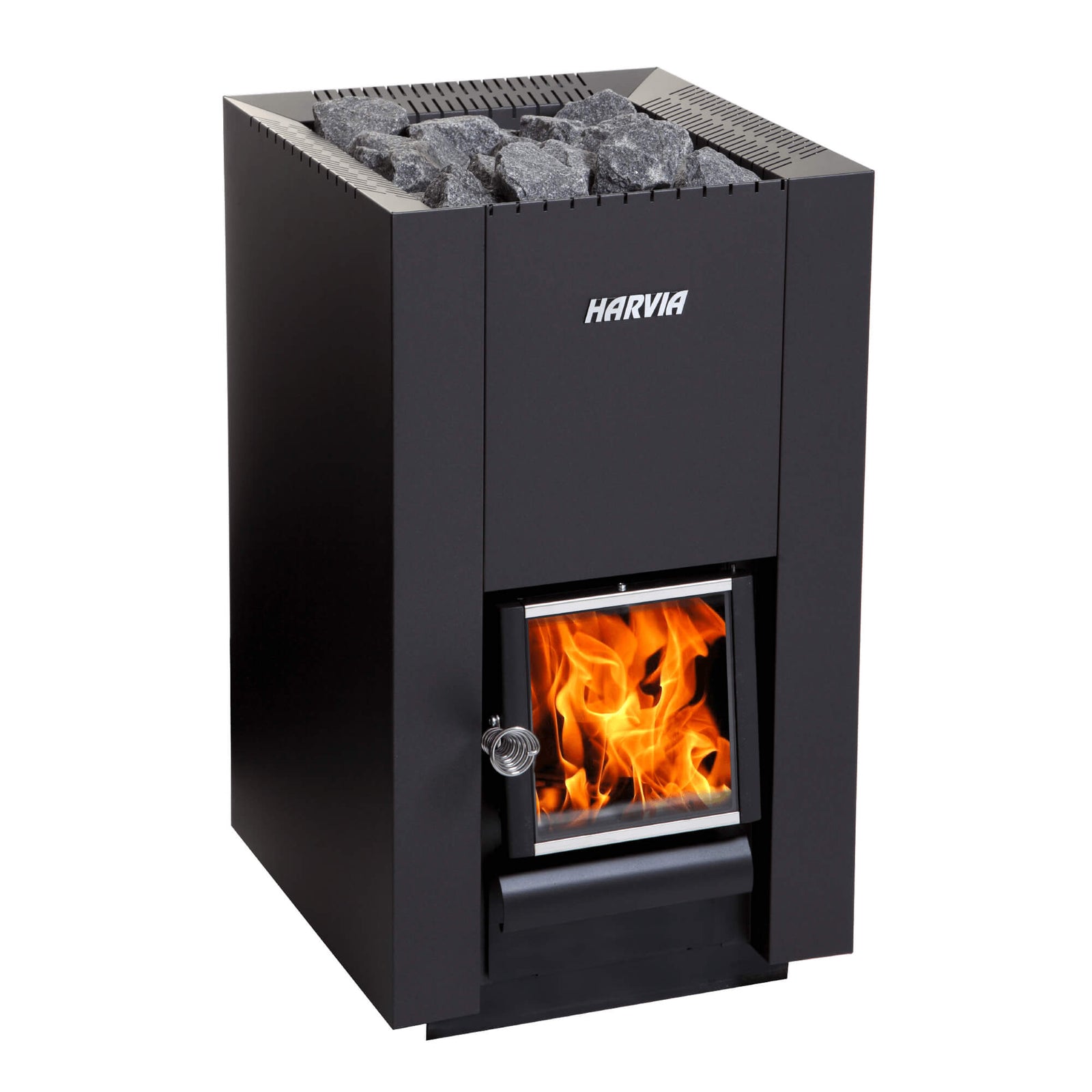

Harvia Linear 16 Wood Burning 17.9kW Sauna Stove | WK160C

Harvia Linear 16 17.9 kW wood-burning sauna stove for 212–565 cu ft rooms, in black-painted steel with a glass door and a top or rear chimney connection

$961

$1,199

Save $238

In stock

Estimated delivery

7–12 days after you order

Up to 79 lb of 4–6" stones
Wood-fired: no electrical hookup or circuit needed
Glass door shows the fire

The Sauna Mastery Protocol Digital Guide

Full-Value Freight Protection

Perfect for sauna rooms from 212 - 565 ft³

Select Stones

Required for Operation

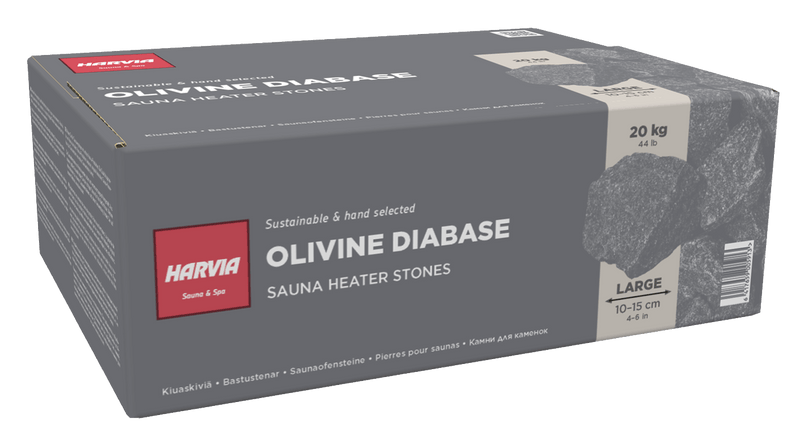

Harvia Split-Face Olivine Diabase Sauna Heater Stones 4-6" / 44lbs | AC3020 | 2 Boxes
$124

Select Chimney Kit

Required for Operation

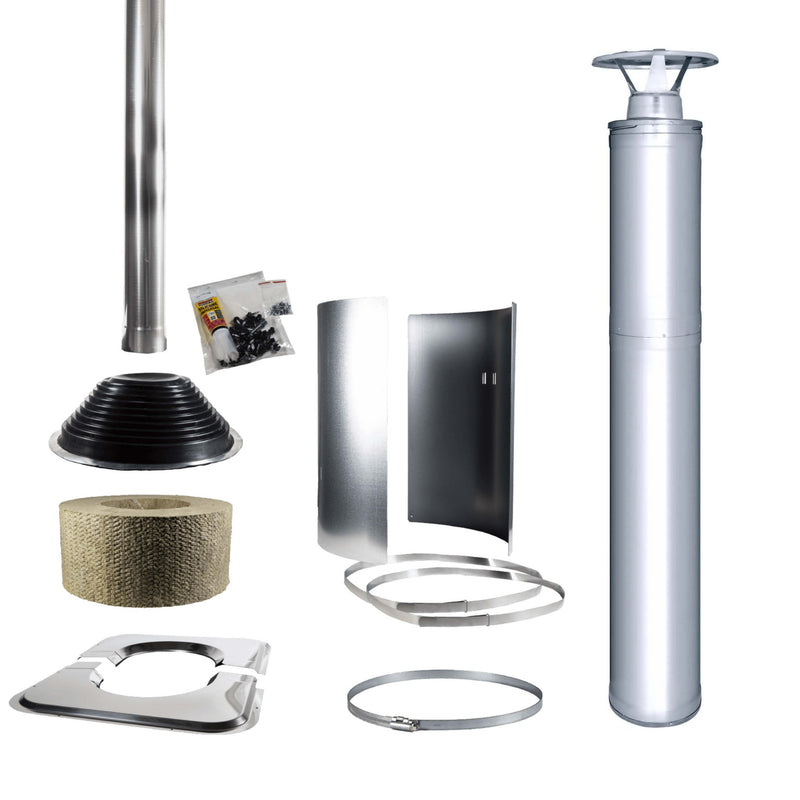

Harvia Sauna Stove Chimney Kit | WHP1500 | Stainless Steel
$1,487

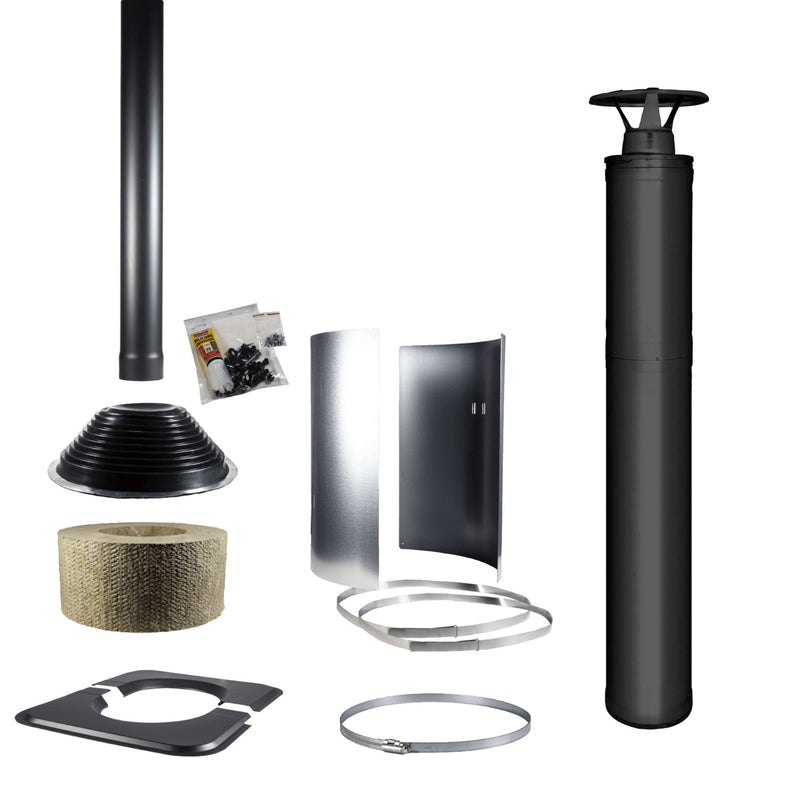

Harvia Sauna Stove Chimney Kit | WHP1500 | Black
$1,578

Select Accessories

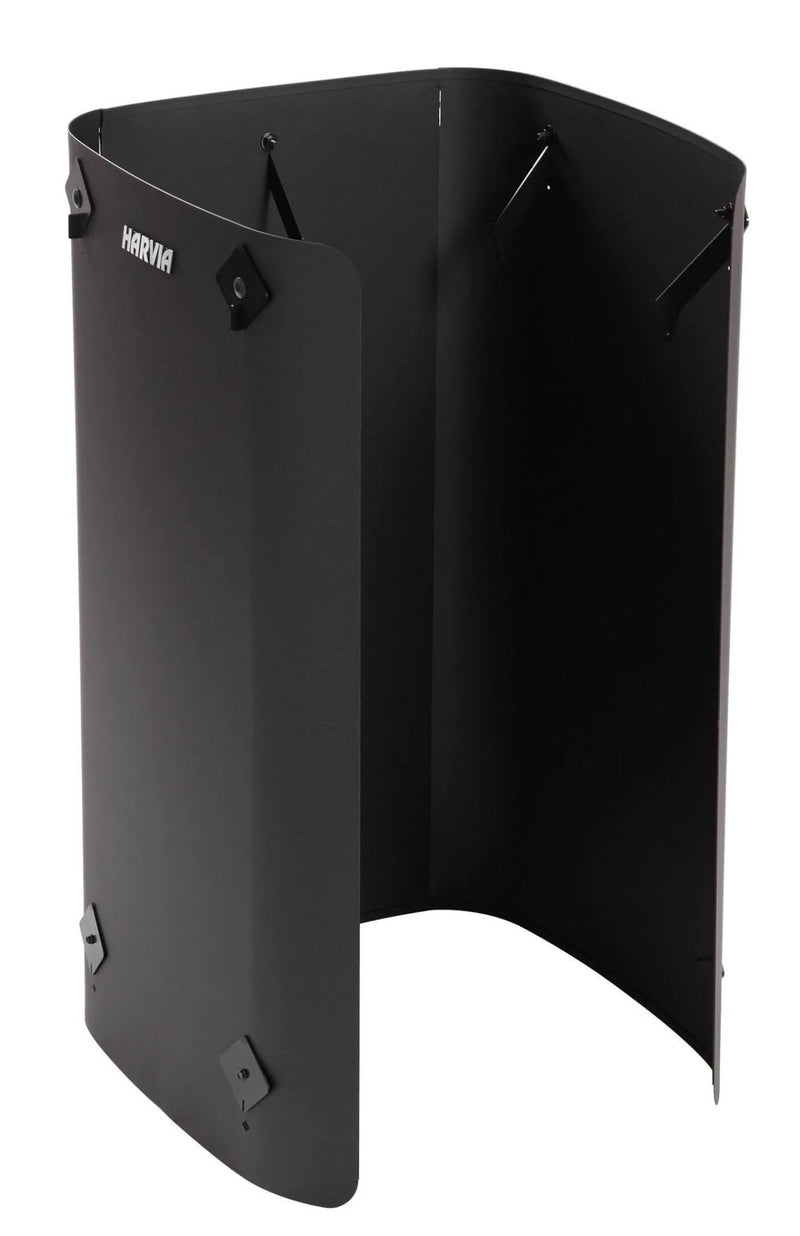

Harvia Linear 16 Protective Sheath | WL475
$624

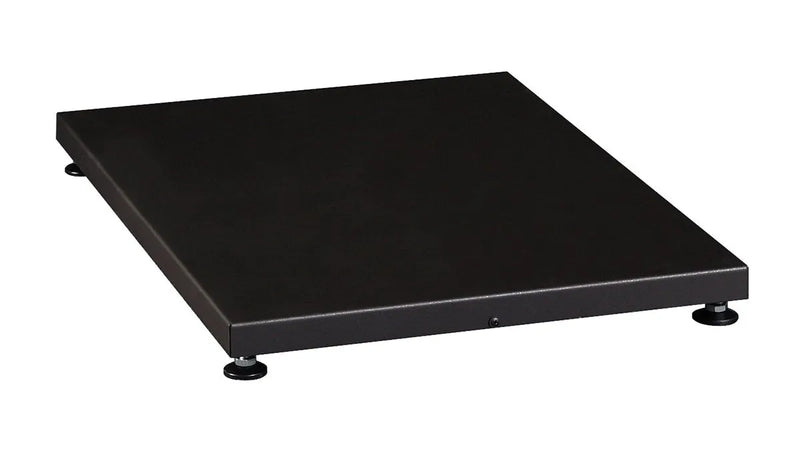

Harvia Protective Bedding LG
$356

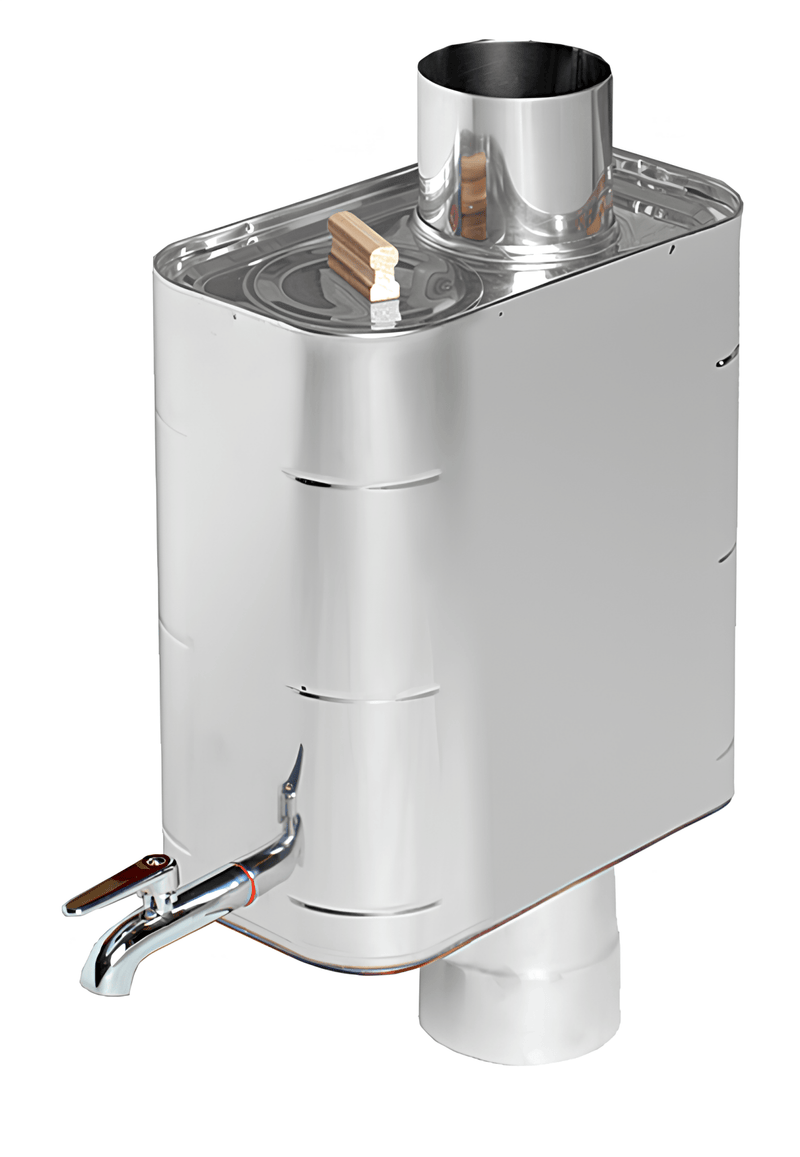

Harvia Stainless Steel Water Tank Heater | WP220ST
$727
Harvia Pipe Adapter | WZ115155
$105

Quantity

Curbside freight delivery by appointment; an adult must sign for the shipment. How it works

Secure checkout
30-day return window*
2-year manufacturer warranty

*Eligible returns must be requested within 30 days of delivery. Restocking and freight charges apply, and some items are final sale. See the Refund Policy.

Description

What is the Harvia Linear 16 wood-burning sauna stove?

The Harvia Linear 16 (WK160C) is a 17.9 kW wood-burning sauna stove for sauna rooms of 212 to 565 cu ft. It stands on the floor with no adjustable legs, has a black-painted steel casing, a glass door and an ash box, holds up to 79 lb (36 kg) of 4–6" stones, and connects to the chimney at the top or the rear through a 4.5" (115 mm) opening. It burns firewood and needs no electrical connection.

The Harvia Linear 18 Compact is a double-shell stove that can stand closer to walls, the Harvia Linear 22 GreenFlame adds Harvia's GreenFlame combustion and a larger glass door, and the Harvia wood-burning stove collection has every Harvia wood-burning stove Topture sells.

Harvia Linear 16 key features

17.9 kW for sauna rooms of 212–565 cu ft (6–16 m³)
Up to 79 lb (36 kg) of 4–6" stones
Top or rear chimney connection, 4.5" (115 mm)
Black-painted steel casing, glass door and ash box
Takes firewood up to 13.8" (350 mm) long
CE marked (EN 15821)
2-year manufacturer warranty

Specifications

Does the Harvia Linear 16 fit my sauna?

The Harvia Linear 16 heats sauna rooms of 212 to 565 cu ft (6–16 m³). Harvia's manual adds 1.2 m³ for every square meter of uninsulated brick, glass block, glass, concrete or tile wall, about 3.9 cu ft per sq ft, and a glass door counts: its example is a 10 m³ room with a glass door, which needs the output of a 12 m³ room. Multiply the volume of a solid-log sauna by 1.5. The Linear 16 needs at least 51.2" (1,300 mm) between the top of the stove and the ceiling. Harvia's data sheet gives a minimum sauna room height of 80.1" (2,035 mm).

Harvia Linear 16 specifications

Harvia Linear 16 (WK160C), Harvia manual Y05-0109-1 and data sheet WK160C
Output	17.9 kW
Sauna room volume	212–565 cu ft (6–16 m³)
Minimum room height	80.1" (2,035 mm) (Harvia data sheet)
Top of the stove to the ceiling	51.2" (1,300 mm)
Dimensions	16.5" W × 17.7" D × 28.9" H (420 × 450 × 735 mm)
Legs	Fixed; the Linear 16 has no adjustable legs
Net weight	102.7 lb (46.6 kg), Harvia data sheet
Stones	Up to 79 lb (36 kg) of 4–6" (10–15 cm) stones; two 44 lb boxes of Harvia AC3020 cover it
Chimney connection	Top or rear, 4.5" (115 mm); chimney class T600 with a flue at least 4.3" (110 mm) across
Firewood	Up to 13.8" (350 mm) long, 3.1–5.9" (8–15 cm) across
Materials	Black-painted steel; glass door
Electrical connection	None; wood-fired
Certification	CE marked (EN 15821)
Harvia part number	WK160C (GTIN 6417659017909)
Warranty	2-year manufacturer warranty; stones are not covered

Installation

How is the Harvia Linear 16 installed?

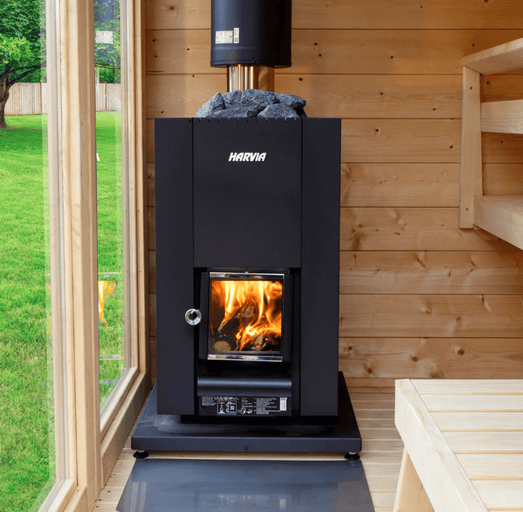

The Harvia Linear 16 stands, with no adjustable legs, on a floor strong enough to carry it, inside the safety distances below, and connects to a T600 chimney. Harvia's manual says all local regulations apply, that the stove is not suitable for a shared flue, that no electrical devices, wires or combustible materials may sit within the safety distances, and that the local fire authorities can give detailed fire-safety requirements. Harvia's installation manual, under Documents, gives the step-by-step installation, the chimney connection details and the wood loads.

Does the Harvia Linear 16 need floor protection?

It depends on the floor under the Harvia Linear 16. A bare concrete floor at least 2.4" (60 mm) thick needs no protection. A tile floor needs Harvia protective bedding or similar heat-radiation protection, because the adhesives and waterproofing under tile do not resist the stove's heat. A floor made of combustible material needs the bedding too, plus non-combustible protection in front of the stove door. Harvia's manual names the WL100 or WL110 bedding for the Harvia Linear 16. The Harvia WL110 protective bedding (Protective Bedding LG) is sold separately; it does not come with the stove.

Harvia Linear 16 safety distances

Keep at least these distances between the Harvia Linear 16 and anything that can burn.

Harvia Linear 16 minimum safety distances (Harvia manual Y05-0109-1)
Top of the stove to the ceiling	51.2" (1,300 mm)
Sides to combustible material	11.8" (300 mm)
Rear to combustible material	13.8" (350 mm)
Front to combustible material	15.7" (400 mm)
To a masonry wall	2.0" (50 mm) if air can circulate in front and at one side; 3.9" (100 mm) in a recess

Harvia Linear 16 with the WL425 (one side) or WL475 (full) protective sheath (Harvia manual Y05-0109-1)
Sides	1.2" (30 mm)
Rear	1.2" (30 mm)
Front	15.7" (400 mm)
Sheath to wall	1.3" (32 mm)

The shorter side and rear distances apply only with a sheath fitted. Topture stocks the WL475; the one-sided WL425 is not stocked. Without a sheath, use the first table.

Connecting the Harvia Linear 16 to a chimney

The Harvia Linear 16 connects at the top or the rear through a 4.5" (115 mm) opening, to a chimney of temperature class T600 with a flue at least 4.3" (110 mm) across; it cannot share a flue with another fireplace. The Harvia WHP1500 chimney kit (sold separately) fits the top opening, and its page gives the roof and clearance requirements. The rear opening connects to a masonry flue. For North American 6" chimney pipe, the Harvia WZ115155 pipe adapter (sold separately) adapts the opening.

Does the Harvia Linear 16 need a first firing?

Yes, outdoors. Harvia's manual says to fire the Harvia Linear 16 once outside before its first sauna, until the paint on the stove stops smoking, and to load the stones only after it has cooled.

What's Included

What's in the box with the Harvia Linear 16?

Harvia Linear 16 wood-burning sauna stove with its glass door and ash box
Installation and user manual

What you need separately

Two 44 lb boxes (88 lb) of Harvia AC3020 4–6" stones
A chimney: the Harvia WHP1500 chimney kit in stainless steel or black, or a T600 masonry flue
On a tile or combustible floor: the Harvia WL110 protective bedding (Protective Bedding LG), plus non-combustible protection in front of the door on a combustible floor
Optional: the Harvia WL475 protective sheath, which shortens the distances to combustible walls
Optional: the Harvia WP220ST water heater, which Harvia lists for the Linear 16
Optional: the Harvia WZ115155 pipe adapter, for North American 6" chimney pipe

Documents

Harvia M3, M3 SL and Linear 16 Installation and User Manual

Warranty

Harvia Warranty

Read the full LIMITED WARRANTY TERMS AND CONDITIONS

Step 1

Size it right

Every heater page lists the exact room size it's rated for, so you can match it to your sauna before you order.

Step 2

Spec your chimney

Through-roof or through-wall, single-wall or insulated, we help you build the right kit for your install.

Step 3

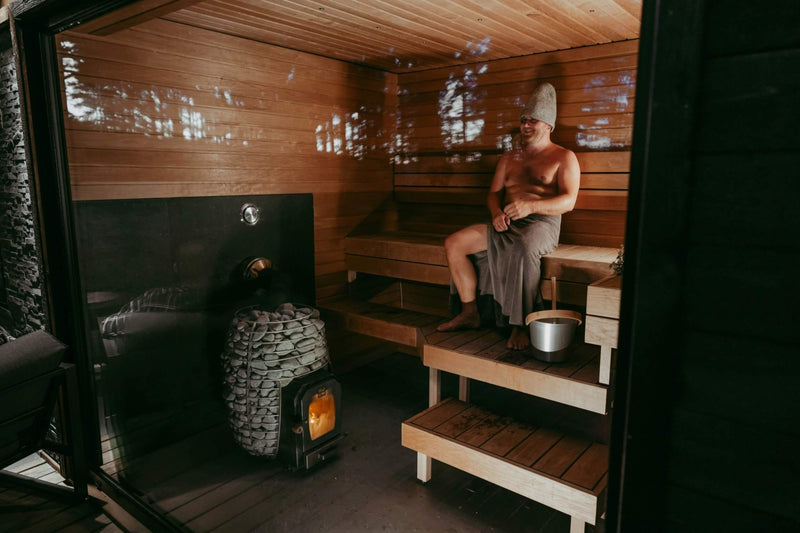

Real löyly

Wood-fired stones make the most authentic löyly — pour water across them and the steam hits the way Finns intended.

The Topture Experience

More than just a heater

Your purchase includes thoughtful extras to help you get started and enjoy your sauna with confidence.

BONUS 1

The Sauna Mastery Protocol

The session times, temperatures, and weekly rhythm that turn a sauna into a habit you keep. Covers heat-up protocols and what to expect across your first 30 sessions. Sent to your inbox after purchase.

INCLUDED

BONUS 2

Full-Value Freight Protection

Large orders ship fully insured. If freight arrives damaged, Topture helps coordinate the claim and replacement process with the carrier and manufacturer. Proper inspection and damage documentation at delivery are required. Most in-stock orders ship within 2–7 business days.

INCLUDED

Choose your options now

We thought about buying a sauna for years and finally did. We absolutely love it, especially in the winter. It’s incredibly easy to assemble with two people the whole family uses it.

Verified buyer

Ordered this sauna fall 2024 and we love it. No better feeling during a Minnesota winter. Lastly, I have to mention the customer service for this purchase has been like no other. Any questions or requests I had were addressed immediately by Topture. I got more than I expected from them and have already recommended them to several people looking for saunas. SO if you're thinking about it, JUST DO IT already..

Verified buyer

Thanks for the great service - greatly appreciated.

Verified buyer

Choosing the right sauna

Compare models from multiple sauna manufacturers based on your space, climate, capacity, preferences, and budget.

Will they help you compare alternatives, or only answer questions about the product you've already selected?

Heater & electrical fit

Get help matching the heater to the sauna volume, glass area, controls, and electrical requirements.Try our heater calculator

Ask who will check that the heater and controls are right for your installation before you order.

Authorized products

Products are sourced through authorized channels and include the applicable manufacturer warranty.View independent listings

Verify that the retailer is authorized for the brand and that your manufacturer warranty will be valid.

Freight delivery

We help coordinate heavy-freight delivery and provide guidance on receiving and inspecting your shipment.

Ask how the order ships, how it will be unloaded, and what happens if freight arrives damaged.

Installation information

We help provide the manuals, specifications, clearances, and electrical information your installer may need.

Find out what documentation and project support will be available after checkout.

After the sale

Questions after delivery? We help with troubleshooting, documentation, warranty coordination, and manufacturer support.Read customer reviews

Ask who you will actually contact if something doesn't work after the order arrives.

463 Customer Reviews

Product and store reviews from Topture customers, collected by Judge.me.

Lifetime Expert Support

Same team before and after the sale, from sizing to warranty support.

Authorized Harvia Retailer

Sold by Topture, with the applicable manufacturer warranty.

Full-Value Freight Protection

Freight damage? We help coordinate the claim and replacement process.

STILL UNSURE?

Frequently Asked Questions

What comes with the Harvia Linear 16, and what else does it need?

The Harvia Linear 16 ships as the wood-burning stove with its glass door and ash box, with Harvia's installation and user manual. It needs no electricity, but it does need 4–6 in sauna stones (two 44 lb boxes of Harvia AC3020 cover its 79 lb stone space), a T600 chimney such as Harvia's WHP1500 kit, and, on a tile or combustible floor, Harvia protective bedding, plus non-combustible protection in front of the door on a combustible floor. None of these come with the stove: Topture offers the stones, the WHP1500 chimney, the WL110 bedding, the WL475 sheath and the WP220ST water heater as options, sold separately.

What size sauna does the 17.9 kW Harvia Linear 16 heat?

The Harvia Linear 16 is rated at 17.9 kW and heats sauna rooms of 212–565 cu ft (6–16 m³), according to Harvia. Harvia adds 1.2 m³ for every square meter of uninsulated brick, glass, tile or concrete surface, about 3.9 cu ft per sq ft, and counts a glass door: a 10 m³ room with a glass door needs the output of a 12 m³ room. Multiply a solid-log sauna's volume by 1.5. The top of the stove needs at least 51.2 in (1,300 mm) to the ceiling. Larger rooms suit the Harvia Pro 20, rated for 283–706 cu ft.

What chimney does the Harvia Linear 16 need?

The Harvia Linear 16 needs a chimney of temperature class T600 with a flue at least 4.3 in (110 mm) across; it connects at the top or the rear through a 4.5 in (115 mm) opening, and Harvia's manual does not allow a shared flue. Harvia's WHP1500 steel chimney kit, in stainless or black, joins the top opening with a smoke pipe cut to length; it suits roofs pitched 10° or more (a flat roof needs the WHM24 rain flange) and is CE marked to EN 1856-1. Keep its insulated casing 3.94 in and its uninsulated smoke pipe 19.7 in from anything that can burn. A masonry T600 flue at the rear is the alternative.

How is the Harvia Linear 16 installed, and does it need electricity or floor protection?

The Harvia Linear 16 stands on the floor and needs no electrical connection. A bare concrete floor at least 2.4 in (60 mm) thick needs no protection; tile needs Harvia protective bedding, such as the WL110, and a combustible floor needs the bedding plus non-combustible protection in front of the door. Keep the stove 51.2 in (1,300 mm) from the ceiling and 11.8 in (300 mm) at the sides, 13.8 in (350 mm) at the rear and 15.7 in (400 mm) at the front from combustible walls; a Harvia protective sheath shortens the side and rear distances. Harvia's manual says local regulations apply and the local fire authorities can advise.

What has to be done before the first fire in a Harvia Linear 16?

The Harvia Linear 16 must be fired for the first time outdoors, Harvia's manual says, because the protective paint on the stove body smokes while it cures; the stove is ready for normal use once the smoking stops. Fit the smoke pipes for draught during this firing, load no stones until the stove has cooled completely afterwards, and throw no water on it. Do not rub or sweep the painted surfaces until the heat-resistant paint has cured.

What firewood does the Harvia Linear 16 burn, and how hot should the sauna get?

The Harvia Linear 16 takes firewood up to 13.8 in (350 mm) long and 3.1–5.9 in (8–15 cm) across, and Harvia declares loads of 7.7 lb (3.5 kg) to light the fire and 8.8 lb (4.0 kg) per refuelling. Start with pieces of 3.1–4.7 in (8–12 cm) and refuel with 4.7–5.9 in (12–15 cm). Empty the ash box before each firing and keep the door closed while the fire burns. The Linear 16 has no thermostat, so the fire sets the heat: Harvia's rule of thumb is that a sauna over 212°F (100°C) is too hot, and several full loads of wood in a row overheat the sauna, the stove and the chimney and can start a fire.

How do you load and maintain the stones in the Harvia Linear 16?

The Harvia Linear 16 holds up to 79 lb (36 kg) of 4–6 in (10–15 cm) stones; two 44 lb boxes of Harvia AC3020 split-face olivine diabase stones cover it, with some left over. Load them only after the first firing, once the stove is cold, with the larger stones at the bottom: Harvia warns that stones placed wrongly can heat nearby structures to dangerous temperatures even outside the safety distances. Rearrange the stones at least once a year and remove any smaller than 4 in or broken.

What problems do Harvia Linear 16 owners run into, and how are they avoided?

Most problems Harvia's manual lists for the Harvia Linear 16 trace back to the chimney, the wood or the stones. Smoke in the sauna or no draught points to a leaking flue connection, a cold flue, an extractor fan pulling air, a full ash box, blocked smoke canals or a connection pipe pushed too far into the flue. A sauna that will not heat is usually too big for the stove, has uninsulated walls or is fired with damp wood; stones that stay cool are often too small or broken. A smell on the first firings is the paint curing, and wooden walls darkening over time is normal.

Who makes the Harvia Linear 16, and what is it made of?

The Harvia Linear 16 (WK160C) is made by Harvia, the Finnish sauna manufacturer; Harvia US Inc. is its warrantor in North America. It has a black-painted steel casing, a glass door and an ash box, and it is CE marked to EN 15821, the European standard for wood-fired sauna stoves. It measures 16.5 in wide, 17.7 in deep and 28.9 in high, with no adjustable legs, and weighs 102.7 lb (46.6 kg) without stones.

What warranty does the Harvia Linear 16 have?

Harvia's manufacturer warranty covers the Harvia Linear 16 for 2 years of family use. The extra registration year Harvia offers applies to electric heaters only, not to wood-burning stoves, and sauna stones are not covered; the warranty also excludes damage caused by stones Harvia does not recommend. Harvia US Inc. is the warrantor in North America. Topture is an authorized Harvia retailer and assists with troubleshooting and warranty coordination.

How does the Harvia Linear 16 compare with the Linear 18 Compact and the Linear 22 GreenFlame?

The Harvia Linear 16 is the smallest and lightest of the three: 17.9 kW for rooms of 212–565 cu ft, 102.7 lb, 79 lb of stones and no adjustable legs. The Linear 18 Compact has a double shell that lets it stand 3.6 in from walls beside and behind it, against the Linear 16's 11.8 in at the sides, and covers 177–636 cu ft at 14.3 kW with 88 lb of stones. The Linear 22 GreenFlame adds a large glass door and Harvia's GreenFlame combustion, 15.7 kW for 318–636 cu ft.

Where can you buy the Harvia Linear 16 from an authorized dealer?

Topture is an authorized Harvia retailer and sells the Harvia Linear 16 on its own, with AC3020 stones, the WHP1500 chimney, the WL110 bedding, the WL475 sheath, the WP220ST water heater and the WZ115155 adapter as options. Topture adds Lifetime Expert Support, help with troubleshooting and warranty coordination, free shipping on orders over $200 within the continental US, financing through Shop Pay Installments at checkout, and a 30-day return window.

What does a Harvia Linear 16 cost in total, delivered?

The delivered cost of a Harvia Linear 16 from Topture is the stove price plus the parts it needs: two boxes of AC3020 stones, a chimney such as the WHP1500 kit, and, on a tile or combustible floor, protective bedding. Topture has free shipping on orders over $200 within the continental US, so a Linear 16 order ships free there; Harvia stoves travel on a pallet by freight, with Topture's full-value freight protection. Budget separately for installing the chimney. Compare delivered totals, because some listings price the stove without its stones and chimney. Financing is available through Shop Pay Installments at checkout.
