Is the Harvia Autodose still available?
Discontinued. The Harvia Autodose (SASL1) automated water and scent dispenser is discontinued at Topture and can no longer be ordered. Harvia rates it for 230 V 1N~ and certifies it CE and EAC only, with no North American listing and no US edition of its manual. Harvia's North American distributor does not carry the Autodose main unit, and the SASL2M design pipe that Topture sold with it is on that distributor's discontinued list. The specifications and Harvia's manuals stay on this page for reference.
What is the Harvia Autodose?

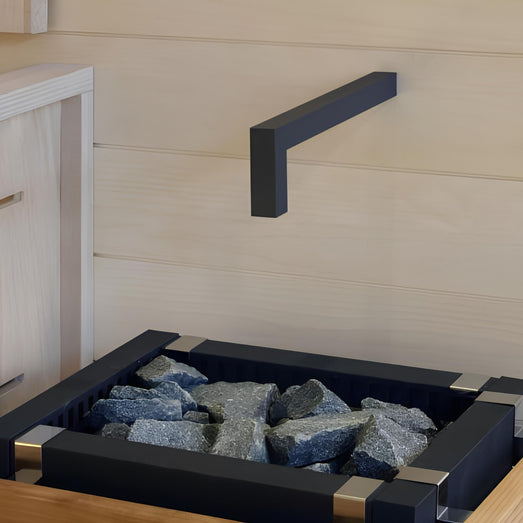

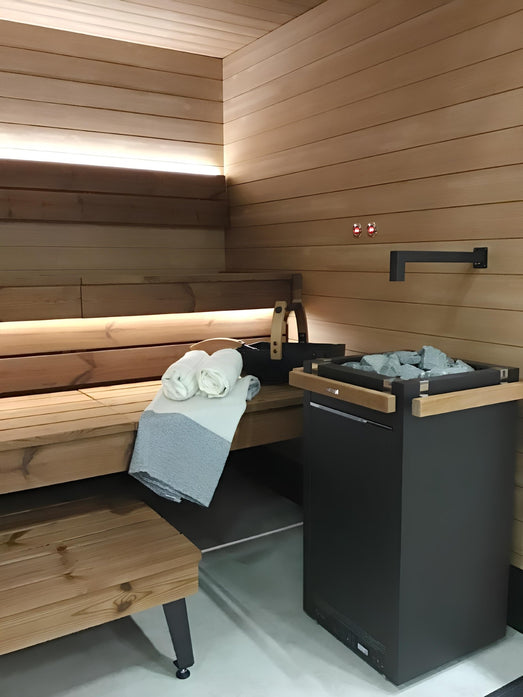

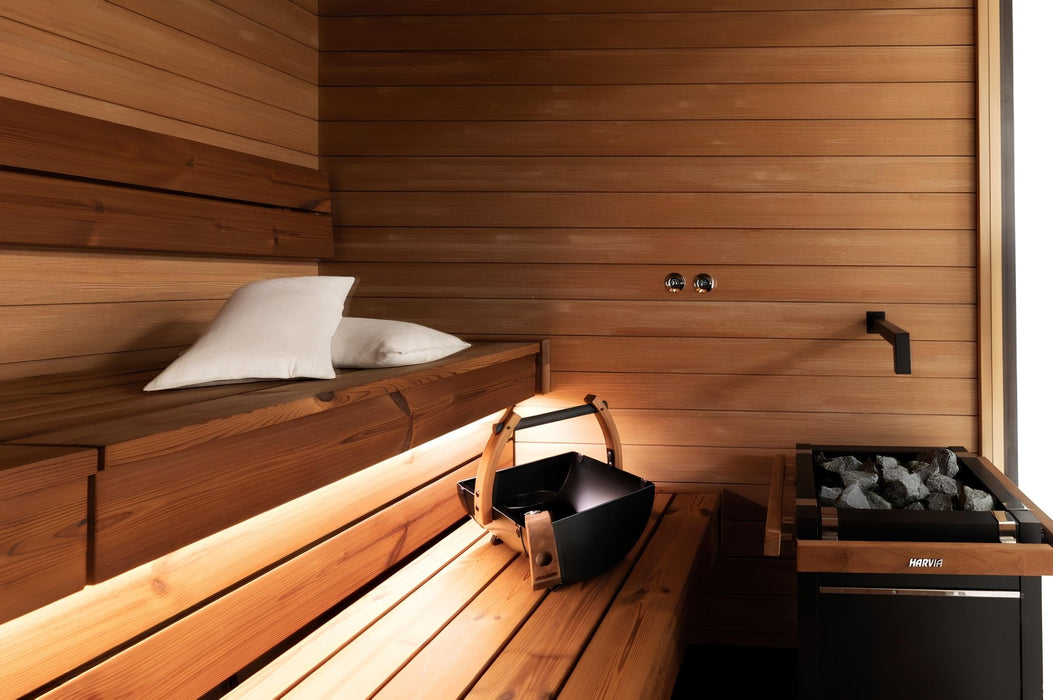

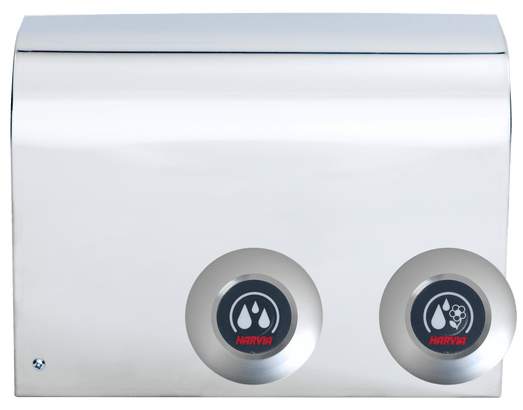

The Harvia Autodose applies water, or a mix of water and sauna fragrance, onto the heated stones of an electric sauna heater, either at a set interval or when a button in the sauna is pressed. It has a main unit that mounts outside the sauna room and operating buttons inside the sauna room: one button for water and one for water with fragrance. Topture's listing paired it with Harvia's SASL2M black design pipe, which carries the water to the nozzle above the heater.
The water output can be set from 0.3 to 4 seconds per dose, the fragrance pumping from 1 to 20 seconds, and the automatic interval from 1 to 10 minutes (off at the minimum). An optional 30-minute delayed start keeps it from putting water on cold stones. Harvia's manual says the Autodose is not for its smallest heaters: the Delta, Compact and Vega Compact.
How is the Harvia Autodose installed?

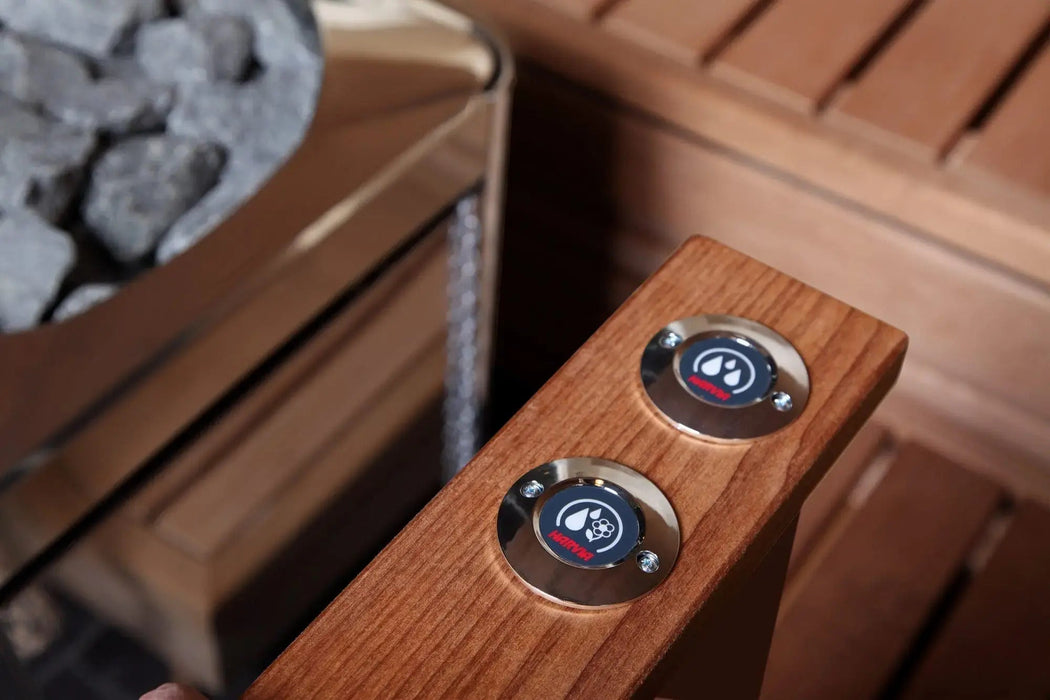

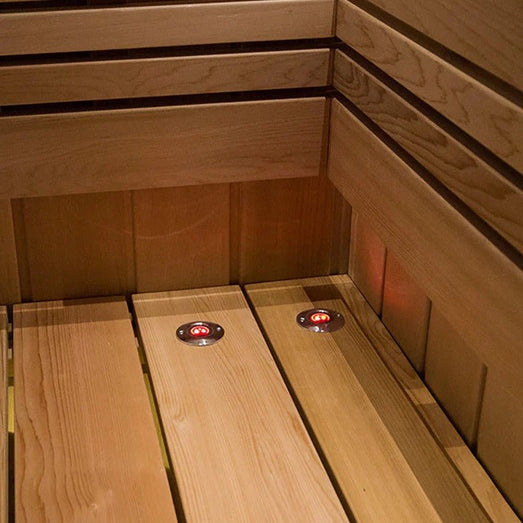

The Harvia Autodose main unit mounts on a wall outside the sauna room; Harvia recommends a dry space with a floor drain, above 32°F (0°C). The operating buttons go inside the sauna room and can be set into a wall or a bench. Harvia's manual says only an authorized, professional electrician may connect it, and the water supply pipe must have a stop valve and a vacuum breaker. The installation manual, under Documents, gives the piping and nozzle positions.

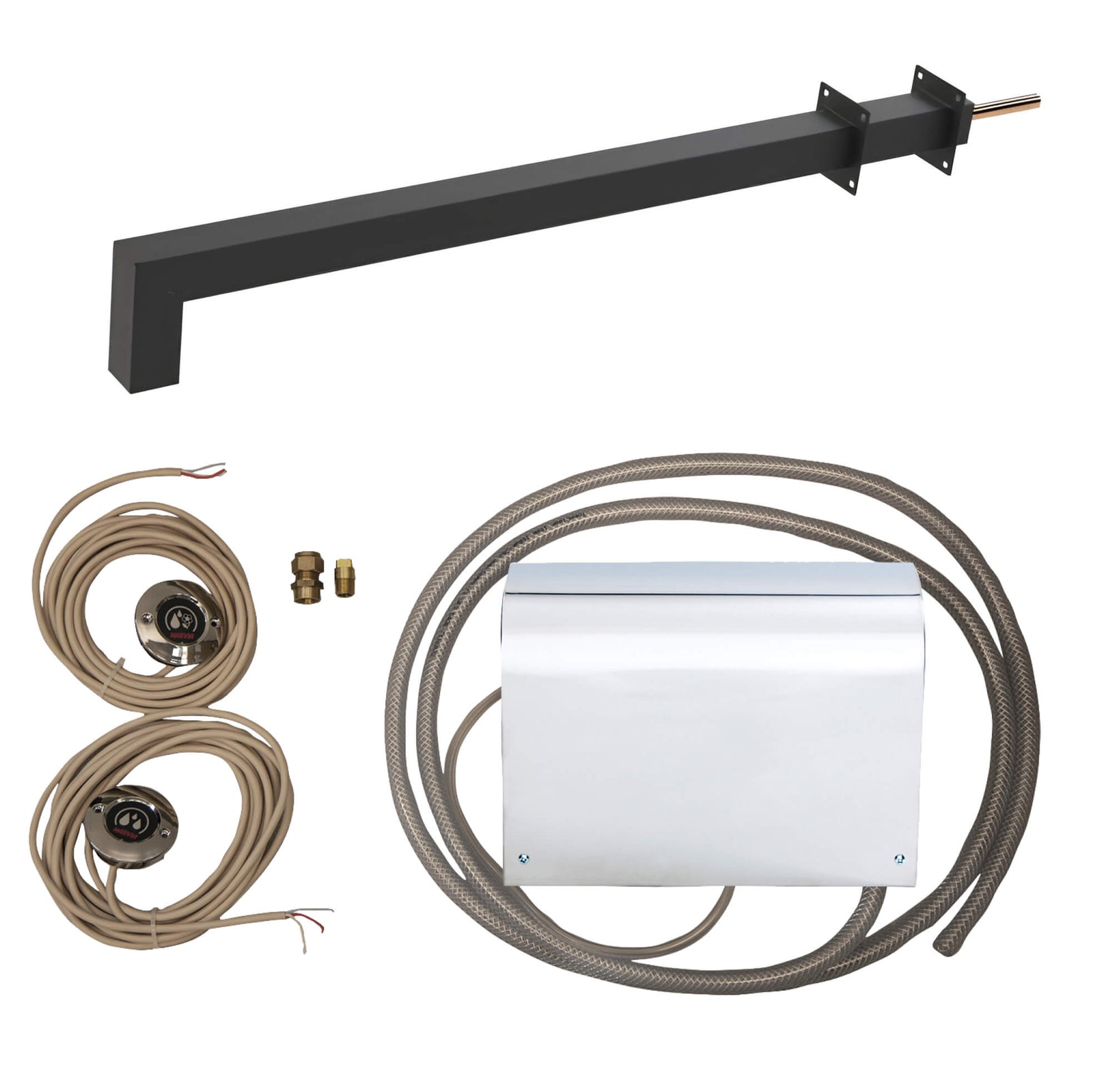

What came with the Harvia Autodose listing?

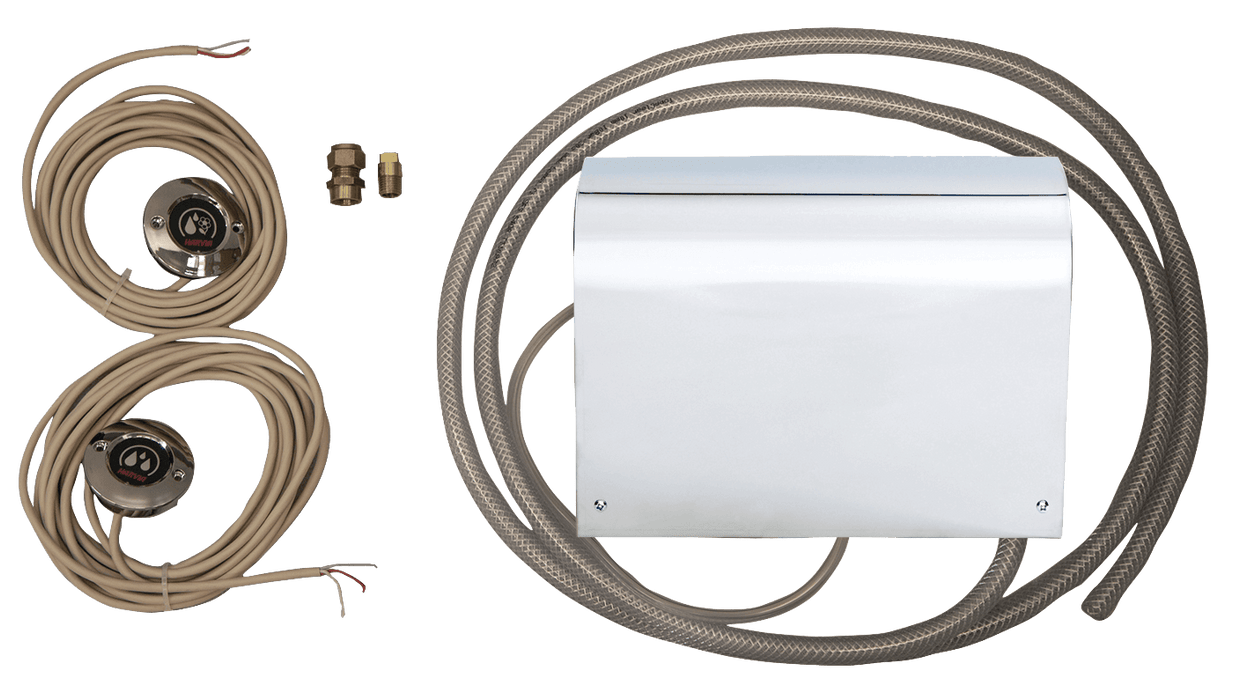

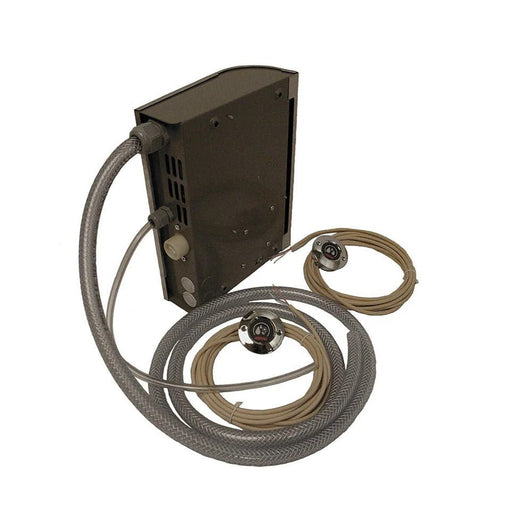

- Harvia Autodose (SASL1) main unit

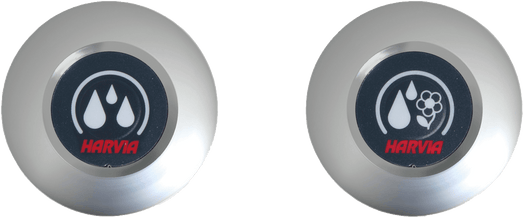

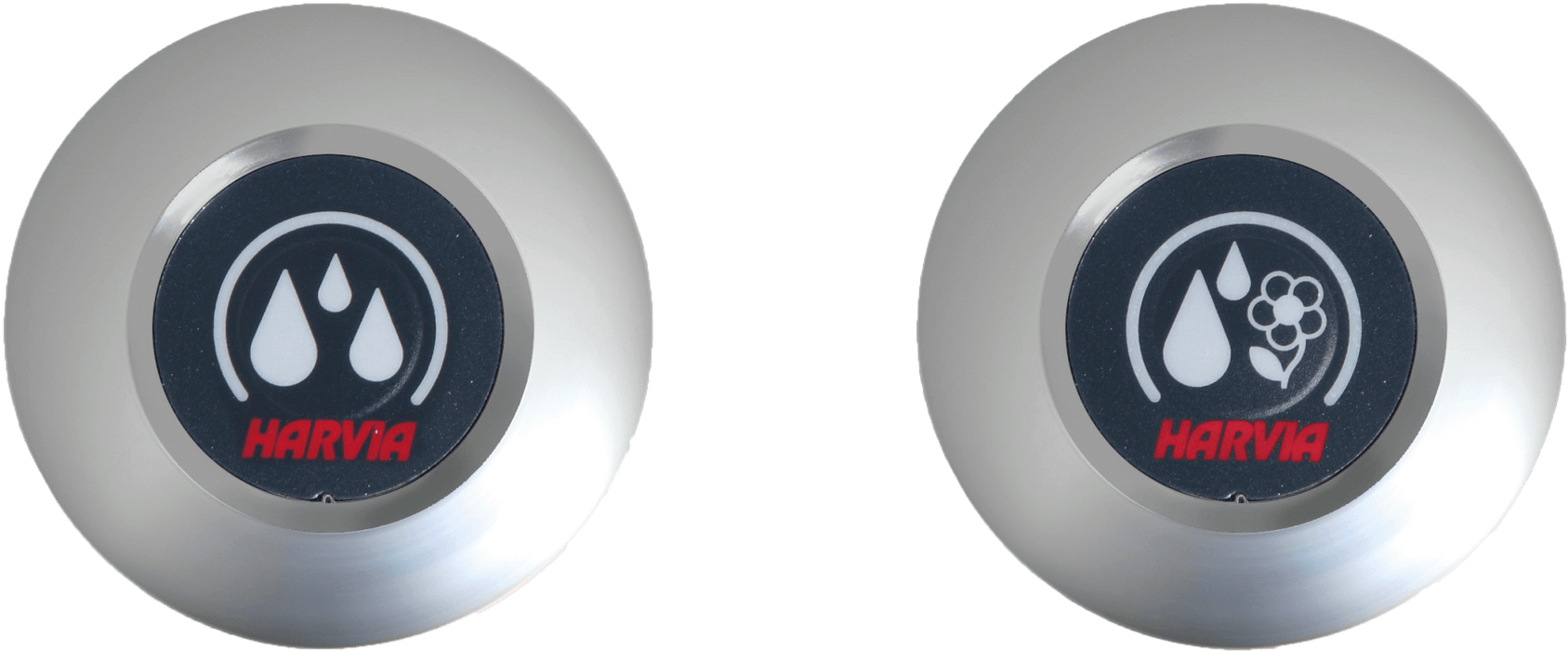

- Two operating buttons, one for water and one for water with fragrance, each on a 13 ft (4 m) cable
- Nozzle with a G¼ external thread

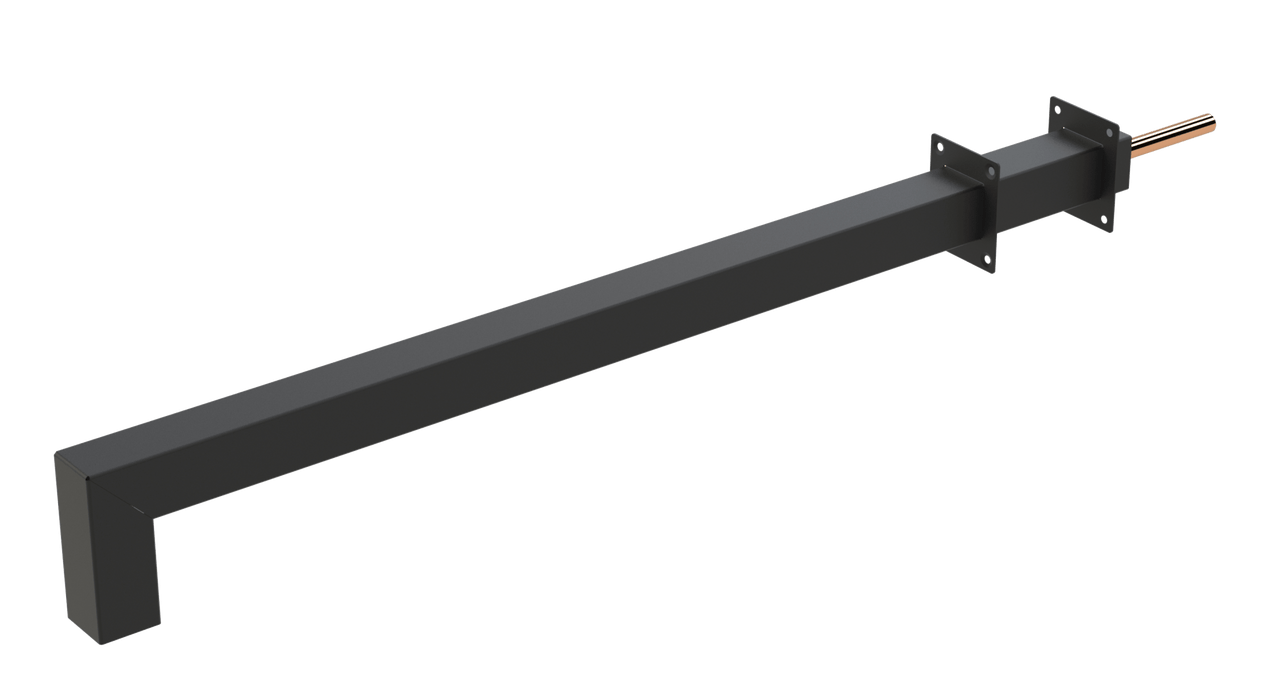

- Harvia SASL2M black design pipe, 23.6" (600 mm)
- Installation and operating instructions
What was not included
- Water piping other than the nozzle and the SASL2M design pipe
- The sauna fragrance
- The electrical and water supply connections, made on site
Harvia Autodose specifications
| Status | Discontinued at Topture; no longer orderable |
|---|---|
| Models | SASL1 (Autodose main unit, buttons and nozzle) and SASL2M (black design pipe) |
| Supply voltage | 230 V 1N~, 50/60 Hz |
| Certification | CE and EAC; no North American listing |
| Main unit | 10.6" W × 3.1" D × 7.9" H (270 × 80 × 201 mm) |
| Water output per dose | 0.3–4 seconds |
| Fragrance pumping | 1–20 seconds |
| Automatic interval | 1–10 minutes; off at the minimum setting |
| Operating buttons | 2.17" × 2.17" × 0.6" (55 × 55 × 15 mm); set into a 2.0" (50–52 mm) hole; up to 10 buttons, 5 for water and 5 for water with fragrance |
| Pipes on the main unit | Outlet pipe 8.2 ft (2.5 m); fragrance suction pipe 1.6 ft (0.5 m) |
| Water supply | Stop valve and vacuum breaker required; incoming pressure 1.5–4.0 bar (about 22–58 psi), 4.0 bar at most |
| Design pipe (SASL2M) | 23.6" (600 mm), black, BSPT ¼ thread |
| Not for | Harvia Delta, Compact and Vega Compact heaters |
