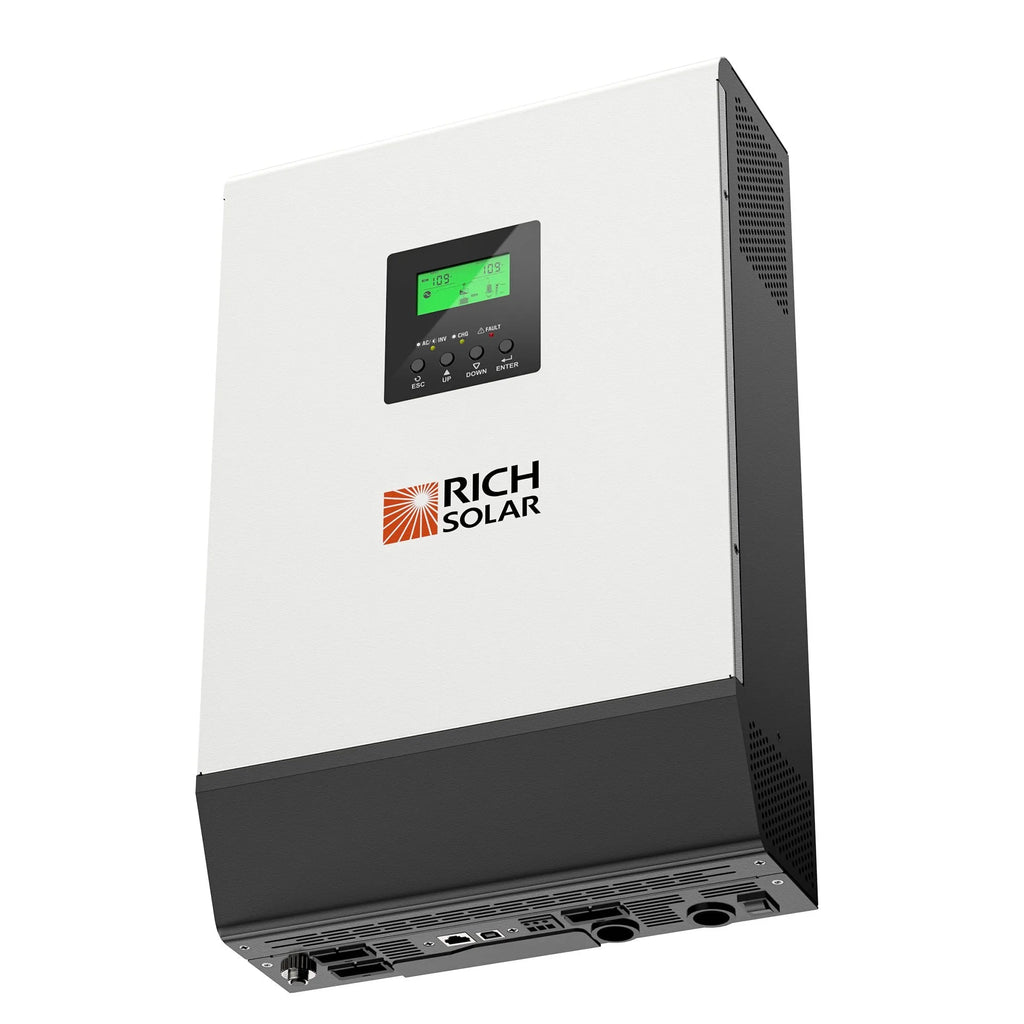

RICH SOLAR Hybrid Off-Grid Inverter | 2400W 24V 120A Output + 2.4kW Solar Input | 80A MPPT Charge Controller (Grid Feedback Optional)

SKU RS-H2424
Original price $799.99 - Original price $799.99
Original price
$799.99
$799.99 - $799.99
Current price $799.99
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa


Free Shipping No Sales Tax Lowest Price Guarantee Speak with an Expert
(Lower 48) None. Find a lower price? We'll beat it! (833) 419-1774



Topture Customer Support

Have a Question?

Our experts are here to help!


Features

  • Pure sine wave output
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV, Battery or Grid
  • User-adjustable charging current and voltage
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Monitoring software for real-time status display and control
  • Parallel-able up to 9 units

Specifications

Model: RS-H2424
Max.PV Array Power: 2400W
Maximum PV Array Open Circuit Voltage: 145 VDC
MPPT Range @ Operating Voltage: 30 VDC ~ 115 VDC
Number of MPP Tracker: 1


GRID OUTPUT (AC)

Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W
Output Voltage Range:
89~111 VAC @ 101 VAC output
97~121 VAC @ 110 VAC output
106~132 VAC @ 120 VAC output
Output Frequency Range:
47.5~51.5Hz @ 50Hz
57.5~61.5Hz @ 60Hz
Nominal Output Current:
29.7A @ 101Vac
27.2A @ 110Vac
25.0A @ 120Vac
Power Factor: >0.99

EFFICIENCY

Maximum Conversion Efficiency (DC/AC): 85%

OFF-GRID, HYBRID OPERATION

AC Start-up Voltage / Auto Restart Voltage: 60 - 70 VAC / 90 VAC
Acceptable Input Voltage Range: 65-140 VAC or 85-140 VAC
Maximum AC Input Current: 40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W / 3000VA
Output Waveform: Pure Sine Wave
Efficiency (DC to AC): 90%

BATTERY & CHARGER

Nominal DC Voltage: 24 VDC
Maximum Charging Current (from Grid): 60A
Maximum Charging Current (from PV): 80A
Maximum Charging Current: 140A

PHYSICAL

Dimension, D X W X H (mm): 120 x 295 x 468
Net Weight (kgs): 11

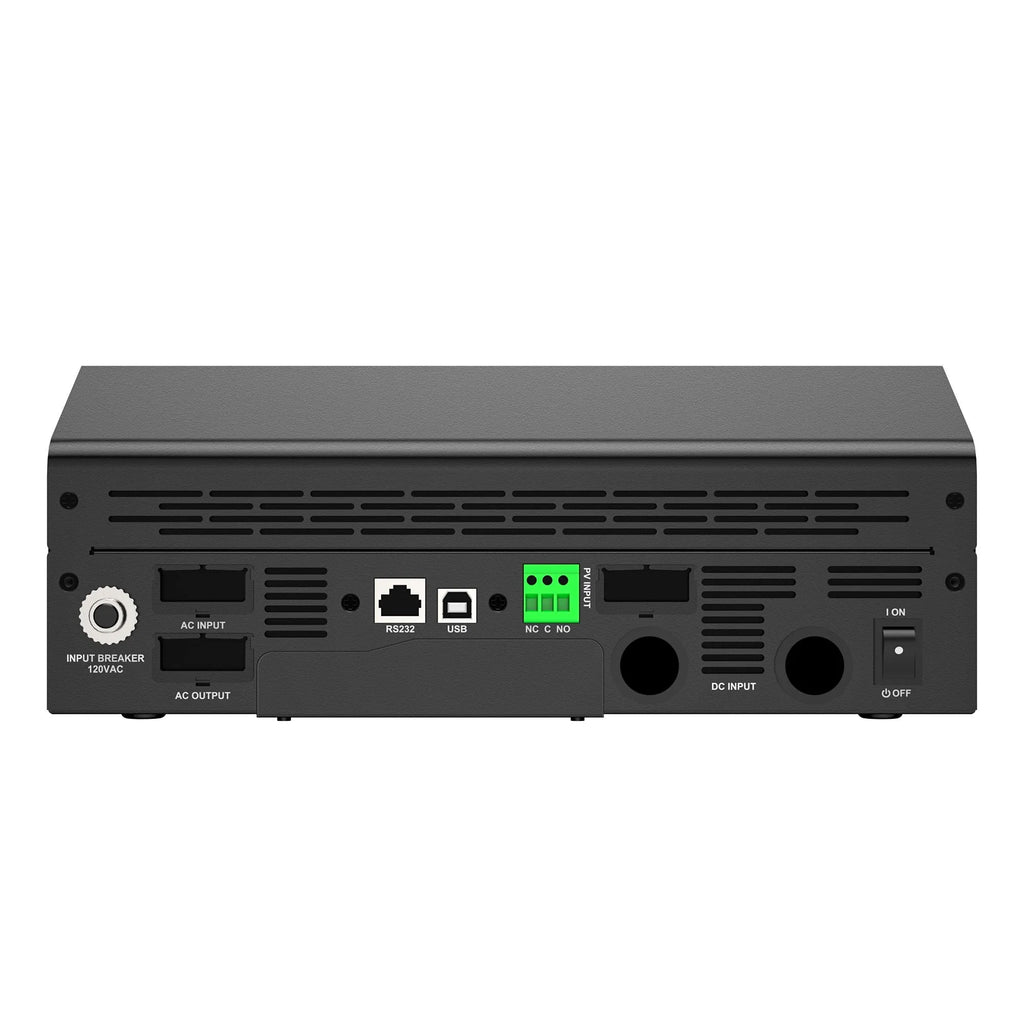

INTERFACE

Parallel-able: Yes. Single phase, Split phase, Three phase
External Safety Box (Optional): Yes
Communication: USB or RS-232/Dry contact

ENVIRONMENT

Humidity: 0 ~ 90% RH (No condensing)
Operating Temperature: 0 to 50°C
