Haljas Hele Glass Mini 3-Person Outdoor Sauna House

Haljas Hele Glass Mini

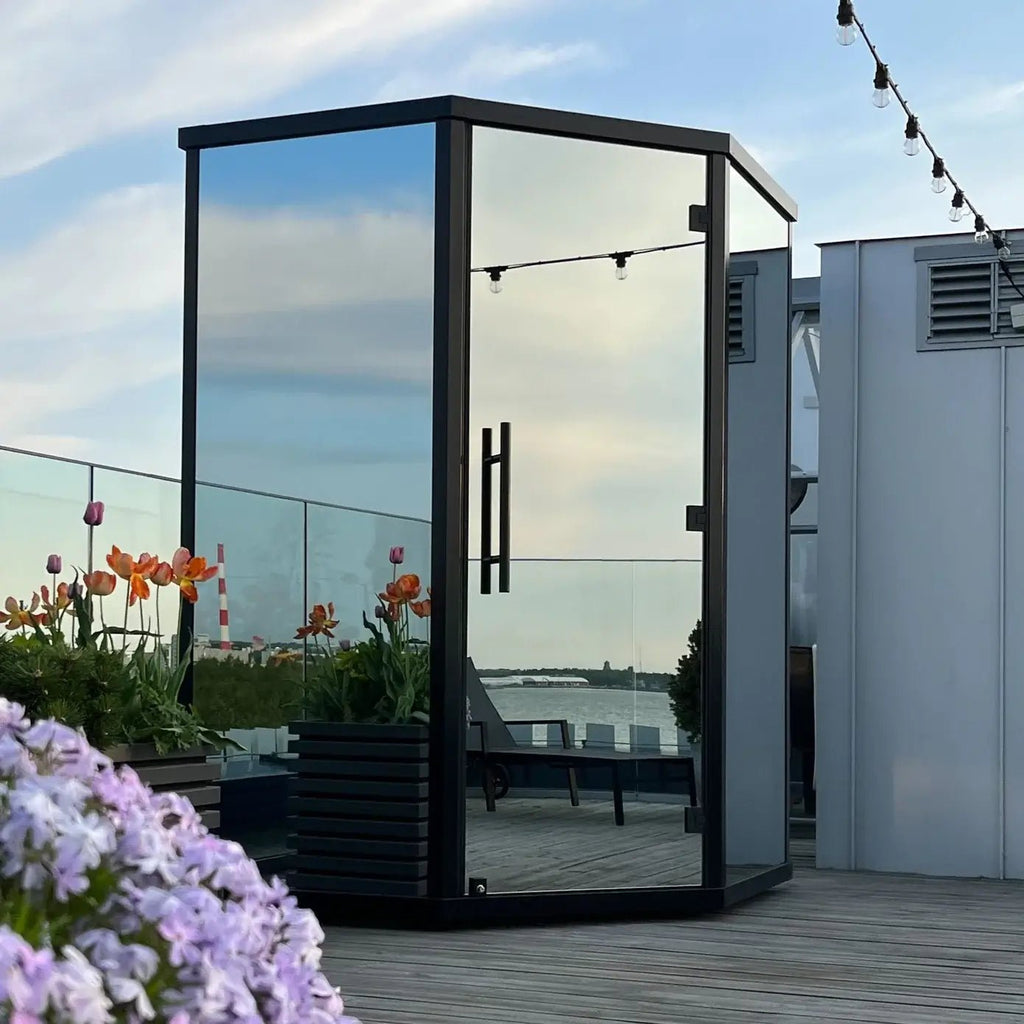

Hele Glass Mini is our smallest sauna from the Hele Glass series. It is created as a compact solution for a terrace or a balcony, accommodating 2-3 people. Hele Glass Mini is only available with an electric heater (sold separately).

Unit is sold and shipped fully assembled.

Whats Included?

• Fully assembled unit
• Upper bench
• Lower bench
• Mechanical ventilation
• 2-year warranty

• Product Manual

Features

• Fully Assembled

• Fits up to 3 people

• Compact sauna solution for terraces or balconies

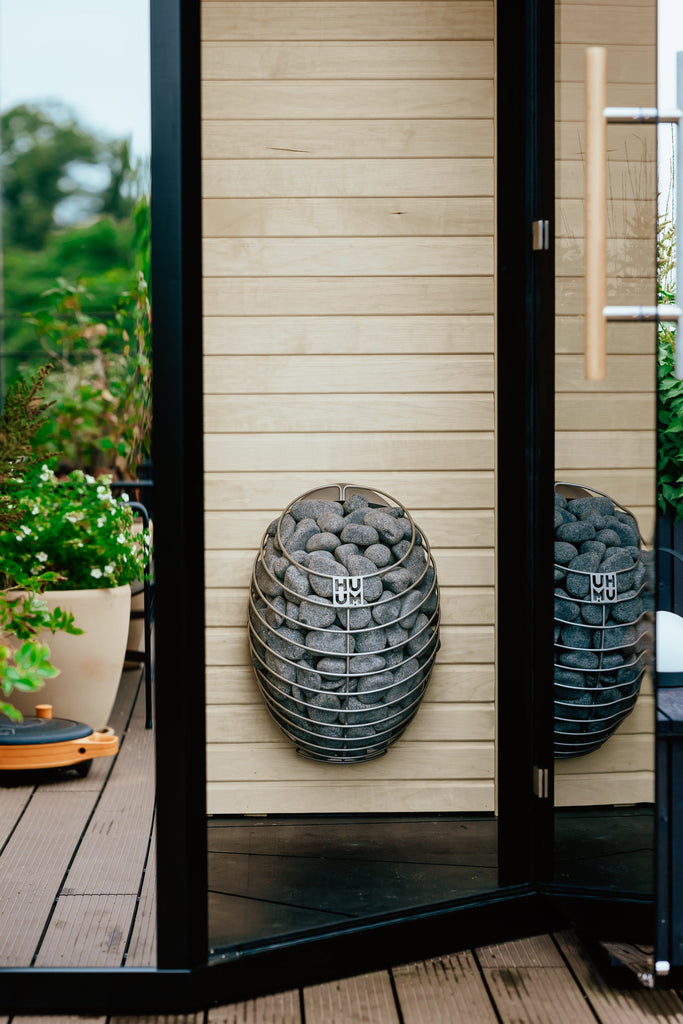

• Designed for use with 9kW wall-mount electric sauna heaters (sold separately)

• Bottom and Ceiling Panel: 60mm CLT panel

• Interior available in Aspen or Thermo-Alder

• Posts: Thermally modified pine/alder GL

• Roof: EPDM

• Slats: Factory-painted sheet metal

• Surround is tempered double-glazed mirror-effect glass

• LED IP-65 strips for interior and exterior lighting

• Designed and crafted in Estonia

• Dimensions: 7' 6-1/2"L x 7'-1/2"W x 8' 2-3/8"H

• 2-year residential warranty, 6-month commercial warranty


Assembly

This unit ships fully assembled.

Surface preparations

• The soil underneath the sauna should be removed and replaced with a well-drained and load-bearing material (splinters, gravel, sand).
• Place 23 5/8" x 23 5/8" concrete tiles horizontally on the ground in accordance with the scheme of the sauna legs.
• Depending on the situation other foundations are allowed (concrete posts, screw pegs) or installing the sauna on a pre-existing surface (terrace, roof, stone pavement). It is important to ensure that the surface is load-bearing, there is enough space for ventilation underneath the sauna and there is water drainage. In addition, it is important to limit the growth of flora underneath and around the sauna in order to minimize any defects from moisture.
• Bring the power cable to the sauna in accordance with the heater manufacturer' manual.

Sauna installation

• The sauna is lifted from stationary hooks on the roof.  Keep in mind the lifting capacity of the lift and the distance.
• After the lift, check that the connections between the hooks and the roof cover are hermetic.  When necessary improve compression with a roof sealant.
• Make sure the legs are correctly placed on the surface.
• Level the sauna horizontally using the adjustable legs. Leave a 1% incline front to back to provide proper water drainage from the floor and ceiling.
• Place the stones into the heater in accordance with the heater manufacturer's manual.
• The sauna should be connected to the electricity network by a qualified electrician in accordance with the heater manufacturer's manual.

Maintenance

For maintenance, please refer to the Product Manual.
