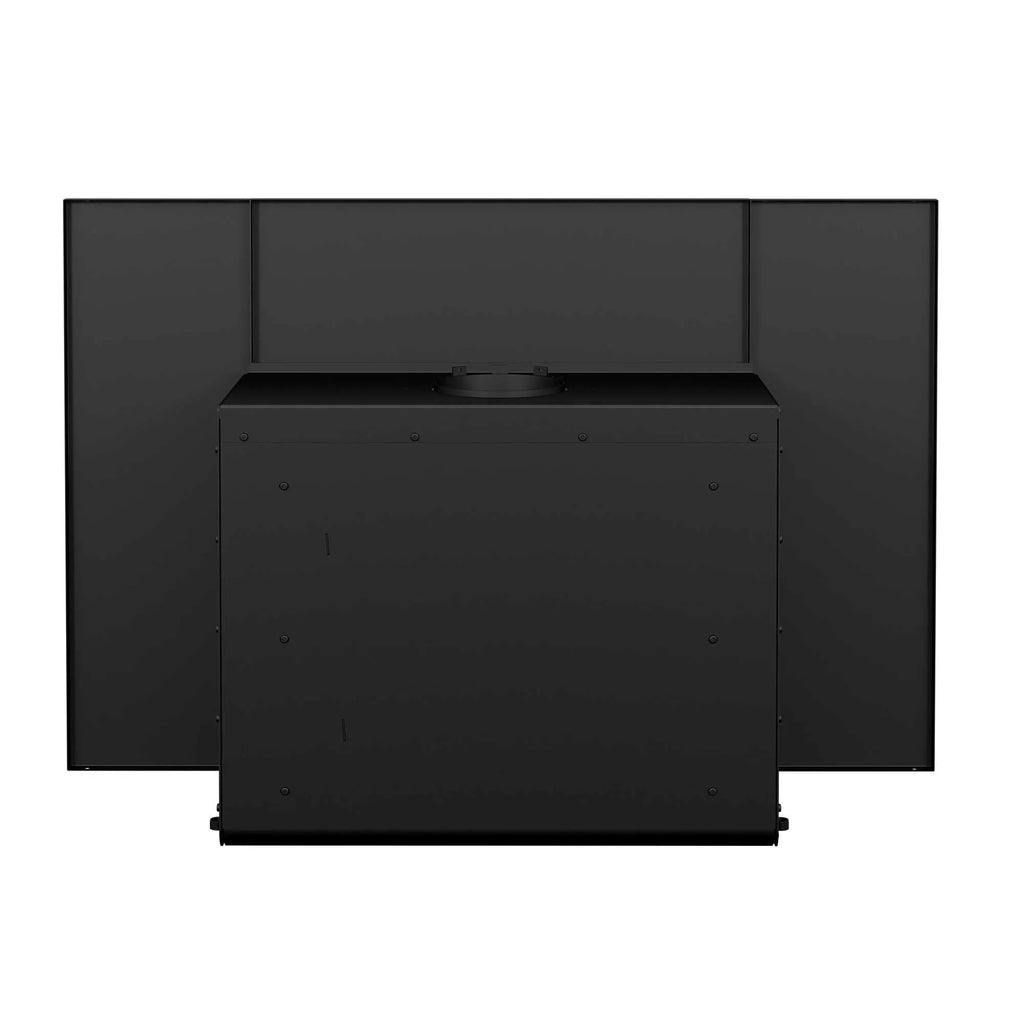

Drolet Escape 1500-I Wood Insert | with Faceplate | DB03137
✔️Up to 6 hours burn time
✔️Up to 18" logs
✔️Proudly made in Canada
✔️Limited lifetime warranty
✔️Up to 6 hours burn time
✔️Up to 18" logs
✔️Proudly made in Canada
✔️Limited lifetime warranty
Combining performance and respect for the environment, the Escape 1500 is the perfect choice for heating homes up to 1,800 ft². With only 1.26 g/h of particulate emissions, this non-catalytic wood insert gives off up to 65,000 BTU/h while largely meeting EPA standards. The Escape 1500 is the perfect way to update your masonry fireplace, and make it efficient!
Included: 29" x 44" faceplate, blower, ceramic glass, ash lip, air damper
▪Burn time up to 6 hours
▪Up to 18" logs
▪Robust 5/16" steel reinforced with a stainless steel heat shield
▪EPA certified
▪Proudly made in Canada
▪Limited lifetime warranty
Options: metallic black stove paint, stainless flex liner kit, insulated flex pipe, fresh air intake, rigid firescreen, offset liner adaptor,
Any installation must be done according to the data and drawings detailed in the owner’s manual.
Efficiency Data Summary | US Tax Credit
RECOMMENDED AREA MAP BY CLIMATE ZONE
Fuel type | Dry cordwood (16" recommended) |
Recommended heating area(10) | 500 - 1,800 ft² |
EPA loading volume | 1.44 ft³ |
Maximum burn time(10) | 6h |
Maximum heat output-dry cordwood | 65,000 BTU/h (19 kW) |
Minimum overall heat output rate(4) (5) | 15,650 BTU/h (4.6 kW) |
Maximum overall heat output rate (4) (5) | 23,300 BTU/h (6.83 kW) |
Average overall efficiency-dry cordwood (HHV) | 70 % |
Average overall efficiency-dry cordwood (LHV)(5) (7 | 75 % |
Optimum efficiency (1) (2) | 78 % |
Optimum heat transfer efficiency(8) | 74 % |
Average particulate emission rate(3) | 1.26 g/h |
Average CO(10) | 58 g/h |
Size |
Medium |
Premium quality blower included (CFM) | 144 CFM included |
Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
Combustion technology | Non-catalytic |
Stainless-steel secondary-air system | Yes |
Flue outlet diameter | 6" |
Distance-center of the flue outlet to the back unit | 5 3/4" |
Distance-center of the flue outlet to the side unit | 12 3/4" |
Recommended chimney diameter | 6" |
Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
Minimum chimney height | 12" |
Overall dimension (Width) | 27 1/4" |
Overall dimension (Height) | 21 1/4" |
Overall dimension (Depth) | 22 3/8" |
Door type | Single, glass with cast iron frame |
Door opening size (Width) | 17 1/4" |
Door opening size (Height) | 8 3/4" |
Glass type |
Ceramic glass |
Glass surface - W x H | 15 3/4" x 9 3/4" |
Steel thickness-body | 3/16" |
Steel thickness-top | 5/16" |
Firebox size (Width) | 19 5/8" |
Firebox size (Height) | 11 7/8" |
Firebox size (Depth) | 13 1/2" |
Maximum log length | 18" |
Log positioning | Loading over width |
Firebox lined with refractory bricks | Yes |
Baffle type | High-quality vermiculite |
Minimum fireplace opening (Width) | 27 1/2" |
Minimum fireplace opening (Height) | 21 1/2" |
Minimum fireplace opening (Depth) | 12 3/4" |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | EPA |
Canadian Standard (safety) | ULC S628 |
USA Standard (safety) | UL 1482, UL 737 |
Warranty | Limited lifetime |
Shipping weight | 360 lb (163 kg) |
Clearances to combustibles in US*
Clearance - Base of the unit to ceiling** | 84" |
Clearance - Combustible top mantle to unit | 27" |
Clearance - Combustible side mantle to unit | 9" |
Clearance - Combustible side wall to unit | 16" |
Clearance - Top of the unit to a 12" combustible mantle shelf | 27" |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogs, flyers, magazines, and/or websites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower the Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in the home, chimney draft, heat loss factors, climate, fuel type, and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxide.
WARNING California's Proposition 65
About the Brand
In 1988, Drolet was a pioneer in the development of low-emission products. The HT-2000 is the first EPA / CSA-certified appliance and has literally become a legend in the wood-burning world! Over the next few years, a whole series of "HT" products were developed and met with huge success.
Over the years, environmental standards have been tightened more and more to reduce the emissions of fine particles caused by the combustion of wood-burning appliances. Just as innovative as in its beginnings, Drolet is ahead of this wave of change and successfully re-certifies its appliances long before the deadline. It was these changes in standards that led to the creation of the HT-3000, which succeeded the legendary HT-2000.
Synonymous with robustness, reliability, and safety, Drolet's DNA solidifies over time. The new generations can benefit from the same quality as that established by the know-how of F.X. Drolet and his team back in the days. Proudly Canadian, the manufacture of Drolet appliances is now in Saint-Augustin-de-Desmaures, near Quebec City, in a state-of-the-art factory.
The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. Proof of purchase (dated bill of sale), model name and serial number must be supplied when making any warranty claim to your DROLET dealer.
This warranty does not cover any scratch, corrosion, distortion, or discoloration. Any defect or damage caused by the use of unauthorized or other than original parts voids this warranty. An authorized qualified technician must perform the installation in accordance with the instructions supplied with this product and all local and national building codes. Any service call related to an improper installation is not covered by this warranty.
The manufacturer may require that defective products be returned or that digital pictures be provided to support the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. Transportation fees to ship the product back to the purchaser will be paid by the manufacturer. Repair work covered by the warranty, executed at the purchaser’s domicile by an authorized qualified technician requires the prior approval of the manufacturer. All parts and labour costs covered by this warranty are limited according (*Subject to limitations) to each table per unit below.
The manufacturer, at its discretion, may decide to repair or replace any part or unit after inspection and investigation of the defect. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale price of any warranted but defective parts. The manufacturer shall, in no event, be responsible for any uncommon, indirect, consequential damages of any nature, which are in excess of the original purchase price of the product.
Labour cost and repair work to the account of the manufacturer are based on a predetermined rate schedule and must not exceed the wholesale price of the replacement part. Shall your unit or a components be defective, contact immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information:
• Your name, address and telephone number;
• Bill of sale and dealer’s name;
• Installation configuration;
• Serial number and model name as indicated on the nameplate fixed to the back of your unit;
• Nature of the defect and any relevant information.
Before shipping your unit or defective component to our plant, you must obtain an Authorization Number from your DROLET dealer. Any merchandise shipped to our plant without authorization will be refused automatically and returned to sender.
*Pictures required.
This warranty applies to normal residential use only. This warranty is void if the unit is used to burn material other than cordwood (for which the unit is not certified by EPA) and void if not operated according to the owner's manual. Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, venting problems or under-estimated heating area are not covered by this warranty. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
Description | Parts | Labour |
---|---|---|
Combustion chamber (welds only) and cast iron door frame. | Lifetime | 3 years |
Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacture*), and convector air-mate. | 5 years | 3 years |
Removable stainless steel combustion chamber components, secondary air tubes*, deflectors, and supports. | 5 years | N/A |
Glass retainers, handle assembly, and air control mechanism. | 3 years | 1 year |
Carbon steel combustion chamber components, vermiculite, C-Cast or equivalent baffle*. | 2 years | N/A |
Standard blower, heat sensors, switches, rheostat, wiring, and other controls. | 1 year | 1 year |
Optional blower, paint (peeling*), ceramic glass (thermal breakage only*), ceramic fibre blankets, gaskets, insulation, and other options. | 1 year | N/A |
Firebricks. | N/A | N/A |
All parts replaced under the warranty. | 90 days | N/A |
This warranty applies to normal residential use only. Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, venting problems or
under-estimated heating area are not covered by this warranty. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature considering that the space configuration and the presence of heat distribution systems have a significant impact in making heat circulation optimum.
Description | Parts | Labour |
---|---|---|
Combustion chamber (welds only*), heat exchanger (welds only*), and cast iron door frame. | Lifetime | 3 years |
Surrounds, heat shields, ash drawer, legs, pedestal, trims (aluminum extrusions), and plating (defective manufacture*). | 5 years | 3 years |
Removable stainless steel components, burn pot, deflectors, and supports. | 3 years | N/A |
Glass retainers, handle assembly, cleaning rod, air control mechanism, and auger. | 3 years | 1 year |
Blowers, auger motor, PC board, igniter, heat sensors, switches, wiring, rheostat, and other controls. | 1 year | 1 year |
Ceramic glass (thermal breakage only*), paint (peeling*), gaskets, insulation, ceramic fibre blankets, ceramic logs*, masonry-like panels* and other options. | 1 year | N/A |
All parts replaced under the warranty. | 90 days | N/A |
This warranty applies to normal residential use only. Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, venting problems or
under-estimated heating area are not covered by this warranty. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature considering that the space configuration and the presence of heat distribution systems have a significant impact in making heat circulation optimum.
Description | Parts | Labour |
---|---|---|
Combustion chamber (welds only) and cast iron door frame. | Lifetime | 3 years |
Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacture*), and convector air-mate. | 5 years | 3 years |
Removable stainless steel combustion chamber components, secondary air tubes*, deflectors, and supports. | 5 years | N/A |
Glass retainers, handle assembly, and air control mechanism. | 3 years | 1 year |
Carbon steel combustion chamber components, vermiculite baffle*, and C-Cast baffle*. | 2 years | N/A |
Standard blower, heat sensors, switches, rheostat, wiring, and other controls. | 1 year | 1 year |
Optional blower, paint (peeling*), ceramic glass (thermal breakage only*), ceramic fibre blankets, gaskets, insulation, and other options. | 1 year | N/A |
Firebricks. | N/A | N/A |
All parts replaced under the warranty. | 90 days | N/A |
This warranty applies to normal residential use only. Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered by this warranty. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
Description | Parts | Labour |
---|---|---|
Combustion chamber (welds only) and cast iron door frame. | Lifetime | N/A |
Surrounds, ash drawer, trims (extrusions), and convector air-mate. | 5 years | N/A |
Removable stainless steel combustion chamber components, deflectors, and supports. | 5 years | N/A |
Glass retainers, handle assembly, and air control mechanism. | 3 years | N/A |
Carbon steel combustion chamber components. | 2 years | N/A |
Paint (peeling**), plating (defective manufacture**), ceramic glass (thermal breakage only**), gaskets, insulation, and oven thermometer. | 1 year | N/A |
Firebricks, vermiculite combustion chamber components, oven mitt, and cooking accessories. | N/A | N/A |
All parts replaced under the warranty. | 90 days | N/A |
This warranty applies to normal residential use only. Damages caused by misuse, abuse, improper installation, lack of maintenance, negligence or accident during transportation are not covered by this warranty.
Description | Parts | Labour |
---|---|---|
Combustion chamber (welds only), burner, venting system and enameled parts | 5 years | N/A |
Gas valve, pilot assembly (related parts) and ceramic glass (thermal breakage only* | 2 years | N/A |
Blowers, heat sensors, switches and gaskets | 1 year | N/A |
Outdoor fireplaces come with a limited 6 months warranty from the date of purchase, against manufacturing defects. Our warranty does not cover damages caused by rust and/or excessive heat. The paint is not guaranteed. To preserve the appearance of your fireplace, paint it with a high-temperature stove or barbecue paint.
