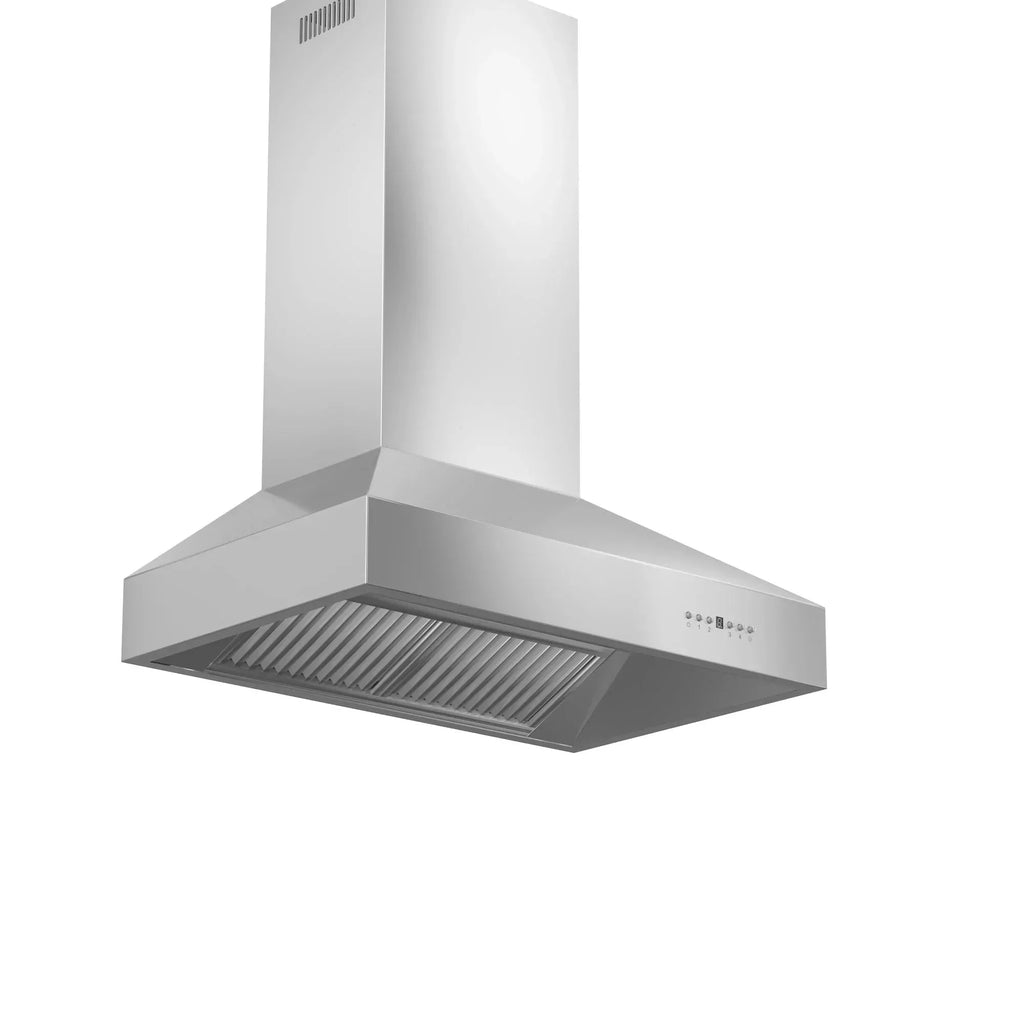

ZLINE 697-304 Wall Range Hood (Outdoor)

ZLINE 697-304 Wall Range Hood (Outdoor)

The ZLINE 697-304 professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade stainless steel, making it approved for outdoor use. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods.

Product Features

• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• High performance 4-speed motor
• Includes chimney

Chimney Sizing

Please note the position of a grill lid can block the range hood filters and decrease range hood performance. We recommend moving the range hood to accommodate your grill lid or ensure range hood depth will surpass the size of the grill and mounted 38-42 neys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

Product Specs

• Brand: ZLINE Kitchen and Bath
• Dimensions:
• 697-304-30: 30" W x 27.5" D x 16.375" H
• 697-304-36: 36" W x 27.5" D x 16.375" H
• 697-304-42: 42" W x 27.5" D x 16.375" H
• 697-304-48: 48" W x 27.5" D x 16.375" H
• 697-304-54: 54" W x 27.5" D x 16.375" H
• 697-304-60: 60" W x 27.5" D x 16.375" H
• Chimney: 13.5" W x 11.75" D x 16" H (x2) (Telescoping)
• Chimney Short Kit and Extension(s) Available:
• Short Kit (2-12") ~7-8 ft. Ceilings
• 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
• 2 PC Extension (2-36") ~10-12 ft. Ceilings
• Venting Size: 6" Outlet (Transition piece with backdraft damper to round ducting included)
• Charcoal Filters (not included) available for ductless/recirculating option.
• Airflow (Q/L/M/H):
• 697-304-30: 120/240/320/400
• 697-304-36: 280/420/560/700
• 697-304-42: 280/420/560/700
• 697-304-48: 280/420/560/700
• 697-304-54: 280/420/560/700
• 697-304-60: 280/420/560/700
• Lighting: LED Lights
• Noise Level: 20/29/34/41 (Decibels)
• Voltage: 110V/60HZ
• Motor: High Performance 400 CFM/4-Speed Motor
• Mount Type: Wall Mounted
• Speeds: 4 Speeds
• Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
• Material: 19g #304 Stainless Steel
• Warranty: 3 Year Parts Warranty
• Click Here to View Manual

Range Hood Manual
